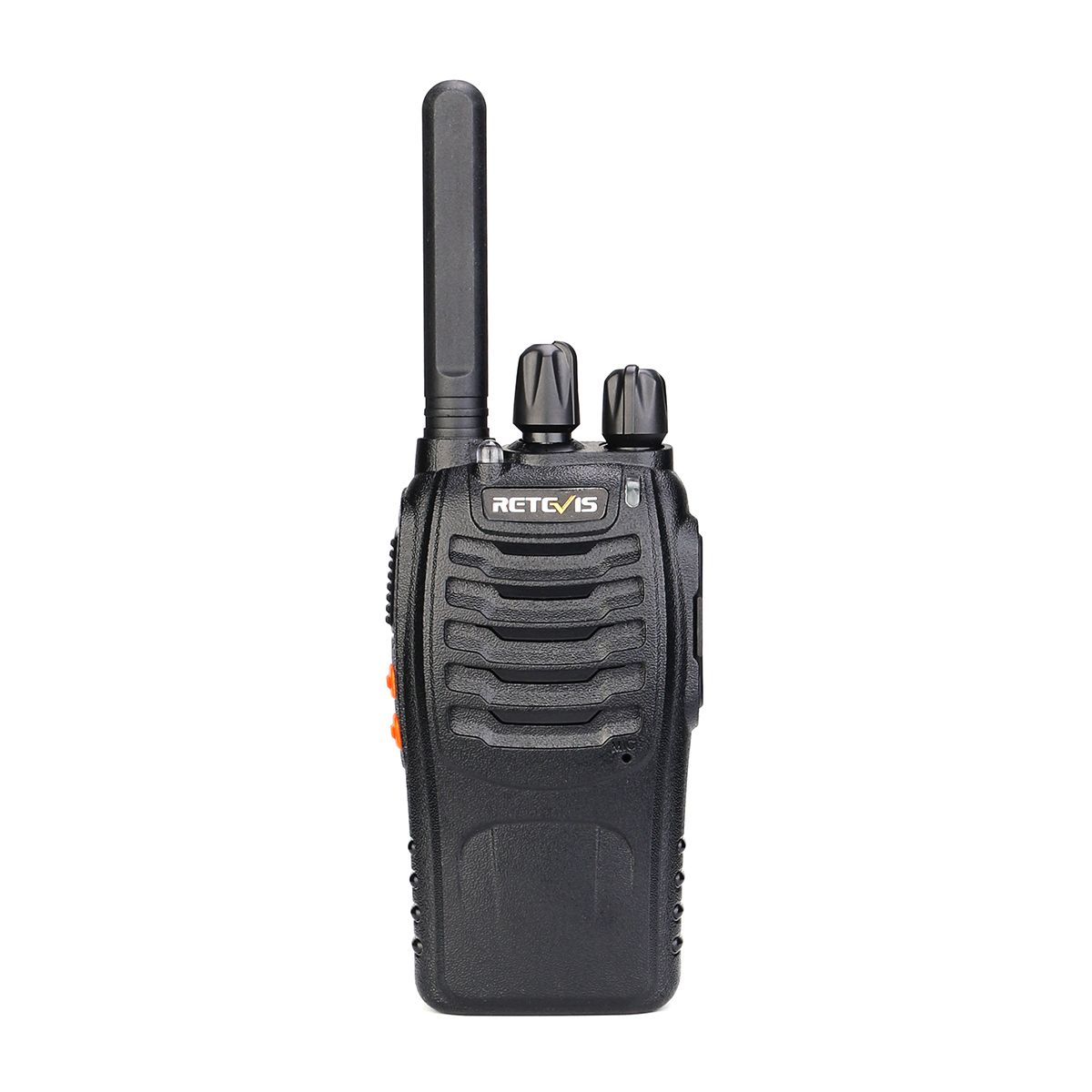

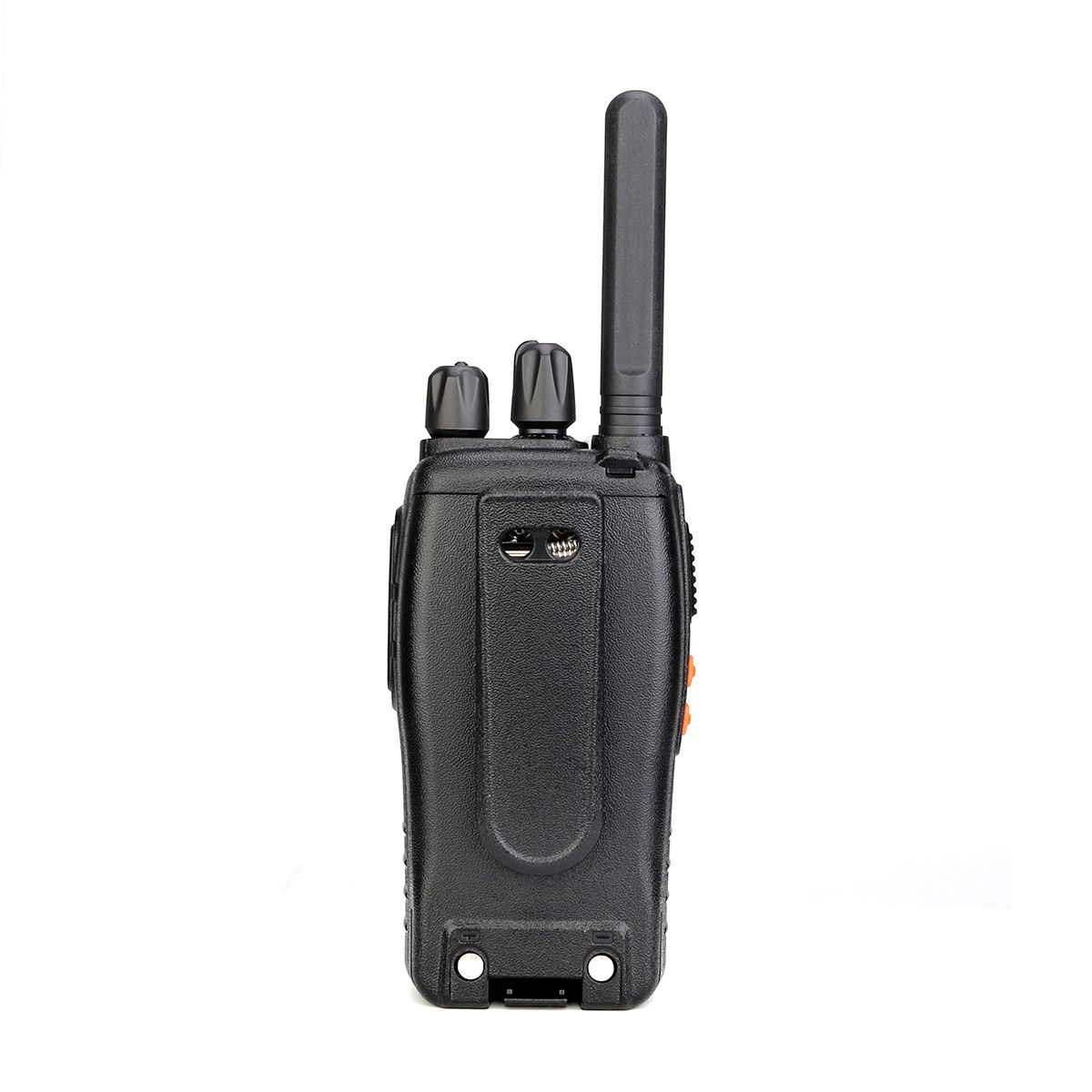

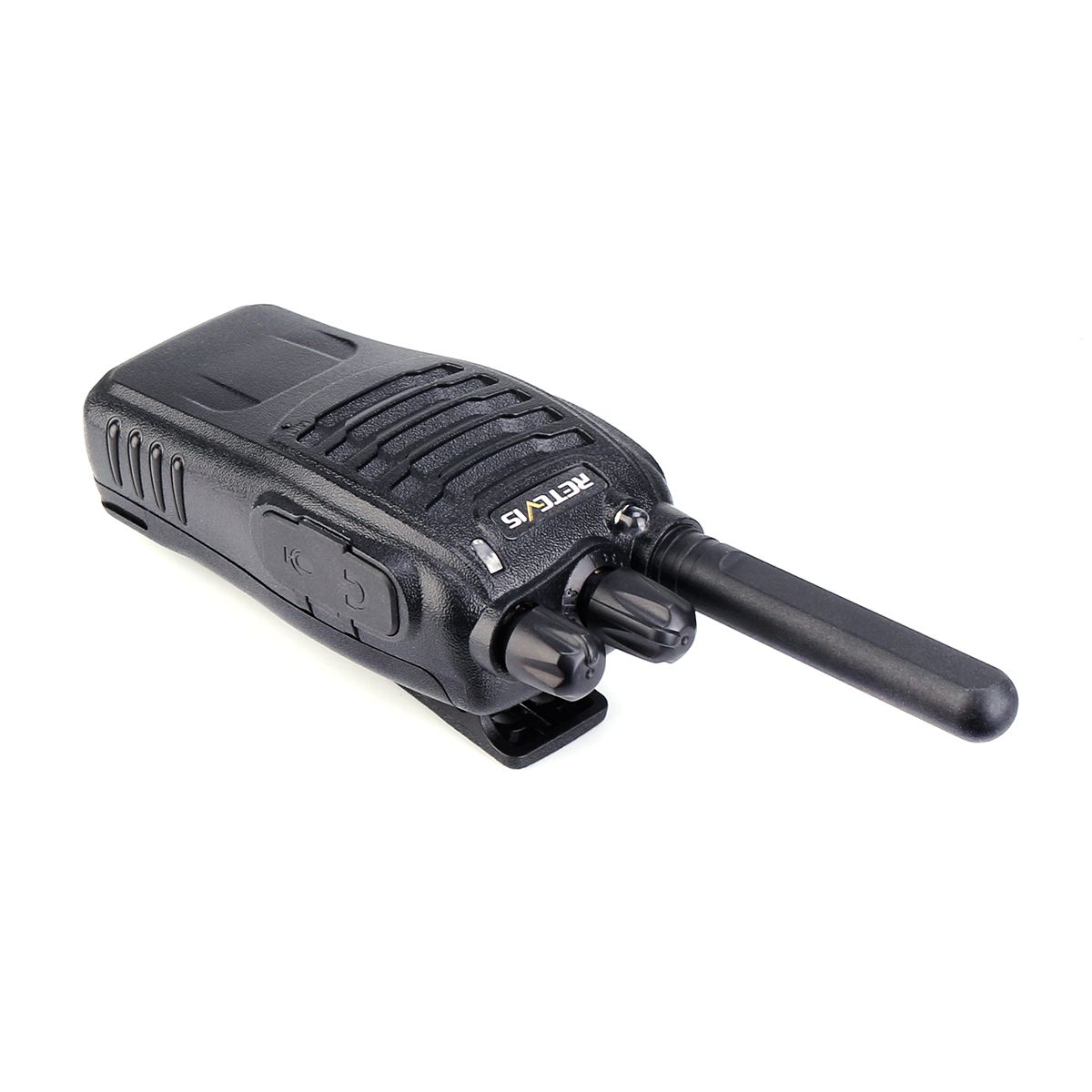

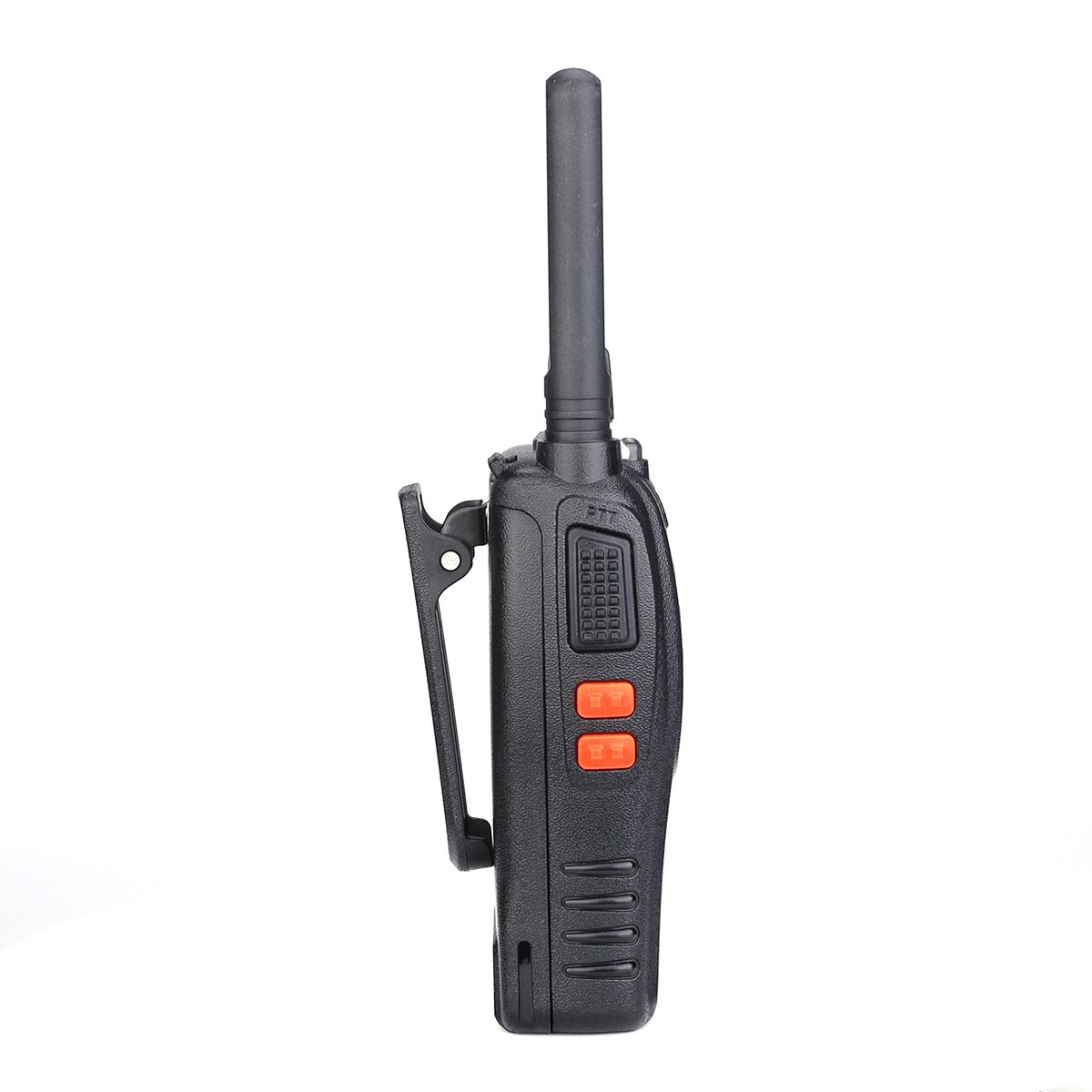

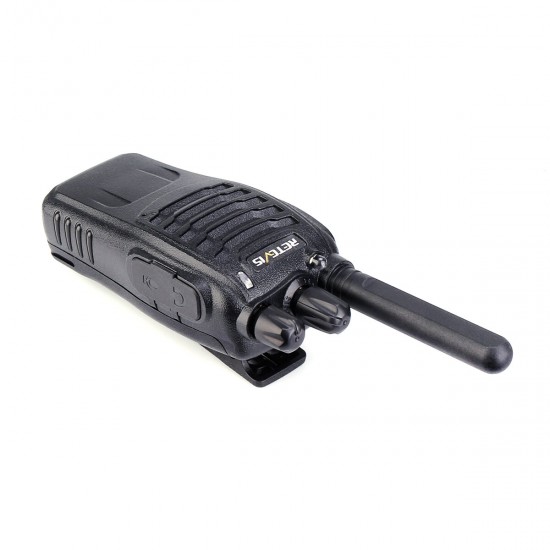

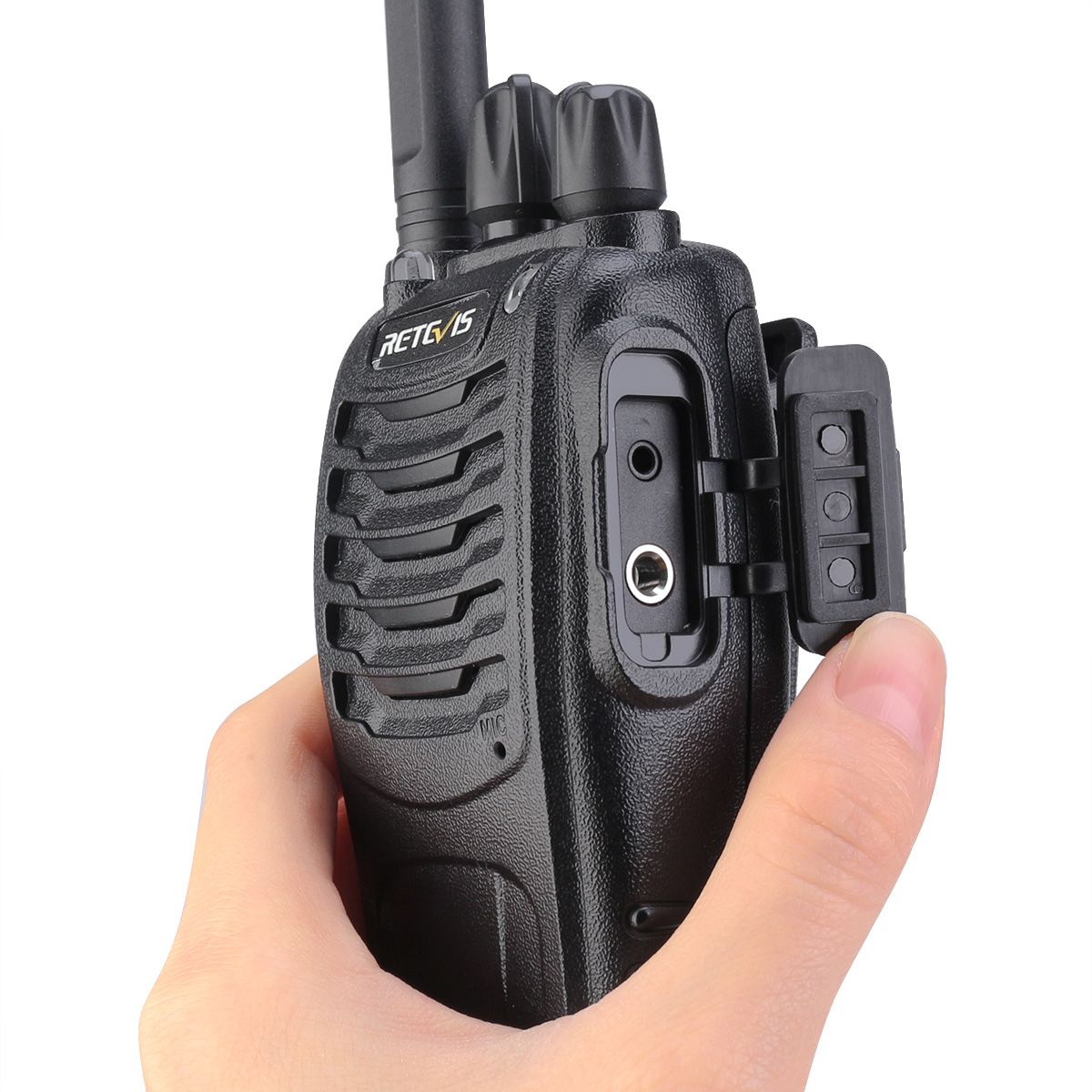

H777 Walkie Talkie 16CH UHF 400-470MHz Ham Radio HF Transceiver 2 Way Radio
- Stock: In Stock
- Model: EB0024863
- SKU: EB0024863
Features:
1. CTCSS/DCS function
2. Built-in Led torch
3. Low battery alarm
4. Power saving function
5. Time-out-Time(TOT) function
6. Scan function
7. Squelch level
8. Voice prompt
Specification :
1. Frequency range: 462.5500-462.7250MHZ
2. Channel number: 16CH
3. RF power:£2w
4. Channel space:12.5KHz
5. Supply voltage: 3.7 V lithium battery
6. Battery capacity: 1000mAh

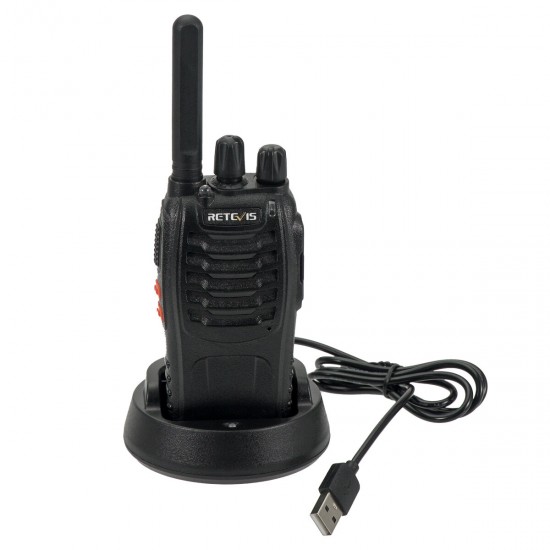

7. Charging interface: Drop-in charging tray
8. Frequency stability: ±2.5ppm
9. Working temperature: -20° C ~ +60 ° C
10. Dimensions: 170 (W) x 57 (H) x 35 (D) mm
11. Weight: body 100g battery 49g total 157g(include battery, belt clip)
Electrical properties:
Receiver
Sensitivity（12DB SINAD) | -122dBm |
Adjacent Channel Selectivity | ≥55dB@12.5KHz |
intermodulation rejection | ≥58dB |
Rated audio power | ≥0.5W@8ohms |
Audio response | ±1～-3db(0.3～3khz) |
Rated audio distortion | ≤5% |
Transmitter
output power | ≤2W |
modulation mode | 11K0F3E@12.5KHz |
Modulation noise | ≥40dB@12.5KHz |
Stray radiation | -36dBm＜1GHz，-30dBm＞1GHz |
Adjacent channel power | ≤-60dB@12.5KHz |
Audio response | ±1～-3db(0.3～3khz) |
Modulation distortion | ≤3% |

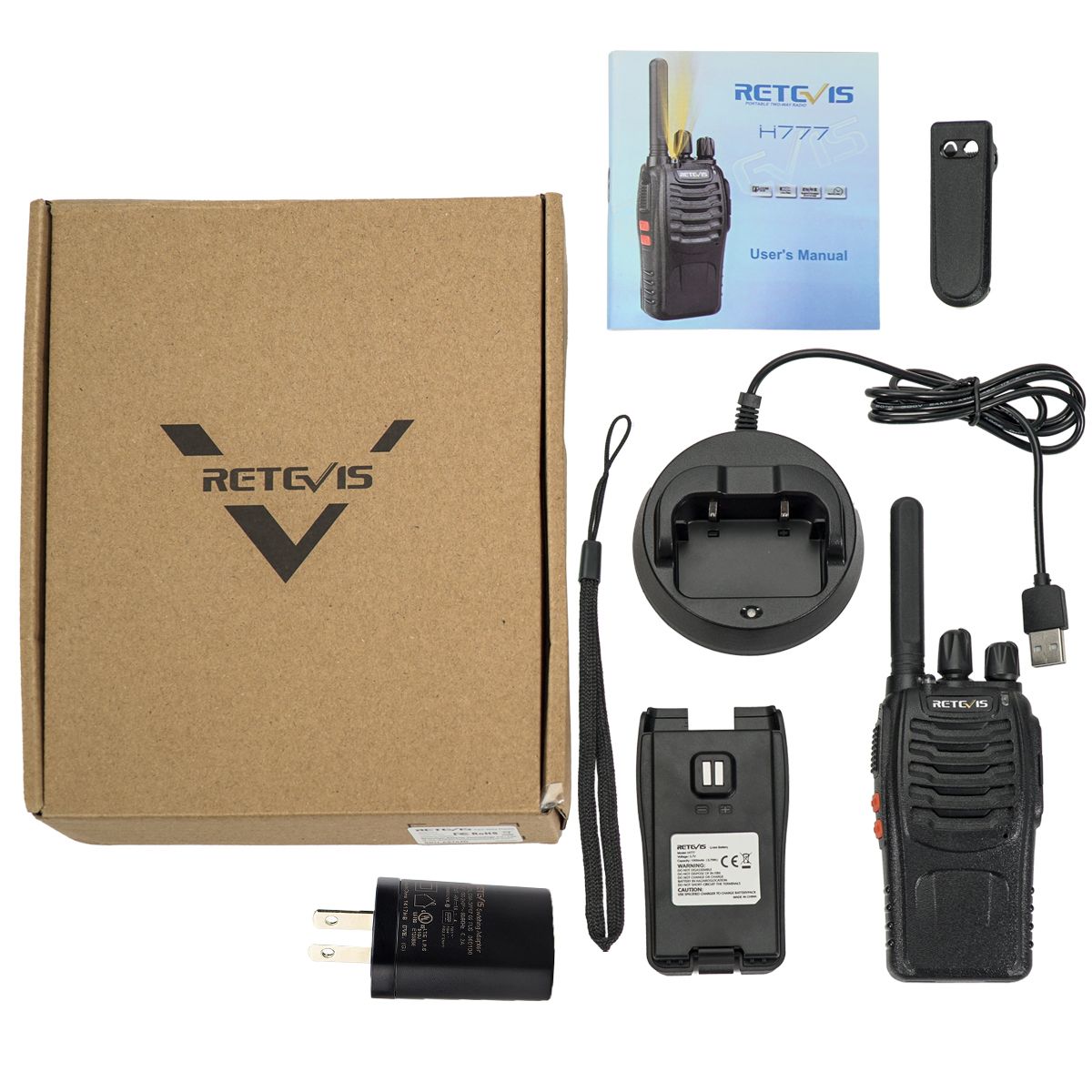

Package included:
1 x H777 Two Way Radio

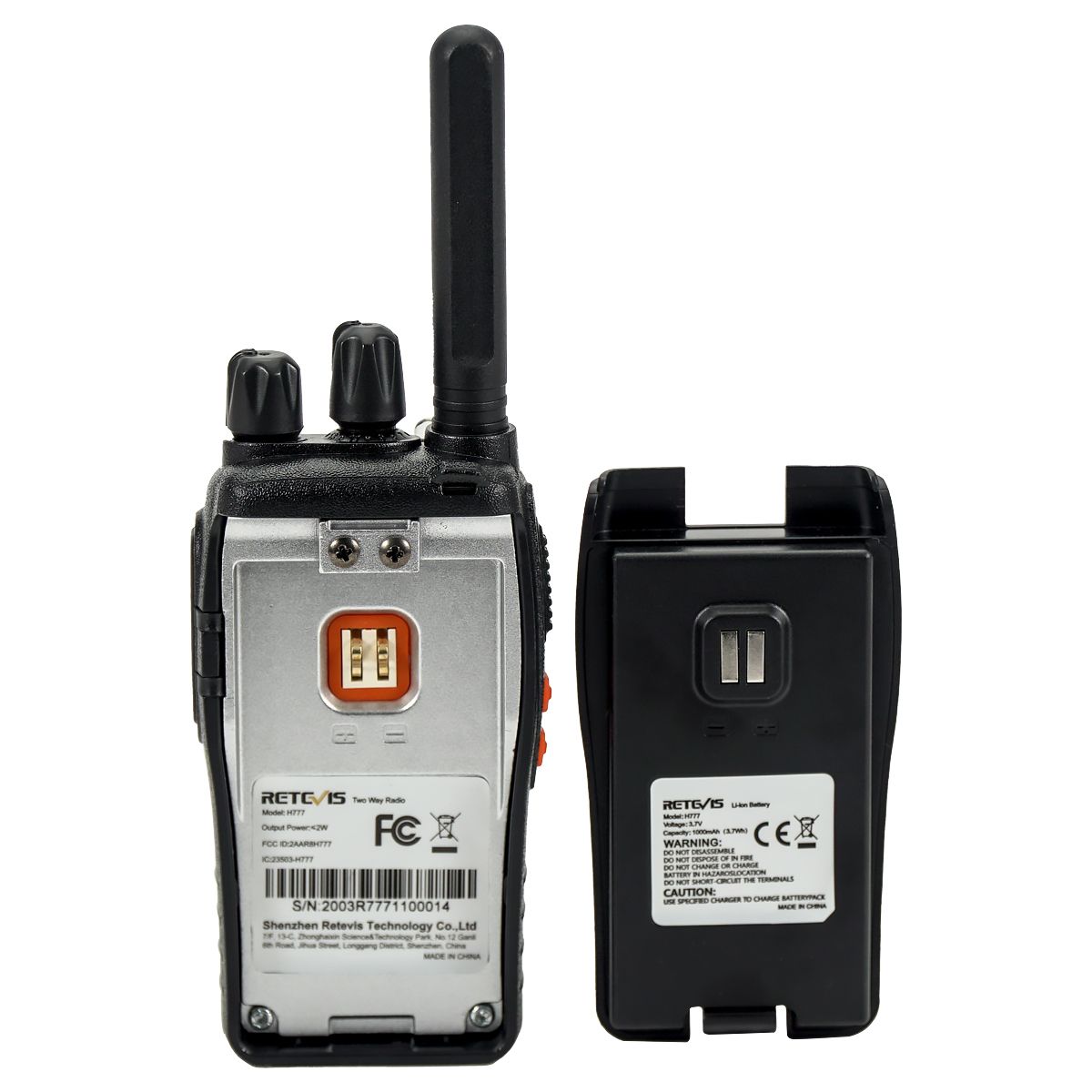

1 x Li-ion Battery

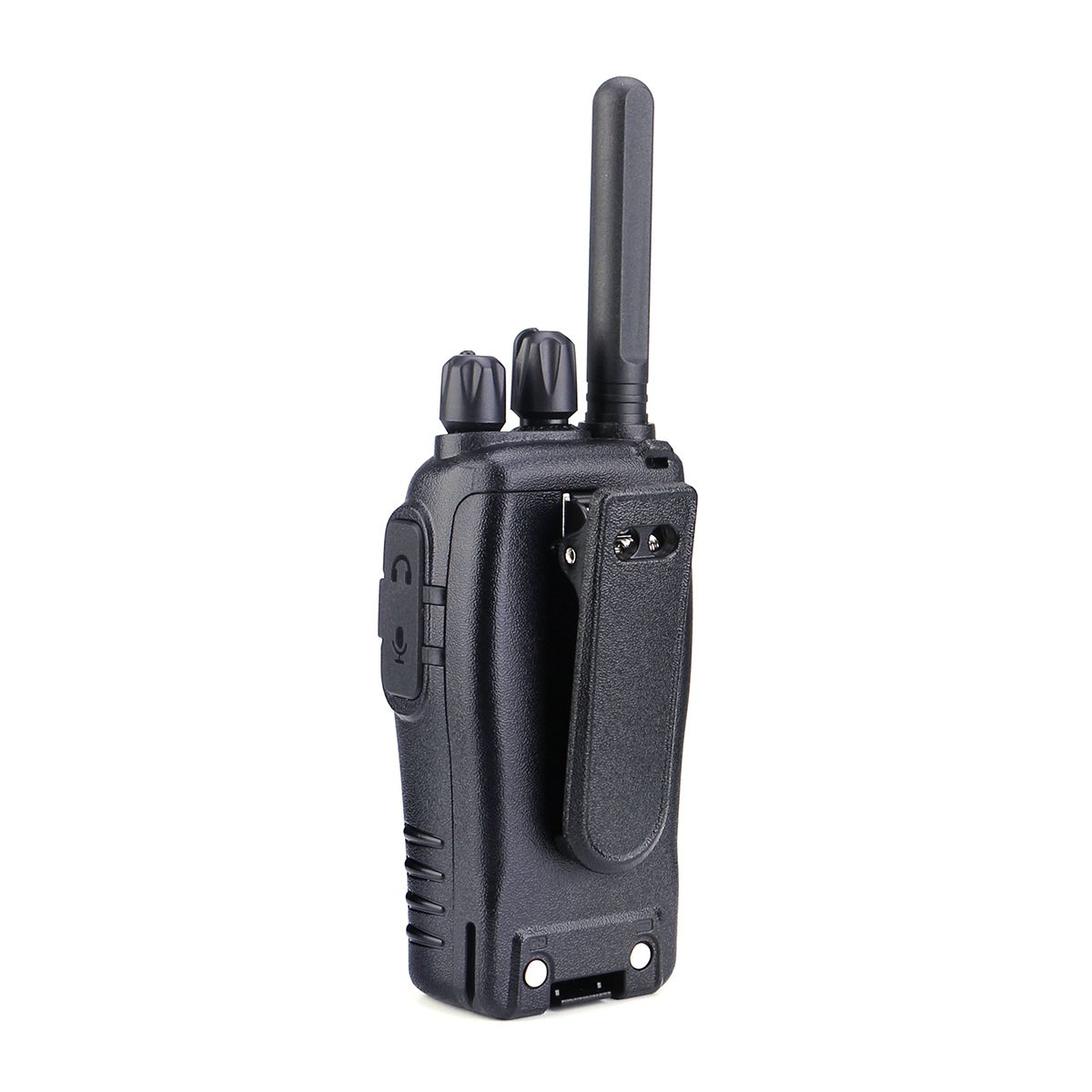

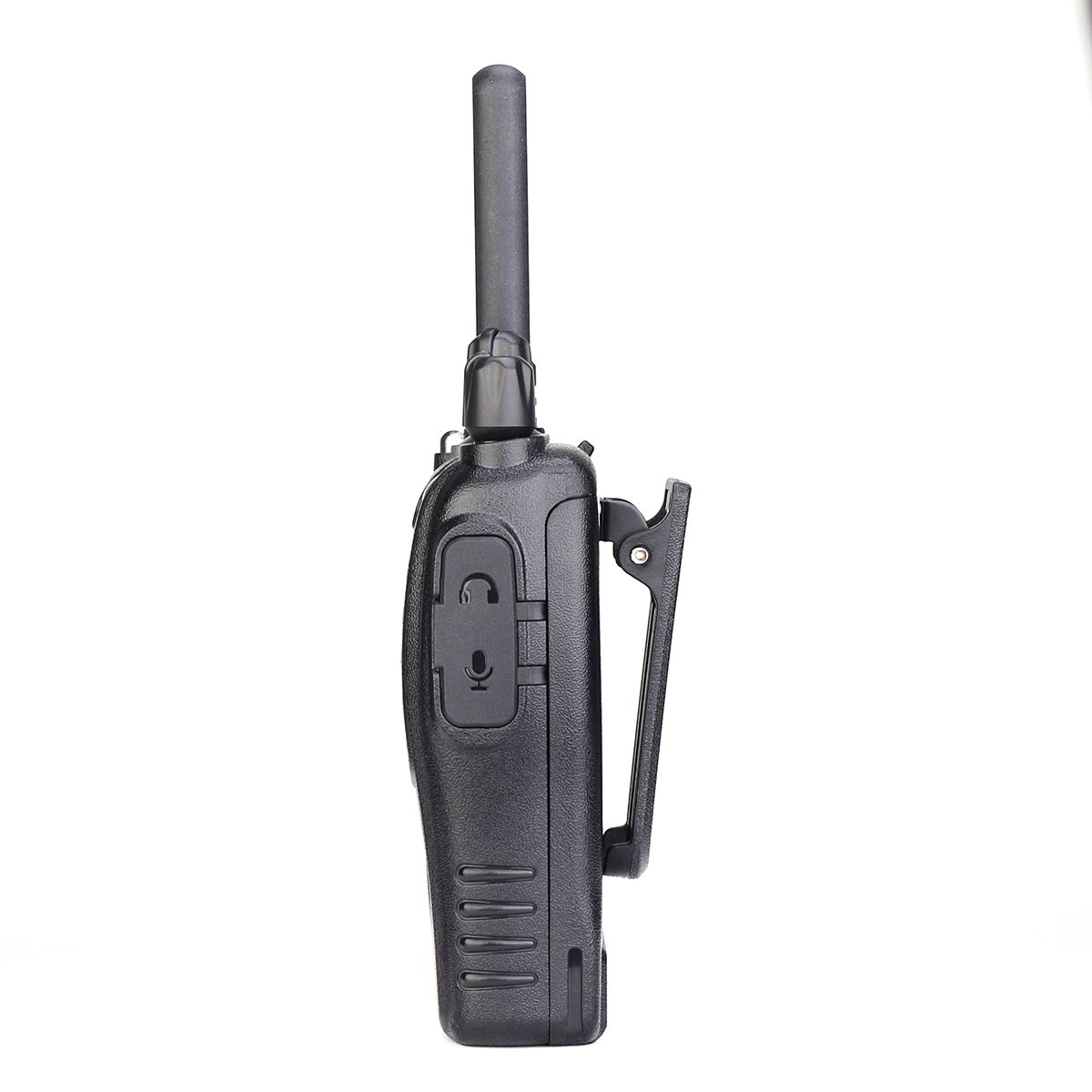

1 x Belt Clip
1 x USB charger
1 x User Manual
