Green LED Green Light Module (Pad hole) Anti-reverse Plug White Terminal Digital Signal

Based on 0 reviews. - Write a review

$5.99

Ex Tax: $5.99

Stock: In Stock
Model: EB0041390
SKU: EB0041390

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Voltage: DC5V

Precise details>>

Description:

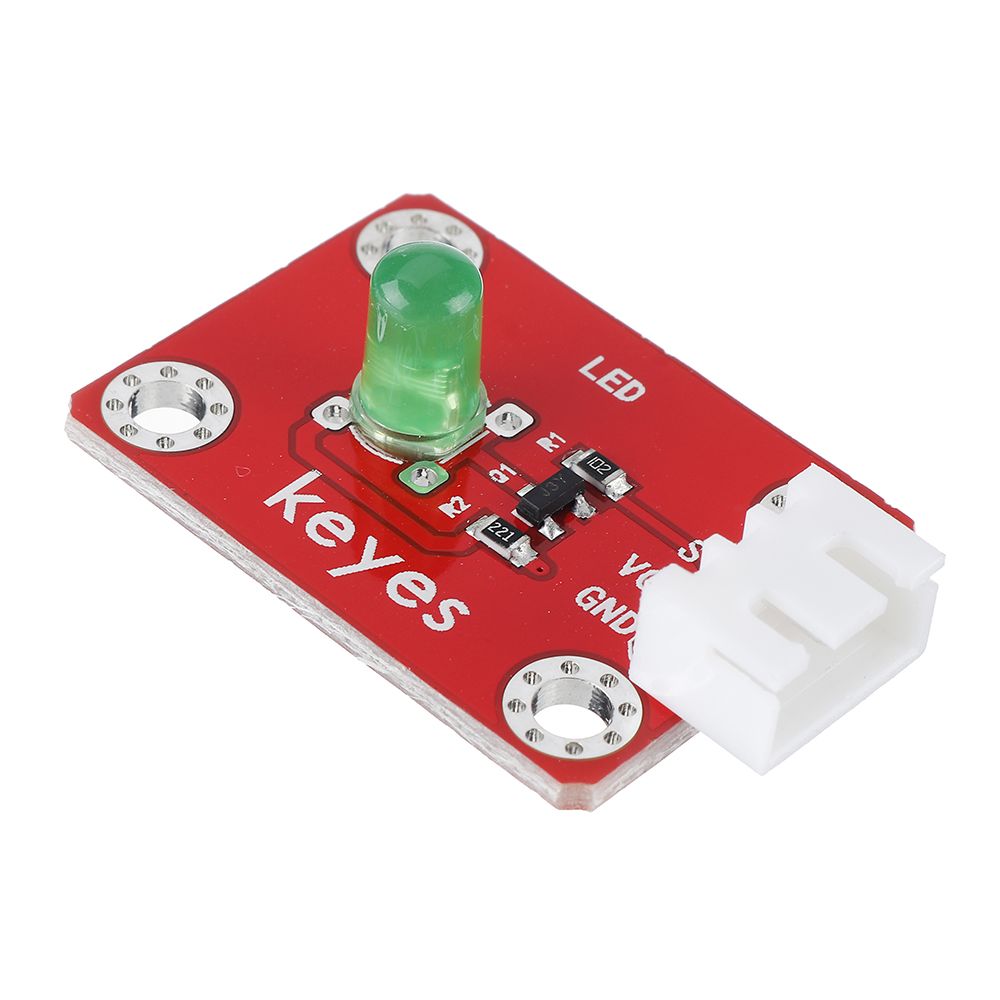

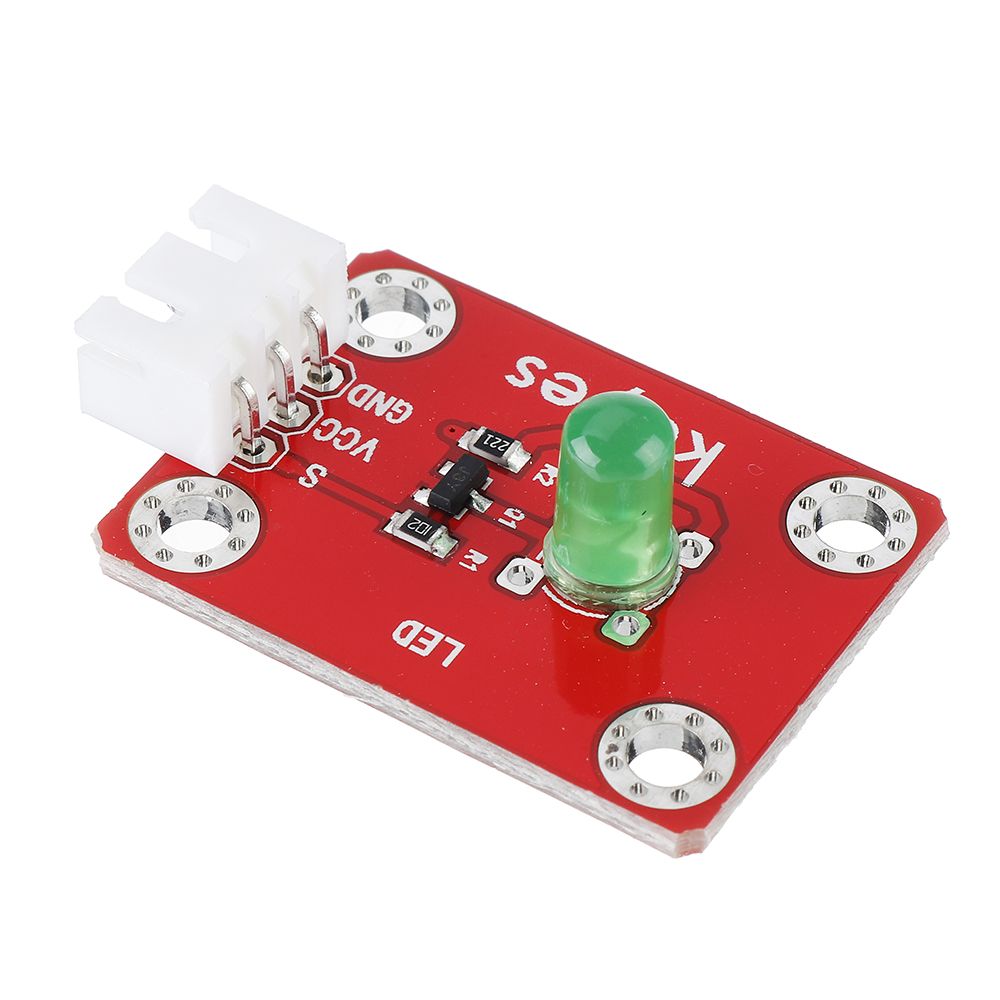

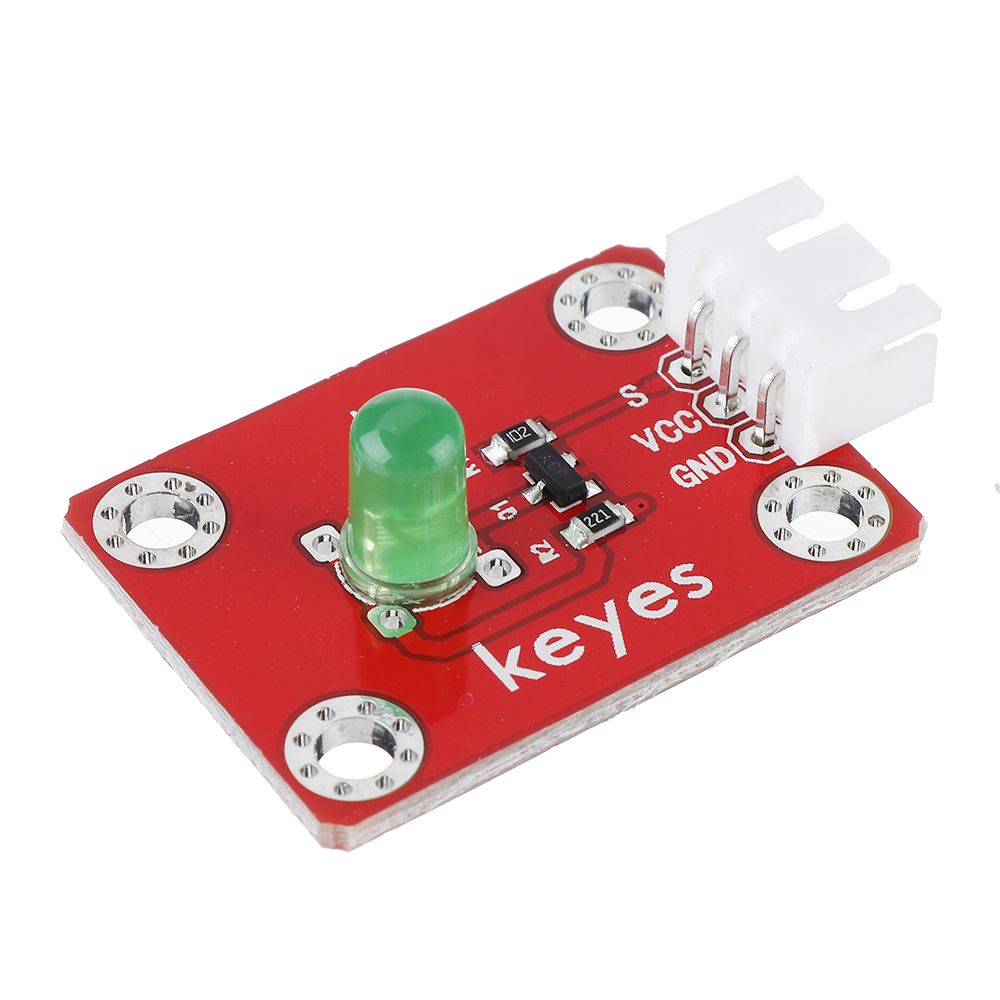

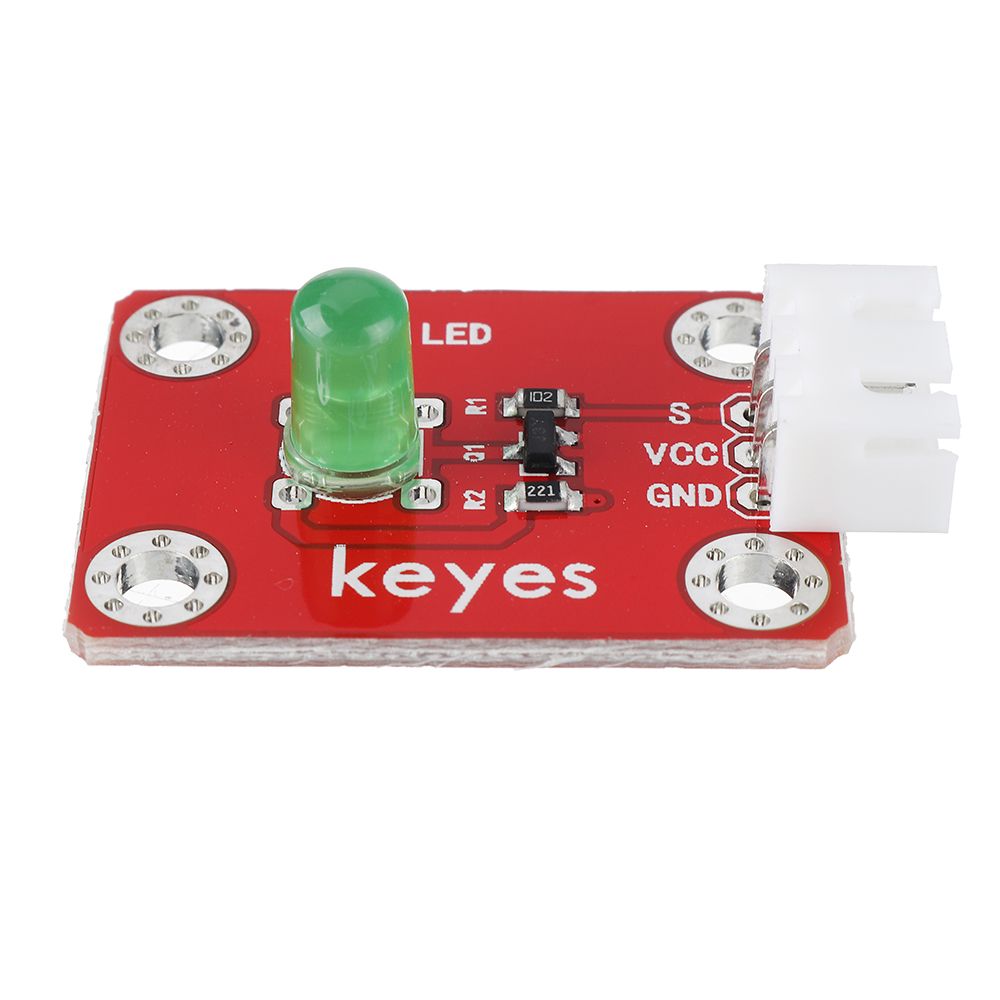

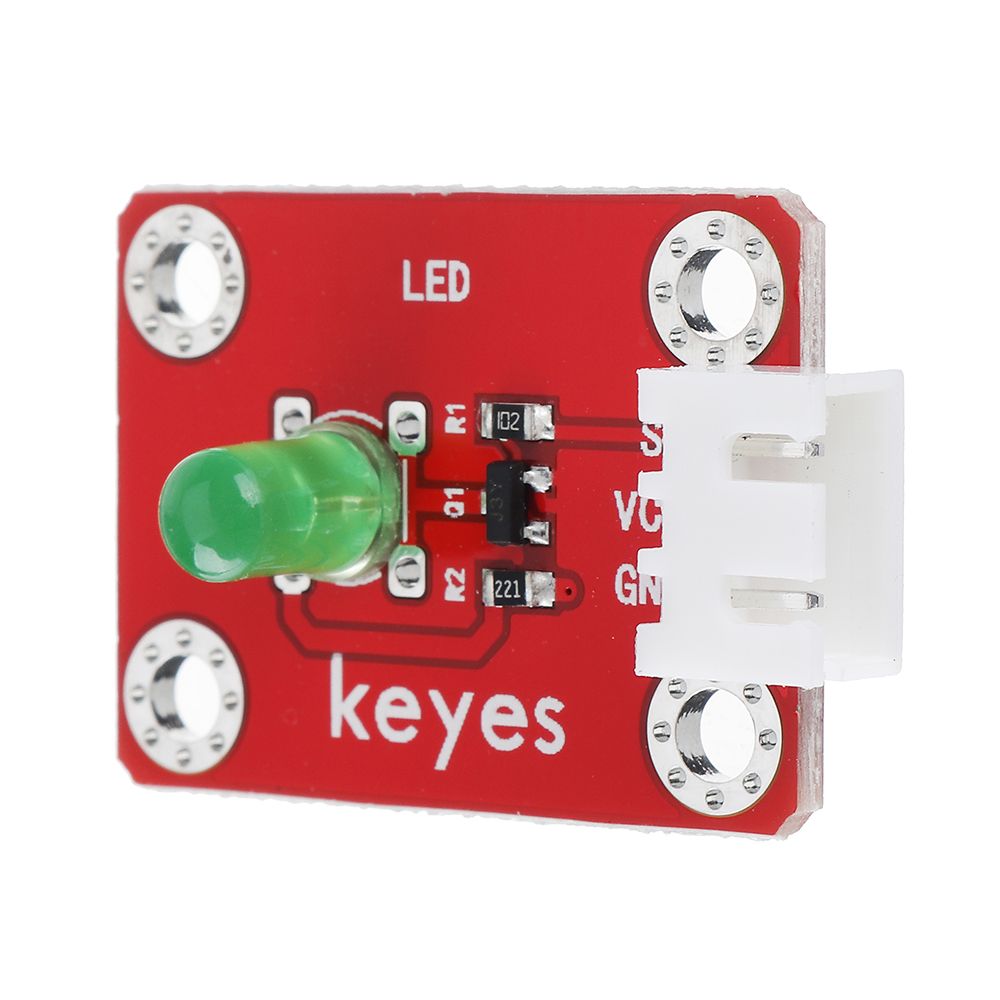

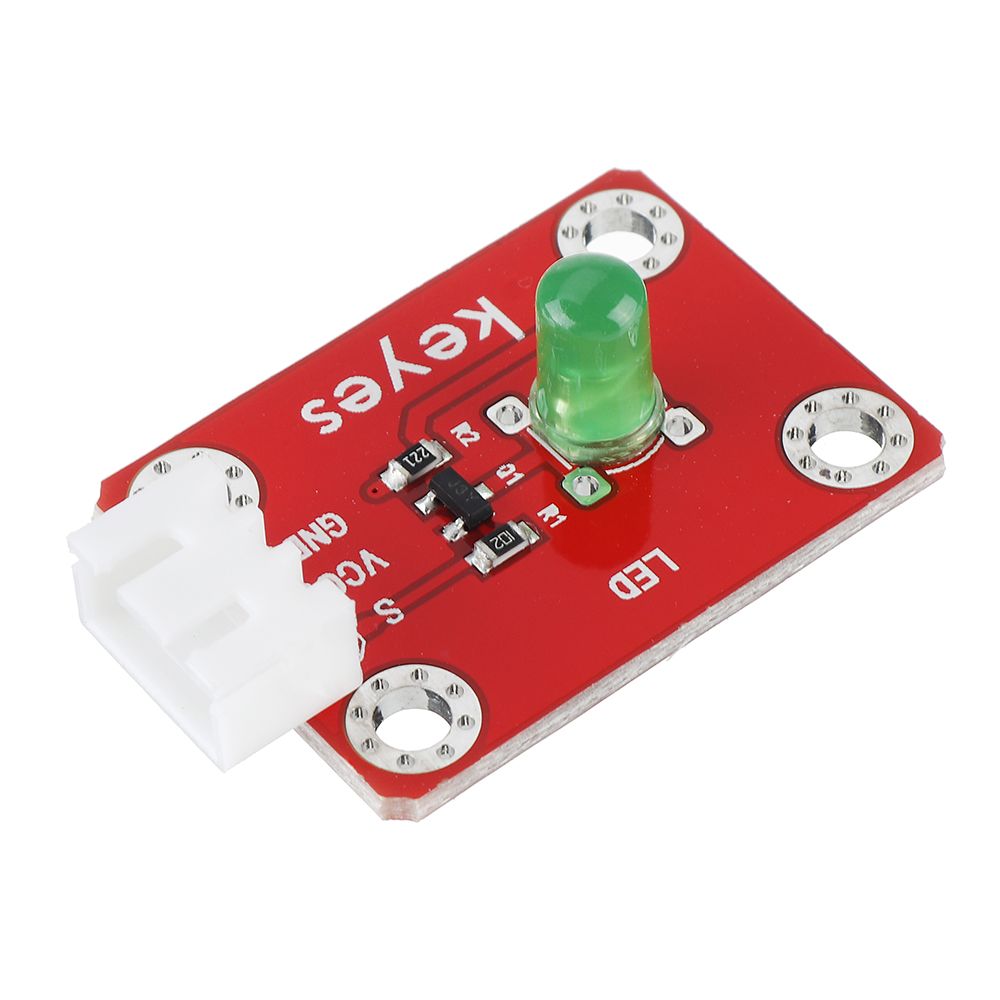

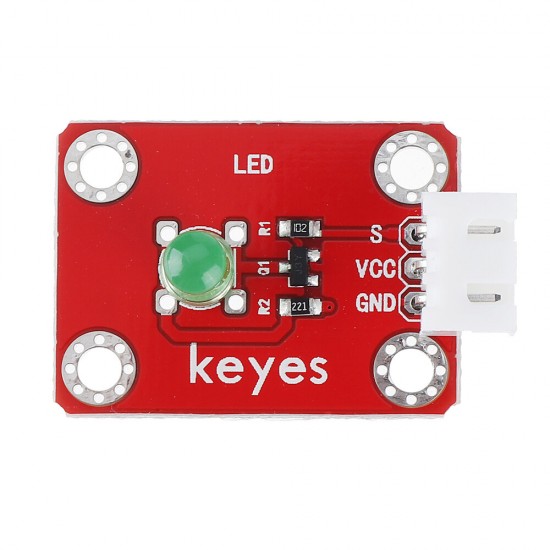

This is a commonly used LED Green Light Module . At the same time, it comes with an anti-reverse insertion white terminal with a pitch of 2.54mm. For wiring, we also sent a 3pin cable, one end of the line is white anti-reverse plug interface (and the white anti-reverse plug on the module terminal matching), the other end is a 3pin DuPont female connector. After GND VCC is powered, when the signal terminal S is high, the LED on the module lights up.

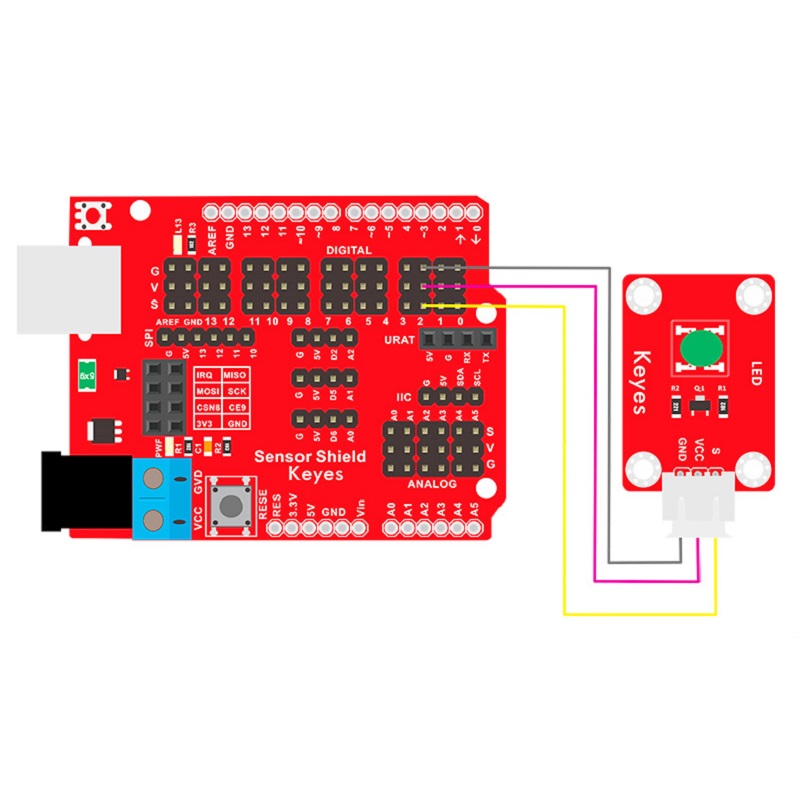

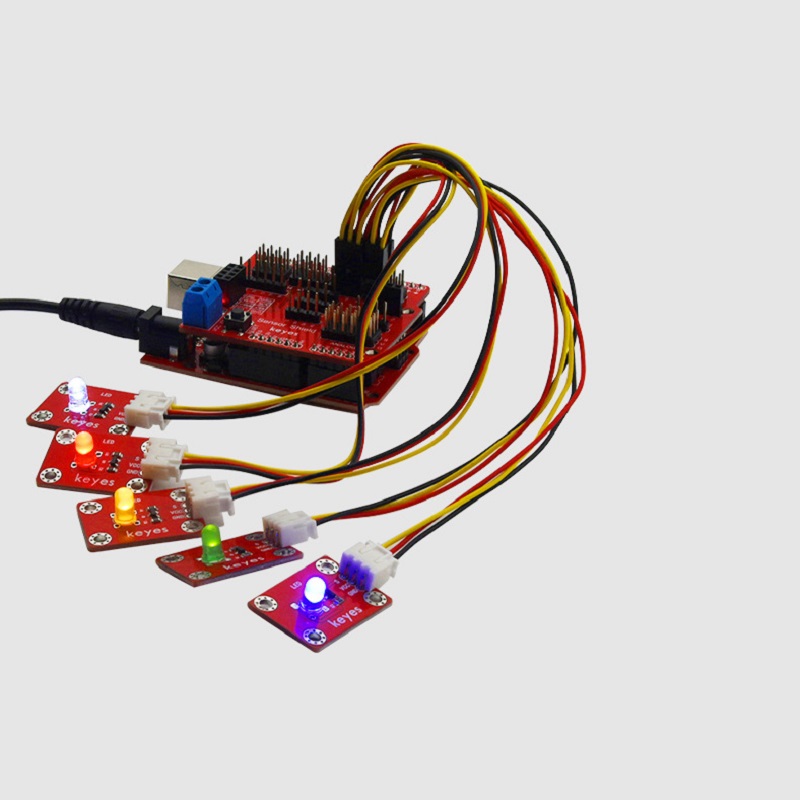

The module is compatible with various MCU control boards, such as MCU. When using, a sensor expansion board can be stacked on the microcontroller. Connect the module with its own wire ,it is simple and convenient to connect to the sensor expansion board.

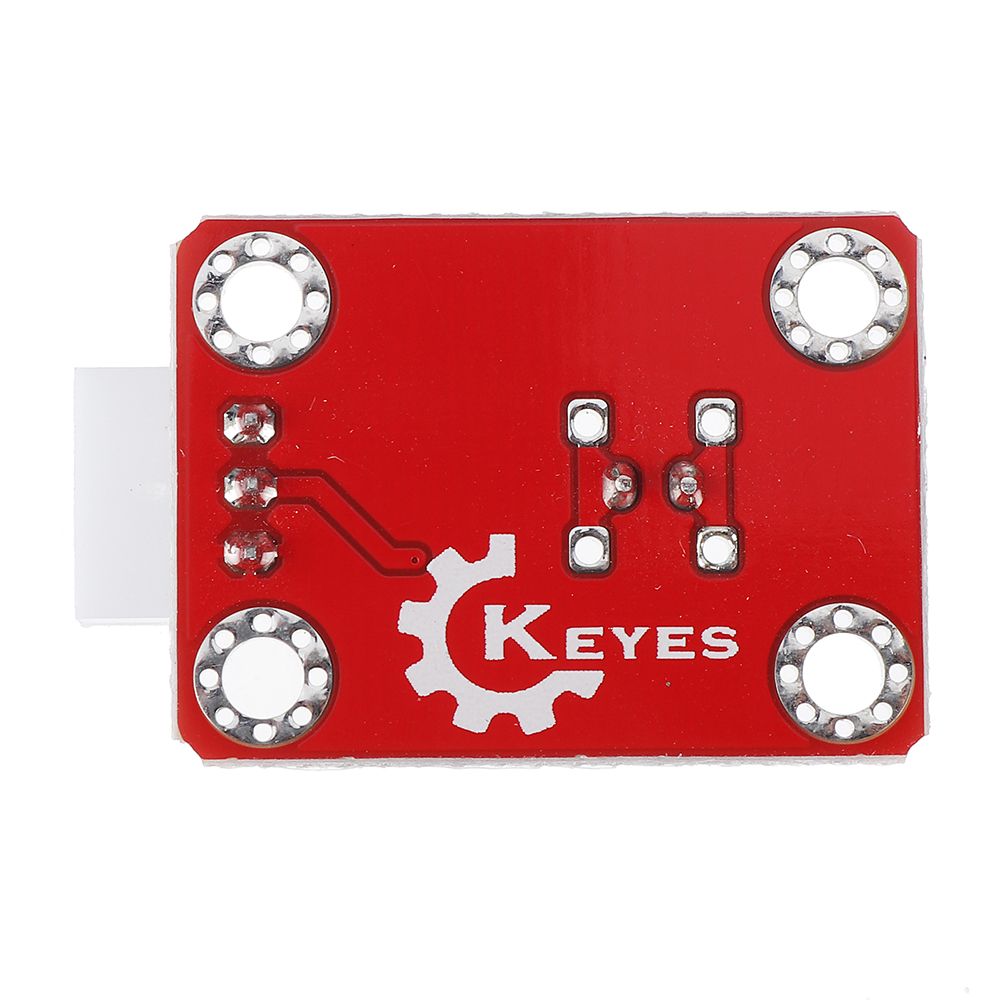

At the same time, the module comes with 4 positioning holes with a diameter of 3mm, which is convenient for you to fix the module on other equipment.

Specification:

Working voltage: DC 3.3V-5V

Interface: 3PIN Anti-reverse interface

Hole size: 3mm in diameter

Wire length: 200mm

Control signal: digital signal

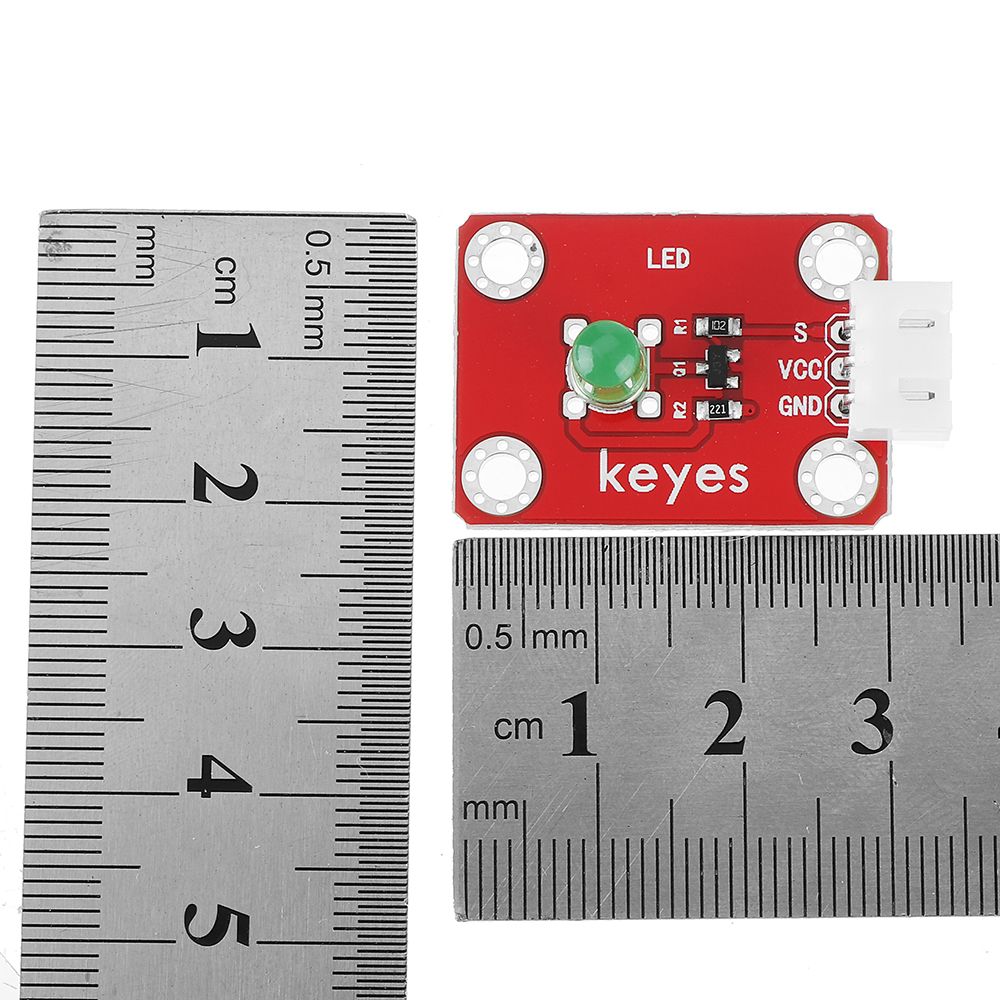

Size: 34*22*12mm

Weight: 2.6g

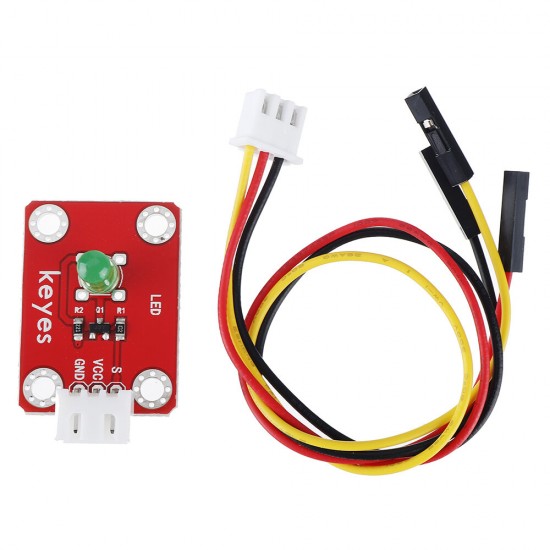

Package included:

1 x LED Green Light Module

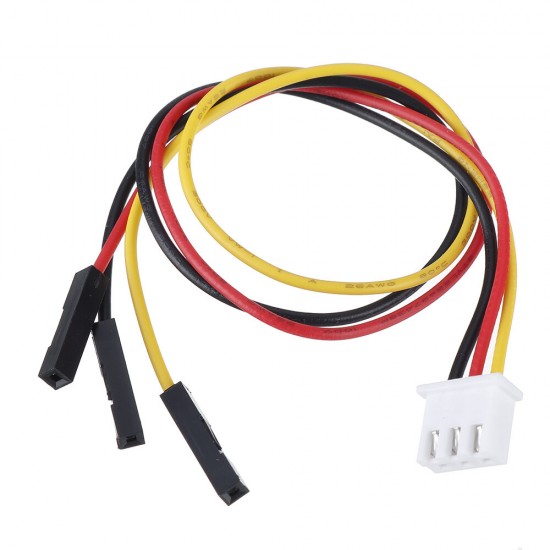

1 x 3PIN Dupont line

(other items are not includes)
