GY-US42 I2C PIXHAWK APM Flight Control Ultrasonic Ranging Module Replaces MB1242 40 SRF02

Based on 0 reviews. - Write a review

$11.99

Ex Tax: $11.99

Stock: In Stock
Model: EB0043015
SKU: EB0043015

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

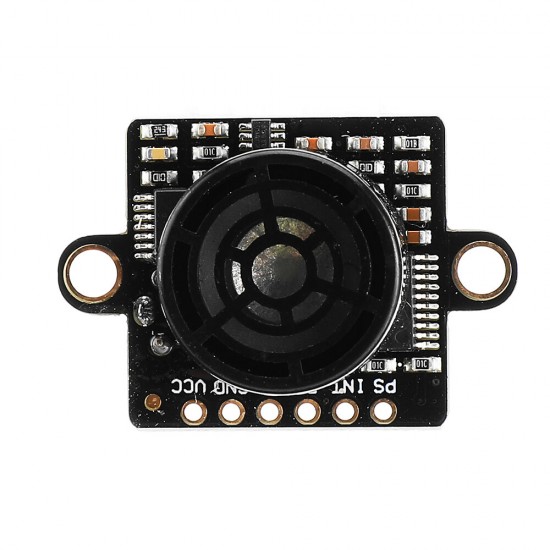

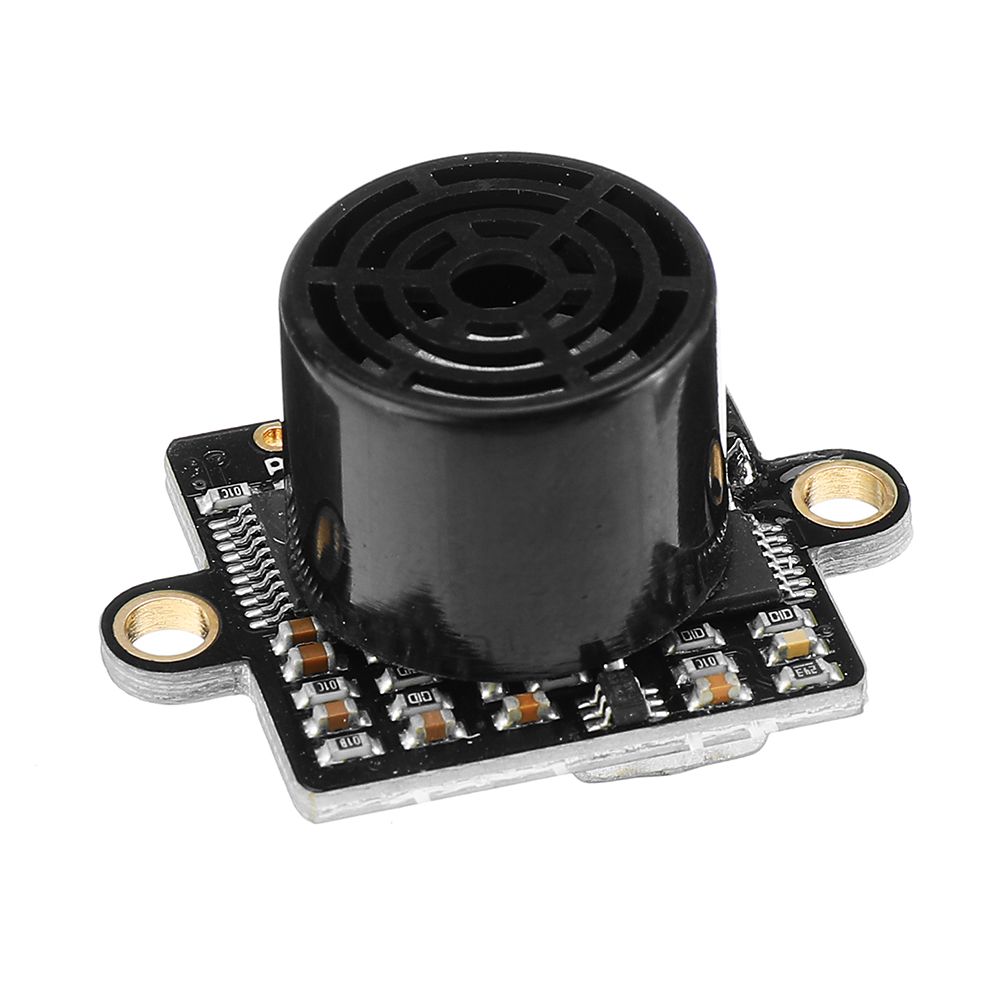

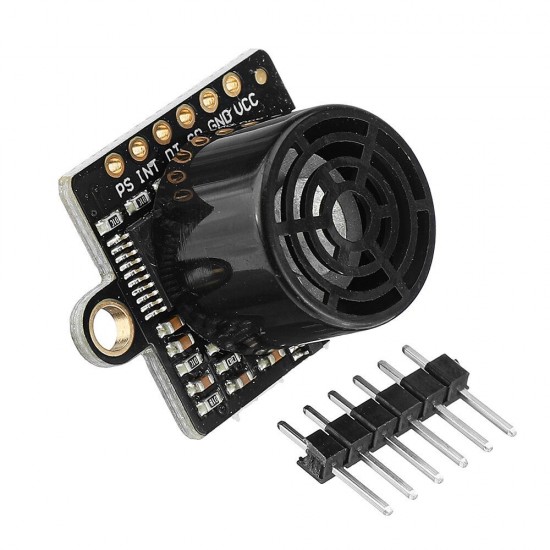

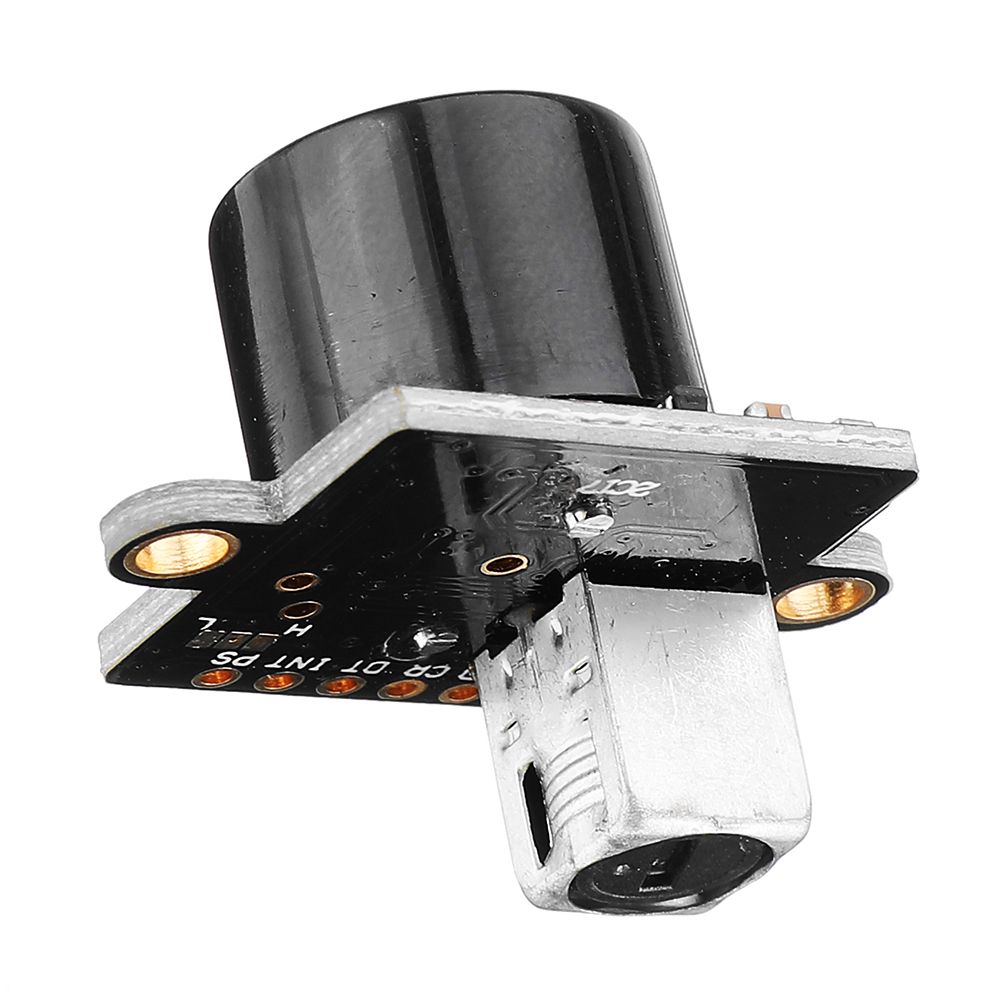

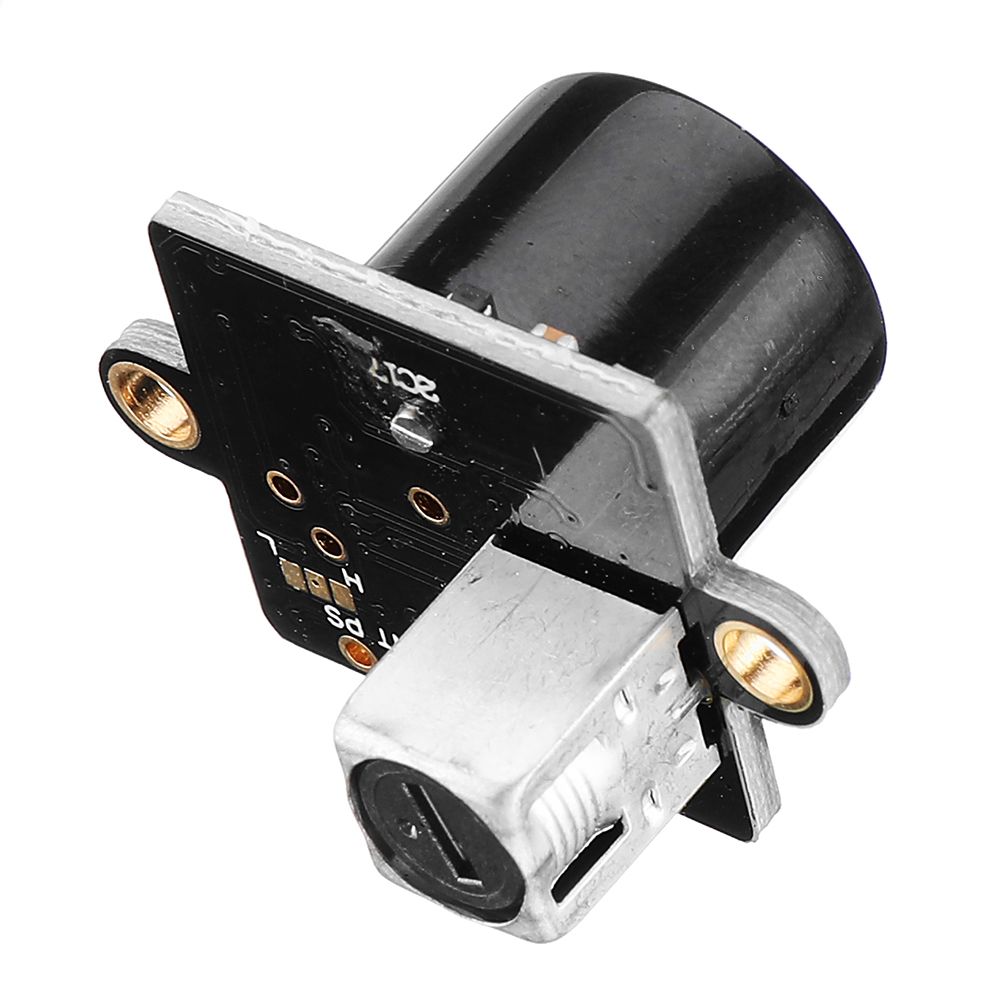

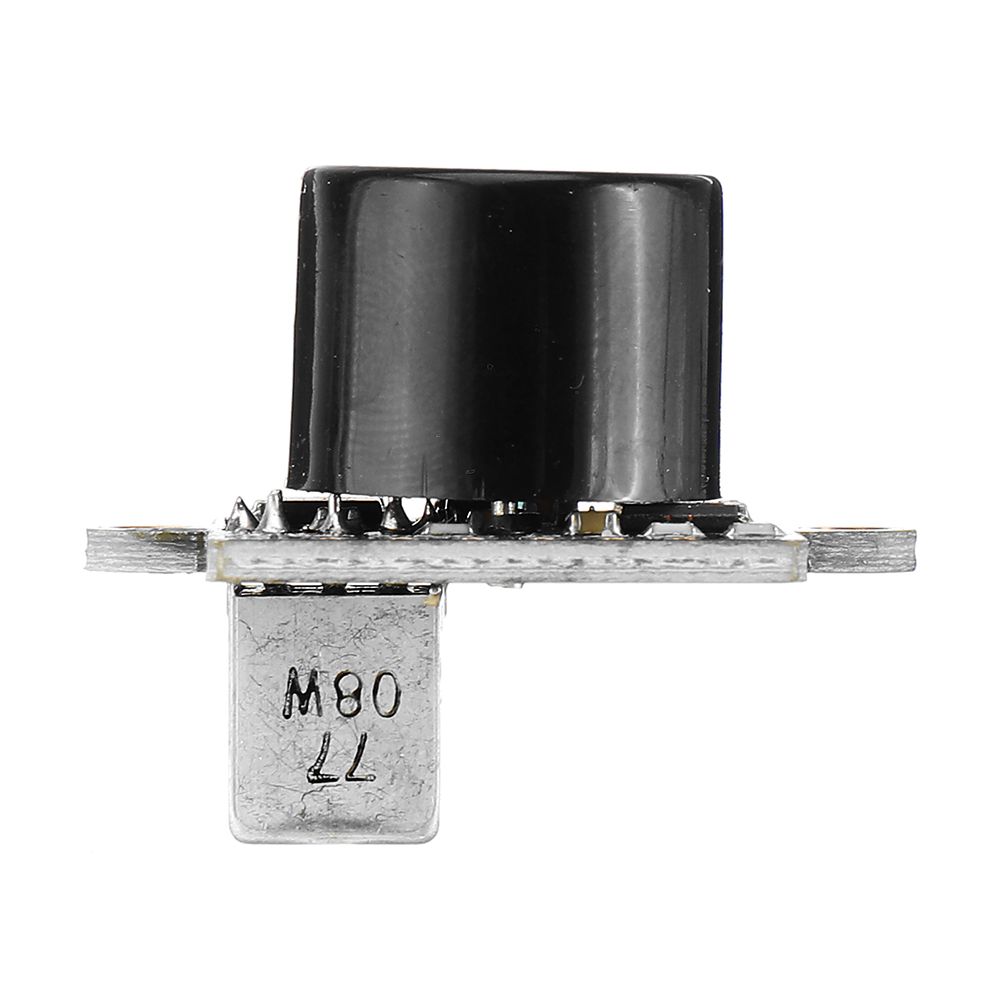

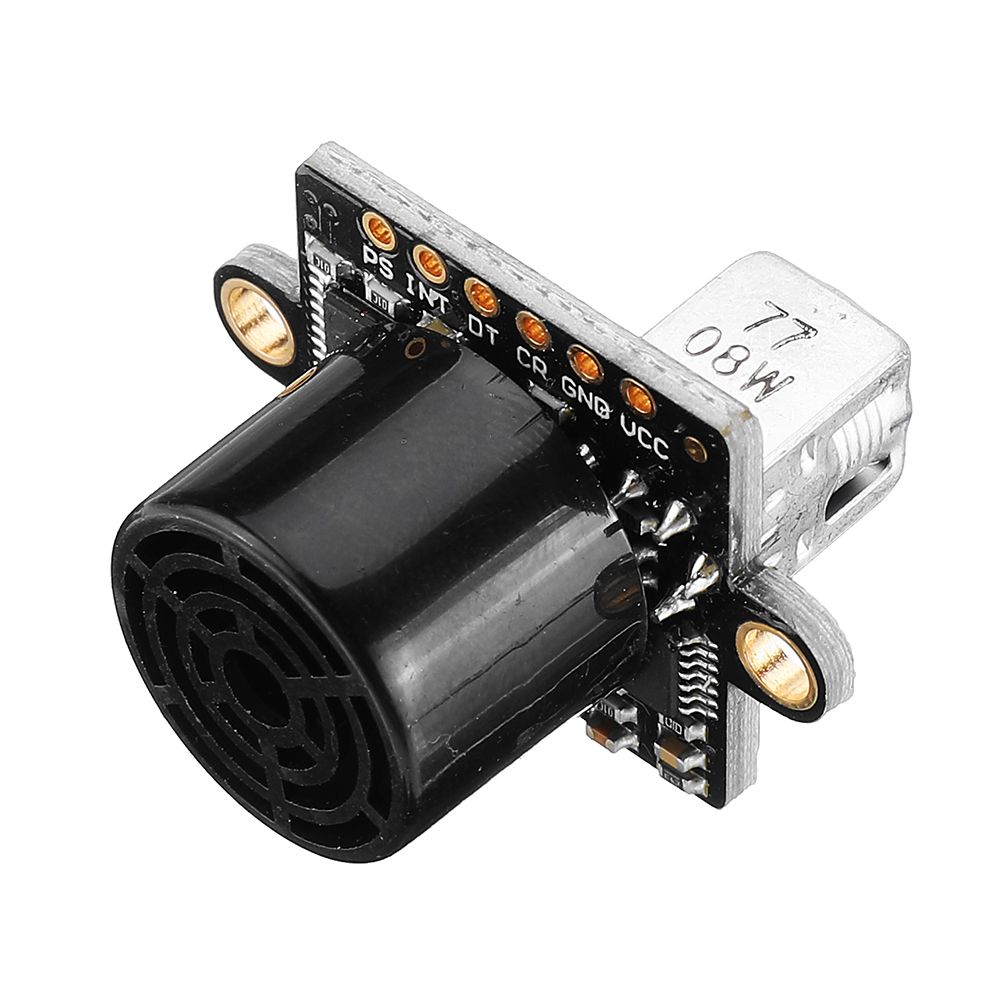

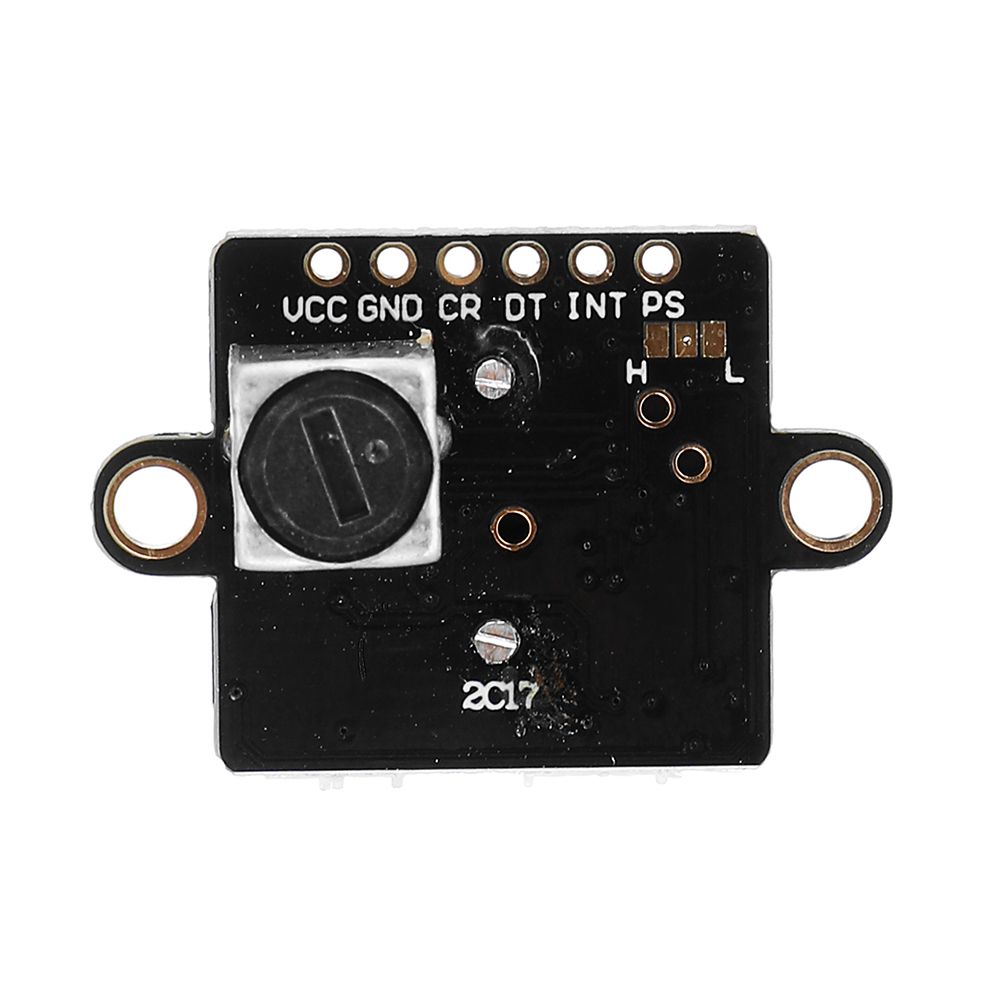

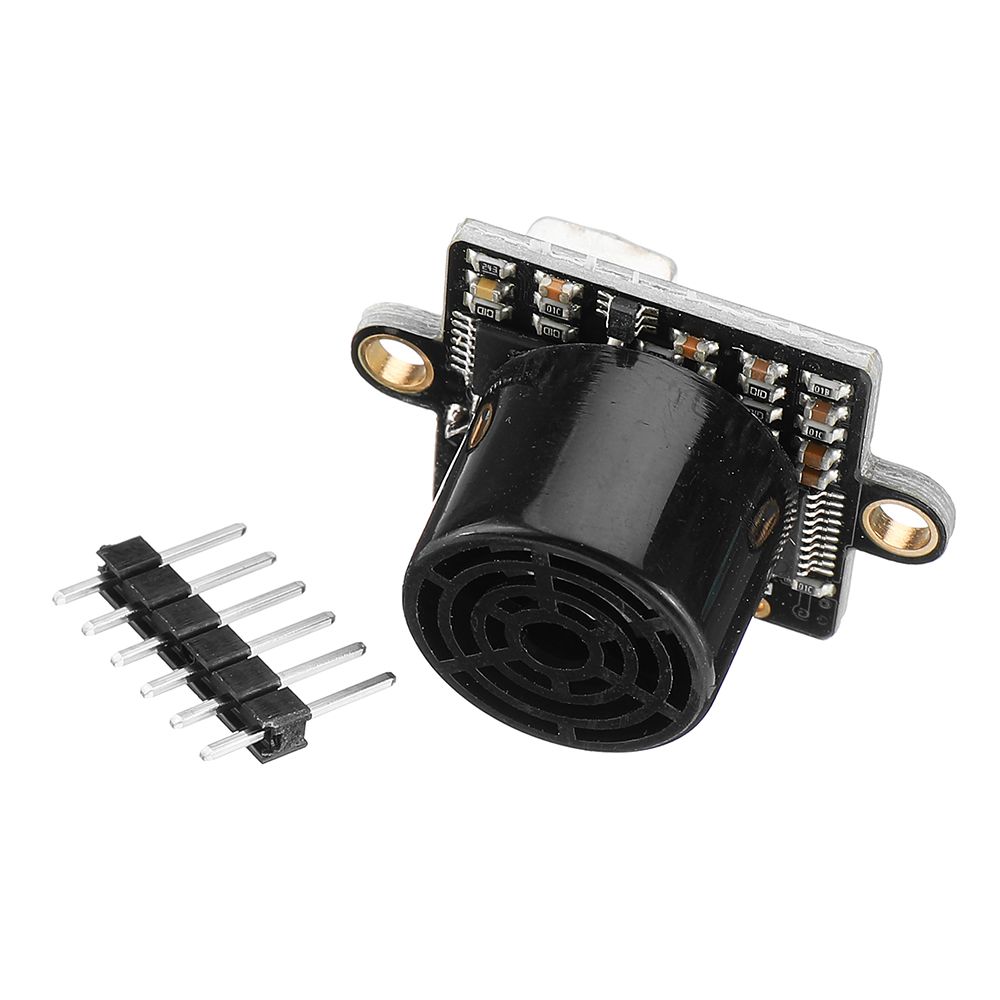

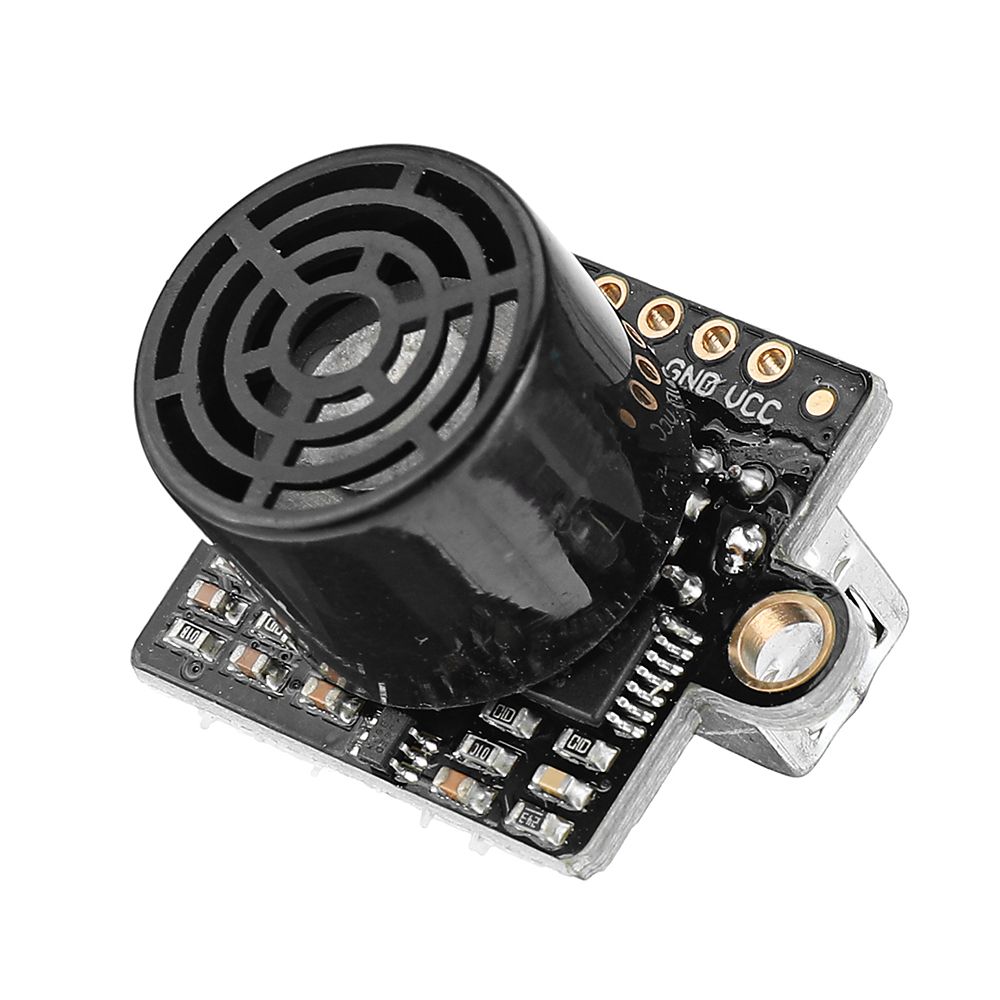

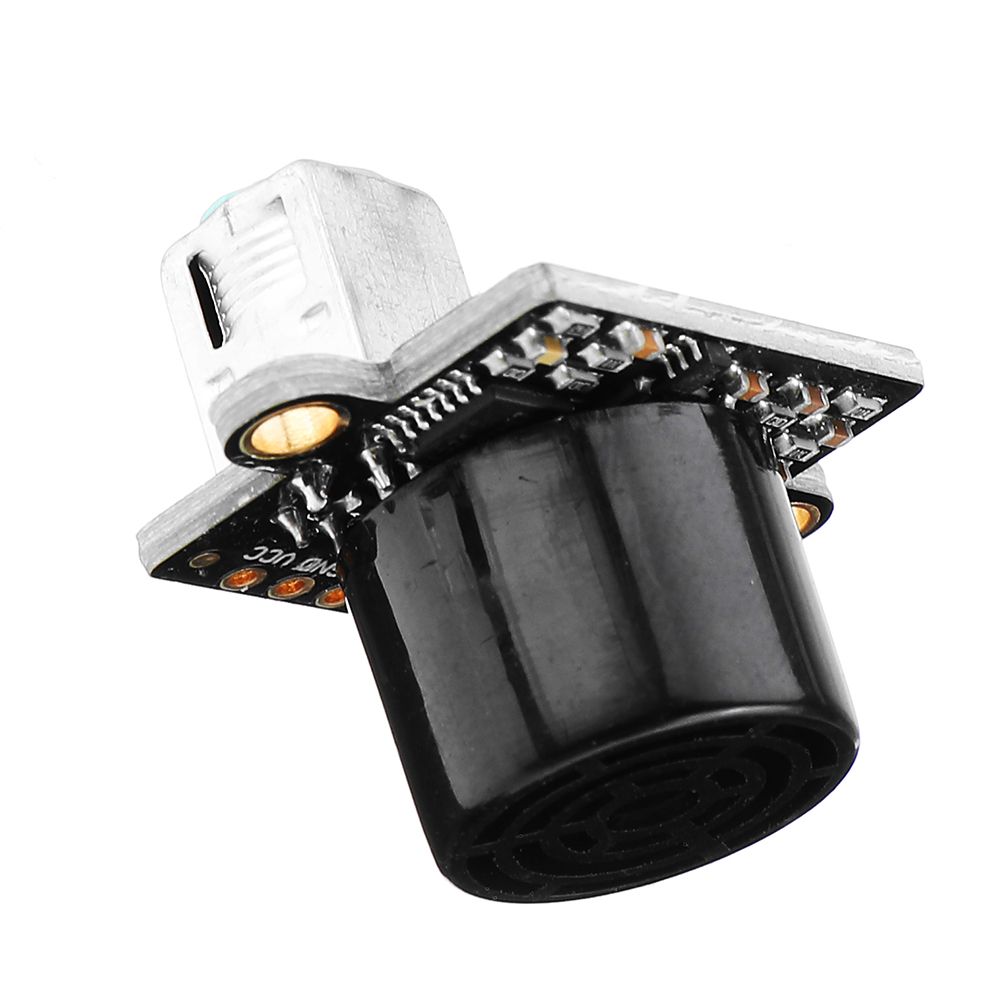

GY-US42 ultrasonic ranging module:

GY-US42 is a low-cost, high-quality ranging sensor module with low power consumption, small size, and easy installation. Its working principle is that after the probe emits ultrasonic waves and irradiates the object to be measured, the probe receives the returned sound waves and uses the time difference to calculate the actual distance.

The module has 3 ways to read data, namely serial UART (TTL level), IIC, pulse PWM mode, the baud rate of the serial port is 9600bps and 115200bps, configurable, there are continuous, query output two ways, can be saved after power off Setting; IIC can modify the internal address, which is convenient for one IIC bus to connect multiple modules at the same time; pulse PWM output is the same as SR04. The module can adapt to different working environments, and directly connect with the single chip microcomputer. It can be widely used in intelligent robots, teaching laboratory instruments, production line product testing, quadcopters, human body measurement, intelligent vehicles and other occasions.

Note: Due to the use of integrated ultrasonic probes for receiving and sending, the range of the blind zone of the distance measurement is about 20cm, and the distance measurement within 20cm is invalid.

Product parameters:

1. Working voltage: 3 ～ 5 V

2. Working current: 9mA (when VCC = 5V)

3. Measuring range: 20cm ～ 720cm (when VCC = 5V)

4. Resolution: 1cm

5. Response frequency: 15HZ

6. Working temperature: -20 ℃ ～ 65 ℃

7. Storage temperature: -40 ℃ ～ 85 ℃

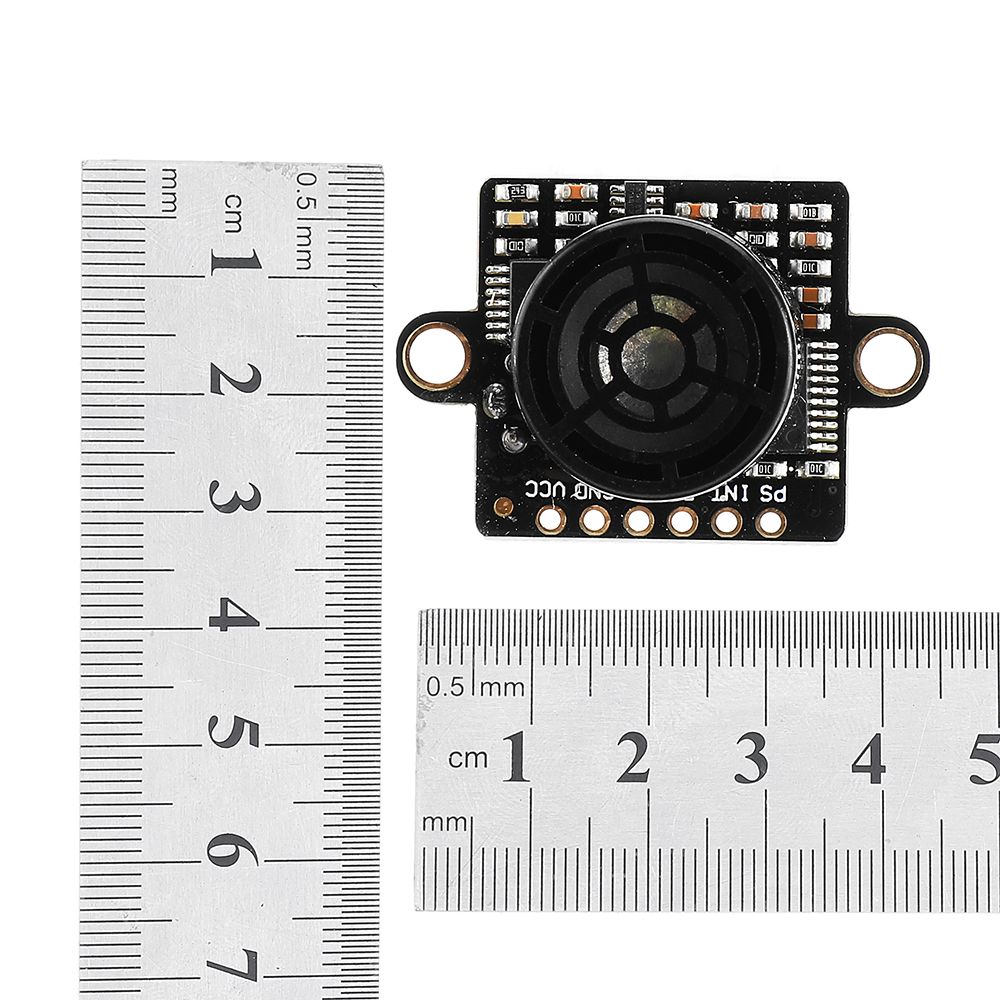

8. Product size: 21.5 × 21 × 24.5mm (length × width × height)

Package includes:

1 x Ultrasonic Ranging Module
