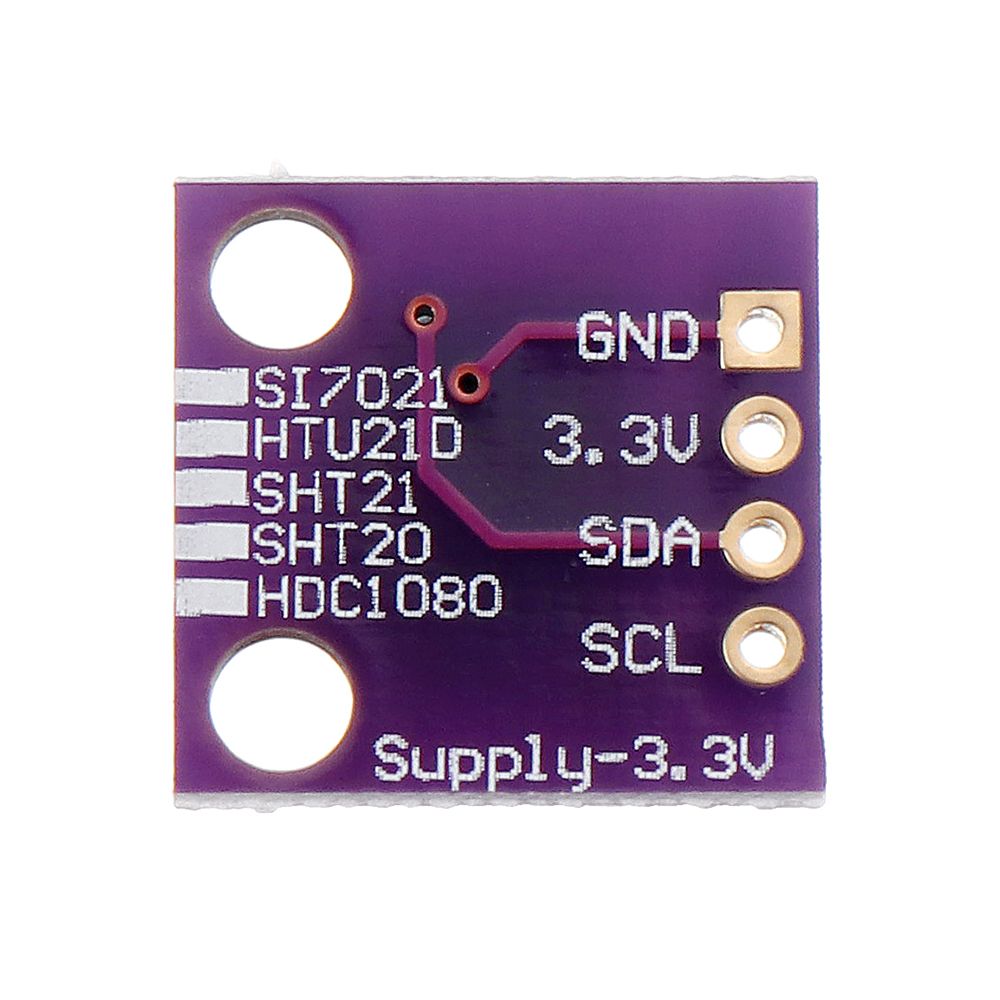

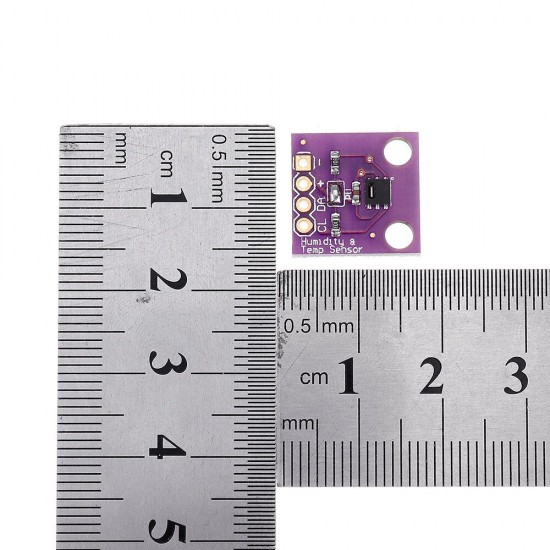

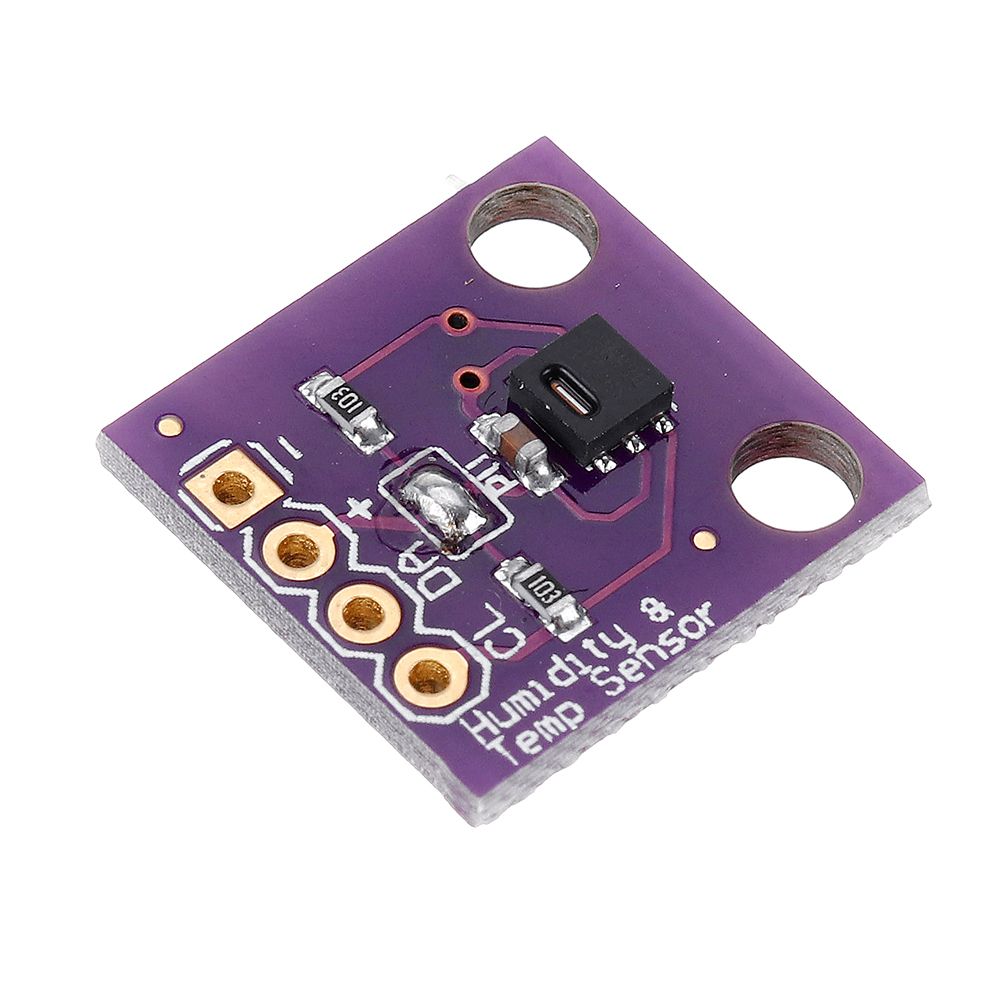

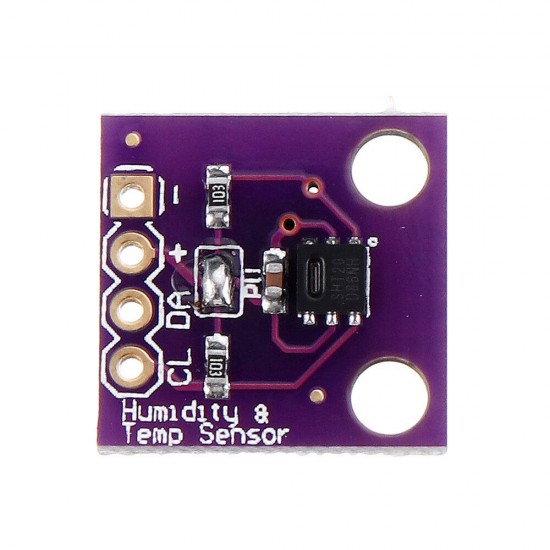

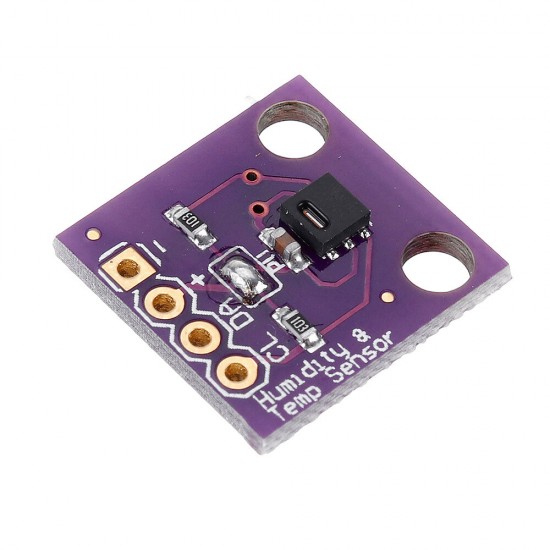

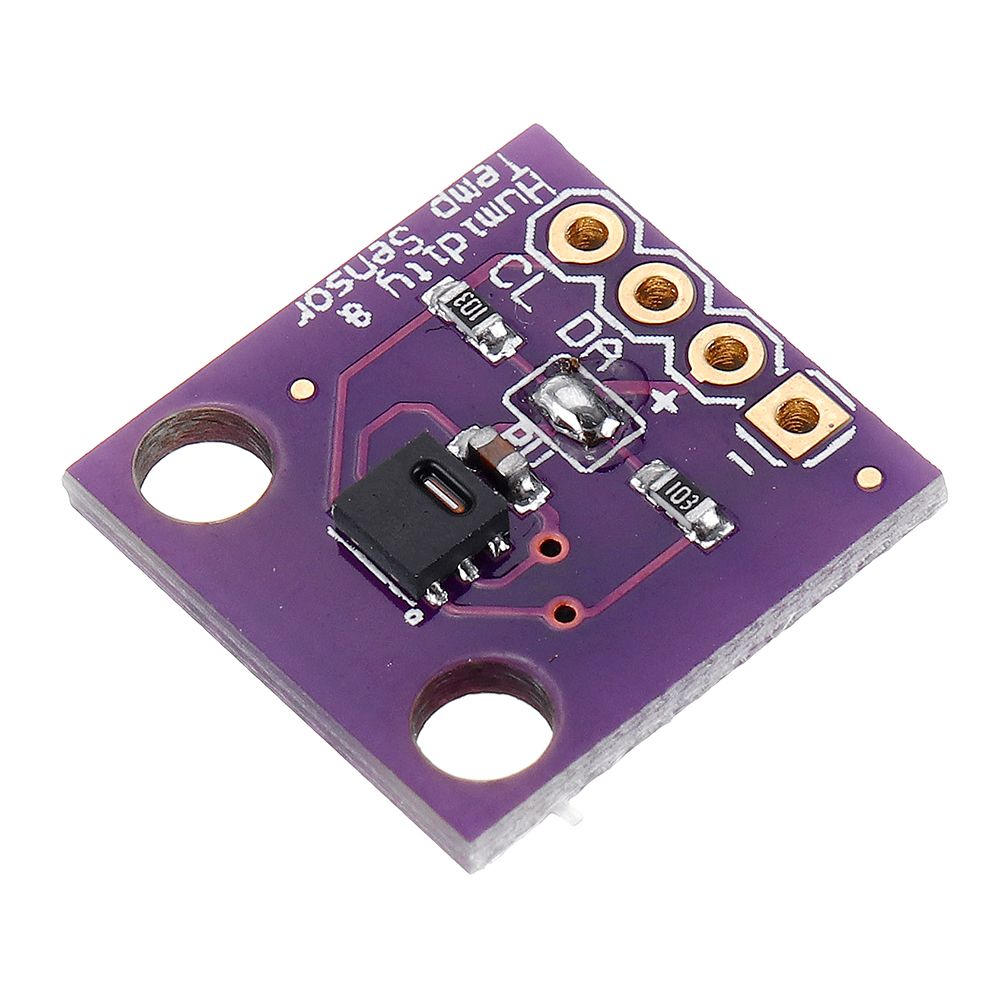

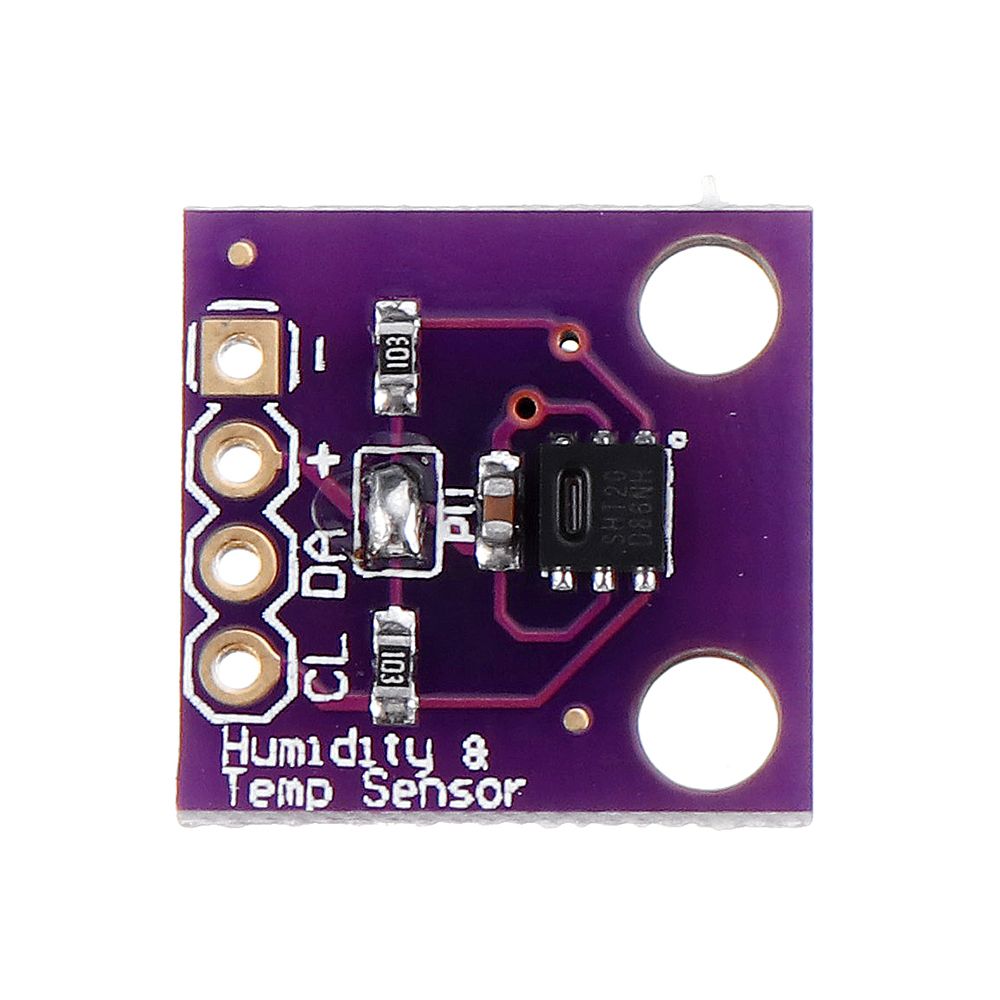

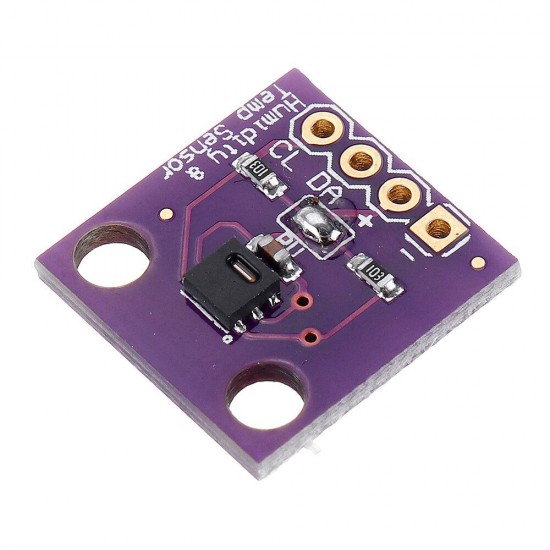

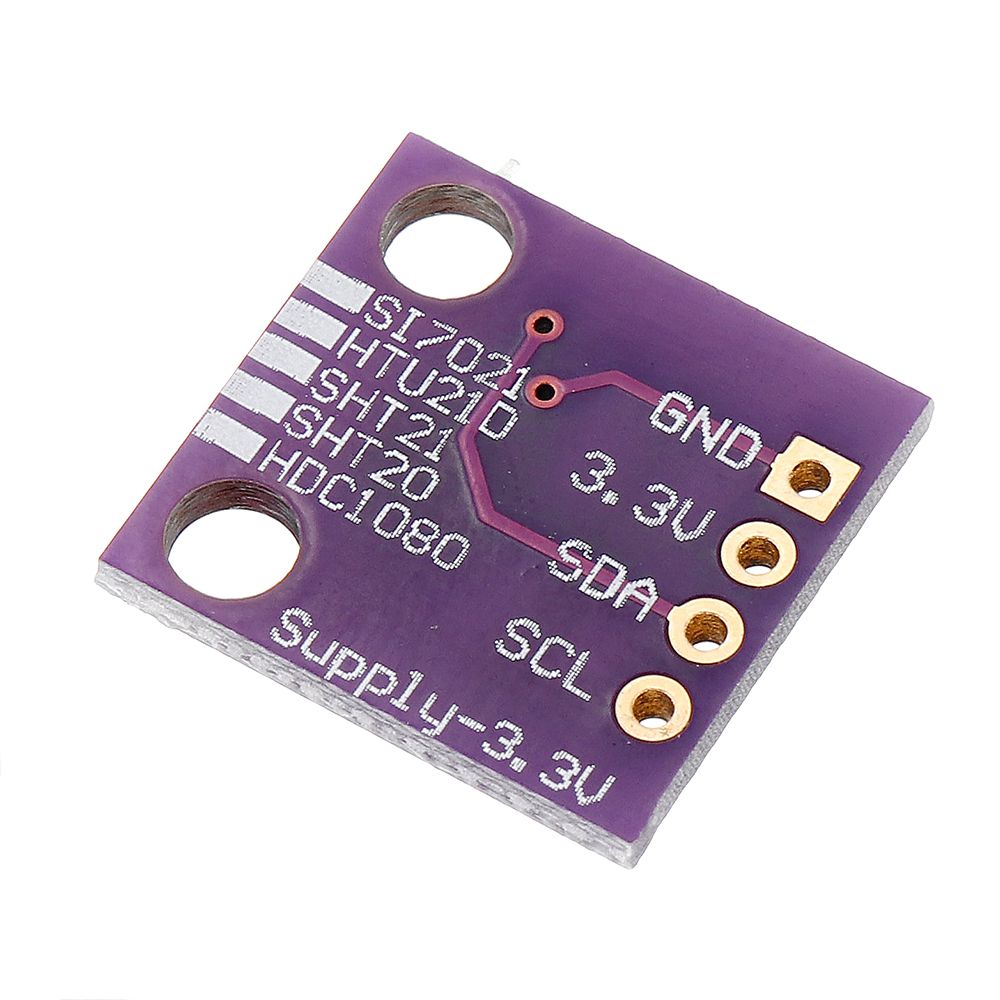

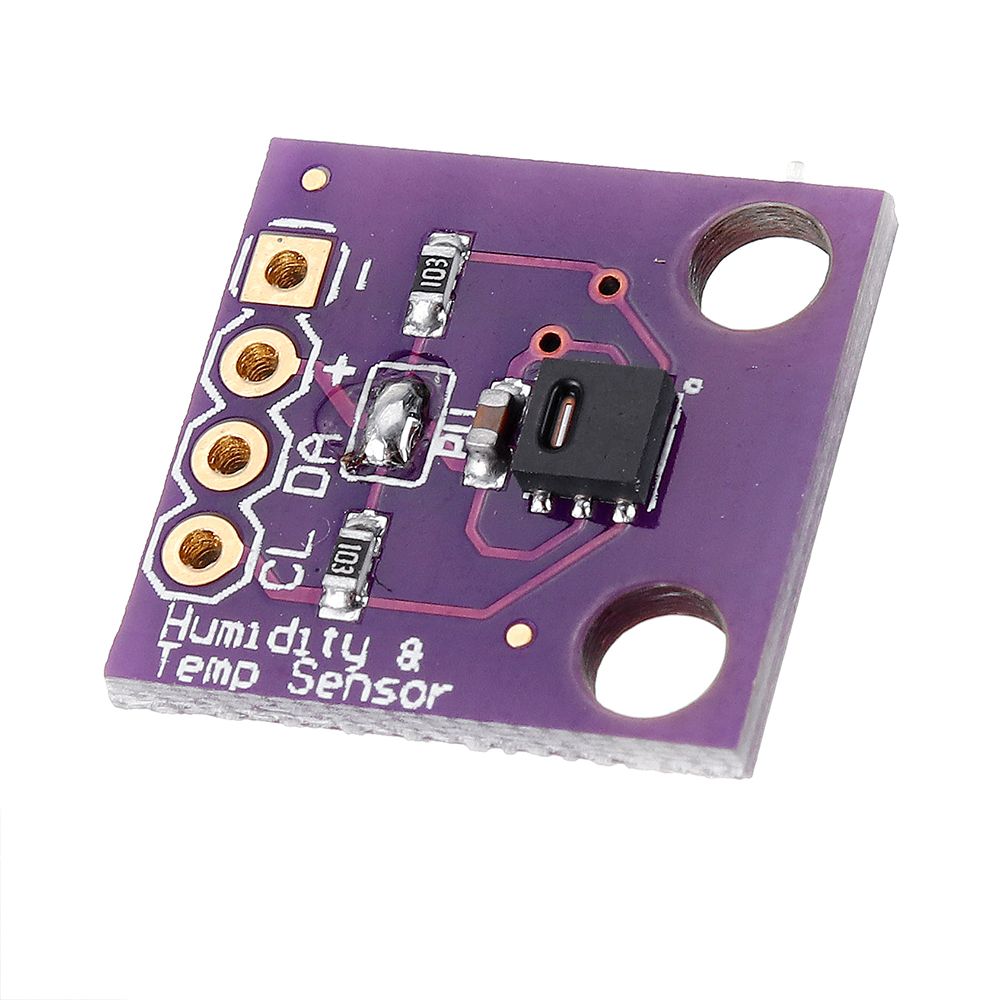

GY-213V-SHT20 Temperature and Humidity Sensor Module HTU21D 3.7V IIC
- Stock: In Stock
- Model: EB0043472
- SKU: EB0043472
Feature:
Chip model: HTU21D
Power supply voltage: 3.3V
Communication method; IIC
| Relative humidity | ||||||
| (@ T = 25 ° C, @ Vdd = 3V) | ||||||
| Parameter | Symbol | Min. | Typ. | Max. | Unit | |
| Accuracy | 12bits | 0.04 | %RH | |||
| 8bits | 0.7 | %RH | ||||
| Measuring range | RH | 0 | 100 | %RH | ||
| Humidity error value at 25 ° C (20% RH ~ 80% RH) | Typical | ±2 | %RH | |||
| Maximum | %RH | |||||
| Interchangeability | Fully interchangeable | |||||
| Temperature coefficient (0 ° C ~ 80 ° C) | -0.15 | %RH/°C | ||||
| Humidity hysteresis | ±1 | %RH | ||||
| Measure time | 12 bits | 14 | 16 | ms | ||
| 11 bits | 7 | 8 | ms | |||
| 10 bits | 4 | 5 | ms | |||
| 8 bits | 2 | 3 | ms | |||
| PSRR | ±10 | LSB | ||||
| Recovery time after 150 hours at low temperature | t | 10 | s | |||
| Long drift | ||||||
| Response time (63% of signal) | 5 | 10 | s | |||
| Temperature | ||||||
| Parameter | Symbol | Min. | Typ. | Max. | Unit | |
| Resolution | 14 bits | 0.01 | °C | |||
| 12 bits | 0.04 | °C | ||||
| Temperature measurement range | T | -40 | ±125 | °C | ||
| Humidity error value at 25 ° C (20% RH ~ 80% RH) | Typical | ±0.3 | °C | |||
| Maximum | °C | |||||
| Interchangeability | Fully interchangeable | |||||
| Measure time | 14 bits | 44 | 50 | ms | ||
| 13 bits | 22 | 25 | ms | |||
| 12 bits | 11 | 13 | ms | |||
| 11 bits | 6 | 7 | ms | |||
| PSRR | ±25 | LSB | ||||
| Long drift | 0.04 | °C/yr | ||||
| Response time (@ 63% of signal) | 10 | s | ||||
1. Used to calculate the communication waiting time, but also used to calculate energy consumption
2. At wind speed of 1m / s
Package includes:

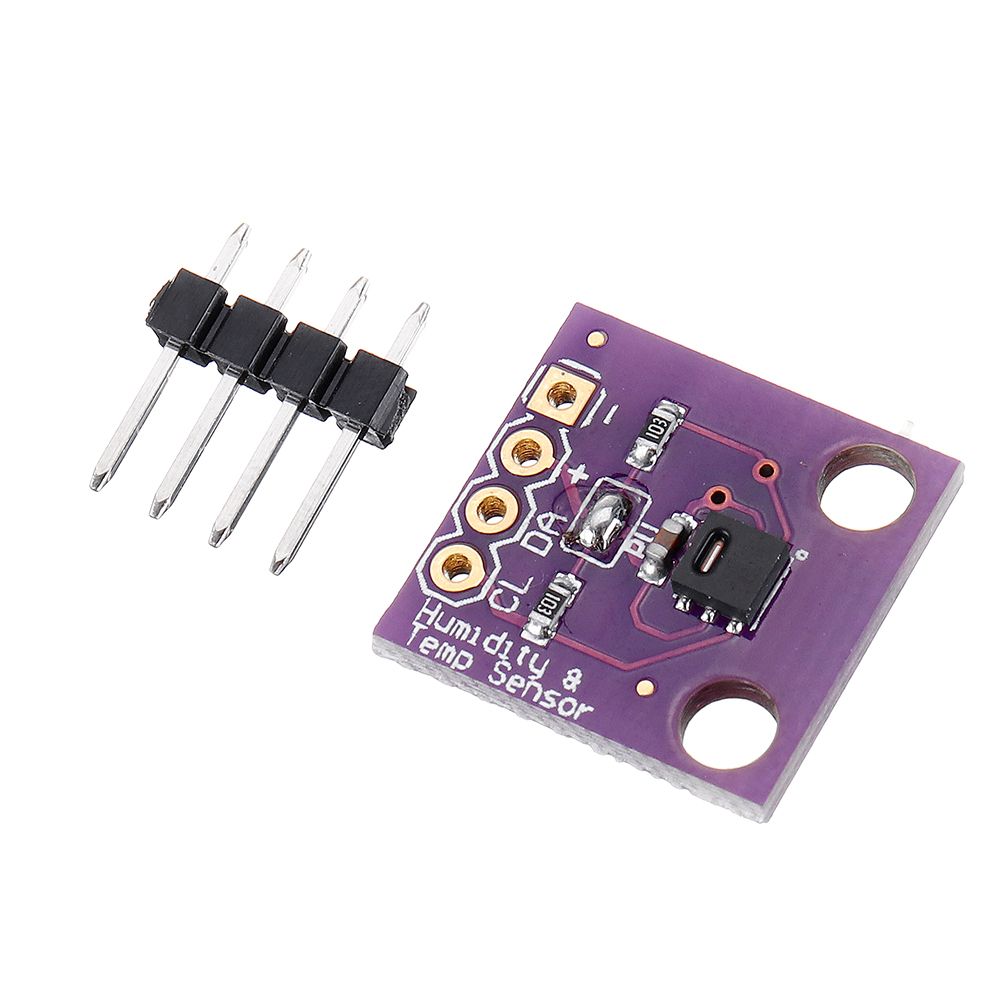

1 x Sensor module with pin
