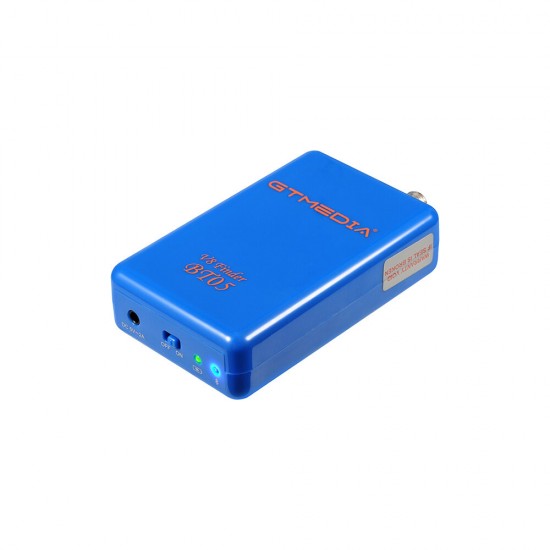

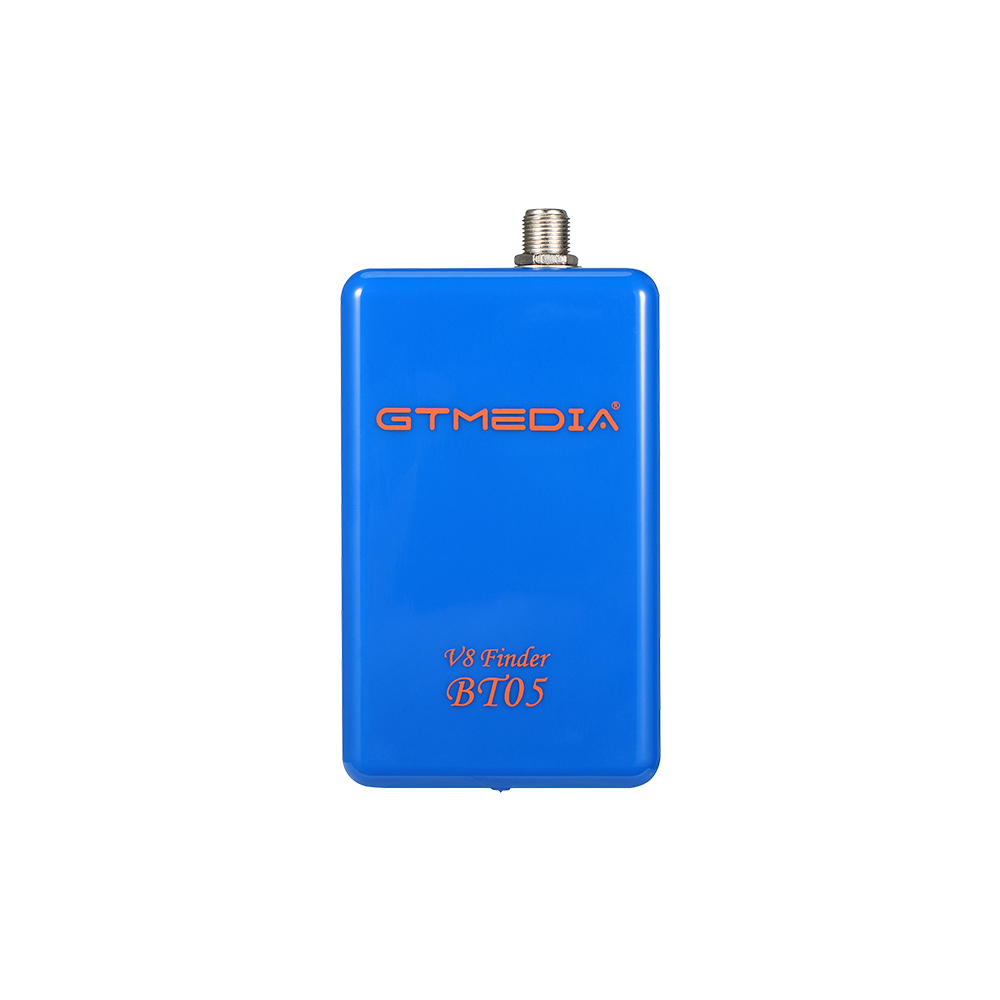

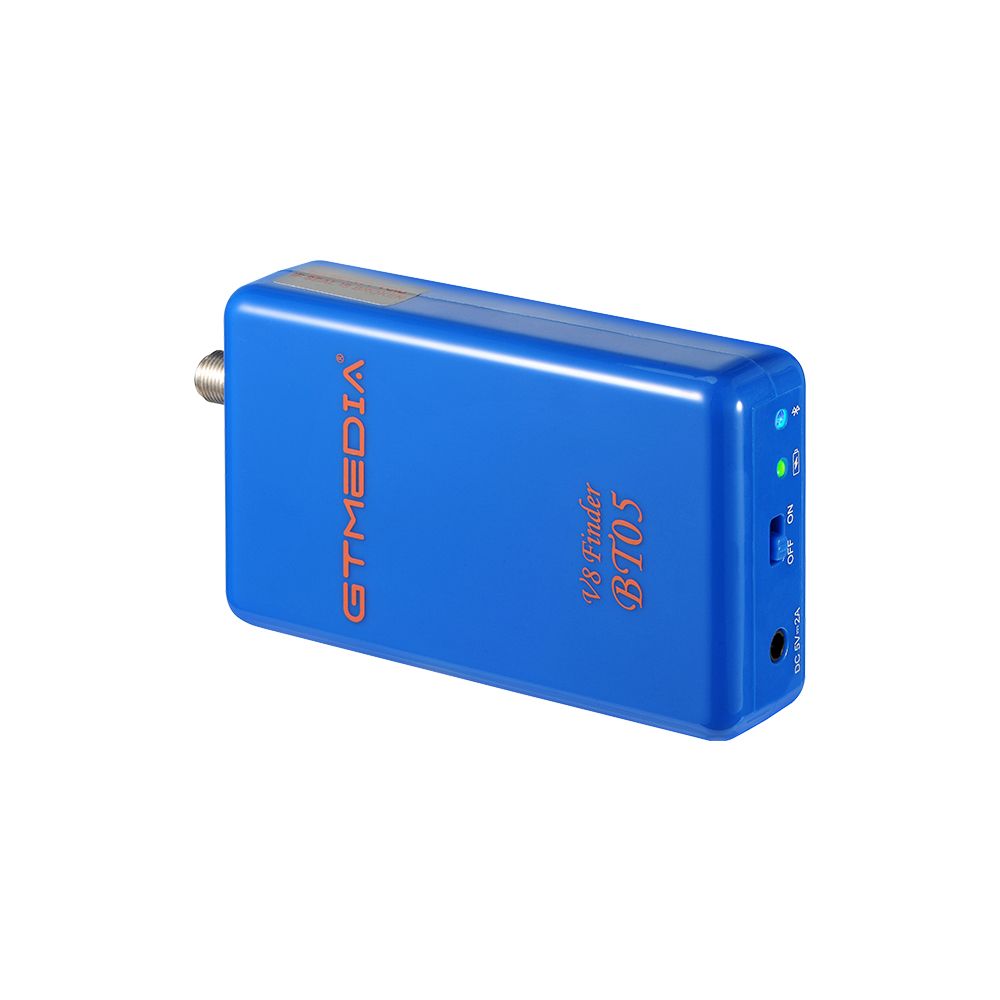

V8 Finder BT05 1080p bluetooth Digital Satellite DVB-S2 Finder Meter for DVB-S2 Satellite Signals Measurement
- Stock: In Stock
- Model: EB0018352
- SKU: EB0018352
GTMEDIA V8 Finder BT05 (Digital Satellite Finder) | |||||||
Hardware | Flash Memory | 32MB Serial Flash | |||||
DDR2 Memory | 512M Bits | ||||||

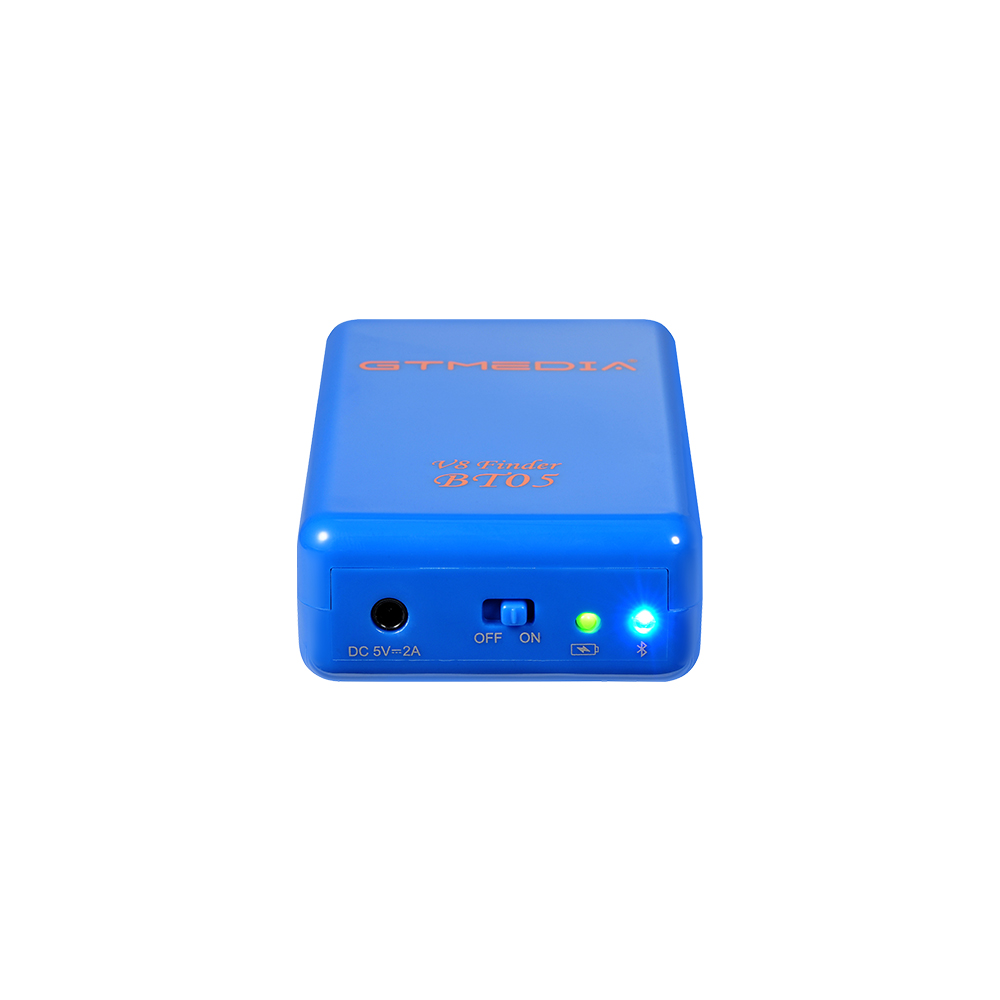

bluetooth | Blue(Flashing: Not connected, Normally on: connected) | ||||||
Power | Green Light: Power Indication (When Flicker Means Low Power), | ||||||
Red Light: Charging Indicator (Long Bright Means Full Charge), | |||||||

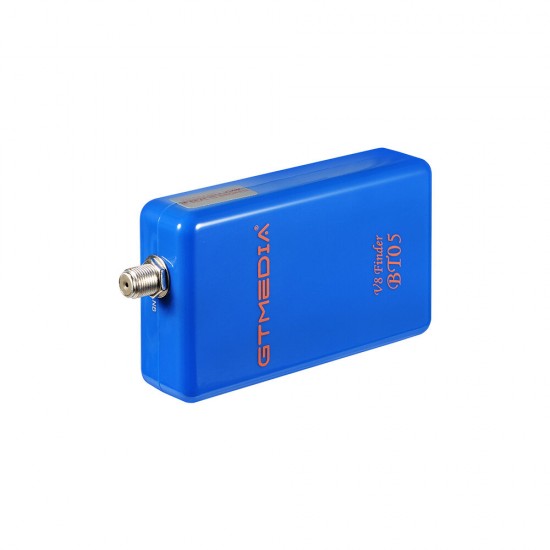

Rear Panel | LNB IN: Frequency Range 950MHz to 2150MHz DVB-S/S2 | ||||||
OFF/ON: Power Switch | |||||||
DC 5V 2A: Charging Input | |||||||
System Introduction | DVB-S2 | DVB-S/S2 System Standard: ETS 302 307(SCPC and MCPC Receivable from C/Ku Band Satellite) | |||||
DiSEqC1.0 Support, 13/18V DC @300mA MAX,Overload Protection, 0/22K | |||||||
Multi-standard Demodulation & Decoding | |||||||
DVB-S2 CCM, QPSK+1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK+3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK+2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK+3/4, 4/5, 5/6, 8/9, 9/10 Legacy DVB-S, QPSK+1/2, 2/3, 3/4, 5/6, 7/8 | |||||||
VCM Mode Supported | |||||||
Dummy Frame Insertion Supported | |||||||
Automatic Standard Recognition | |||||||
Support 1 to 60Mbaud Symbol Rates | |||||||
Fast Channel Blind Scan for RF Frequency & Symbol Rate Acquisition | |||||||
High-performance Equalizer, Canceling Echo Introduced by Front End | |||||||
Simple AGC – Tuner Interface | |||||||
Build-in DC Cancellers to Remove DC Component | |||||||
IQ Imbalance Compensator | |||||||
Automatic Roll-off Factor (0.35/0.25/0.20) Detection | |||||||
Automatic Spectrum Inversion | |||||||
Signal Quality and Statistic, Allowing Improved Monitoring and Debug | |||||||
DiSEqCTM v2.2 Modulation Output for Full Control of LNB and Satellite Antenna | |||||||

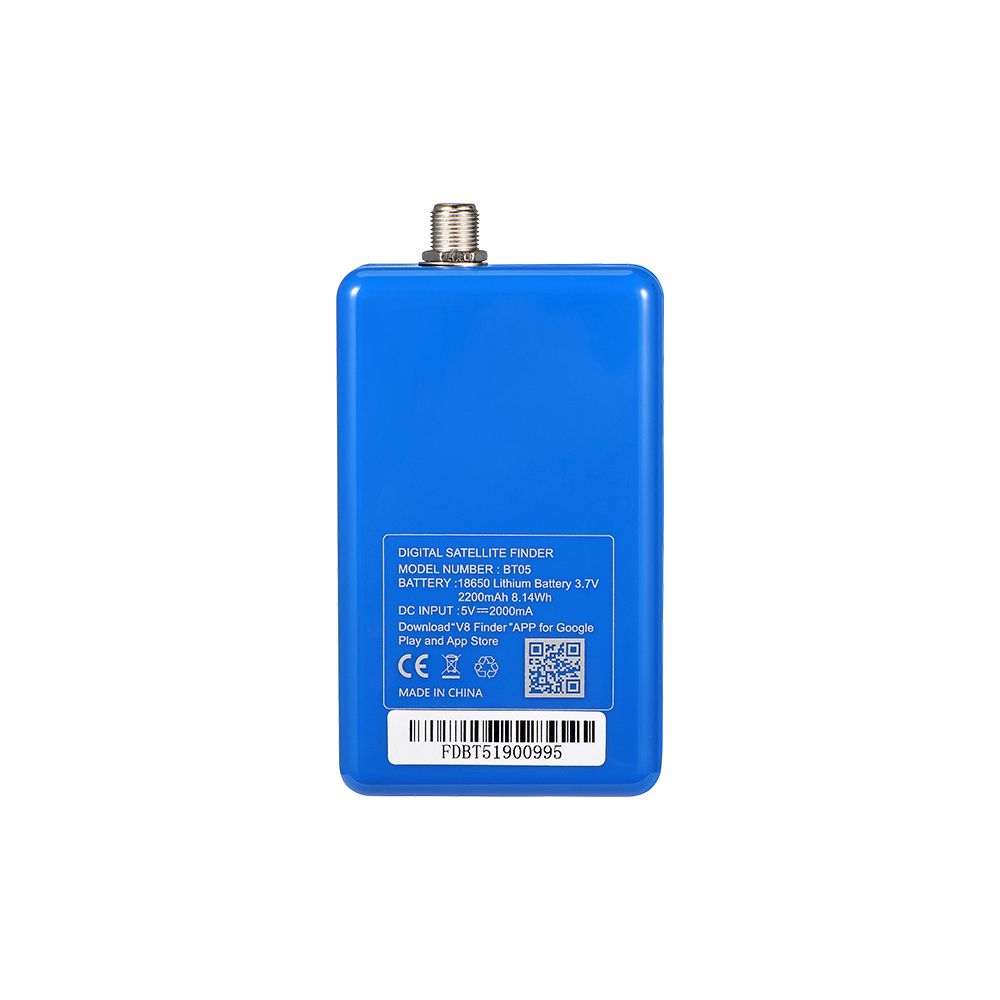

Lithium Battery | Specification | 18650 Lithium Battery 3.7V 2200mAh 8.14Wh | |||||
Working Normally for about 2 Hours, Charging for 2 Hours (Original 5V/2A Adapter Test) | |||||||
Packing | Product Dimension | 105 x 50 x 18 MM | |||||
Packaged Size | 140 x 90 x 55MM | ||||||
Carton Size | 435 x 285 x 305MM (60pcs/ctn) | ||||||
Unit Weight | 0.2 kg with Gift Box | ||||||
Carton Qty & Weight | 60 pcs/Carton, 12.5 kgs | ||||||
Accessories | 1 x DVB Finder BOX, 1 x Power Adapter, 1 x DC USB Cable, 1 x Specification | ||||||
Physicals | Temperature | Operation 0~+45℃; Storage -10~+60℃ | |||||
Humidity | 20~90%, Non-condensed |

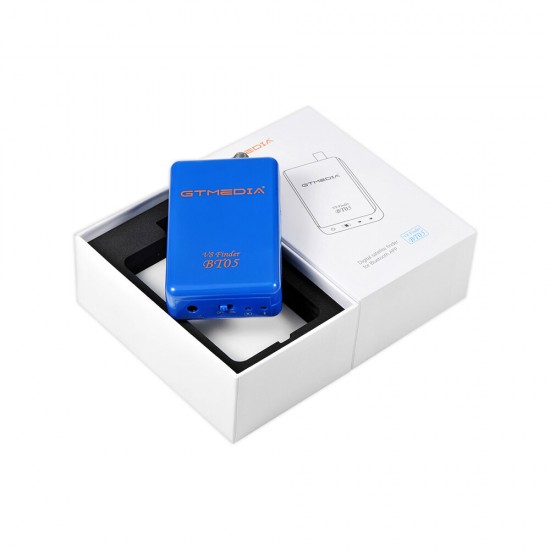

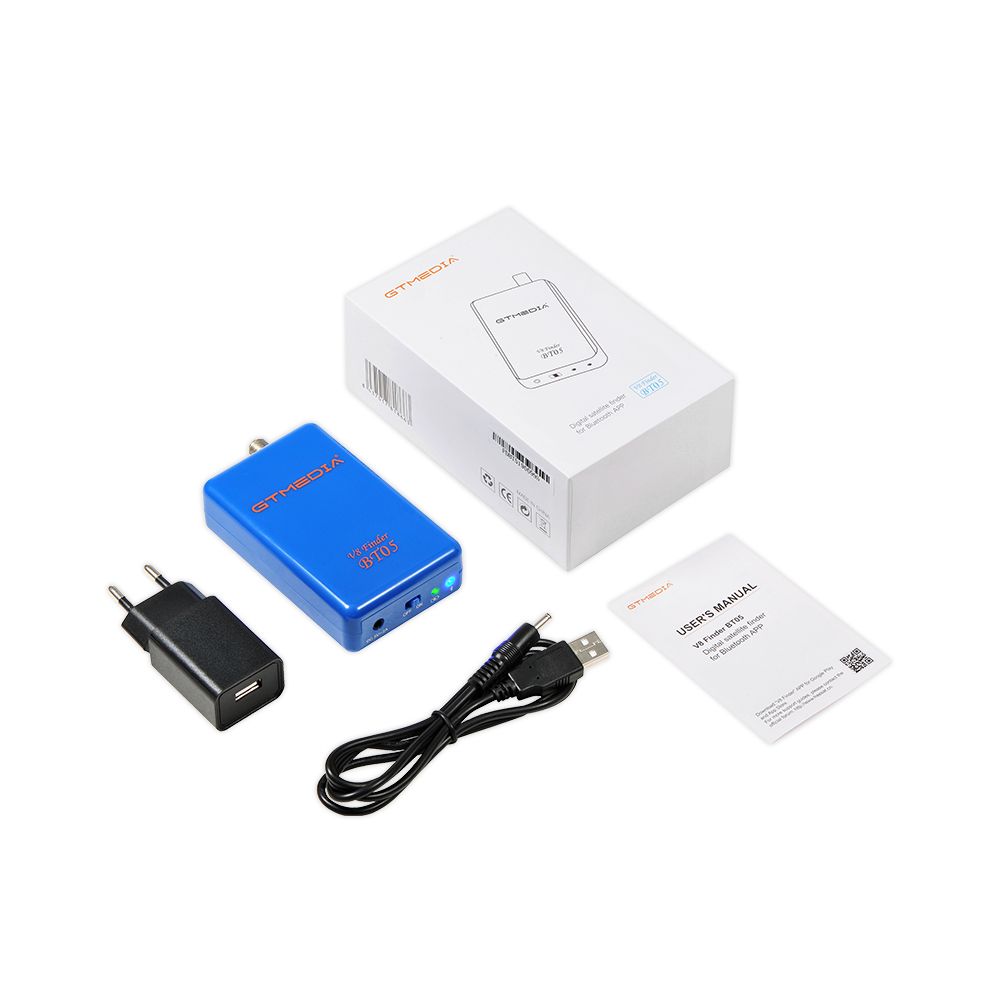

Package Included:
1 x GTMEDIA V8 Finder BT05 Digital Satellite DVB-S2 Finder Meter
1 x Power Adapter
1 x DC USB Cable
1 x User Manual
Features:
DVB Finder DVB-S2 Multi standard demodulation & decoding.
Bluetooth connection for Android APP and Apple APP.
Support full satellite selection.
Fast channel blind scan for RF Frequency & Symbol Rate acquisition.
Support VCM mode.
Support Dummy Frame insertion.
Built-in lithium battery 2200mAh.
Support LNB short circuit prompt, overload protection.

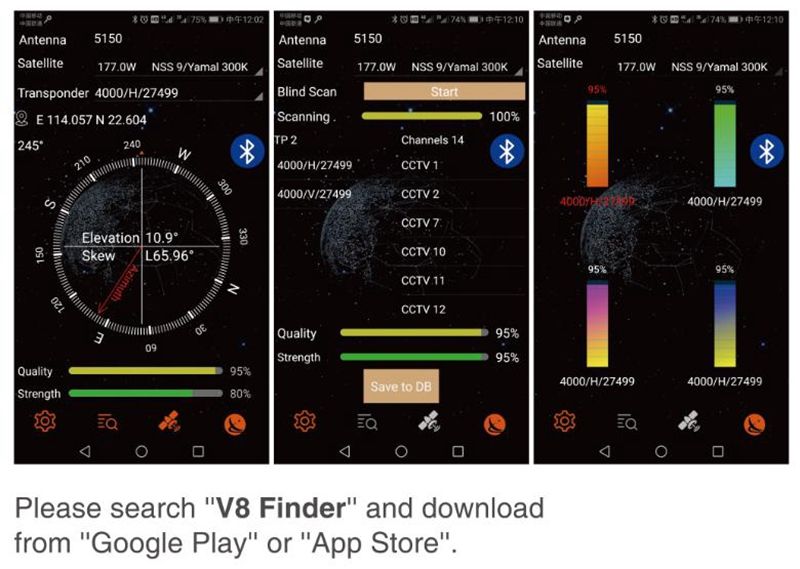

You can search for "V8 FINDER" in the APPs Store and Google Play to download the app.
