V7TT DVB-T T2 DVB-C Satellite Receiver 1080P HD H.265 HEVC J.83B Set Top Box TV Signal Receiver Support for Cccam
- Stock: In Stock
- Model: EB0018346
- SKU: EB0018346
Specification:
| Main Chip Sets | CPU frequency | 770MHz Dual Core HEVC 10Bit | |||||
| Flash Memory | 64MB SPI Flash | ||||||
| DDR2 Memory | 1G bit RAM | ||||||
| TS Demux | Demultiplexer | ISO/IEC 13818-1 | |||||
| Input Bit Rate | Max 100Mbit/s | ||||||
| Video Decode | Video Decode | MPEG-2 ISO/IEC 13818-2 MP@ML, H.264(MPEG4 part 10) main and high profile level 4.1/MPEG-2 MP@HL | |||||
| PAL/NTSC | Automatic PAL/NTSC conversion | ||||||
| Aspect Ratio | Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box | ||||||
| Video effects | Standard, Default, Vivid. | ||||||
| Video Resolution | 1920×1080,1280×720,720×480 | ||||||
| HDMI Color Space | RGB, YUV422, YUV444, Auto | ||||||
| Audio Decode | Audio Decode | MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC,EAC-3 | |||||
| Sound Mode | LEFT/RIGHT/STEREO/MONO | ||||||
| Sampling Frequency | 32KHz,44.1KHz,48KHz | ||||||
| Audio Out | LPCM Out, BS Out | ||||||
| Hardware specifications | Panel display | 4-digit LED display | |||||
| LED Indicator | Power ON :Green; Standby :Red | ||||||
| Button | NOT | ||||||
| Wifi | Support USB Wifi dongle (MTK7601) | ||||||
| IR | Exit IR for 38KHz,Infra Remote control | ||||||
| ETHERNET | 10/100M | ||||||

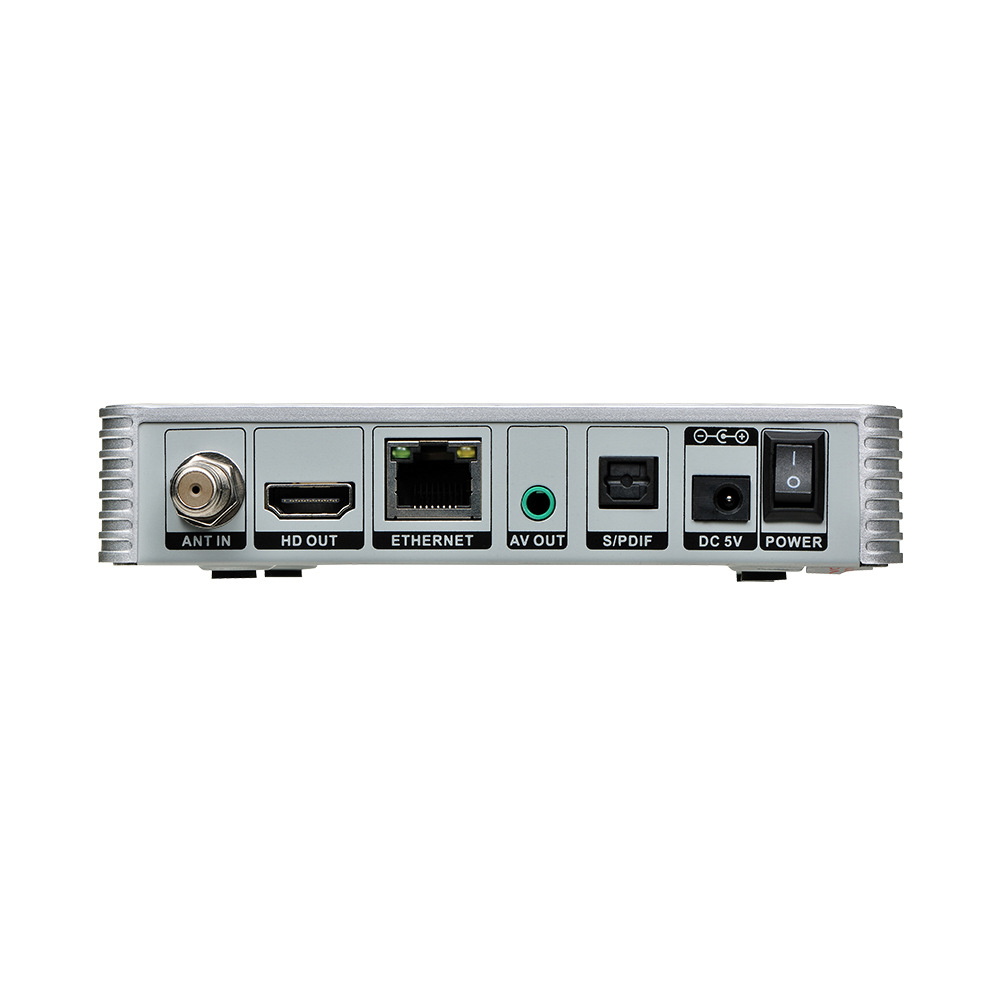

| Rear Panel | ANT IN ( EC-type IEC169-2 Female DVB-T/T2/Cable) | ||||||
| HD OUT (up to 1080P) | |||||||
| AV OUT (3.5MM*18MM Jack/4-Pin:Red-White-Yellow-GND) | |||||||
| ETHERNET(10/100M) | |||||||
| S/PDIF *1 | |||||||
| 2*USB 2.0 HOST | |||||||
| Power (DC 5V/2A) | |||||||
| DVB-Cable specificati-ons | Frequency Range | 50--858MHz For DVB-Cable | |||||
| Demodulation | 16QAM,32QAM,64QAM,128QAM,256QAM | ||||||
| FEC Code Rate | 1/2 , 2/3 , 3/4 , 5/6 , 6/7 or 7/8 | ||||||
| Input Signal level | Min -80dbm max -20dbm | ||||||
| ANT. Connector | IEC 169-2, female. Input Impedance:75 Ω | ||||||
| DVB-T/T2 specificati-ons | System standard | ETSIEN 302 755 | |||||
| Frequency Range | VHF: 174~230mhz, UHF: 470~862mhz for DVB-T/T2 H.265 | ||||||
| Demodulation | COFDM,16QAM,64QAM,256QAM | ||||||
| Bandwidth model | 6MHZ,7MHZ and 8MHZ | ||||||
| Country | England, Germany, Italy, France, Australia, Brazil, Chile, Argentina, Peru, UK, Russia, Colombia, Poland, Spanish, Sweden, Greek, Slovenia, Denmark, Finland, USA-GA, Indonesia, Belgium... | ||||||
| FEC Code Rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 | ||||||
| FFT | 2K and 8K | ||||||
| Guard interval | 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128 | ||||||
| Input Signal level | Min -79dbm max -20dbm (64QAM,8K 1/8,7/8) | ||||||
| Antenna Power | 5V DC @ 100mA MAX | ||||||
| ANT. Connector | IEC 169-2, female. Input Impedance:75 Ω | ||||||
| Sortware Features | Standard | Fully comply with DVB-T/T2/Cable, MPEG-2/4 H.265 Standard | |||||
| Channels Number | 6000 channels TV and Radio programmable | ||||||
| Favorites | 16 different favorite groups selection | ||||||
| OSD Language | OSD Multi-language for options(English, Spanish, French, Russian, Portuguese, Polish, Indonesian, Arabic, Turkish, German, Italian, Persian, Thai) | ||||||
| EPG | Fully support to 7 days Electronic Program Guide(EPG) | ||||||
| OSD Color | 16-bit OSD with anti-flickering | ||||||
| Channel Search | Supports NIT Search ,Automatic network search for newly added transponders | ||||||
| Channel Edit | Various channel editing function(favorite, move, lock, skip, delete, rename, find, sort) | ||||||
| Parental Ctrl | Parental control for channels | ||||||
| Easy Menu | Plug and Play installation, with an easy to use Menu System | ||||||
| SoftUpgrade | Software upgrades through USB port . | ||||||
| Channel | Recording one channel, can view another channel under the same TP,Various channel editing function(favorite, move, lock, skip, delete, rename, find, sort) | ||||||
| Subtitle | support DVB EN300743 and EBU | ||||||
| Teletext | support DVB ETS300472 by VBI and OSD | ||||||
| Time Set | Time set by GMT offset automatic and manual,Summer Time support | ||||||
| Timer | 5 event timers, off/Once/Daily/Weekly Mode | ||||||
| USB Decode | USB 2.0 | Support FAT/FAT32/NTFS big capacity hard disk | |||||
| PVR Option | USB 2.0 for PVR, TIMESHIFT, media files playback | ||||||
| Media Codec | TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files | ||||||
| Audio Codec | WMA, MP3 | ||||||
| Photo Codec | JPG, BMP, PNG, GIF | ||||||
| Packing | Product Dimension | 140 x 110 x 30mm | |||||
| Packaged Size | 212 x 168 x 52MM | ||||||
| Carton Size | 430 x 280 x 355MM (20pcs/ctn) | ||||||
| Unit Weight | 0.67 Kg with gift box | ||||||
| Carton Qty&Weight | 20 pcs/Carton, 14.5 kgs | ||||||
| Accessories | Gift Box, Adapter, IR remote control, HDMI Cable, User Manual | ||||||
| Physicals | Power Supply | AC 100-250V,50Hz/60Hz | |||||
| Power Consumption | 7W In operation ≦1 W Standby Power Mode | ||||||
| Temperature | Operation 0～+45℃; Storage -10~+60℃ | ||||||
| Humidity | 20~90%, non-condensed | ||||||

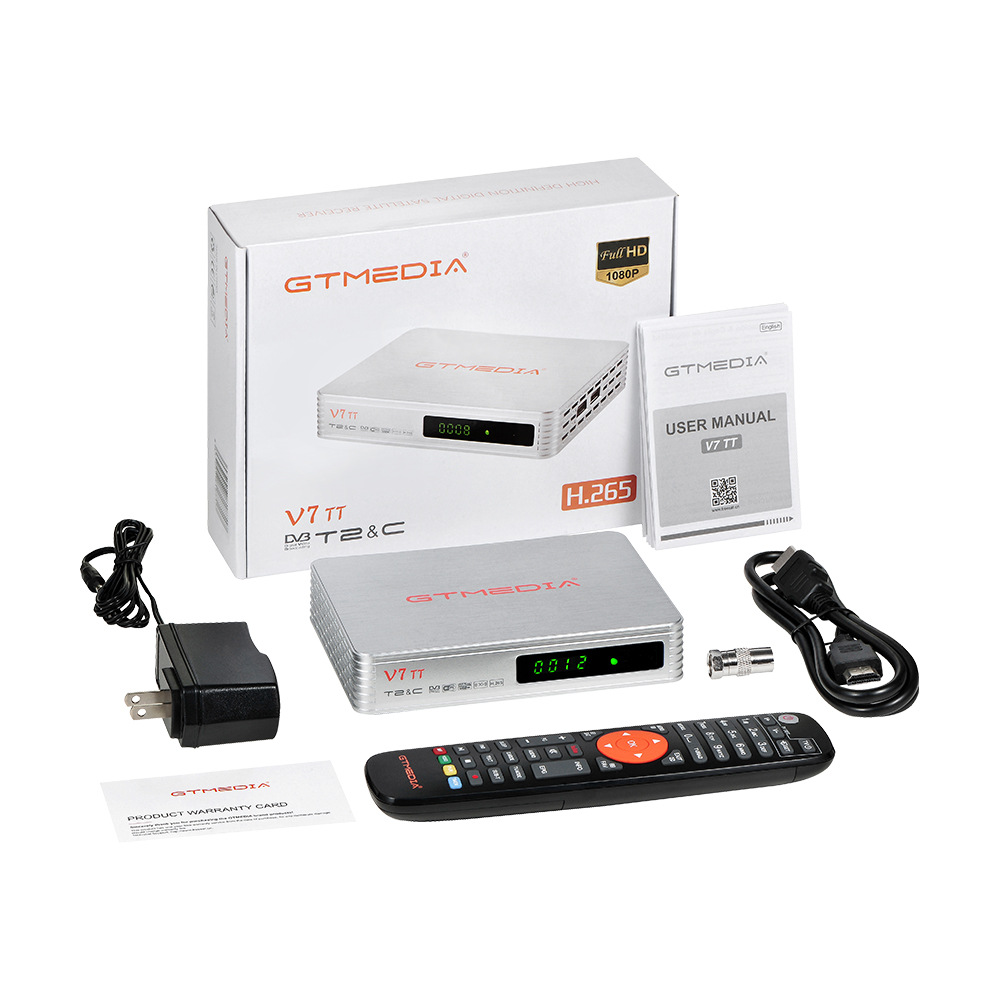

Package Included:
1 x GTMEDIA V7TT Satellite Receiver
1 x IR Rmote Control
1 x Power Adapter
1 x HDMI Cable
1 x User Manual
