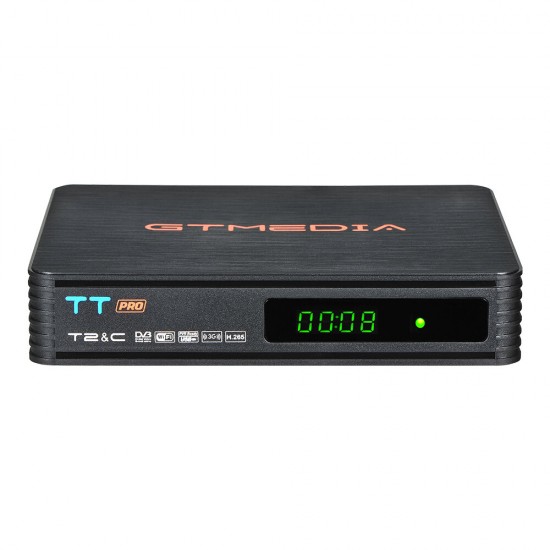

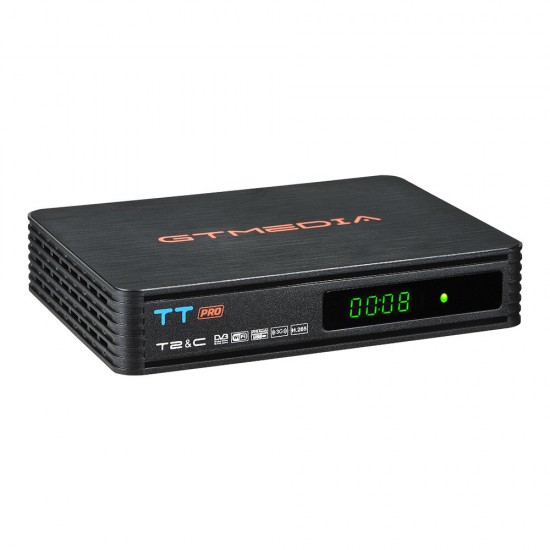

TT PRO DVB-T DVB-T2 DVB-C 1080P HD Digital Terrestrial Broadcasting TV Set-top Box MPEG4 H.265 Decoder Receptor
- Stock: In Stock
- Model: EB0018414
- SKU: EB0018414
Available Options
GTMEDIA TT PRO (DVB-T/T2/Cable) | |||||||
Main Chip Sets | CPU Frequency | 450MHz | |||||
Flash Memory | 64MB SPI Flash | ||||||
DDR2 Memory | 1G Bits | ||||||
TS Demux | Demultiplexer | ISO/IEC 13818-1 | |||||
Input Bit Rate | Max 100Mbit/s | ||||||
Video Decode | Video Decode | MPEG-2 ISO/IEC 13818-2 MP@ML, H.264(MPEG4 part 10) Main and High Profile Level 4.1/MPEG-2 MP@HL | |||||
PAL/NTSC | Automatic PAL/NTSC Conversion | ||||||
Aspect Ratio | Auto, 16:9 Pillar Box, 4:3 Pan & Scan, 4:3 Letter Box | ||||||
Video Effects | Standard, Default, Vivid. | ||||||
Video Resolution | 1920×1080, 1280×720,720×480 | ||||||
HDMI Color Space | RGB, YUV422, YUV444, Auto | ||||||
Audio Decode | Audio Decode | MPEG1 Layer I, MPEG1 Layer II, MPEG1 Layer III, MPEG2 AAC, MPEG4 HE-AAC, EAC-3 | |||||
Sound Mode | LEFT/RIGHT/STEREO/MONO | ||||||
Sampling Frequency | 32KHz, 44.1KHz, 48KHz | ||||||
Audio Out | LPCM Out, BS Out | ||||||

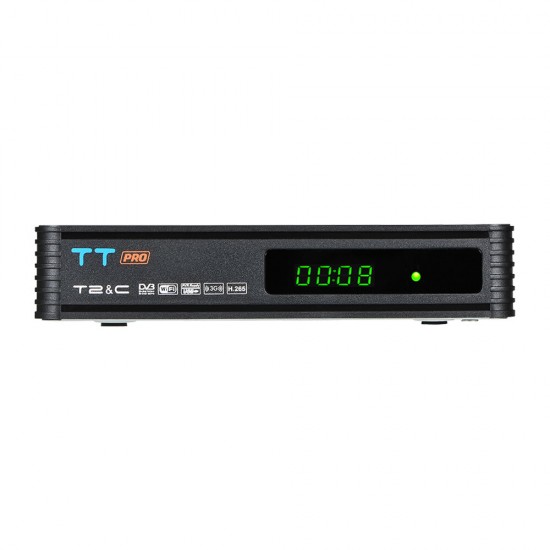

Hardware Specifications | Panel Display | 4-digit LED Display | |||||
LED Indicator | Power ON: Green; Standby: Red | ||||||
Button | NOT | ||||||
WiFi | Support USB WiFi Dongle (MTK7601) | ||||||

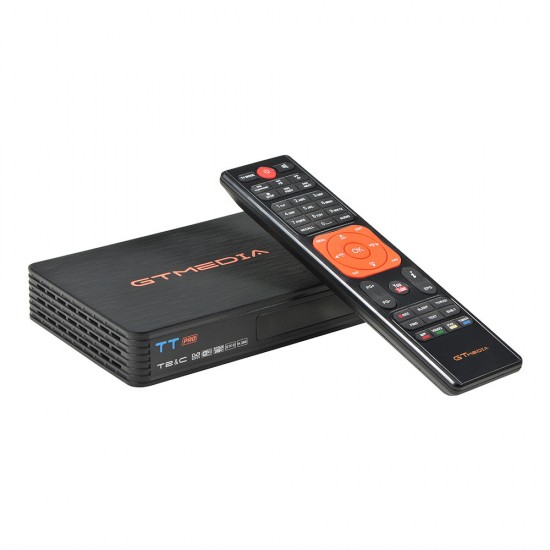

IR | Exit IR for 38KHz, Infra Remote Control | ||||||

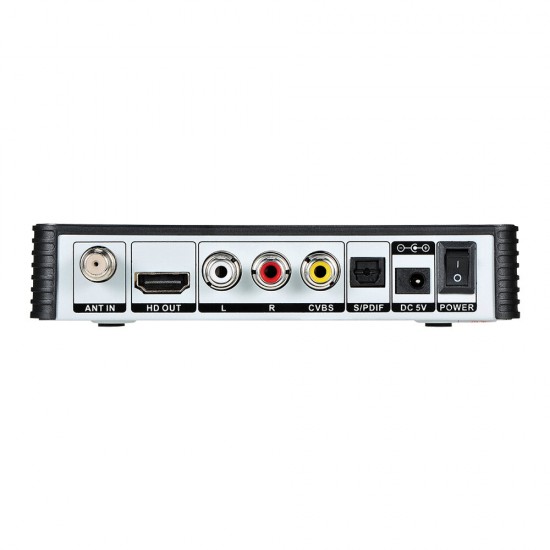

Rear Panel | ANT IN (EC-type IEC169-2 Female DVB-T/T2/Cable) | ||||||
HD OUT (up to 1080P) | |||||||
AV OUT (RCA: Yellow, Red and White) | |||||||
S/PDIF | |||||||

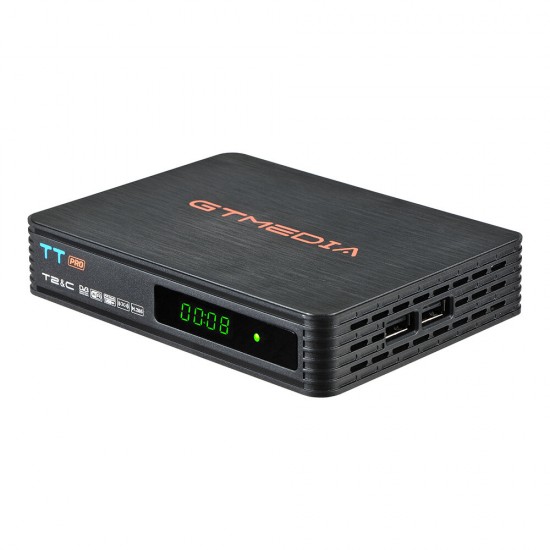

2 x USB 2.0 HOST | |||||||
Power (DC 5V/2A) | |||||||
DVB-Cable Specifications | Frequency Range | 50 - 858MHz for DVB-Cable | |||||
Demodulation | 16QAM, 32QAM, 64QAM, 128QAM, 256QAM | ||||||
FEC Code Rate | 1/2, 2/3, 3/4, 5/6, 6/7 or 7/8 | ||||||
Input Signal Level | Min -80dbm Max -20dbm | ||||||
ANT. Connector | IEC 169-2, Female. Input Impedance: 75 Ω | ||||||
DVB-T/T2 Specifications | System Standard | ETSIEN 302 755 | |||||
Frequency Range | VHF: 174~230mhz, UHF: 470~862mhz for DVB-T/T2 H.265 | ||||||
Demodulation | COFDM, 16QAM, 64QAM, 256QAM | ||||||
Bandwidth Model | 6MHZ, 7MHZ, and 8MHZ | ||||||
Country | England, Germany, Italy, France, Australia, Brazil, Chile, Argentina, Peru, UK, Russia, Colombia, Poland, Spanish, Sweden, Greek, Slovenia, Denmark, Finland, Georgia, Indonesia, Belgium... | ||||||
FEC Code Rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 | ||||||
FFT | 2K and 8K | ||||||
Guard Interval | 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128 | ||||||
Input Signal Level | Min -79dbm Max -20dbm (64QAM, 8K 1/8, 7/8) | ||||||
Antenna Power | 5V DC @100mA MAX | ||||||
ANT. Connector | IEC 169-2, Female. Input Impedance: 75 Ω | ||||||
Sortware Features | Standard | Fully Comply with DVB-T/T2/Cable, MPEG-2/4 H.265 Standard | |||||
Channels Number | 6000 Channels TV and Radio Programmable | ||||||
Favorites | 16 Different Favorite Groups Selection | ||||||
OSD Language | OSD Multi-language for Options (English, Spanish, French, Russian, Portuguese, Polish, Indonesian, Arabic, Turkish, German, Italian, Persian, Thai) | ||||||
EPG | Fully Support to 7 Days Electronic Program Guide (EPG) | ||||||
OSD Color | 16-bit OSD with Anti-flickering | ||||||
Channel Search | Supports NIT Search, Automatic Network Search for Newly Added Transponders | ||||||
Channel Edit | Various Channel Editing Function (Favorite, Move, Lock, Skip, Delete, Rename, Find, Sort) | ||||||
Parental Ctrl | Parental Control for Channels | ||||||
Easy Menu | Plug and Play Installation, with an Easy to Use Menu System | ||||||
SoftUpgrade | Software Upgrades through USB Port. | ||||||
Channel | Recording One Channel, Can View Another Channel Under the Same TP, Various Channel Editing Function (Favorite, Move, Lock, Skip, Delete, Rename, Find, Sort) | ||||||
Subtitle | Support DVB EN300743 and EBU | ||||||
Teletext | Support DVB ETS300472 by VBI and OSD | ||||||
Time Set | Time Set by GMT Offset Automatic and Manual, Summer Time Support | ||||||
Timer | 5 Event Timers, Off/Once/Daily/Weekly Mode | ||||||
USB Decode | USB 2.0 | Support FAT/FAT32/NTFS Big Capacity Hard Disk | |||||
PVR Option | USB 2.0 for PVR, TIMESHIFT, Media Files Playback | ||||||
Media Codec | TS, MKV, MP4, AVI, FLV, F4V, TS, M2TS, MOV, 3GP Files | ||||||
Audio Codec | WMA, MP3 | ||||||
Photo Codec | JPG, BMP, PNG, GIF | ||||||
Packing | Product Dimension | 140 x 110 x 30mm | |||||
Packaged Size | 212 x 168 x 52MM | ||||||
Carton Size | 430 x 280 x 355MM (20pcs/ctn) | ||||||
Unit Weight | 0.67kg with Gift Box | ||||||
