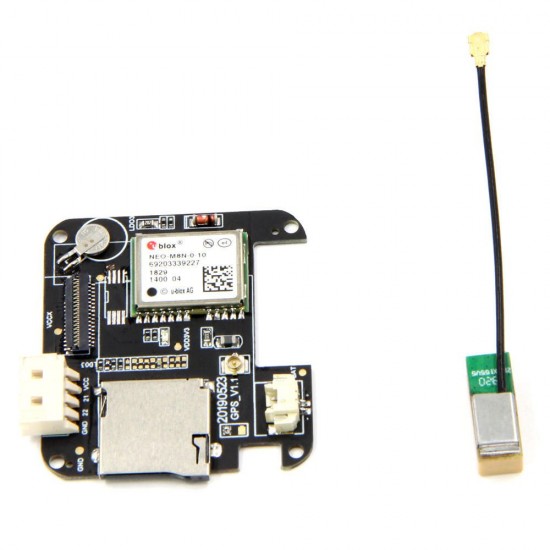

GPS-M8N Bottom PCB ESP32 Support TF Card Expansion Board Lua MicroPython Scratch

GPS-M8N Bottom PCB ESP32 Support TF Card Expansion Board Lua MicroPython Scratch
GPS-M8N Bottom PCB ESP32 Support TF Card Expansion Board Lua MicroPython Scratch
GPS-M8N Bottom PCB ESP32 Support TF Card Expansion Board Lua MicroPython Scratch
GPS-M8N Bottom PCB ESP32 Support TF Card Expansion Board Lua MicroPython Scratch
GPS-M8N Bottom PCB ESP32 Support TF Card Expansion Board Lua MicroPython Scratch
GPS-M8N Bottom PCB ESP32 Support TF Card Expansion Board Lua MicroPython Scratch
GPS-M8N Bottom PCB ESP32 Support TF Card Expansion Board Lua MicroPython Scratch
$29.99
Ex Tax: $29.99
  • Stock: In Stock
  • Model: EB0042084
  • SKU: EB0042084
Demo program: Click here to open
For TTGO T-watch development: Product ID EB0042518

Features:

Main chip: ESP32, dual-core MCU (integrated dual-mode Bluetooth/wifi), PMU power management
Display: 1.54 inch LCD capacitive touch screen
Sensor: BMA423 three-axis accelerometer, built-in step counting algorithm, activity recognition / tracking, advanced gesture recognition, etc.
Combination kit: lithium battery, design open mold, and thick strap, and black and white
Development platform: ESP-IDF (native SDK), , Lua, MicroPython, Scratch
Support GPS positioning function: latitude and longitude, altitude data acquisition
Support TF card reading and writing
Support for expandable module use

Function:

GPS positioning function: latitude and longitude, collecting altitude data
Support for reading and writing TF card
Support module expansion

Pin details:

Screen:

ESP32 Name Description
GPIO05 CS TFT_CS
GPIO18 SCLK TFT_SCLK
GPIO19 MOSI TFT_MOSI
GPIO27 DC TFT_DC
GPIO12 BL TFT_BL
TF card:

ESP32 Name Description
GPIO13 CS TF_CS
GPIO15 MOSI TF_MOSI
GPIO02 MISO TF_MISO
GPIO14 SCLK TF_SCLK
NEO GPS M8N:

ESP32 Name Description
GPIO33 TX UART_GPS_TX
GPIO34 RX UART_GPS_RX

Package includes:

1 x GPS module


Note: The T-watch box does not includes

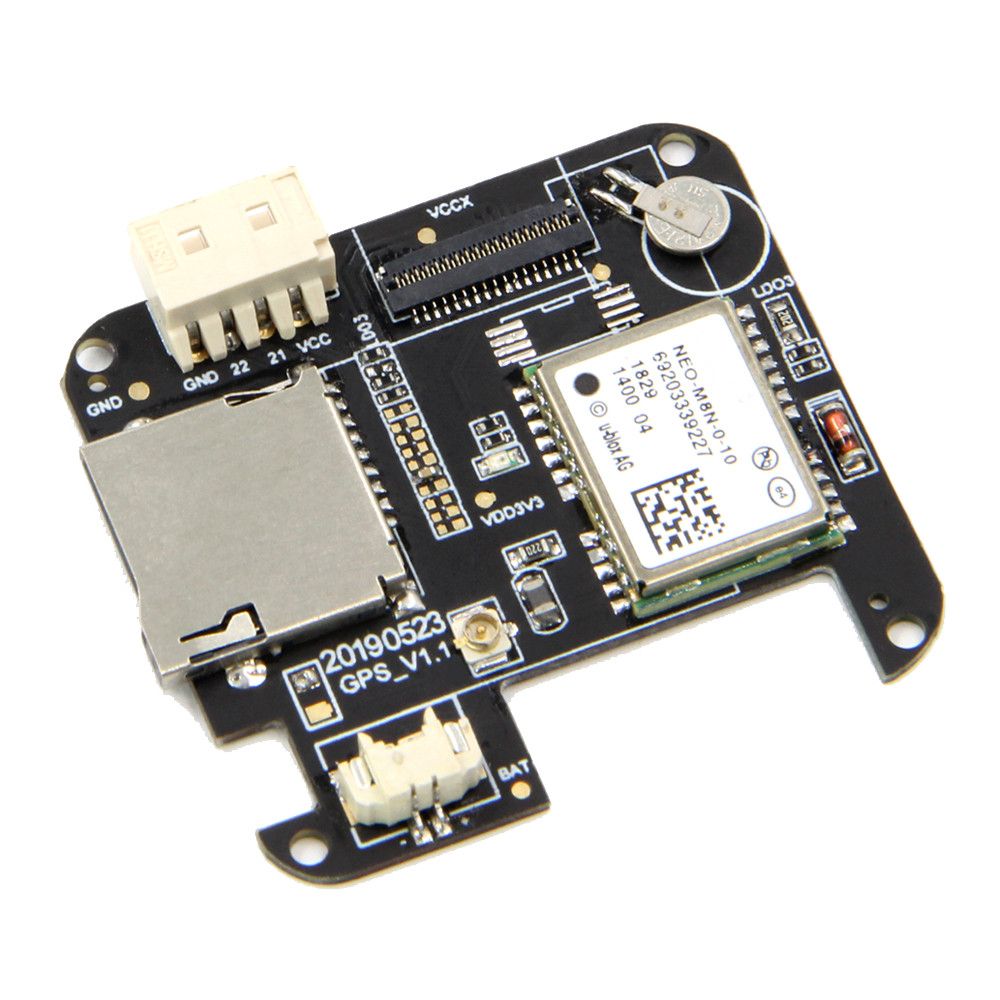

TTGO-T-Watch-GPS-M8N-Bottom-PCB-ESP32-Support-TF-Card-Expansion-Board-Lua-MicroPython-Scratch-1547654

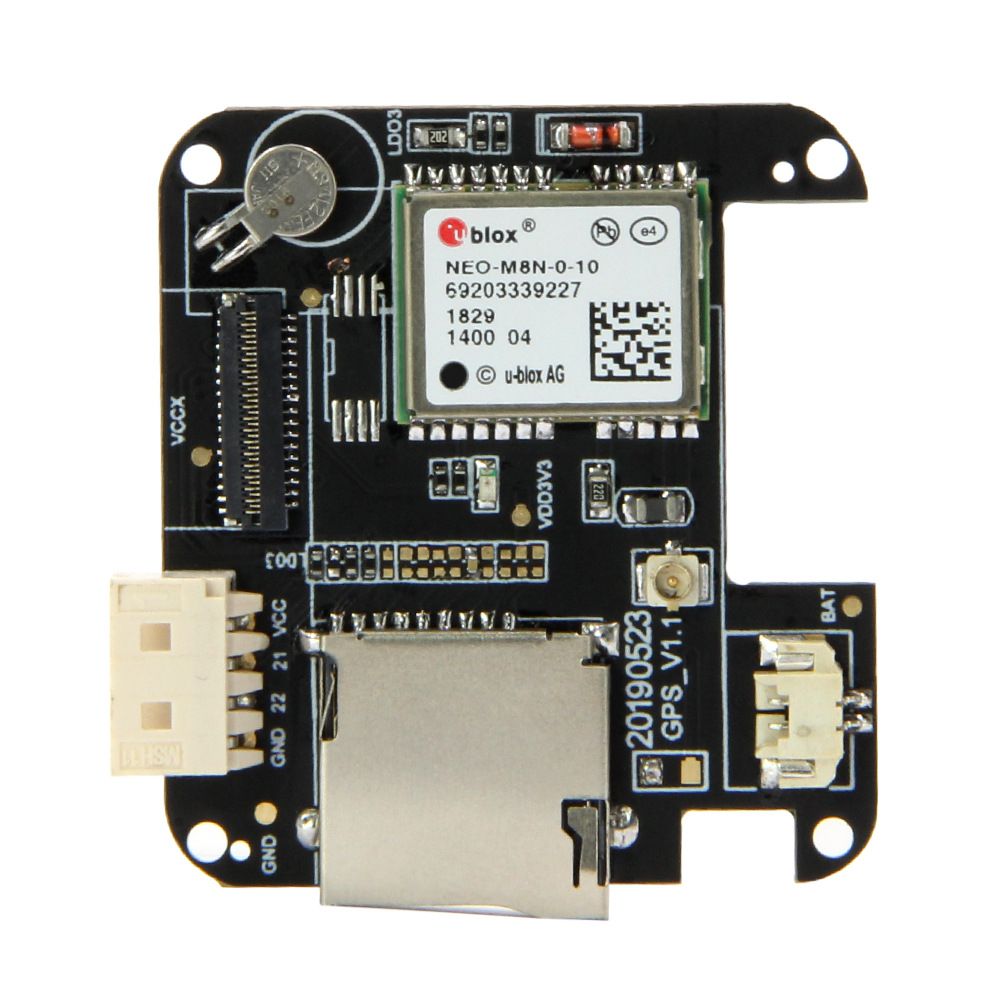

TTGO-T-Watch-GPS-M8N-Bottom-PCB-ESP32-Support-TF-Card-Expansion-Board-Lua-MicroPython-Scratch-1547654

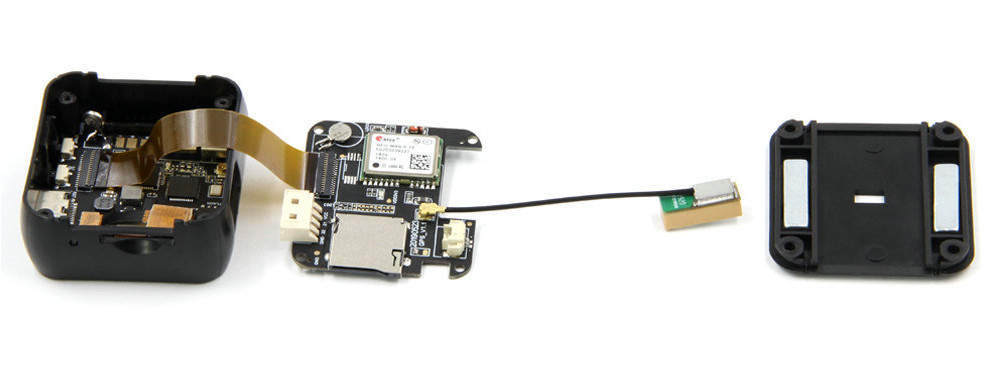

TTGO-T-Watch-GPS-M8N-Bottom-PCB-ESP32-Support-TF-Card-Expansion-Board-Lua-MicroPython-Scratch-1547654
