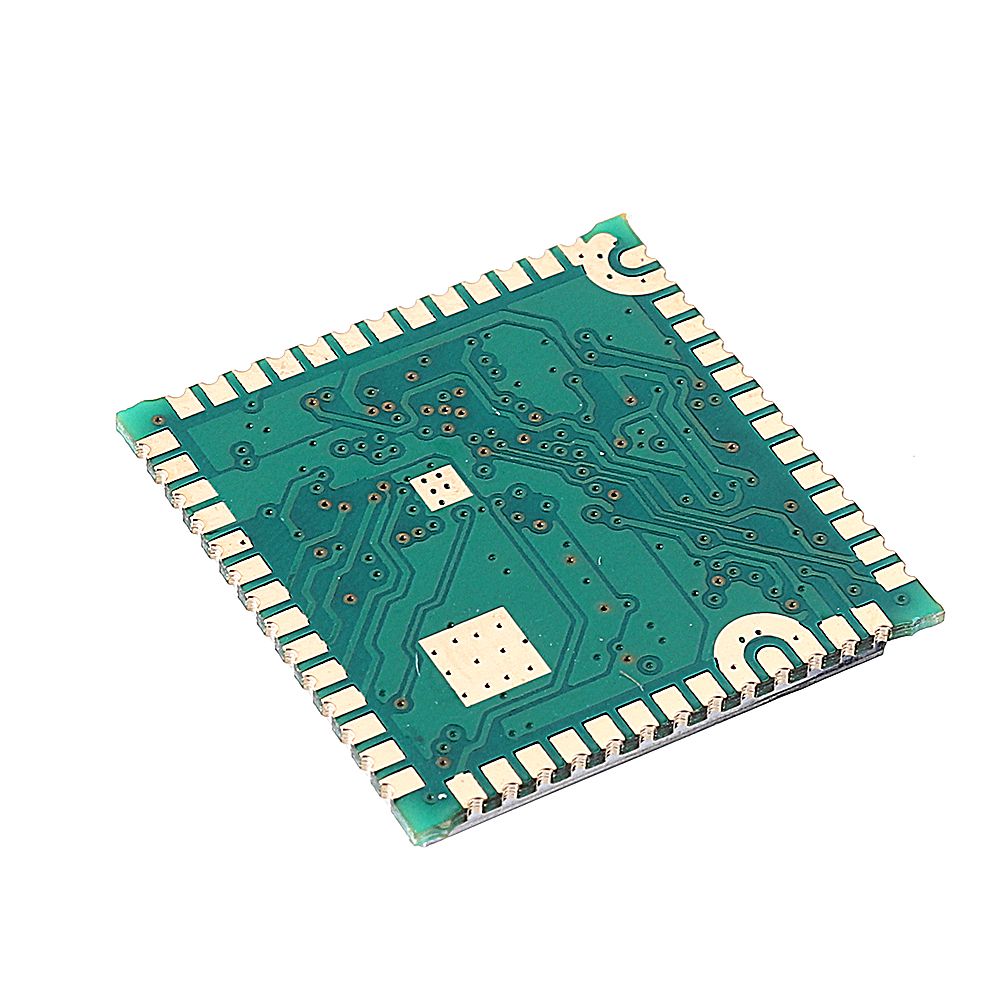

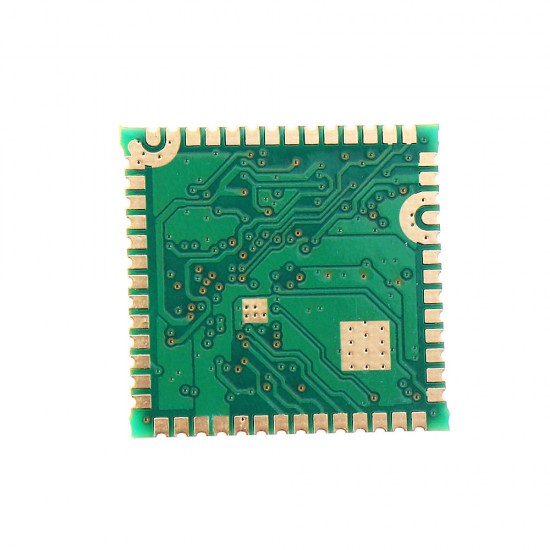

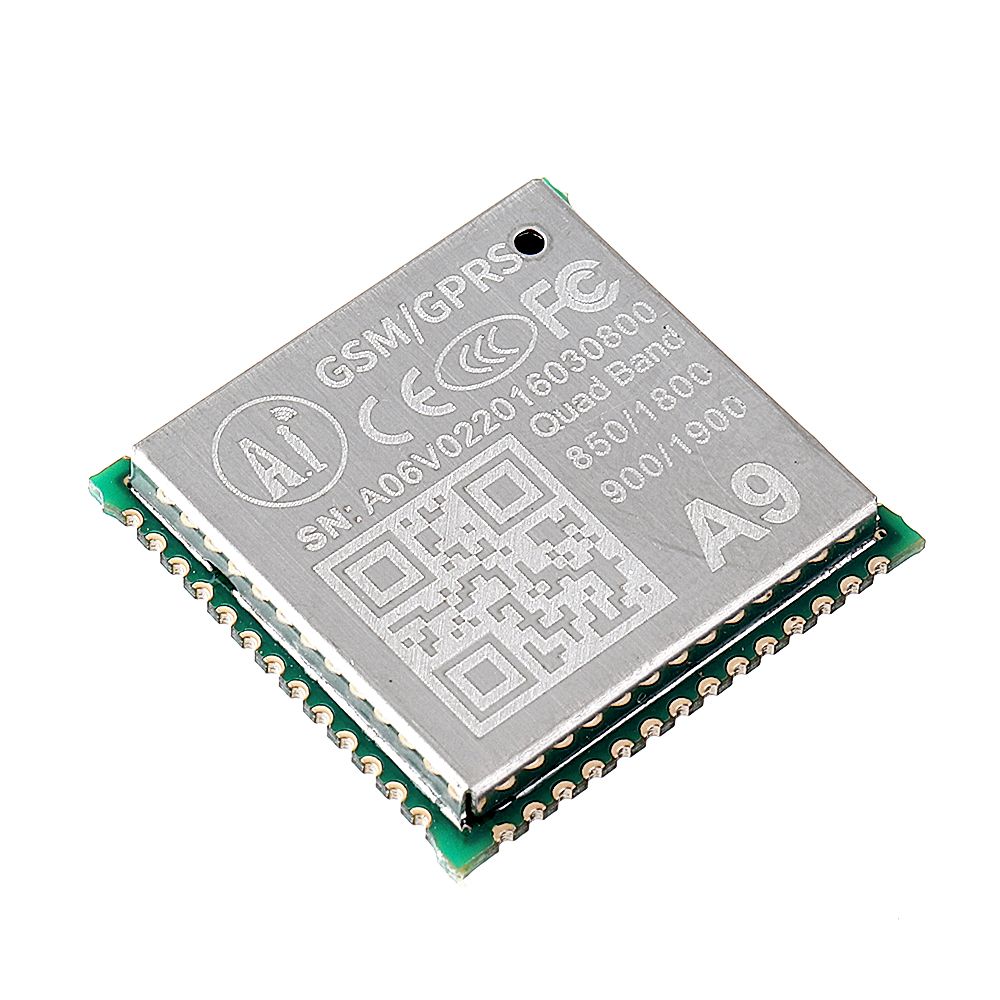

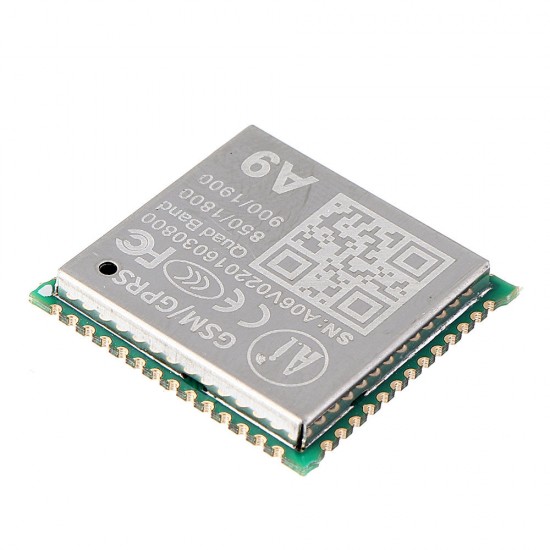

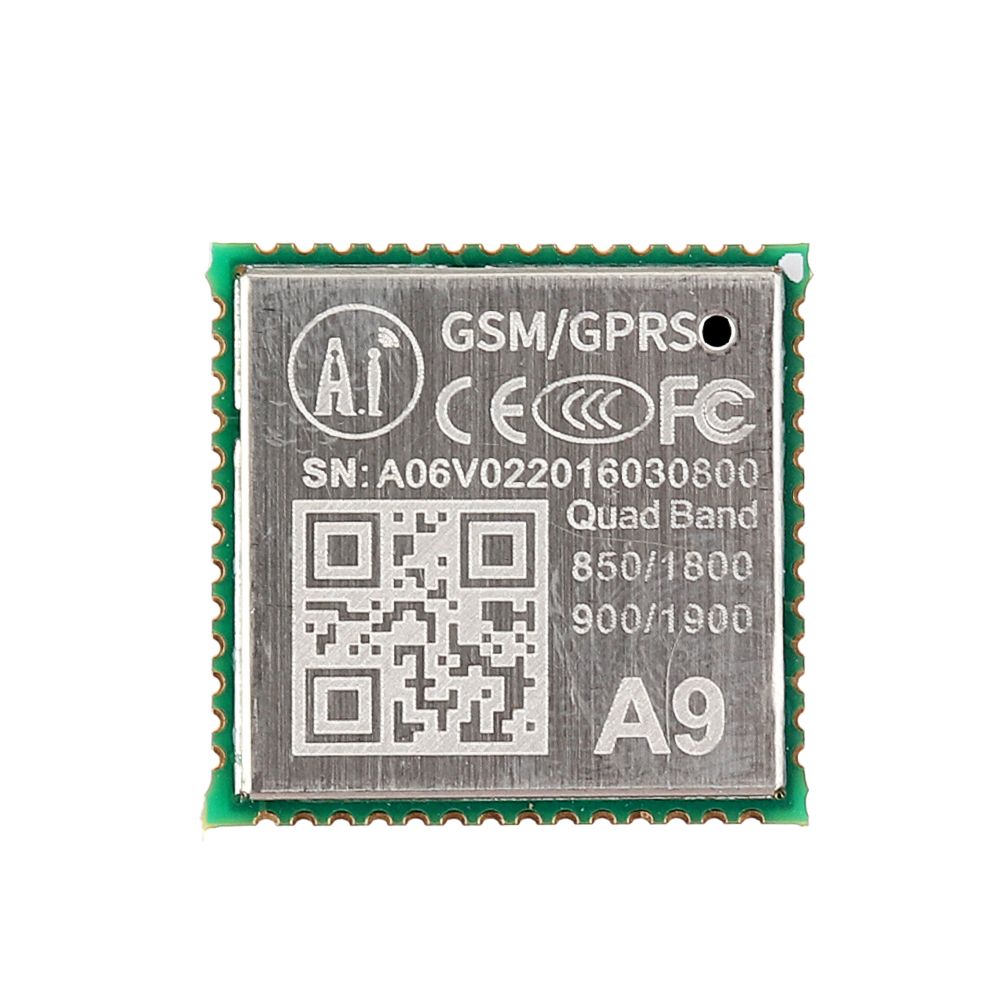

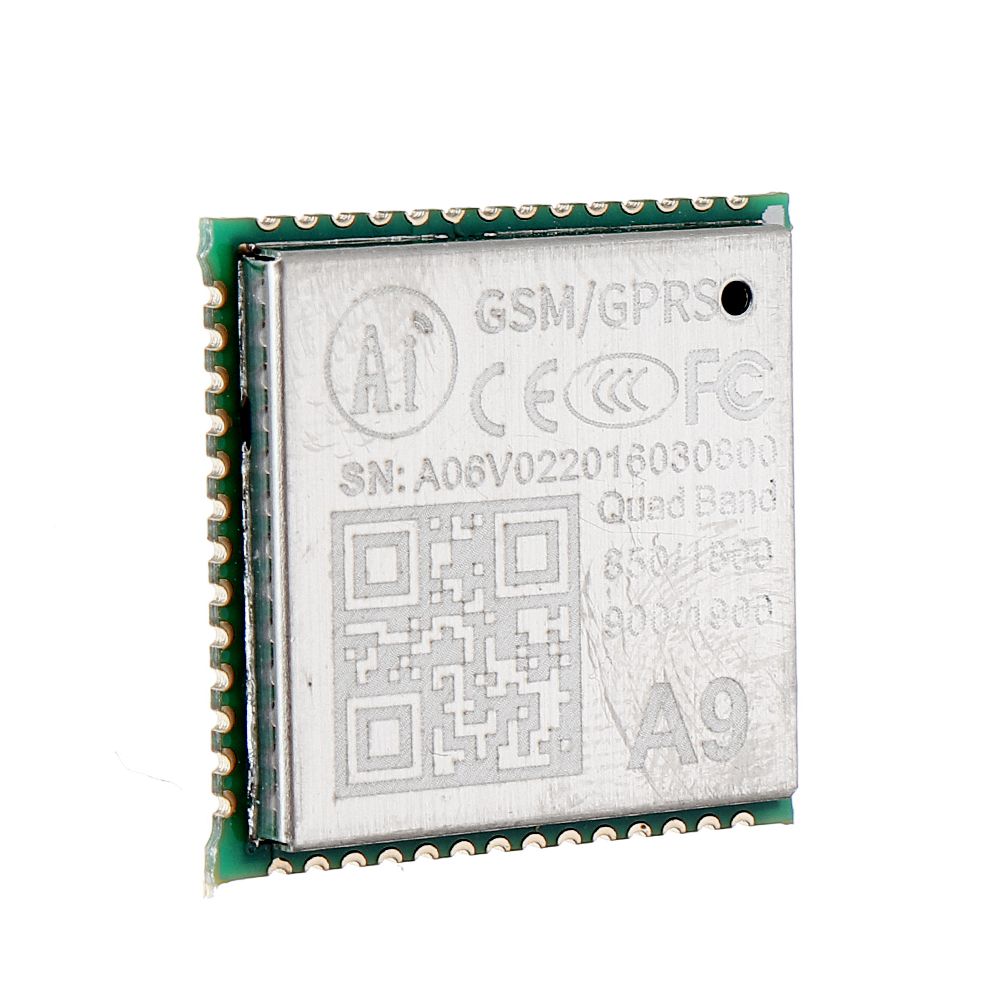

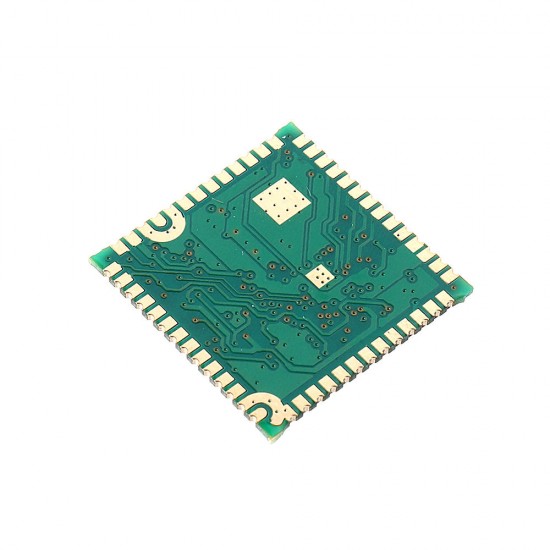

GPRS GSM Module A9 Module SMS Voice Wireless Data Transmission IOT GSM Internet of Things

Based on 0 reviews. - Write a review

$5.04

Ex Tax: $5.04

Stock: In Stock
Model: EB000578
Dimensions: 19.20mm x 18.80mm x 2.70mm
SKU: EB000578

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Overview:

1. The A9 development board is a multi-function development board based on the Axin A9G GPRS/GSM module, which can be used to verify the basic communication functions and peripheral functions of the A9 module.

2. A9 development board has basic telephone/sms, GPRS network communication.

3. A9 development board contains lithium battery charge management, microphone, speaker interface, USB communication interface, multiple user buttons / led, TF card slot, acceleration sensor, SPI interface, I2C2 interface, ADC interface.

4. Pudding series development board camera expansion board, can be connected to 30W/200W camera.

5. A9 development board slot machine expansion board, can be connected to a traditional coin machine.

Specifications:

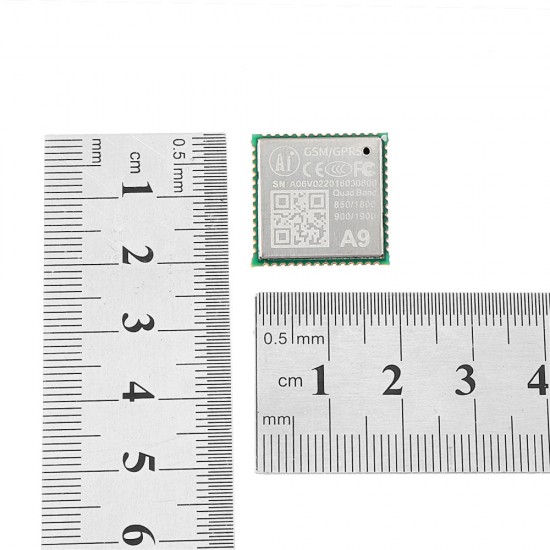

* Chip size: 19.2*18.8*2.7mm (±0.2mm)

* Working temperature -30 ° C +80 ° C;

* Working voltage is 3.5V-4.2V, 4V power supply is recommended;

* Boot voltage > 3.5V;

* Low power average current is below 2ma;

* Support GSM/GPRS four frequency bands, including 850, 900, 1800, 1900MHZ;

* GPRS Class 10;

* Sensitivity <-105;

* Support voice calls;

* Support SMS SMS;

* GPIO level is 2.8V;

* Support GPRS data service, maximum data rate, download 85.6Kbps, upload 42.8Kbps;

* Support standard GSM07.07, 07.05 AT commands and Ai-Thinker extension commands;

* A9 supports 3 serial ports, one download serial port and one AT command port;

* AT command supports standard AT and TCP/IP command ports;

* Support digital audio and analog audio, support HR, FR, EFR, AMR voice coding

Package Included:

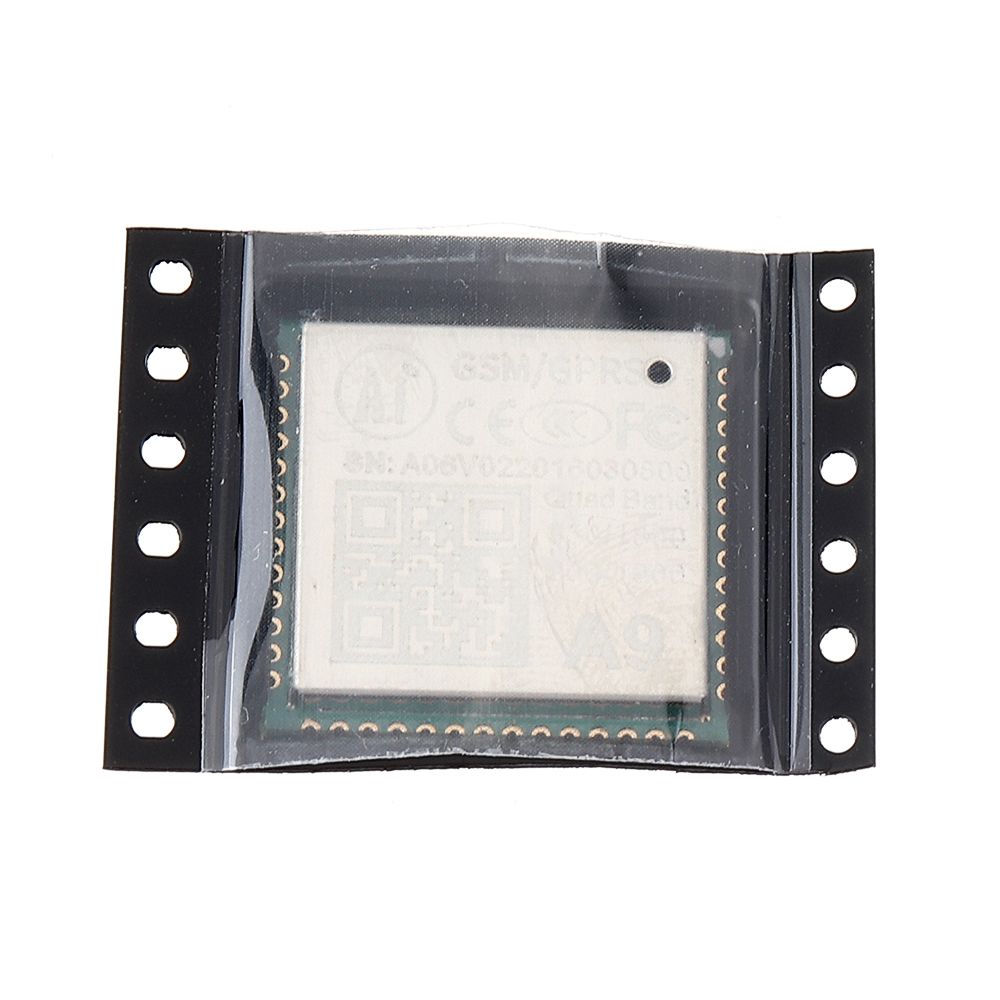

1 x GPRS GSM Module A9 Module

Document:

CSDK_Github open source information:

GPRS-GSM-Module-A9-Module-SMS-Voice-Wireless-Data-Transmission-IOT-GSM-Internet-of-Things-1507060
