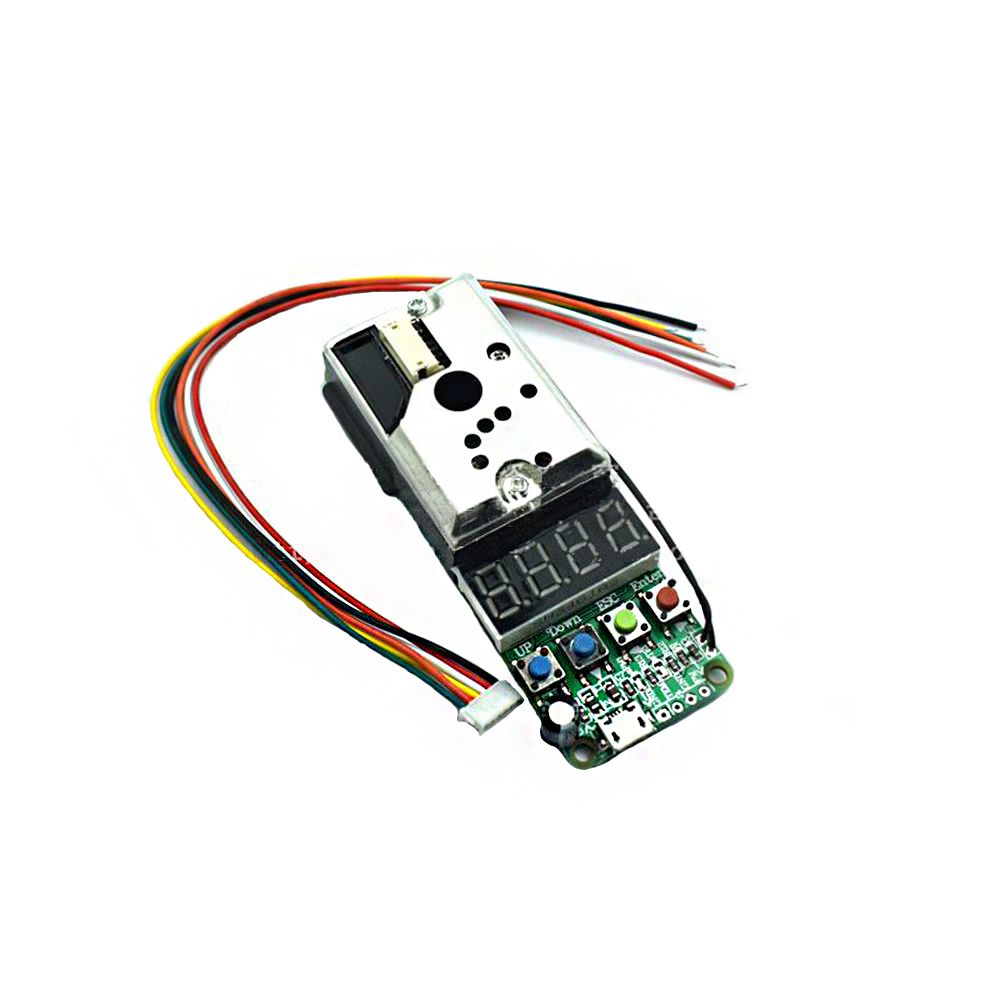

GP2Y1051AU0F Dust Sensor Module PM2.5 Temperature Detection Development Board with Evaluation Display Board

Based on 0 reviews. - Write a review

$12.99

Ex Tax: $12.99

Stock: In Stock
Model: EB0043366
SKU: EB0043366

Available Options

Model

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

1# GP2Y1051AU0F Dust Sensor

2# Evaluation Display Board

3# GP2Y1051AU0F Dust Sensor+Evaluation Display Board

Overview:

1. DEMO evaluation display board support model: GP2Y1051AU0F

2. The DEMO evaluation display board has been written to the microcontroller and no other programming is required. The power supply USB is directly connected and displayed.

3. Power supply requires 5V voltage. The USB cable can be connected to the mobile power supply or the USB socket.

[Some computers may display a little deviation from the unstable USB power supply, but it does not affect the use].

4. PM2.5 display for 8 seconds, temperature display for 1 second, polling display.

5. PM2.5 shows a rise from 0 (the worse the air, the faster the number rises, and vice versa) until the final number stabilizes at the PM2.5 value.

6. Two onboard LEDs flash once every 2 seconds. Flashes out of sync.

7. If the user can program by himself, he can write functions according to his own situation, and the program development download interface has been reserved

UI:

P 50: PM2.5 50

C 20: temperature 20 ℃

Err1: The PM2.5 sensor is not connected or the line is disconnected.

Err2: The temperature sensor is not connected or has other faults.

1. Display value 0-50 excellent

2. Display value 50-100 good

3. Display value 100-130 light pollution

4. Display value 130-170 Moderate pollution

5. Display value 180-250 Severe pollution

6. The displayed value is greater than 250 serious pollution

Onboard resources:

1.1x digital tube display [4 digits red]

2.4x independent keys

3.1 x temperature probe J1 port

4.1 x PM2.5 sensor interface

5.1 x Serial port 2.54 row pinhole [J2] -Spare

6.1 x Download program port-on the back, it is convenient for users to program by themselves.

7. Indicator x2: It can be used to indicate the setting of PM2.5 and temperature, and can also be used for other purposes.

8. IO port output 2-next to USB-can be used for PM2.5 or temperature detection to output signals to the IO port.

9. SCM model: STM8S103F3P6

Package Included:

1 x GP2Y1051AU0F Dust Sensor Module
