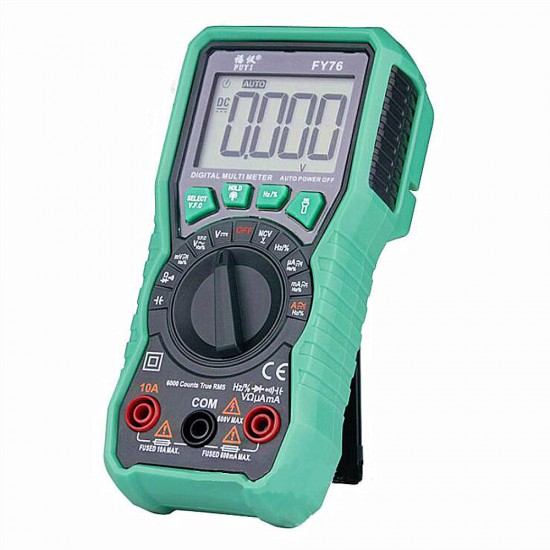

FY76 Digital Multimeter Auto Range 0~600V Multimetre AC DC True RMS Tester NCV Multimeter

Based on 0 reviews. - Write a review

$29.12

Ex Tax: $29.12

Stock: In Stock
Model: EB004397
SKU: EB004397

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

•Max display value:6000

•LCD display with backlight for clear reading.

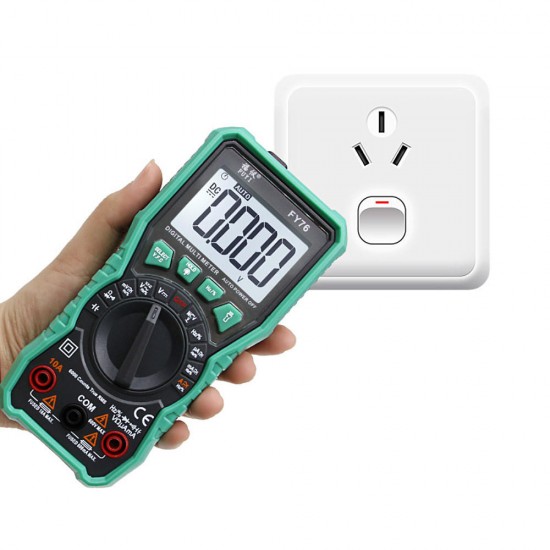

•Can measures AC/DC voltage/current,resistance,capacitance,frequency,duty cycle,diode,continuity and live wire.

•VFC test and NCV test with warning alarm function.

•Includes True RMS,data hold and low battery indication functions.

•Auto power off in 15mins if there's no operation.

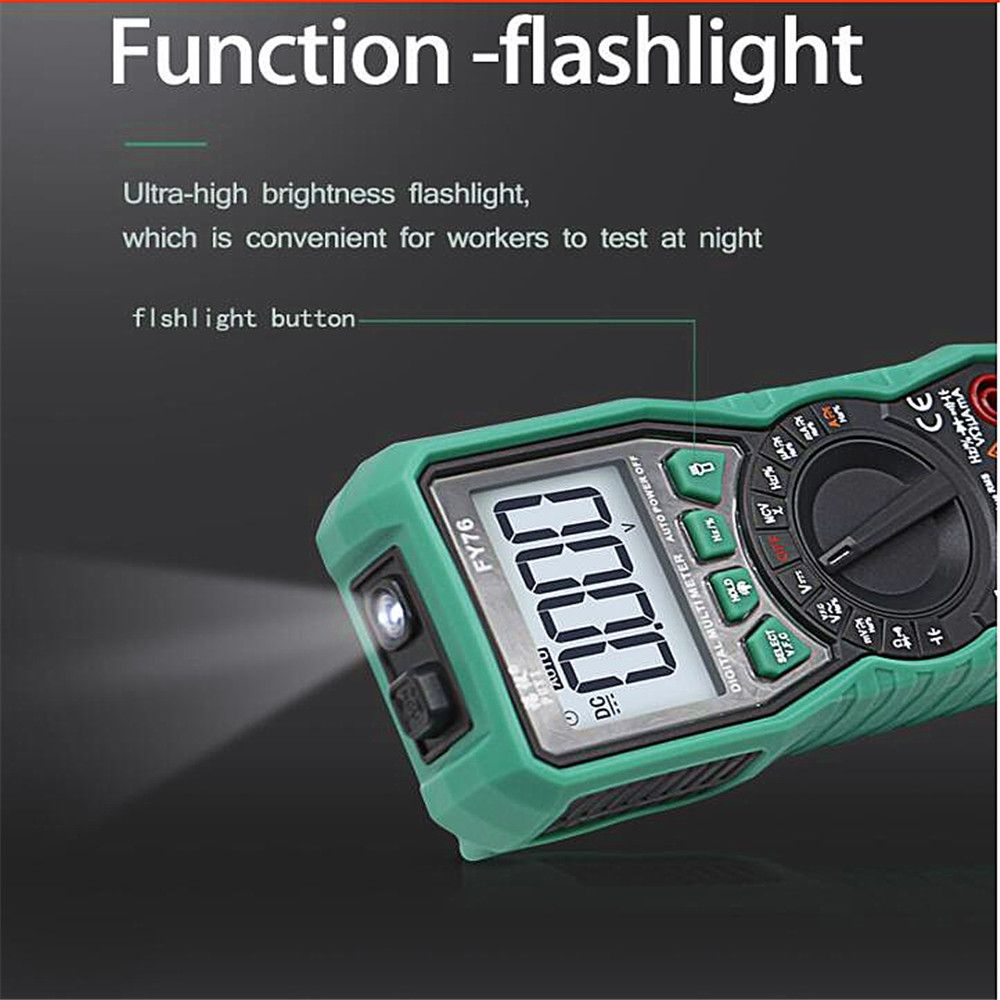

•Built-in LED flashlight,convenient to use at night or dark environment.

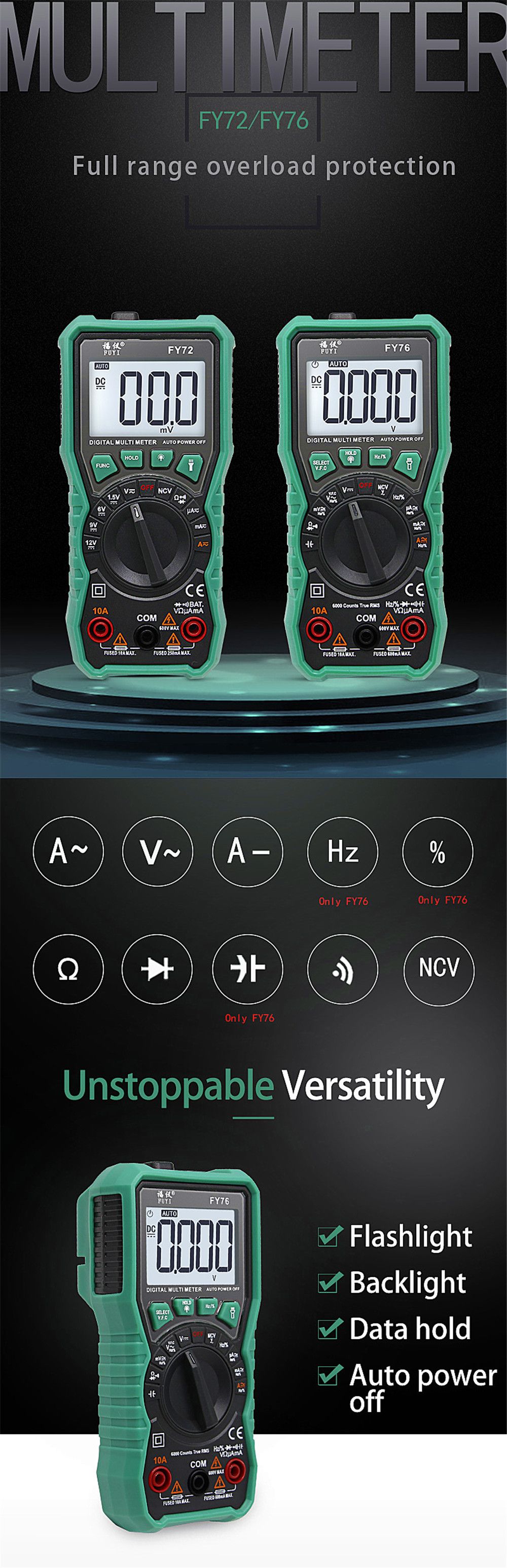

•With overload protection on all ranges.

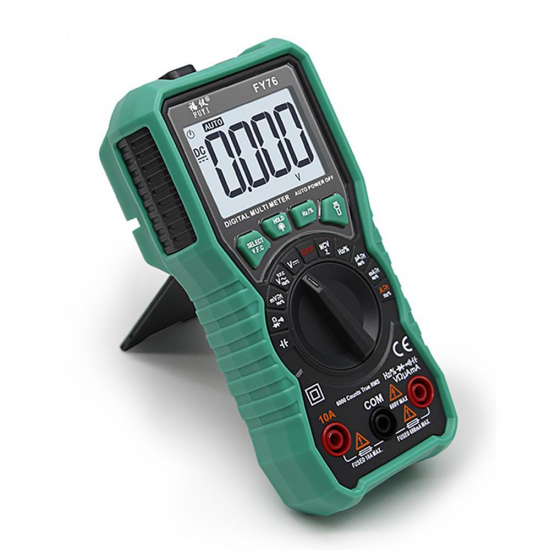

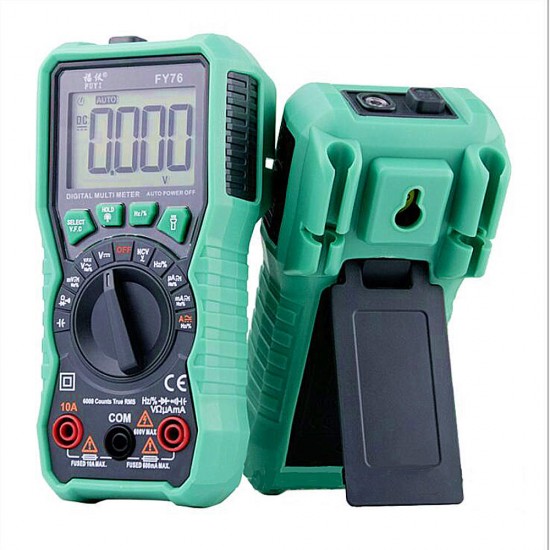

•Equipped with a back bracket for supporting multimeter,and also can collect test probe for your convenience.

•Protected by rubber for drop protection.

•Great for troubleshooting automotive and household electrical problems.

Specification:

♦Maximum Display: 6000

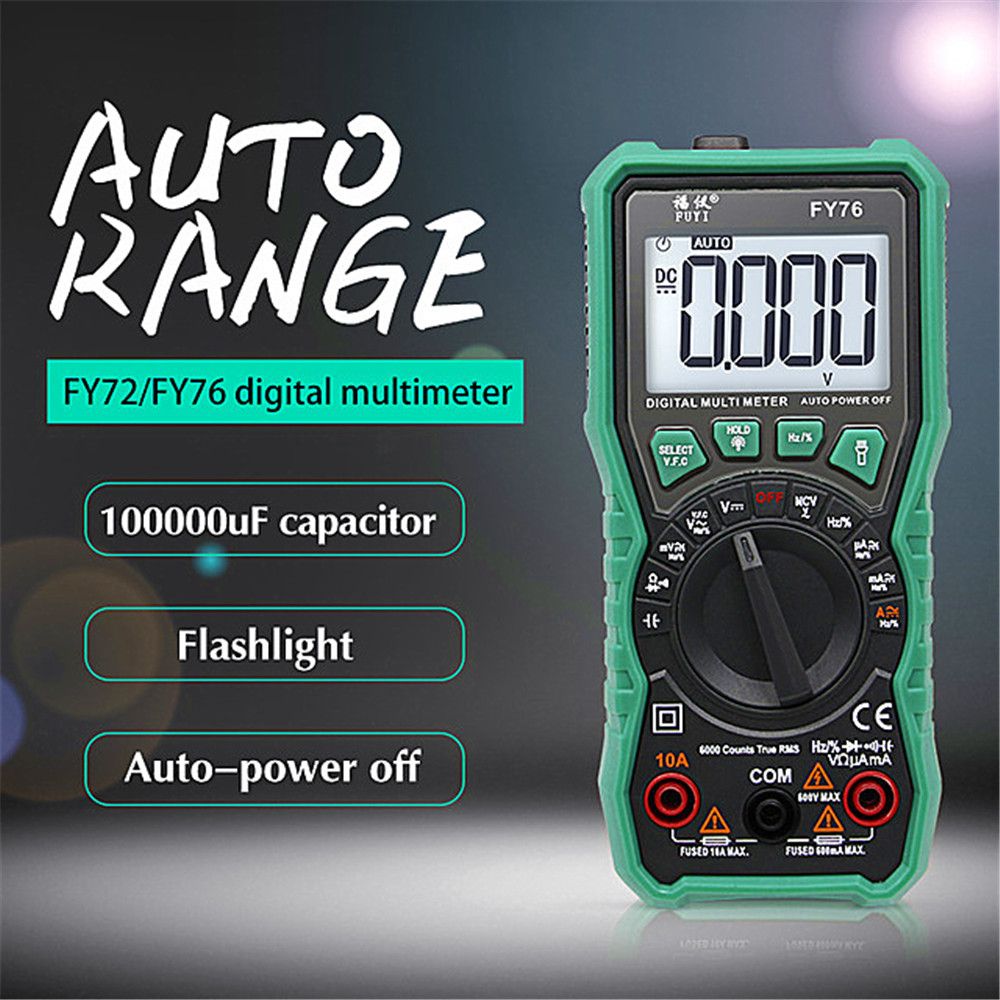

♦Range Control: Auto Range

♦DC Voltage: 60mV/600mV/6V/60V/600V

♦AC Voltage: 60mV/600mV/6V/60V/600V

♦V.F.C Range: 200V~600V

♦DC Current: 600uA/6000uA/60mA/600mA/10A

♦AC Current: 600uA/6000uA/60mA/600mA/10A

♦Resistance: 600ohm/6Kohm/60Kohm/600Kohm/6Mohm/60Mohm

♦Capacitance: 9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF

♦Frequency(HzVGrade): 99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz/99.99MHz

♦V/A Frequency Range: 10Hz-10kHz

♦Duty Cycle: 10%~95%

♦Overload Protection: DC/AC 250V(True RMS)

♦Diode Test: YES

♦Continuity Buzzer: Yes

♦Auto Power Off: about 15mins

♦Sampling Rate: 0.4s

♦Altitude: 2000m

♦Power Supply: 3*1.5V AAA Batteries(NOT Included)

♦Operating Temperature: 0~40C(32~104F),45~80% relative humidity

♦Storage Temperature: -20~60C(-4~140F),45~80% relative humidity

>>English Manual Download Link<<

Package included:

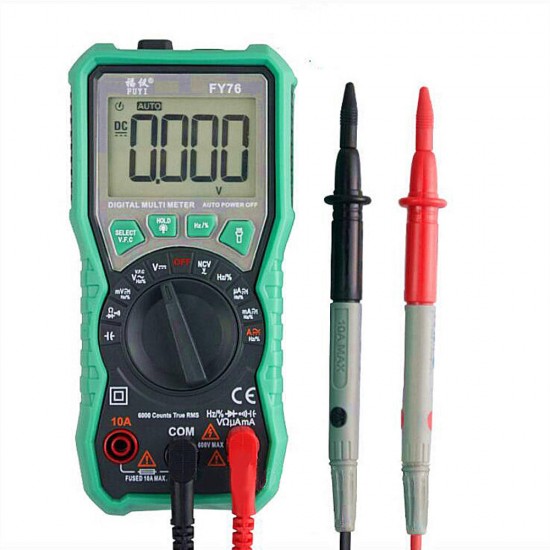

1 x Digital Multimeter

1 x Pair of Test Leads

1 x User Manual

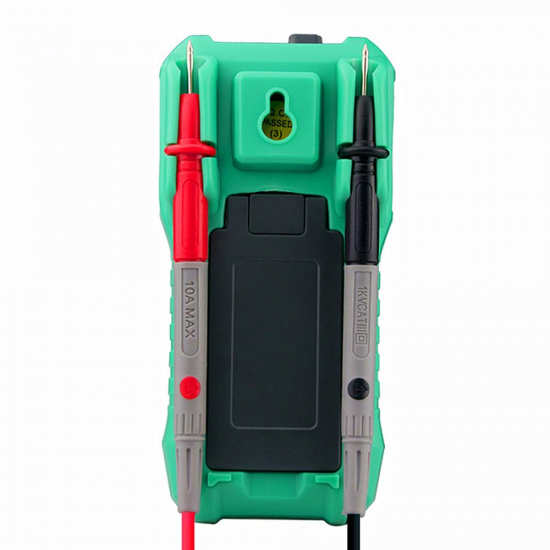

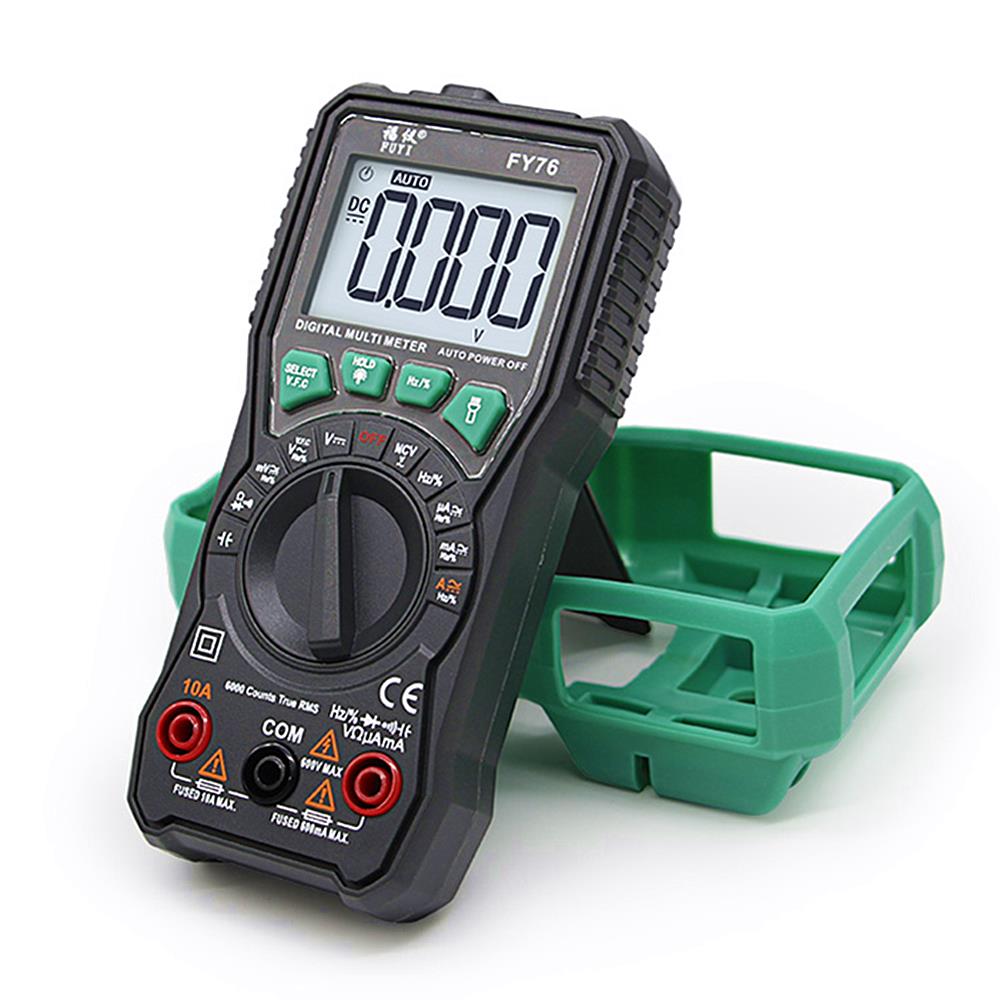

Details pictures:

FY76-Digital-Multimeter-Auto-Range-0600V-Multimetre-AC-DC-True-RMS-Tester-NCV-Multimeter-1416563
