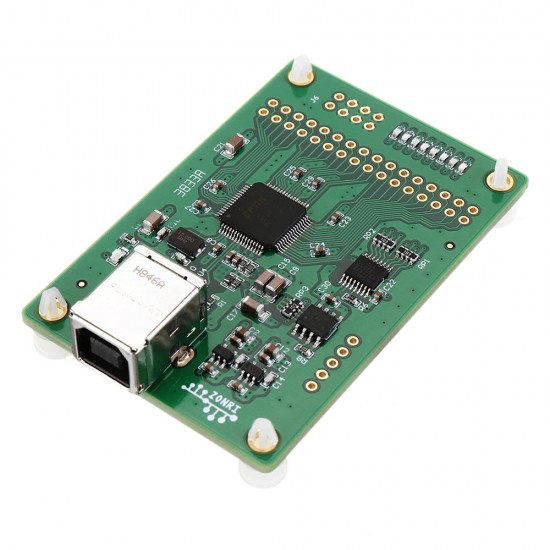

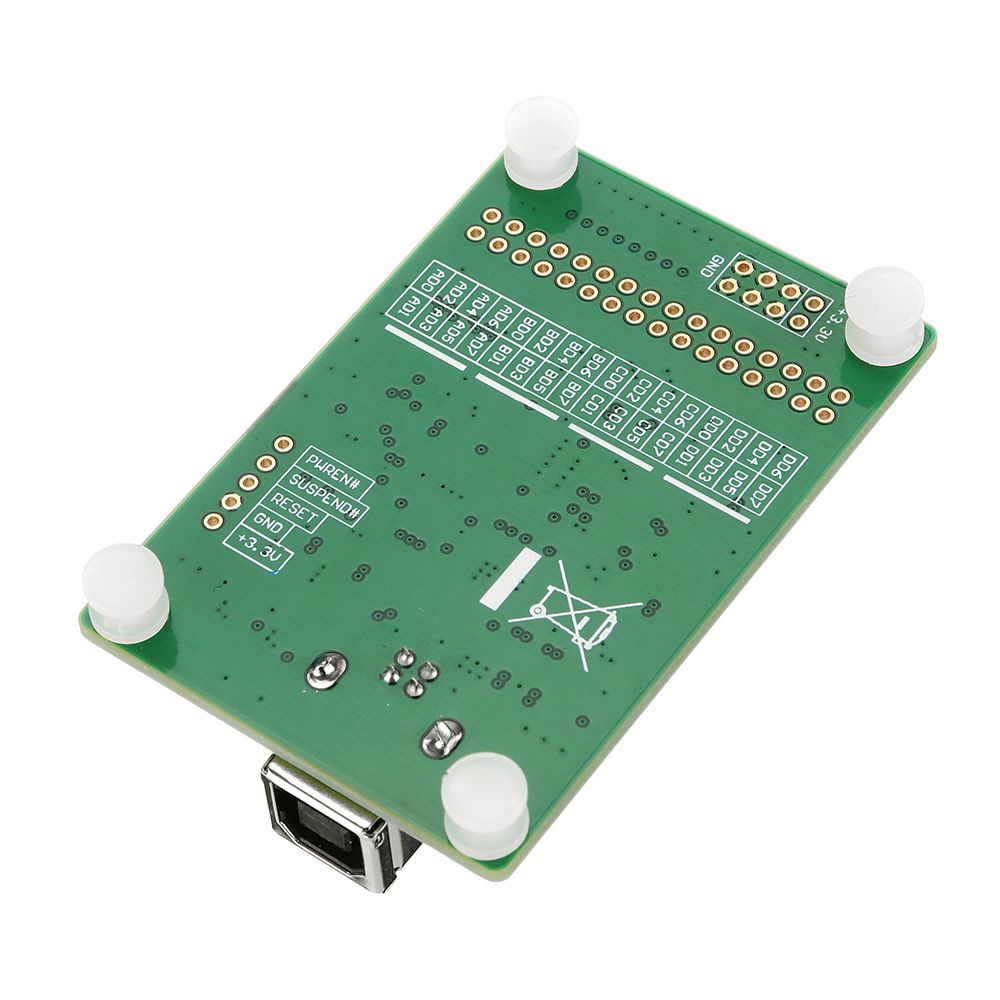

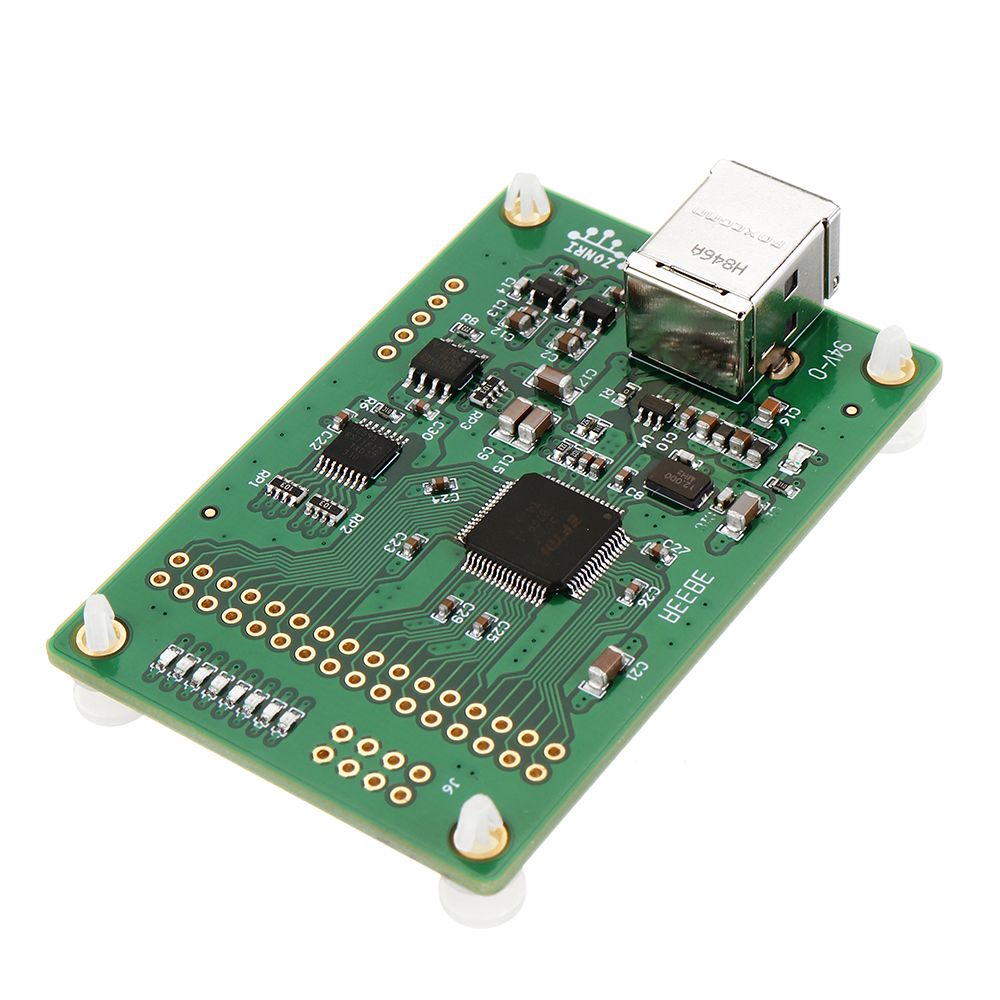

FT4232HL High-speed USB Transfer Serial Module Complete Demo USB2.0 Data Acquisition Module Development Board

Based on 0 reviews. - Write a review

$28.00

Ex Tax: $28.00

Stock: In Stock
Model: EB0046487
SKU: EB0046487

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Overview:

The FT4232H is FTDI’s 5 th generation of USB devices.The FT4232H is a USB 2.0 High Speed (480Mb/s) to UART/MPSSE ICs. The device features 4 UARTs. Two of these have an option to independently configure an MPSSE engine. This allows the FT4232H to operate as two UART/Bit-Bang ports plus two MPSSE engines used to emulate JTAG, SPI, I 2 C, Bit-bang or other synchronous serial modes.

Features:

- Single chip USB to quad serial ports with a variety of configurations.

- Entire USB protocol handled on the chip. No USB specific firmware programming required.

- USB 2.0 High Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible.

- Two Multi-Protocol Synchronous Serial Engine(MPSSE) on channel A and channel B, to simplify synchronous serial protocol (USB to JTAG, I 2 C,SPI or bit-bang) design.

- Independent Baud rate generators.

- RS232/RS422/RS485 UART Transfer Data Rate up to 12Mbaud. (RS232 Data Rate limited by external level shifter).

- FTDI’s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.

- Optional traffic TX/RX indicators can be added with LEDs and an external 74HC595 shift register.

- Adjustable receive buffer timeout.

- Support for USB suspend and resume conditions via PWREN#, SUSPEND# and RI# pins.

- and so on.

More details click to download: FT4232HL

Package Included:

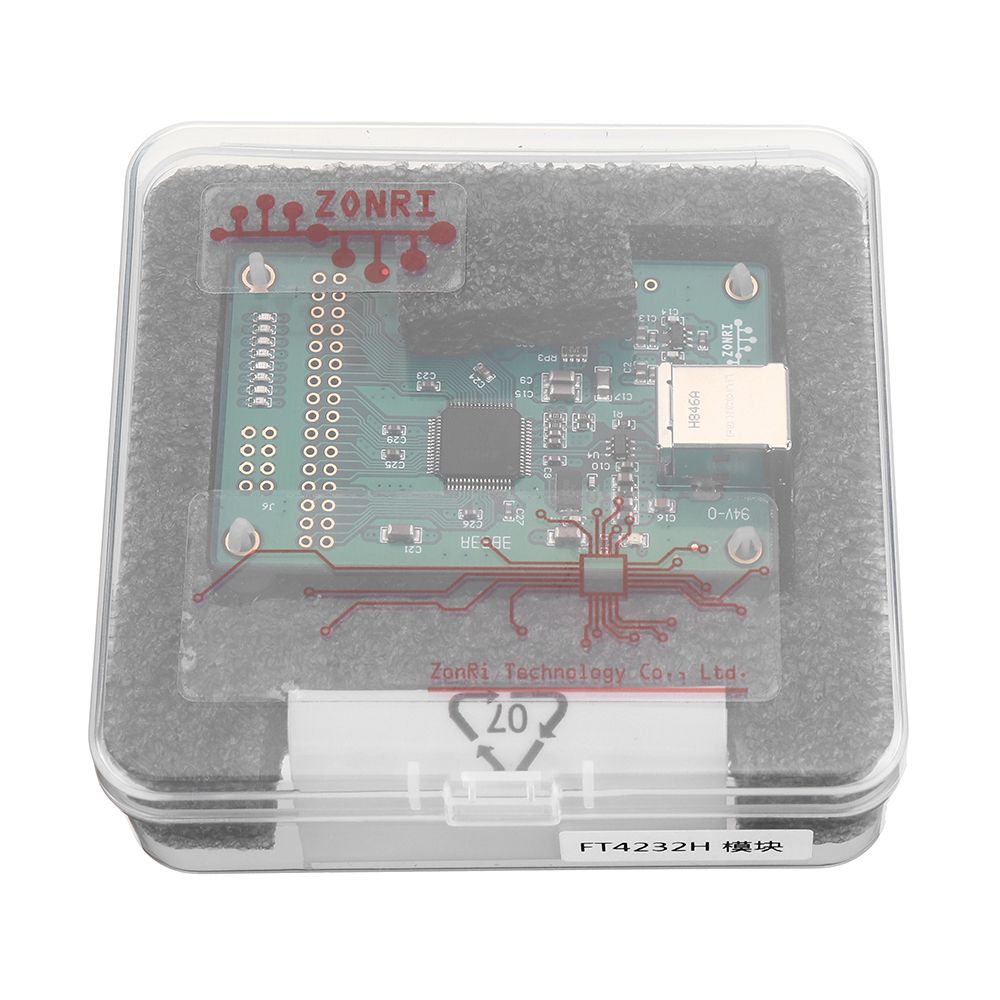

1 x FT4232HL High-speed USB Transfer Serial Module
