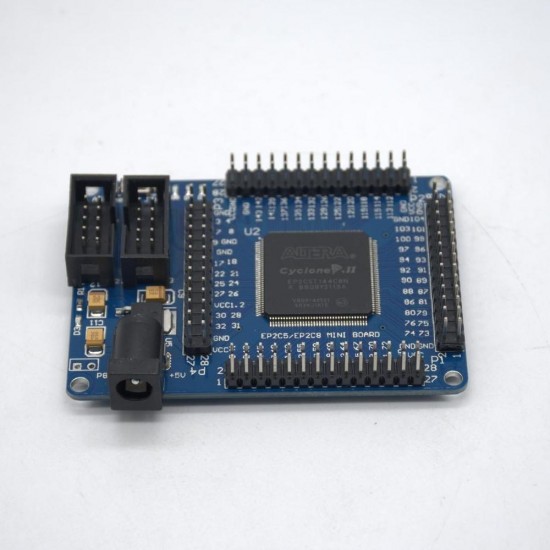

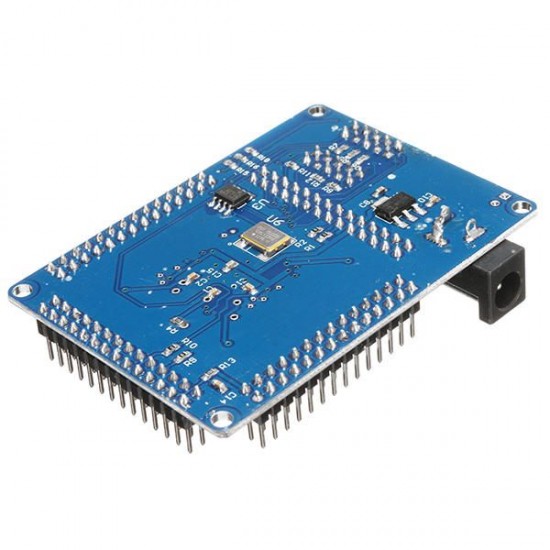

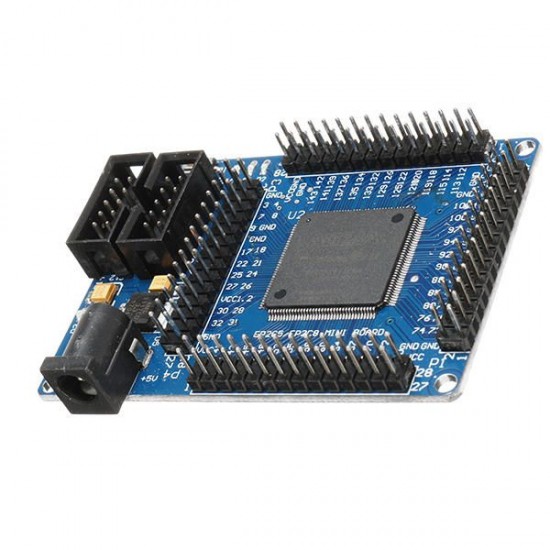

FPGA CycloneII EP2C5T144 Minimum System Board Development Board

Based on 0 reviews. - Write a review

$39.99

Ex Tax: $39.99

Stock: In Stock
Model: EB0041614
SKU: EB0041614

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Product parameters:

Using ALTERA company's CYcloneII EP2C5T144 chip as the core of the smallest system, the FPGA easily embedded in the actual application system;

Complete from simple logic control, data acquisition, signal processing, mathematical calculations and other functions;

All the pins of the core board FPGA chip are all led out, and the board can be directly inserted into the application board.
The 5V power supply board on the board can be introduced through the socket and can also be introduced through the pin header.

Size: 71.9mmx51.7mm

Hardware Configuration:

1. Onboard EP2C5T144 chip

2. EPROM chip configuration using EPCS4, the size of 4Mbit

3. Onboard 50M active patch crystal (Crystal Slaughter half back)

4. Power supply with large mouth outlet, single 5V power supply

5. Board has power indicator and reset switch

6. Onboard 3 SMD LED, LED test can be done experiment, more experiments using lead to complete

7. More IO ports and clock pins through the pin leads through these interfaces can be extended to any memory and peripherals

8. Board using high-quality tantalum capacitor power filter

9. Support NiosII embedded CPU development

Package included:

1 x ALTERA FPGA CycloneII EP2C5T144 Minimum System Board
