FMP05B Mini PC i7 6500U 6 Gen 8GB+128GB/8GB+256GB Quad Core Win10 DDR4 Intel HD Graphics 520 3.1GHz Fanless Mini Desktop PC SATA mSATA MIC VGA HDMI 300M WIFI
- Stock: In Stock
- Model: EB0029709
- SKU: EB0029709
| General | |
| Brand | Renhotec |
| Model | P05B-i7-6500U |
| Color | Black |
| Type | Mini PC |
| CPU | Latest Intel Kaby Lake Core i7 6500U |
| GPU | Intel HD Graphics 520, support ultra HD 4K resolution |
| Core | Dual Core, 2.50GHz max up to 3.4GHz |
| Chipset | Intel Kaby Lake single chip |
| Technology | Dual Channel DDR4 |
| Socket | 2*204 pin SO-DIMM |
| Cache | 4MB |
| Network Card | Realtek RTL 8168/8111/8112 1000 BaseT LAN (Gigabit Ethernet Controller) |
| RAM | 8GB |
| Hard Drives Capacity | 128GB/256GB |
| Operating System | Windows 7, 8, 10 and all kind Linux OS |
| Hard Drive | Support Intstall 1 * mSATA SSD and 1 * 2.5 inch SATA HDD / SSD |
| Ethernet | 1* Realtek RTL8168/8111/8112 Gigabit Ethernet Connection Half Height Mini PCI + 2 external antennas (Optional) |
| Audio | High Definition Audio Controller ALC892, SPK+MIC |
| Media Supported | |
| Video format | All |
| Audio format | All |
| Photo Format | All |
| Product Details | |
| bluetooth | bluetooth 4.0 |
| Power Supply | Charge Adapter |

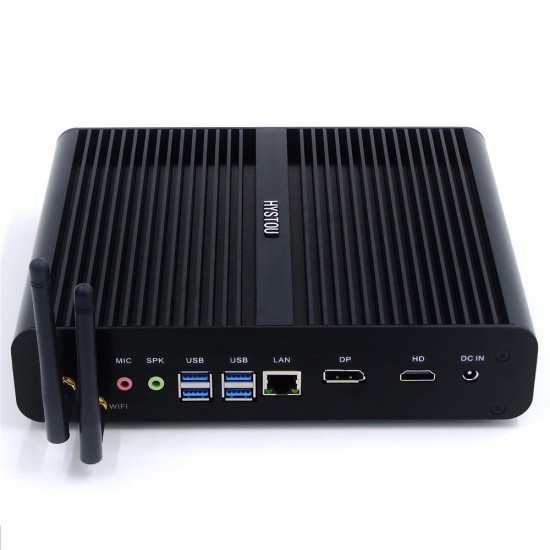

| II/O Ports | 1* Mic; 1* Speaker; 4* USB 3.0 port; 1* USB 2.0 port; 1* RJ45 Gigabit LAN Port; 1* DP; 1* HDMI; 1* DC12V In; 1 SD card slot |
| WiFi | 300MB Wifi with 2 Antennas |
| Storage | 1*mSATA port for mSATA SSD 1*SATA port for 2.5 inch HDD or SSD 1*2280 M.2 SSD |
| Language | English |
| Power and Working Environment | |
| Input | AC100-240V AC/50-60Hz |
| Output | DC 12V/3-5A |
| TDP | 15W, Real use max 8.7W |
| TDP Up | 25W |
| TDP Down | 10W |
| Operating Temperature | 0℃-70℃ |
| Relative Humidity | 0%~90% (non-condensing) |
| Energy-saving | Support Energy-saving technology, Speedstep |
| 64 bit computing | Support 64 bit computing |
| Virtualization | Support Virtualization technology |
| Hyper-threading | Support Hyper-Threading |
| Consumption | 15W~28W |
| Dimension and Weight | |
| Product weight | 1.8000 kg |
| Package weight | 2.7000 kg |
| Product size (L x W x H) | 22.40 x 18.50 x 5.00 cm / 8.82 x 7.28 x 1.97 inches |
| Package size (L x W x H) | 31.50 x 26.00 x 8.00 cm / 12.4 x 10.24 x 3.15 inches |
| Package List | 1 X Mini PC Device; 1 X Power Adapter; 1 X PC Bracket; 1 X CD Driver; 2 X WiFi Antennas; 1 X User Manual(including Warranty Card); 1 X HDMI cable(Optional) 1 X SATA data cable/power cable(Optional) |
