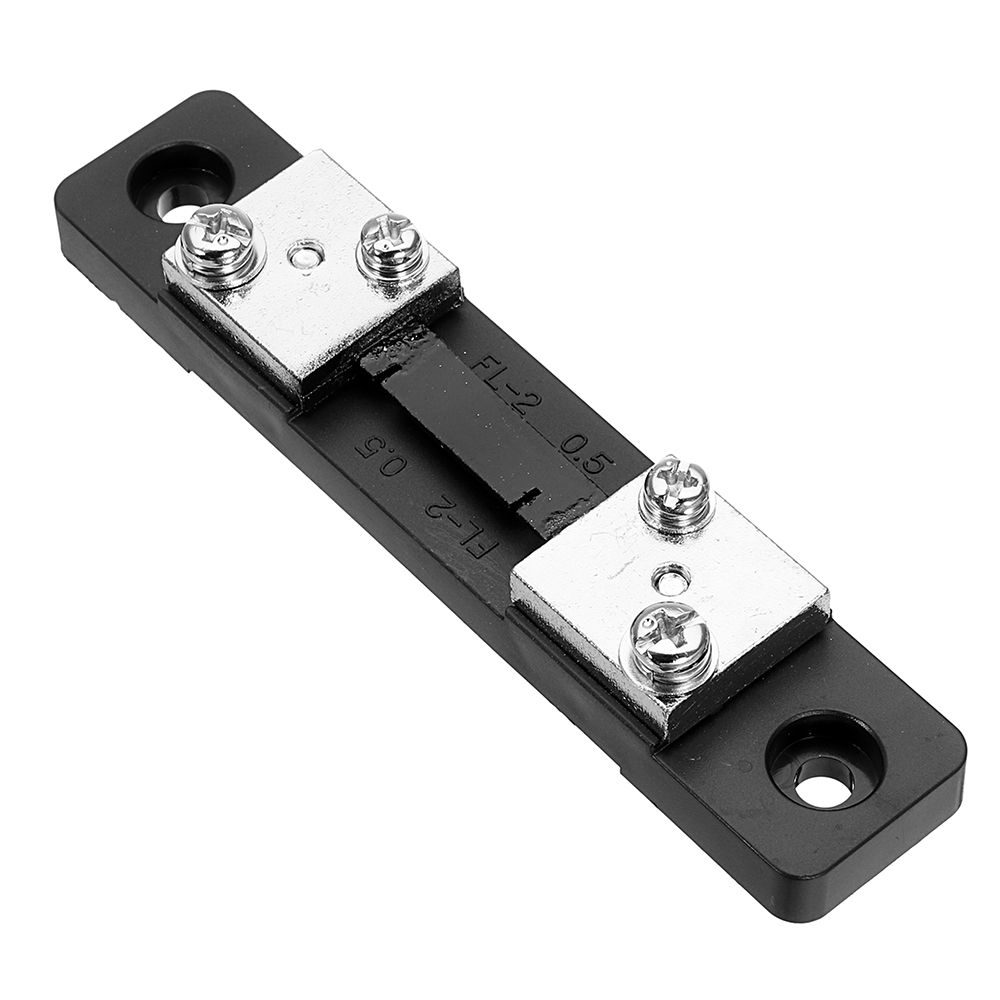

FL-2 Type Ammeter A-Grade 30A 40A 50A75MV GB DC Shunt

FL-2 Type Ammeter A-Grade 30A 40A 50A75MV GB DC Shunt
FL-2 Type Ammeter A-Grade 30A 40A 50A75MV GB DC Shunt
FL-2 Type Ammeter A-Grade 30A 40A 50A75MV GB DC Shunt
FL-2 Type Ammeter A-Grade 30A 40A 50A75MV GB DC Shunt
FL-2 Type Ammeter A-Grade 30A 40A 50A75MV GB DC Shunt
FL-2 Type Ammeter A-Grade 30A 40A 50A75MV GB DC Shunt
FL-2 Type Ammeter A-Grade 30A 40A 50A75MV GB DC Shunt
FL-2 Type Ammeter A-Grade 30A 40A 50A75MV GB DC Shunt
FL-2 Type Ammeter A-Grade 30A 40A 50A75MV GB DC Shunt
FL-2 Type Ammeter A-Grade 30A 40A 50A75MV GB DC Shunt
FL-2 Type Ammeter A-Grade 30A 40A 50A75MV GB DC Shunt
$7.99
Ex Tax: $7.99
  • Stock: In Stock
  • Model: EB0049084
  • SKU: EB0049084
>
Use:

Fixed-valued fixed-flow shunts are used to expand the meter's measurement current range.

Technical Parameters:

1. Accuracy level: 2-4000A; 0.5 level; 5000~10000A; Level 1
2. Environmental conditions: -40~+60°C, relative temperature ≤95% (35°C)
3. Mechanical resistance: It can withstand the acceleration of the second and the impact frequency of 80~120 times per minute for 6 hours of transportation.
4. Overload performance: rated current 120%, 2 hours.
5. Voltage drop: 50mV 75mV 100mV.
6. Heat under load: After the temperature rise changes to stabilize, the rated current does not exceed 80 °C below 50A; the rated current does not exceed 120 °C above 50A.

Note:

This product complies with JB/T 9288-1999, GB/T 7676-1998, IEC 61010-1:1999 standard

Feature:

The accuracy of the FL-2 series shunt is: 0.5.
Specification range: 1A-15000A
Secondary voltage: 20mV, 30mV, 50mV, 60mV, 75mV, 100mV, 150mV, etc., conventionally 75mV.

Package includes:

1 x DC Shunt

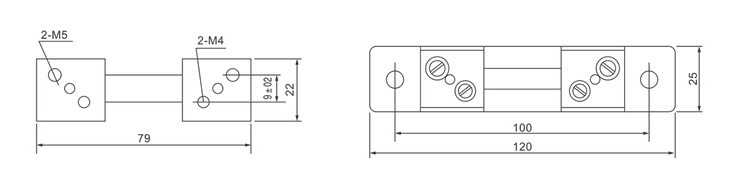

Dimensional: (unit: mm)




FL-2-Type-Ammeter-A-Grade-30A-40A-50A75MV-GB-DC-Shunt-1391960
FL-2-Type-Ammeter-A-Grade-30A-40A-50A75MV-GB-DC-Shunt-1391960

FL-2-Type-Ammeter-A-Grade-30A-40A-50A75MV-GB-DC-Shunt-1391960

FL-2-Type-Ammeter-A-Grade-30A-40A-50A75MV-GB-DC-Shunt-1391960

FL-2-Type-Ammeter-A-Grade-30A-40A-50A75MV-GB-DC-Shunt-1391960

FL-2-Type-Ammeter-A-Grade-30A-40A-50A75MV-GB-DC-Shunt-1391960
