FHD 48MP HDMI USB Industrial Electronic Digital Video Microscope Camera 180X C Mount Lens for Phone PCB Soldering

FHD 48MP HDMI USB Industrial Electronic Digital Video Microscope Camera 180X C Mount Lens for Phone PCB Soldering
FHD 48MP HDMI USB Industrial Electronic Digital Video Microscope Camera 180X C Mount Lens for Phone PCB Soldering
FHD 48MP HDMI USB Industrial Electronic Digital Video Microscope Camera 180X C Mount Lens for Phone PCB Soldering
FHD 48MP HDMI USB Industrial Electronic Digital Video Microscope Camera 180X C Mount Lens for Phone PCB Soldering
FHD 48MP HDMI USB Industrial Electronic Digital Video Microscope Camera 180X C Mount Lens for Phone PCB Soldering
FHD 48MP HDMI USB Industrial Electronic Digital Video Microscope Camera 180X C Mount Lens for Phone PCB Soldering
FHD 48MP HDMI USB Industrial Electronic Digital Video Microscope Camera 180X C Mount Lens for Phone PCB Soldering
FHD 48MP HDMI USB Industrial Electronic Digital Video Microscope Camera 180X C Mount Lens for Phone PCB Soldering
FHD 48MP HDMI USB Industrial Electronic Digital Video Microscope Camera 180X C Mount Lens for Phone PCB Soldering
FHD 48MP HDMI USB Industrial Electronic Digital Video Microscope Camera 180X C Mount Lens for Phone PCB Soldering
FHD 48MP HDMI USB Industrial Electronic Digital Video Microscope Camera 180X C Mount Lens for Phone PCB Soldering
$132.58
Ex Tax: $132.58
  • Stock: In Stock
  • Model: EB005024
  • SKU: EB005024
Specification:

Module

1135

Sensor

48 million pixels CMOS

Optical format

1/2.3 inch

pixel size

1.335μm x1.335μm

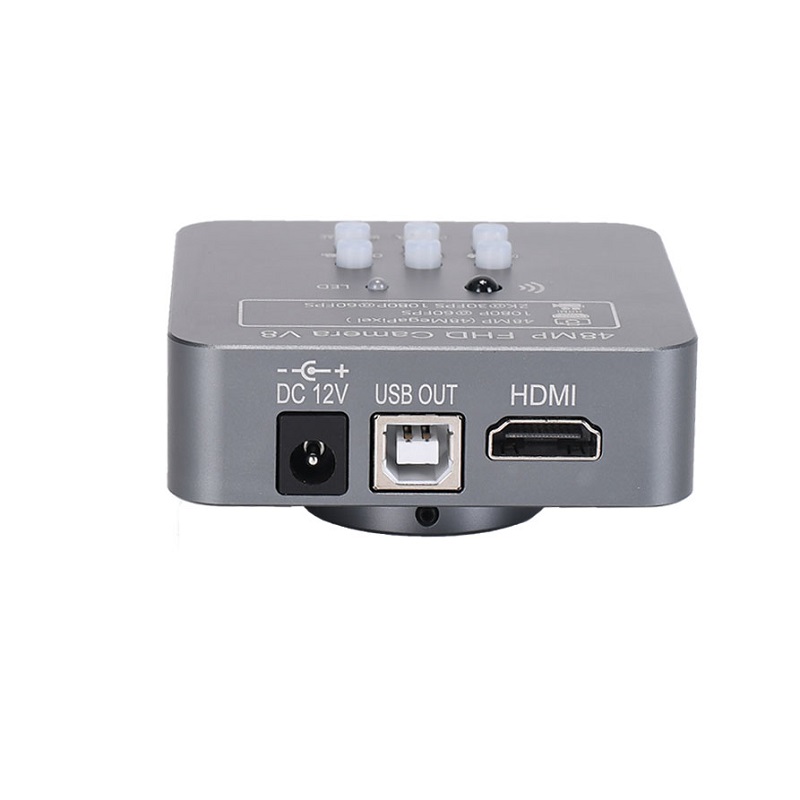

Interface

HDMI(Type A).USB(Type B).TF Card

HDMI Image resolution

48 Mega Pixel

Video record resolution

2K@30FPS 1080p@60FPS

HDMI resolution

1920*1080p 60FPS

Can output with USB at the same time

HDMI scale

Support 4:3,16:9,16:10 screen

USB2.0(Drive free)

1920*1080@30FPS1280*720@30FPS640*480@30FPS

TF card

MAX 128GB

AWB

WB color correction/Auto/Manual

R.G.B value setting independent

Exposure

Auto/Manual.AE value can set

Cross lines

8lines.Can set color& width& position

Scale mark lines

2lines

Dotted lines

2lines.Can set color& width& position

Sharpness Contrast Color gain

Renhotec

Mono Negative

Renhotec

Mirror

Horizontal vertical mirror

Digital Zoom

Renhotec

IR remoter

Renhotec

Voltage in

DC 12V 55-21mm size

Power consumption

MAX 0.15W  12V,0.12A

Lens interface

C/CS

Net weight

180g

Gross weight

400g

Camera size

70*70*35mm

Packaging size

160*100*80mm

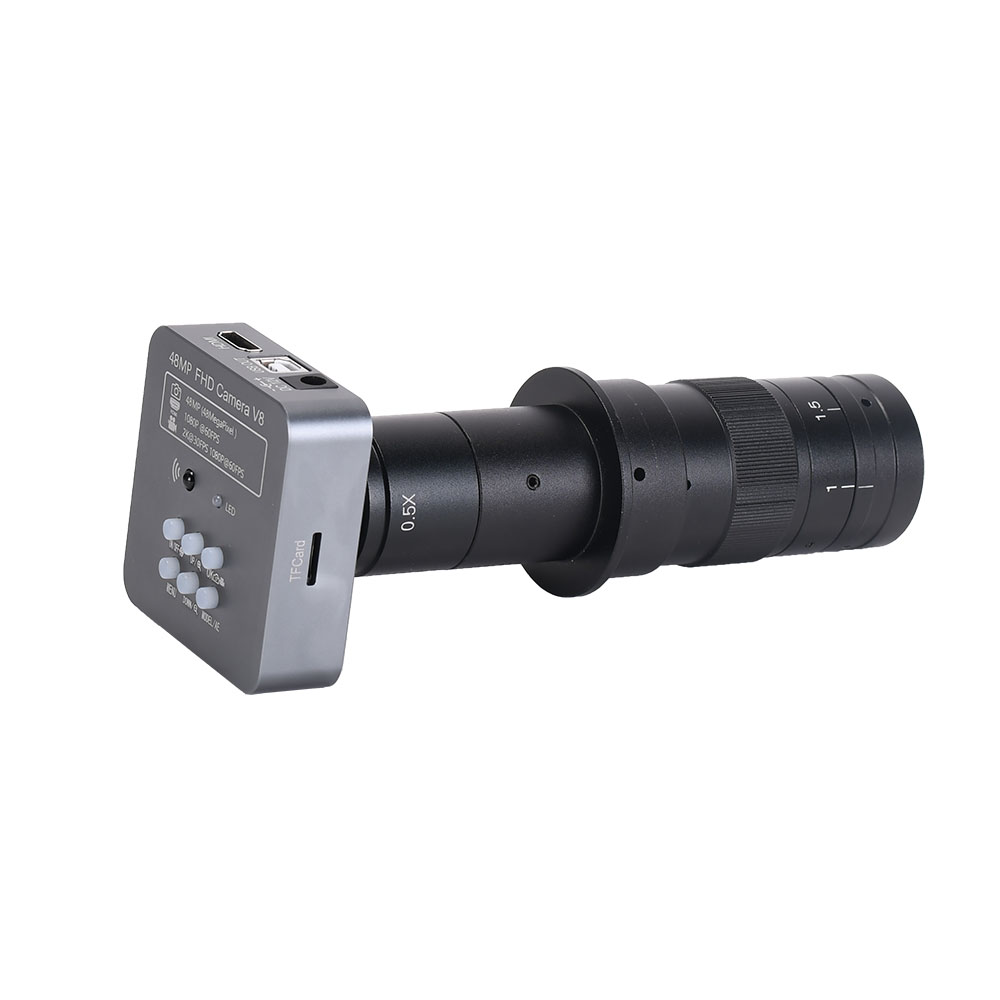

180X C-MOUNT Lens
Working distance: 95mm
Zoom c-mount Lens
0.5X C-mount adapter
Zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)
(180x maximum working distance 11.5CM)

Questions Solution:
LCD no video or flicker
1.Check power supply. Check red LED be onlight. Press PowerKey to Up it.
2.Check lens cover. Increase the lighting.
LCD have black bar Image warp
1.change resolution of LCD
2.change resolution of camera
Have dirty spot
1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser

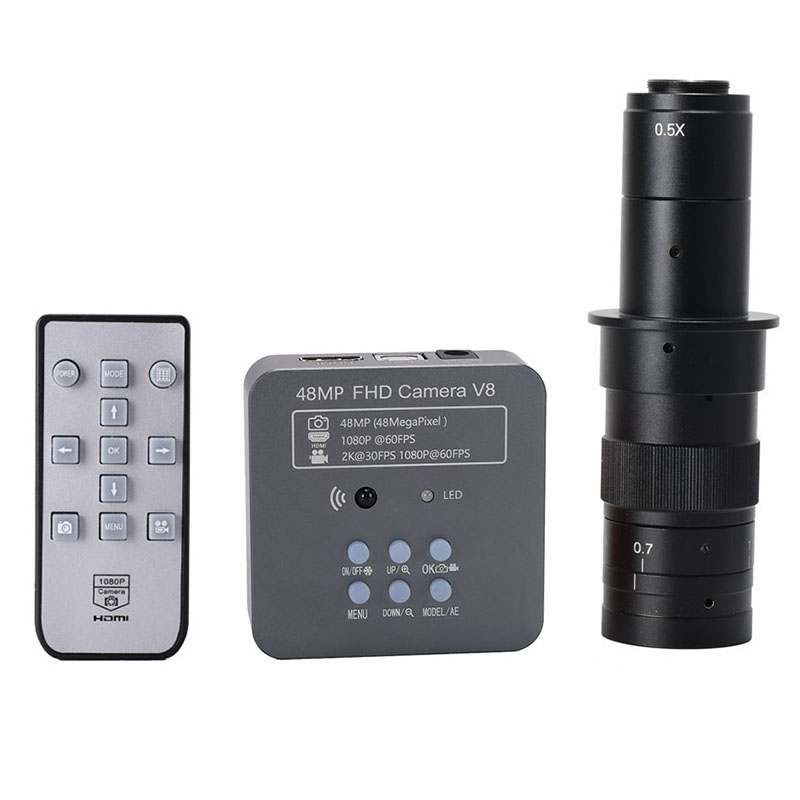

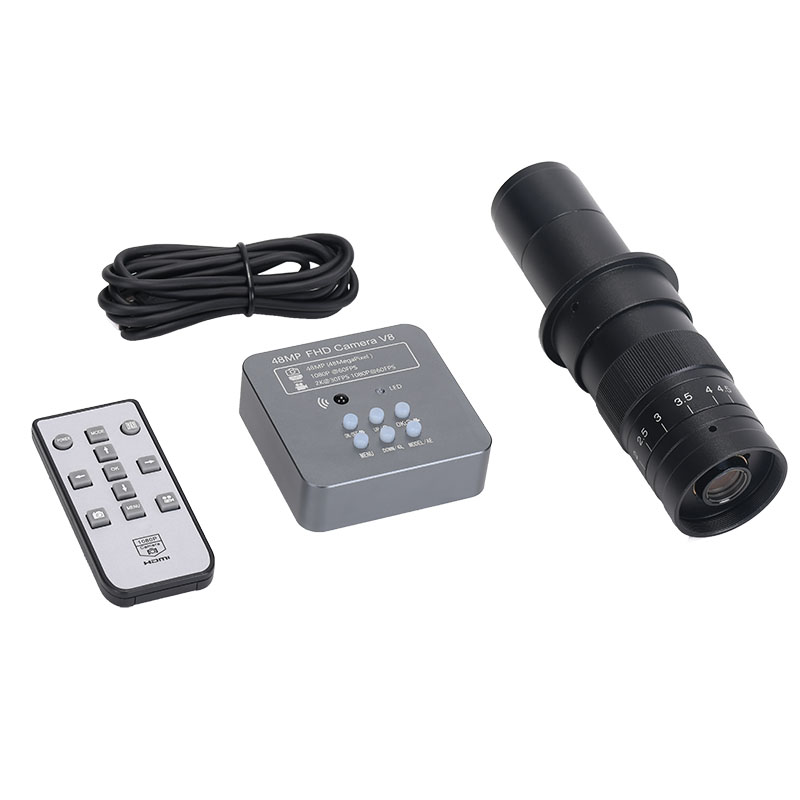

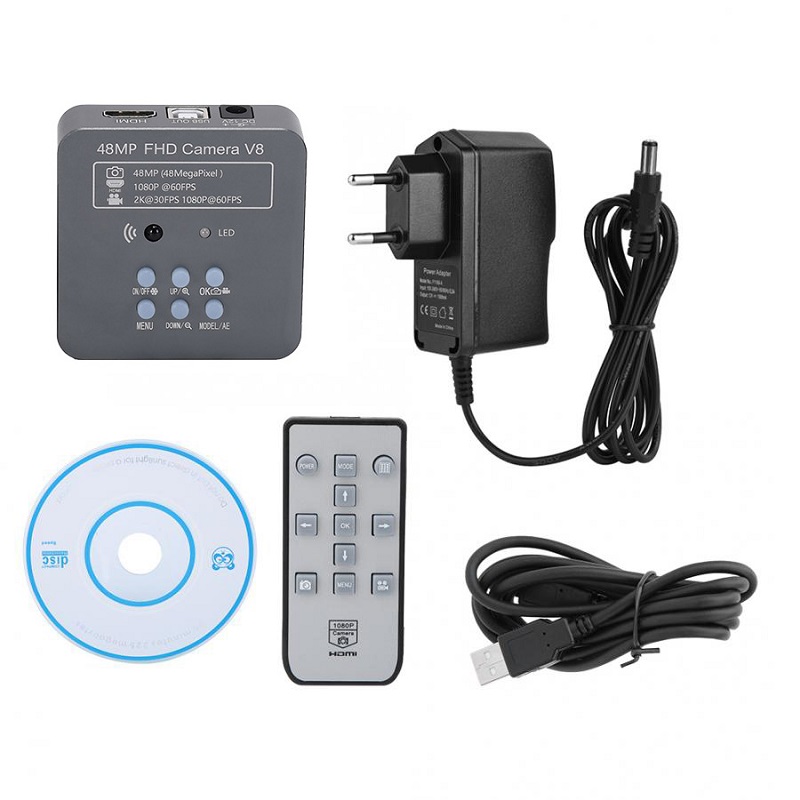

Package inclueded:

1 x 48mp Microscope Camera
1 x 180x C-MOUNT Lens
1 x Power Adapter
1 x IR remoter
1 x Usb Lines
1 x Software DISC

Details pictures:

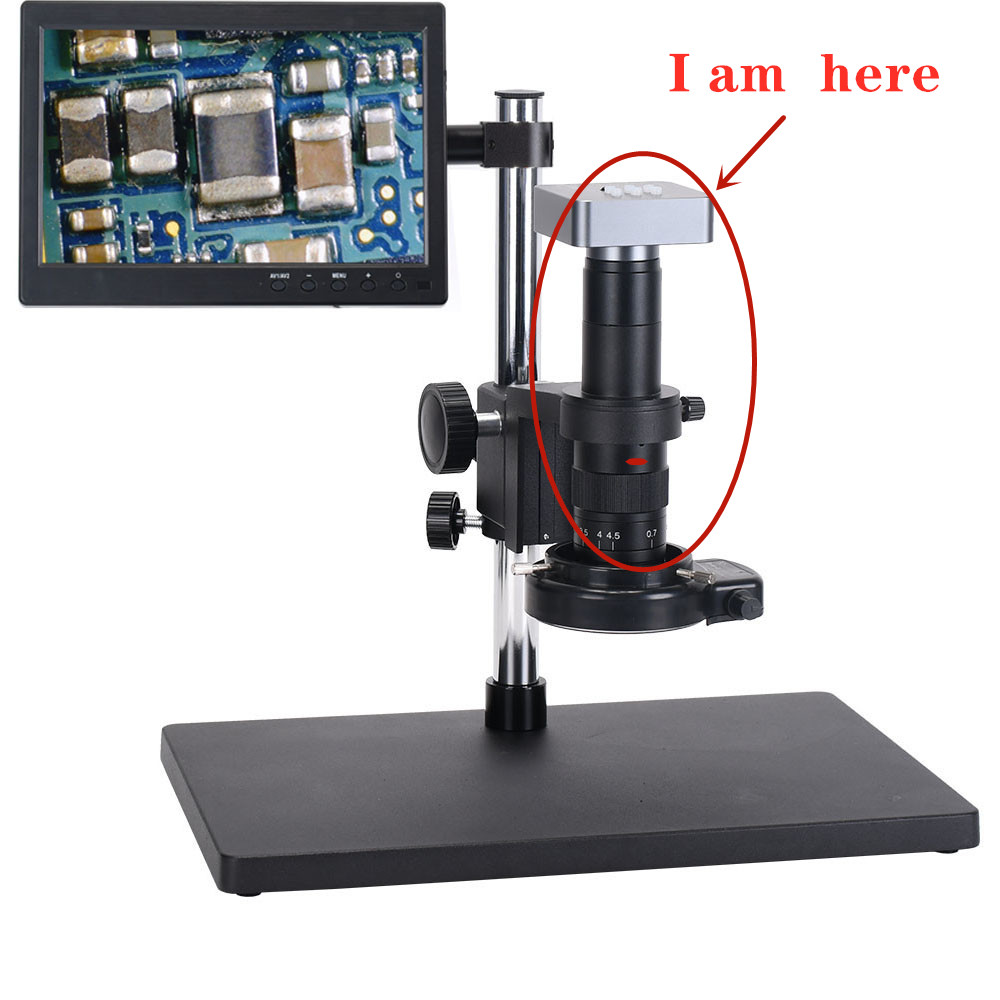

FHD-48MP-HDMI-USB-Industrial-Electronic-Digital-Video-Microscope-Camera-180X-C-Mount-Lens-for-Phone--1722764

FHD-48MP-HDMI-USB-Industrial-Electronic-Digital-Video-Microscope-Camera-180X-C-Mount-Lens-for-Phone--1722764

FHD-48MP-HDMI-USB-Industrial-Electronic-Digital-Video-Microscope-Camera-180X-C-Mount-Lens-for-Phone--1722764

FHD-48MP-HDMI-USB-Industrial-Electronic-Digital-Video-Microscope-Camera-180X-C-Mount-Lens-for-Phone--1722764

FHD-48MP-HDMI-USB-Industrial-Electronic-Digital-Video-Microscope-Camera-180X-C-Mount-Lens-for-Phone--1722764

FHD-48MP-HDMI-USB-Industrial-Electronic-Digital-Video-Microscope-Camera-180X-C-Mount-Lens-for-Phone--1722764
