FHD 1080P 60FPS 2K HDMI USB Digital Industry Video Microscope Camera Set System 180X 300X C MOUNT Lens For Phone PCB Soldering

Based on 0 reviews. - Write a review

$240.71

Ex Tax: $240.71

Stock: In Stock
Model: EB004957
SKU: EB004957

Available Options

Model

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description:

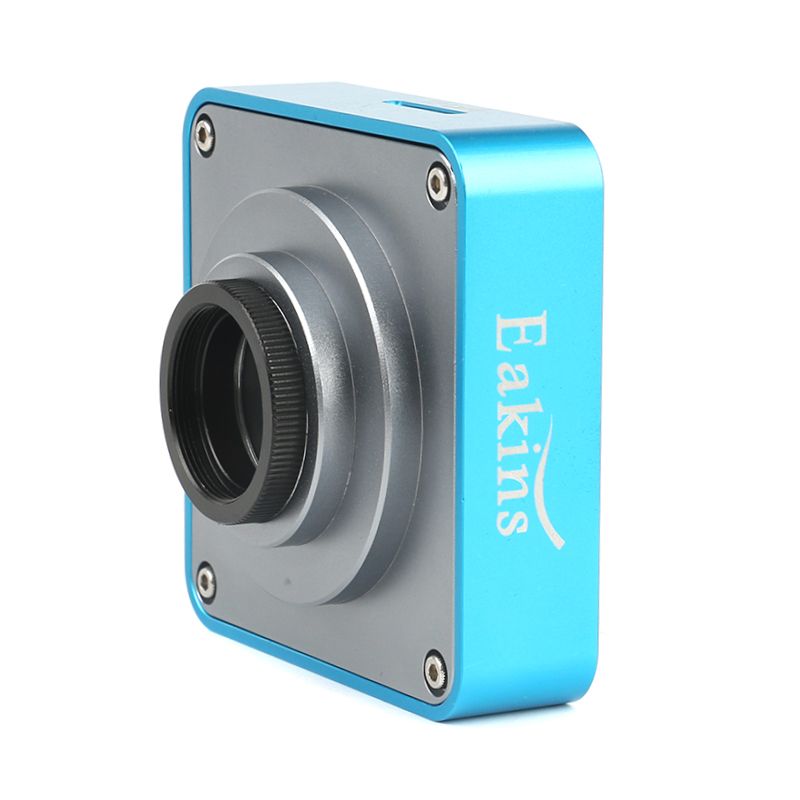

Module:FHD216

Sensor P'anasonic:21 MegaPixel, 21 million pixels CMOS

Optical format:1/2.3 inch

pixel size:1.335μm x1.335μm

Interface:HDMI(Type A).USB(Type B).TF Card

Image resolution:21MegaPixel

Video r'ecord resolution:2K@30FPS 1080p@60FPS

HDMI resoltion:1920*1080p 60FPS

Can output with USB at the same time

HDMI scale:Support 4:3,16:9,16:10 screen

USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS 640*480@30FPS

Can output with HDMI at the same time

TF card:MAX 64GB

AWB:WB color correction/Auto/Manual

R.G.B value setting independent

Exposure:Auto/Manual.AE value can set

Cross lines:8lines.Can set color& width& position

Scale mark lines:2lines.

Dotted lines:2lines.Can set color& width& position

Sharpness Contrast Color gain:Renhotec

Mono Negative:Renhotec

Mirror:Horizontal vertical mirror

Language:English/simplified Chinese

Digital Zoom:Renhotec

IR remoter:Renhotec

Voltage in:DC 12V 55-21mm size

Power consumption:MAX 0.15W 12V,0.12A

Lens interface:C/CS

Net weight:180g

Gross weight:400g

Camera size:74*74*35mm

Packaging size:160*100*80mm

Questions Solutions:

LCD no video or flicker

1.Check power supply. Check green LED be onlight. Press PowerKey to Up it.

2.Check lens cover. Increase the lighting.

LCD have black bar Image warp

1.change resolution of LCD

2.change resolution of camera

Have dirty spot

1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser

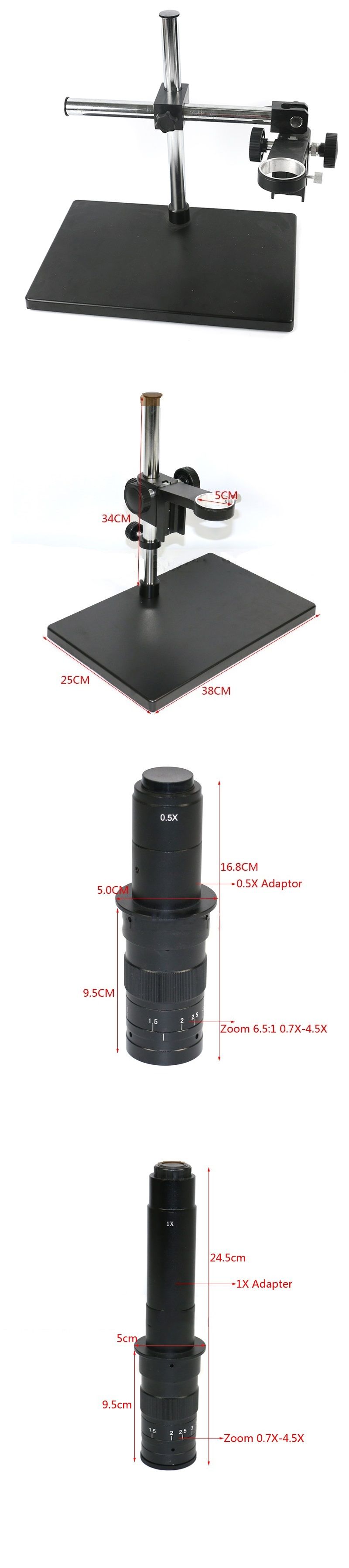

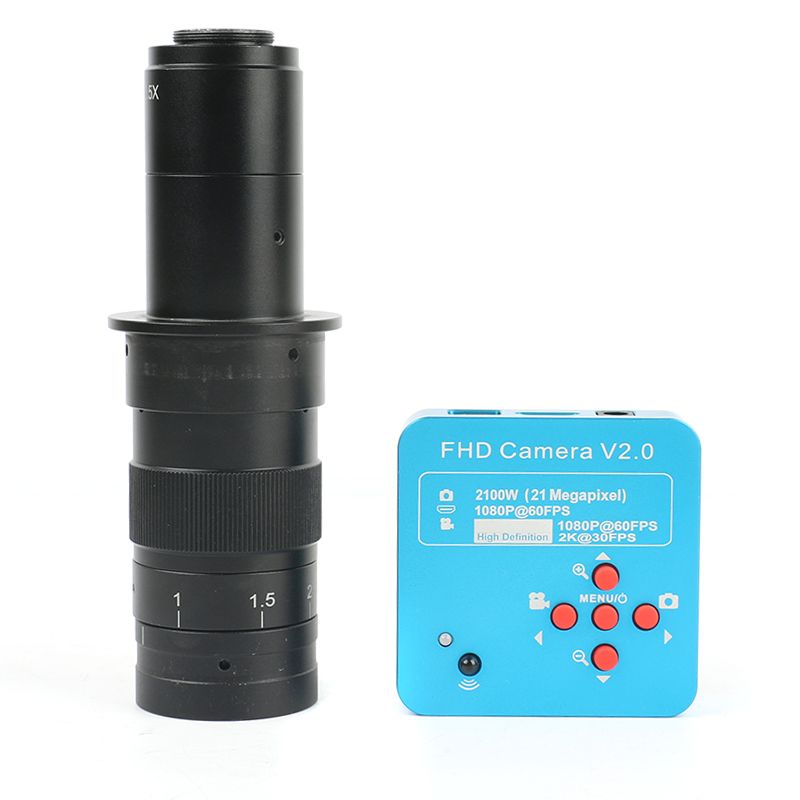

180X C-MOUNT Lens

Working distance: 95mm

Zoom c-mount Lens

0.5X C-mount adapter

Zoom ratios: 6.5:1

Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)

Size: 180mm(L) * 50mm(DIA)

(180x maximum working distance 16CM)

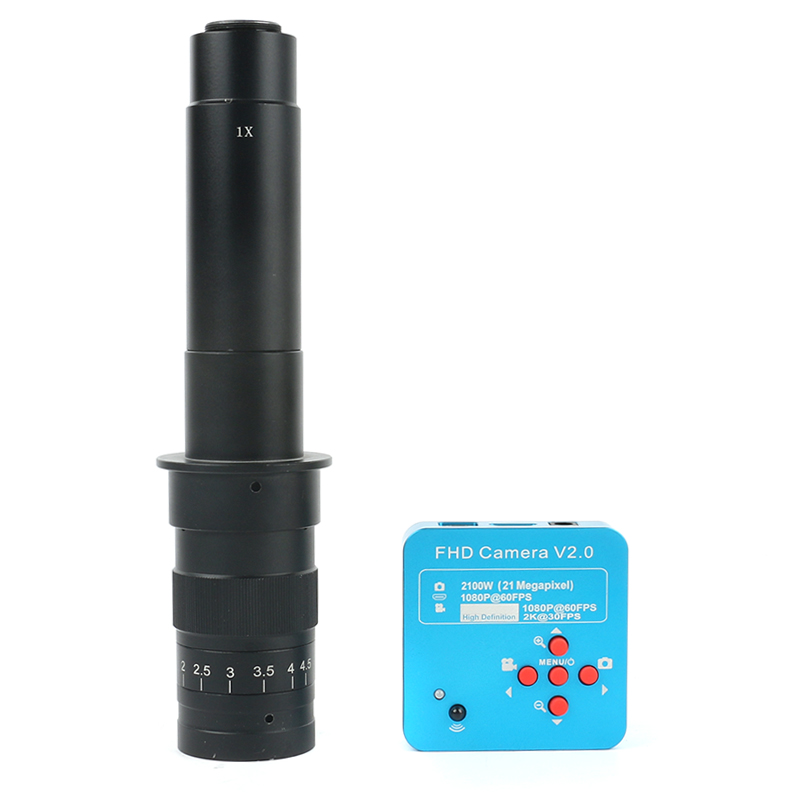

300X C-MOUNT Lens

Working distance: 95mm

Zoom c-mount Lens

1X C-mount adapter

Zoom ratios: 6.5:1

Objective Magnification Power by 0.7 - 4.5X(about 10 - 300X on the display)

Size: 248mm(L) * 50mm(DIA)

(300x maximum working distance 11CM)

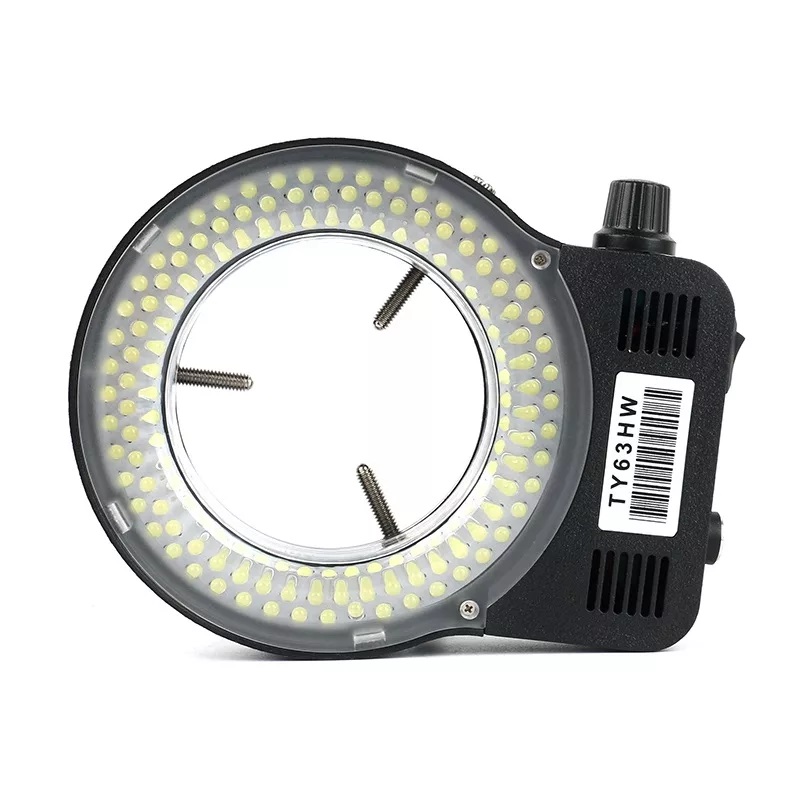

144 bright white LED bulbs

100,000 hours of life

Intense and focused shadow-free illumination

The brightness of 0-100%Adjustable,high brightness

Variable i'ntensity control

Power input: 100-240V, 50-60HZ

Suit for the dia of the lens: 30mm-63mm

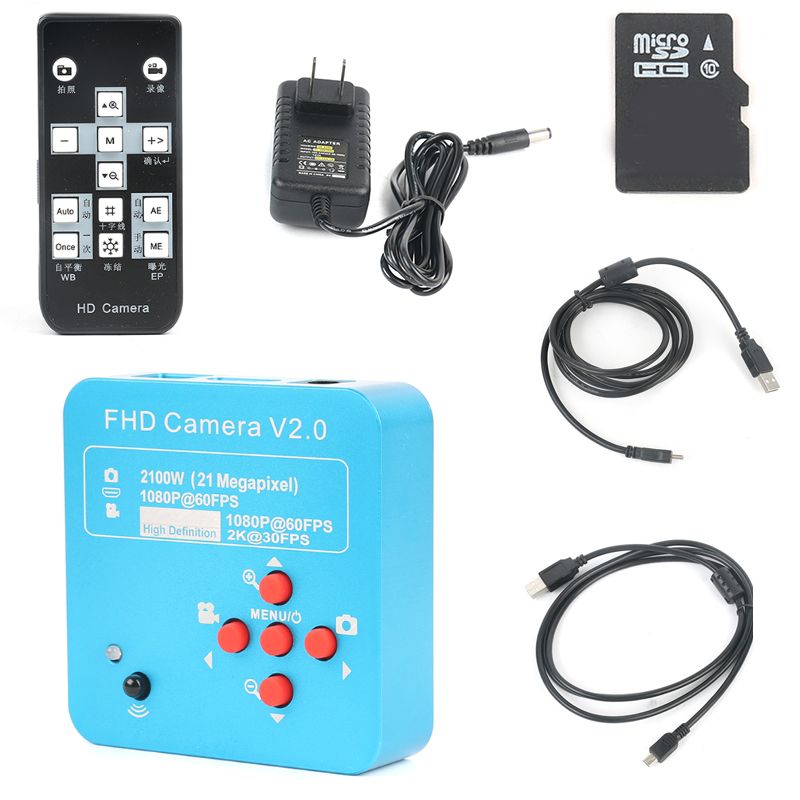

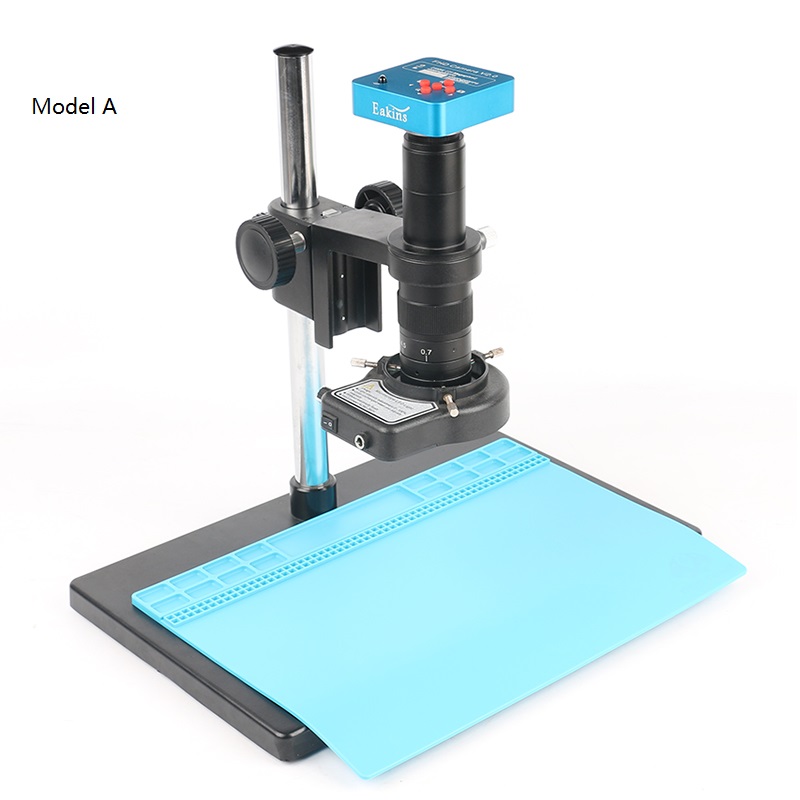

A Packing including:

1 x Microscope Camera

1 x Power supply Adapter (EU)

1 x HDMI line

1 x 8GB TF card

1 x USB line

1 x 180X/300X Zoom C-mount Lens

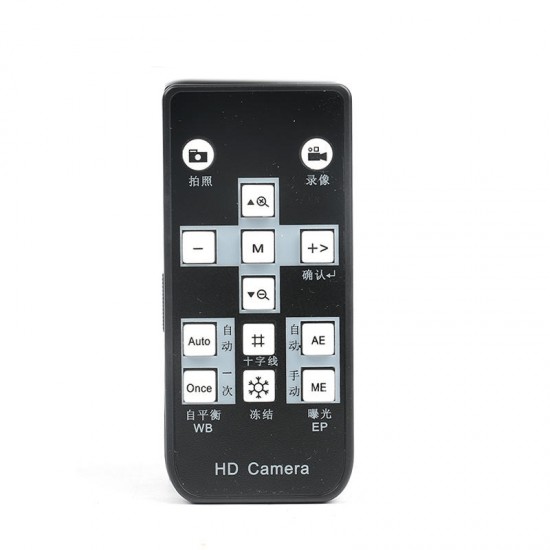

1 x IR Remote control

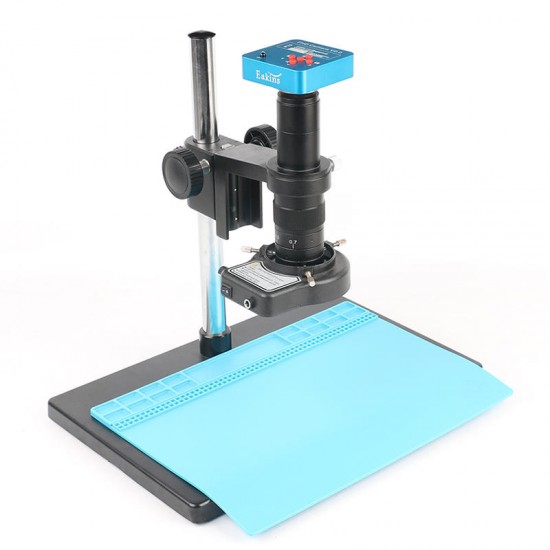

1 x Camera Big Stand

1 x 144 LED Ring Light

1 x High temperature resistant working pad

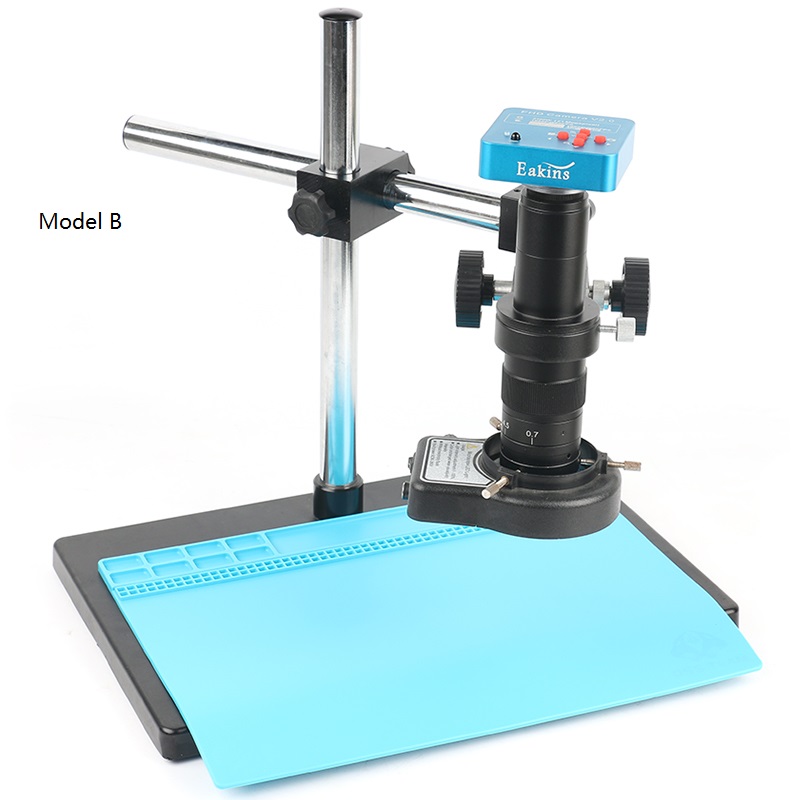

B Packing including:

1 x Microscope Camera

1 x Power supply Adapter (EU)

1 x HDMI line

1 x 8GB TF card

1 x USB line

1 x 180X/300X Zoom C-mount Lens

1 x IR Remote control

1 x Camera Big Stand

1 x 144 LED Ring Light

1 x Boom Stand

1 x High temperature resistant working pad

Note:

We will send you a plug adapter according to your country.

Details Pictures:
