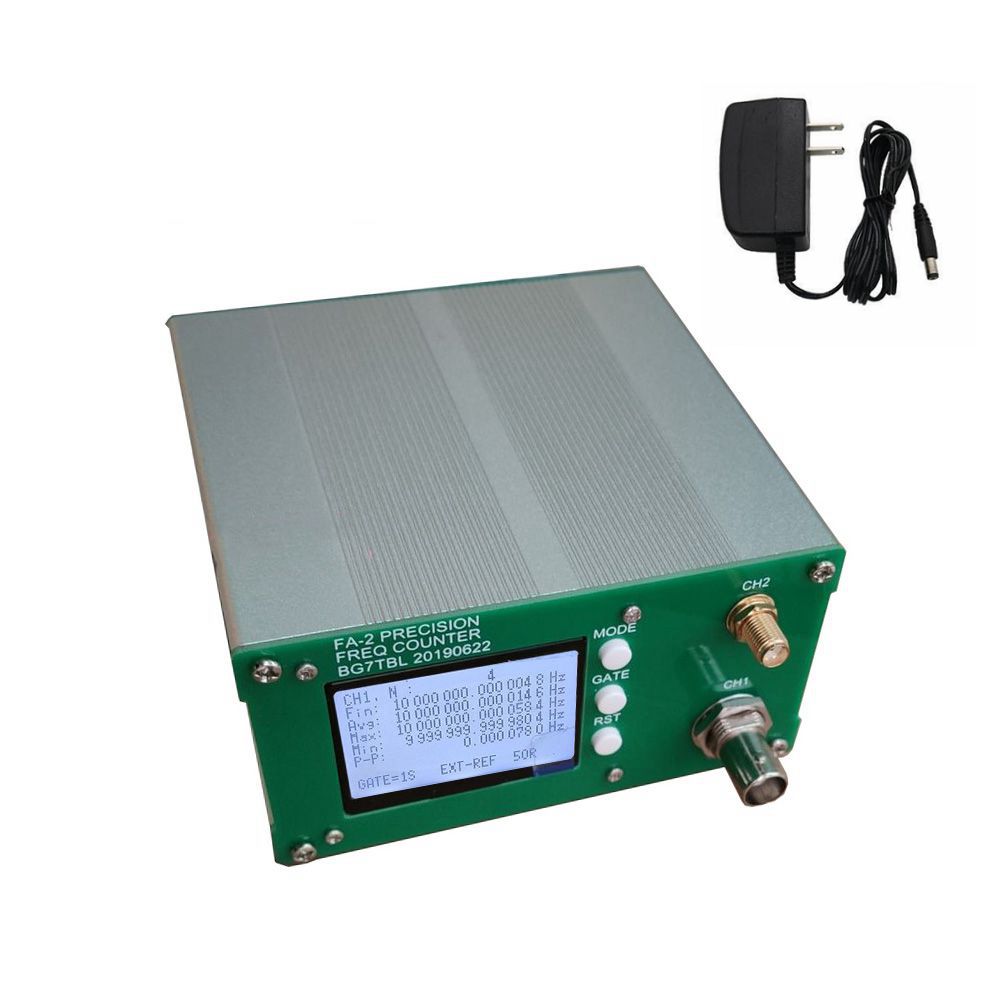

FA-2 1Hz-6GHz Frequency Counter Kit Frequency Meter Statistical Function 11 bits/sec Tester with Power Adapter

Based on 0 reviews. - Write a review

$144.99

Ex Tax: $144.99

Stock: In Stock
Model: EB0047346
SKU: EB0047346

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

1Hz-12.4GHz Frequency Counter ID : 1645869

Specifications:

Model: FA-2

Data Types of Statistical Pattern: Average, Max., Min., P-P

Power Supply: DC11.7-12.5V; Start: <0.4A; Stabilize: <0.2A

Size:106 x 55 x 105mm (L*H*D)

Weight: 350g

Introduction of CH1:

- CH1 Frequency: 1Hz-200MHz

- CH1 Input Impedance: 50 OHM/1M OHM

CH1 Input Sensitivity Reference:

- @50 OHM: 25mVrms-2Vrms

- @1MR: 25mVrms-2Vrms

CH1 Frequency Accuracy:

- 0.1s Gate Time: 0.001Hz@10M

- 1s Gate Time: 0.0001Hz@10M

- 10s Gate Time: 0.00001Hz@10M

- CH1 Test Speed: 11 bits/second@10MHz

- CH1 Power Test Range: -50DBM to +20DBM, 1M to 550M@50 OHM

- CH1 Power Test Accuracy: 0.5DB@10MHz

- CH1 Connector Type: BNC

Introduction of CH2:

- CH2 Frequency: 30MHz-6GHz

- CH2 Input Impedance: 50 OHM

CH2 Frequency Accuracy:

- 0.1s Gate Time: 1Hz@1GHz

- 1s Gate Time: 0.01 Hz @1GHz

- 10s Gate Time: 0.001 Hz @1GHz

- CH2 Input Power: -20dBM to +13dBm@0.5 to 5G

- CH2 Connector Type: SMA

Operating Modes:

- CH1 Frequency Test Mode

- CH1 Statistical Pattern

- CH2 Frequency Test Mode

- CH2 Statistical Pattern

Functions of Front Panel:

- MODE: Change operating modes

- GATE: Change gate time

- RST: Start to test again

- CH1: Channel 1 input

- CH2: Channel 2 input

Functions of Rear Panel:

- 10M REF INPUT: External 10M input reference

- 10M REF OUTPUT: 10M output reference

- USB: USB port

- STD ADJ: Internal OCXO frequency fine adjustment

- ON/OFF: Power switch

- 12V IN: DC port

Package Included:

1 x 1Hz-6GHz Frequency Counter

1 x DC 12V Power Adapter
