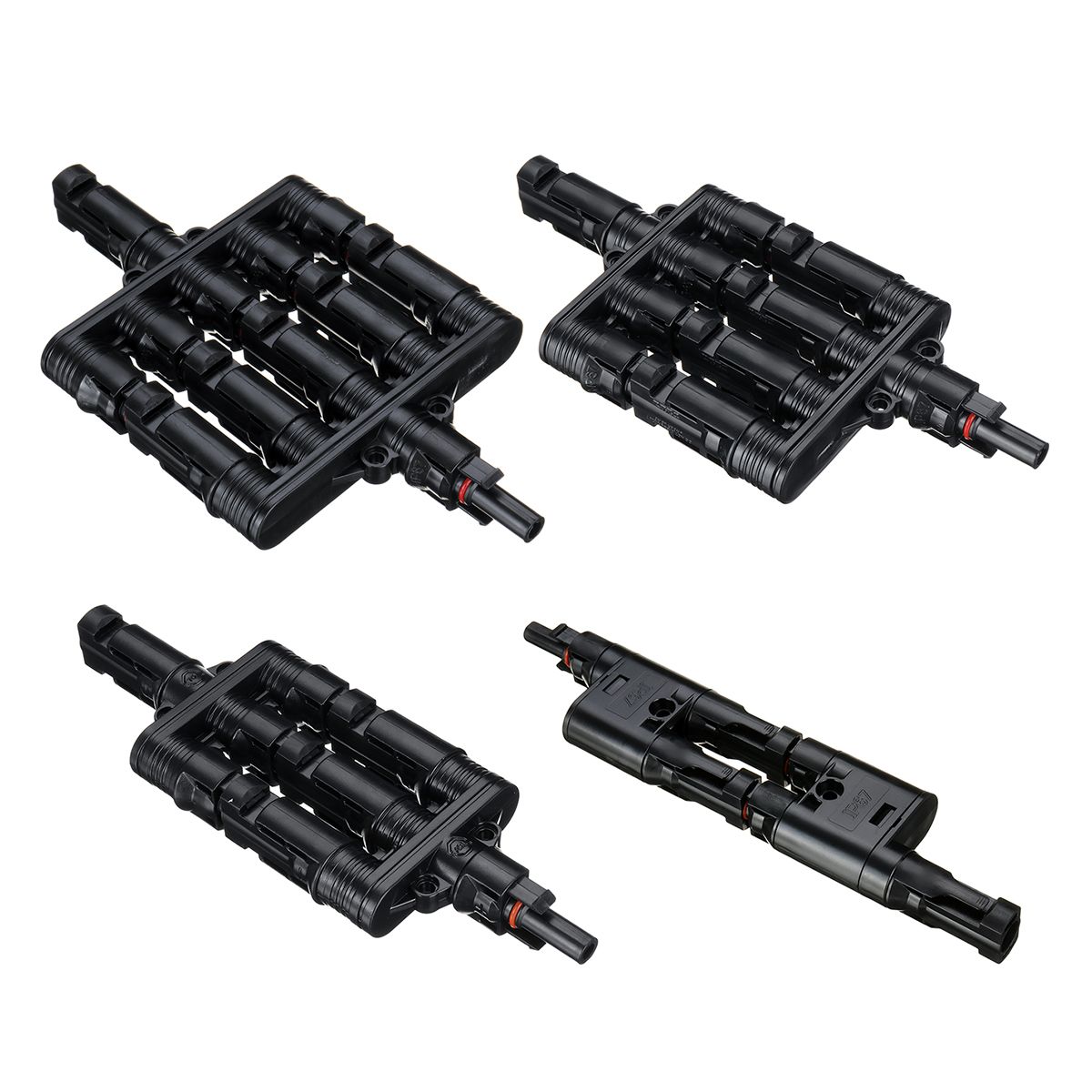

MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65

MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65
MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65
MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65
MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65
MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65
MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65
MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65
MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65
MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65
MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65
MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65
MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65
MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65
MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65
MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65
MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65
MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65
MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65
MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65
MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65
MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65
MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65
MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65
MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65
MC4 T Branch Solar Panel Male to Female Connectors 2/3/4/5 Branch Connector IP65
₹520.25
Ex Tax: ₹520.25
  • Stock: In Stock
  • Model: EB000361
  • SKU: EB000361

Available Options

Specification:

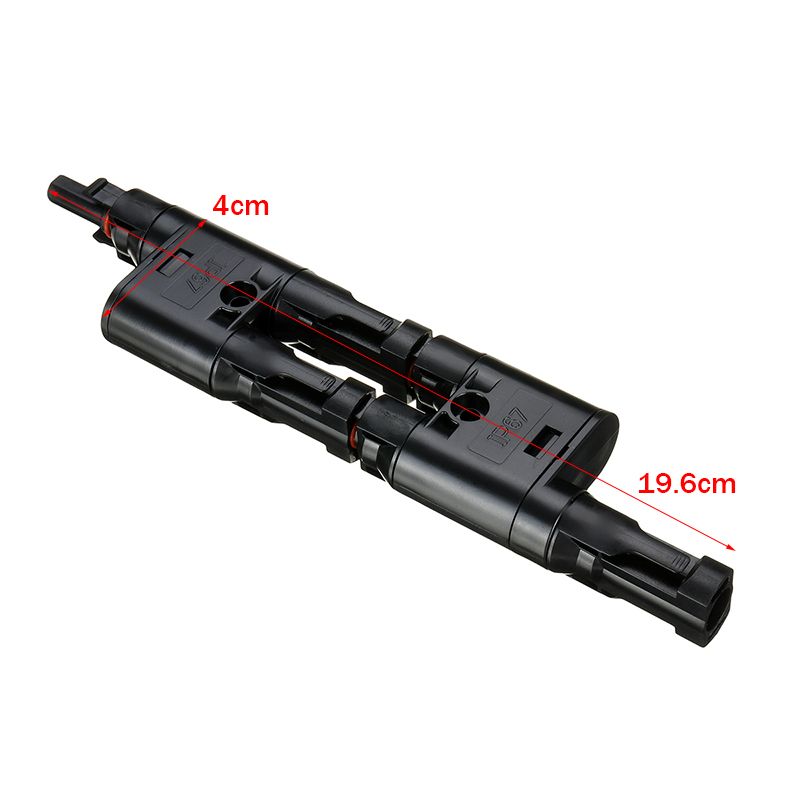

2 branch :
T Type MC4 Male/Female Solar Panel Cable Connectors:
one female to double male (F/M/M)and one male to double female (M/F/F)
Insulation Material: PPO
Size: 19.6*4cm
Color: Black
Contact Material: Copper,Silver Plated
Rated Current: 50A
Retaed Voltage: 1000 VDC
Test Voltage: 6000 VDC (50Hz,min)
Protection Class: II
Contact Resistance: 0.5 mΩ
Temperature Range: -40℃ to +90℃
Protection Degree: IP67/IP2
Flame Class: UL94-VO
Insertion force: ≤ 50N
Withdrawal force:≥ 50N

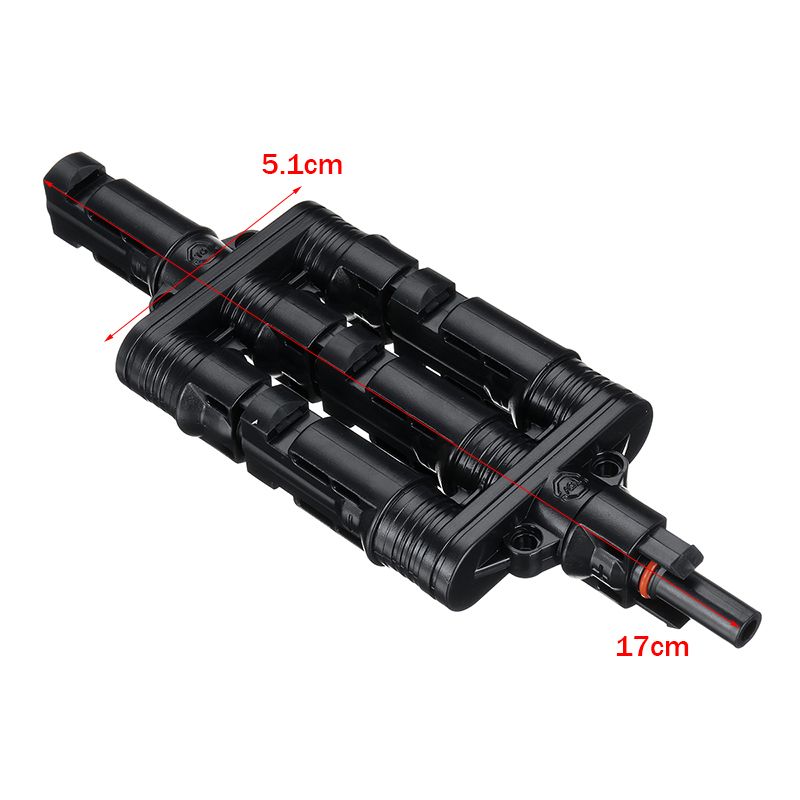

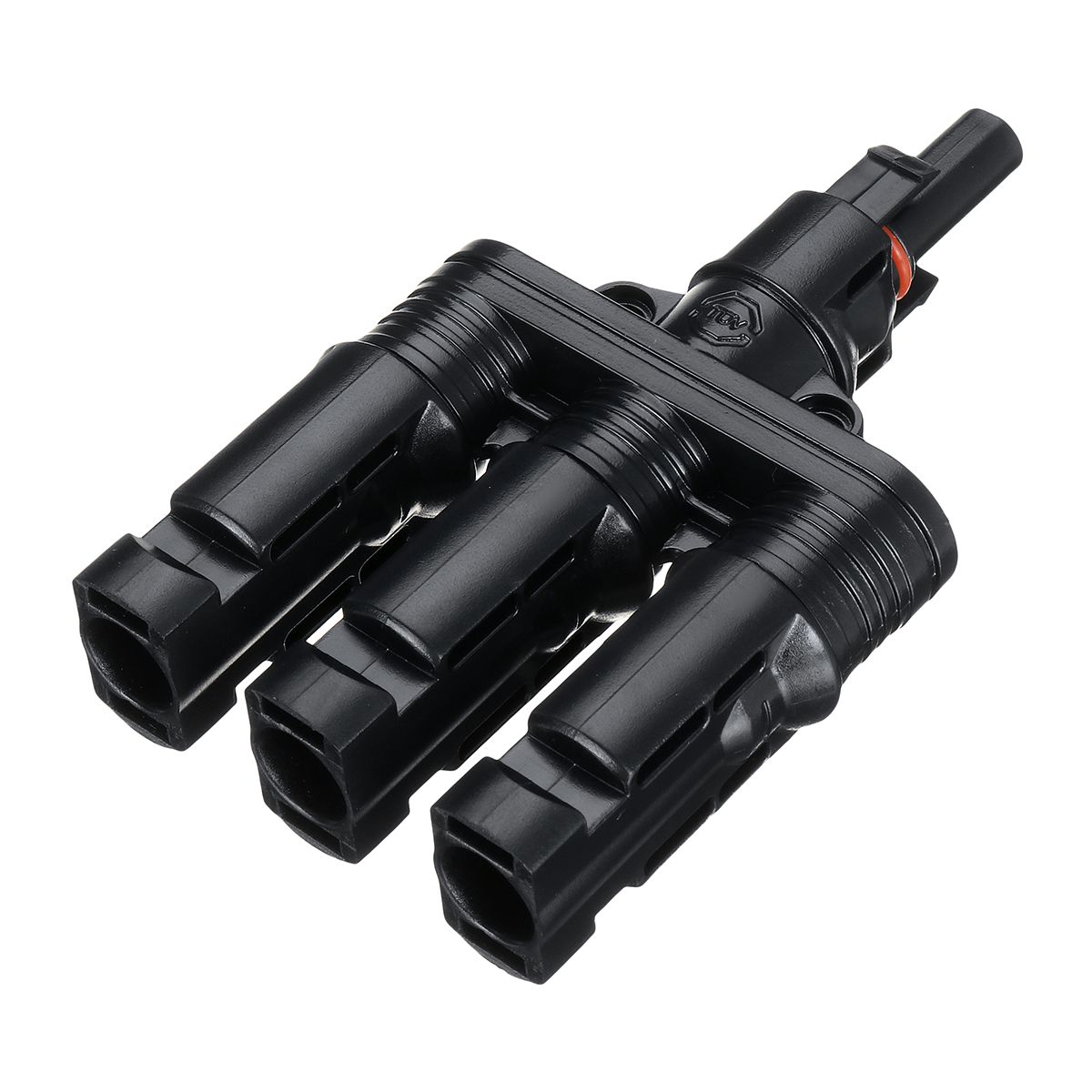

3 branch :
MC4 T Type 3 branch Solar Panel Cable Photovoltaic Connectors MFFF FMMM IP65
Size: 17*5.1cm
Color : Black
Maxi operating current : 30A
Temperature : -40 ~ 90
Safety class :CIass II
Waterproof rating : IP65
Maximum voltage : DC1000V

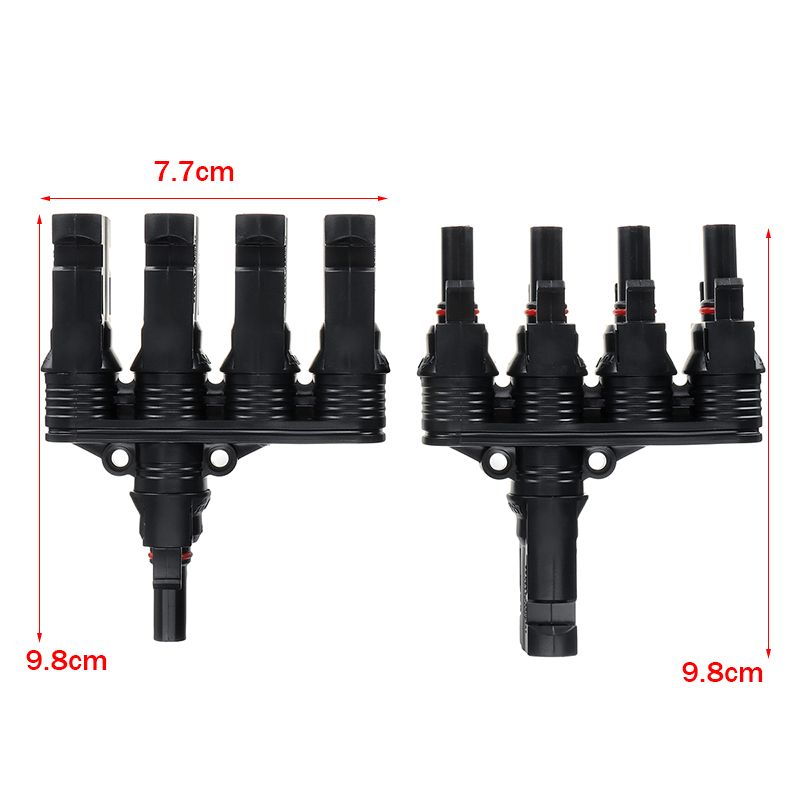

4 branch :
AC/DC Solar Branch Connectors MFFFF FMMMM IP65
Color : Black
Maxi operating current : 50A
Temperature : -40 ~ 90
Safety class :CIass II
Waterproof rating : IP65
Maximum voltage : DC1000V

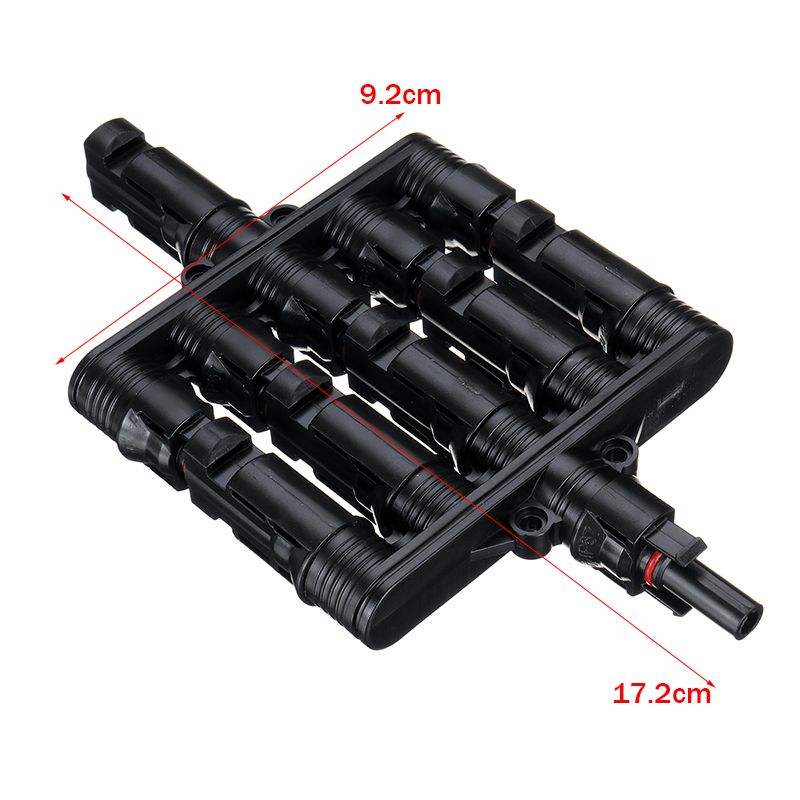

5 branch :
Terminal dimensions:Φ4.0mm
Adapter cable:2.5mm2 ~ 6.0mm2 / 14AWG ~ 10AWG
Rated voltage:TUV 1000V DC / UL 600V DC
Size: 17.2*7.2cm
Color : Black
Maxi operating current : 20A~30A
Temperature : -40℃~ +85℃
Safety class :CIass II
Waterproof rating : IP67(IEC 60529);
Maximum voltage : DC1000V
Test voltage:DC 8KV 1min
Insulation Materials:PPO
Flammability rating:UL94V - 0

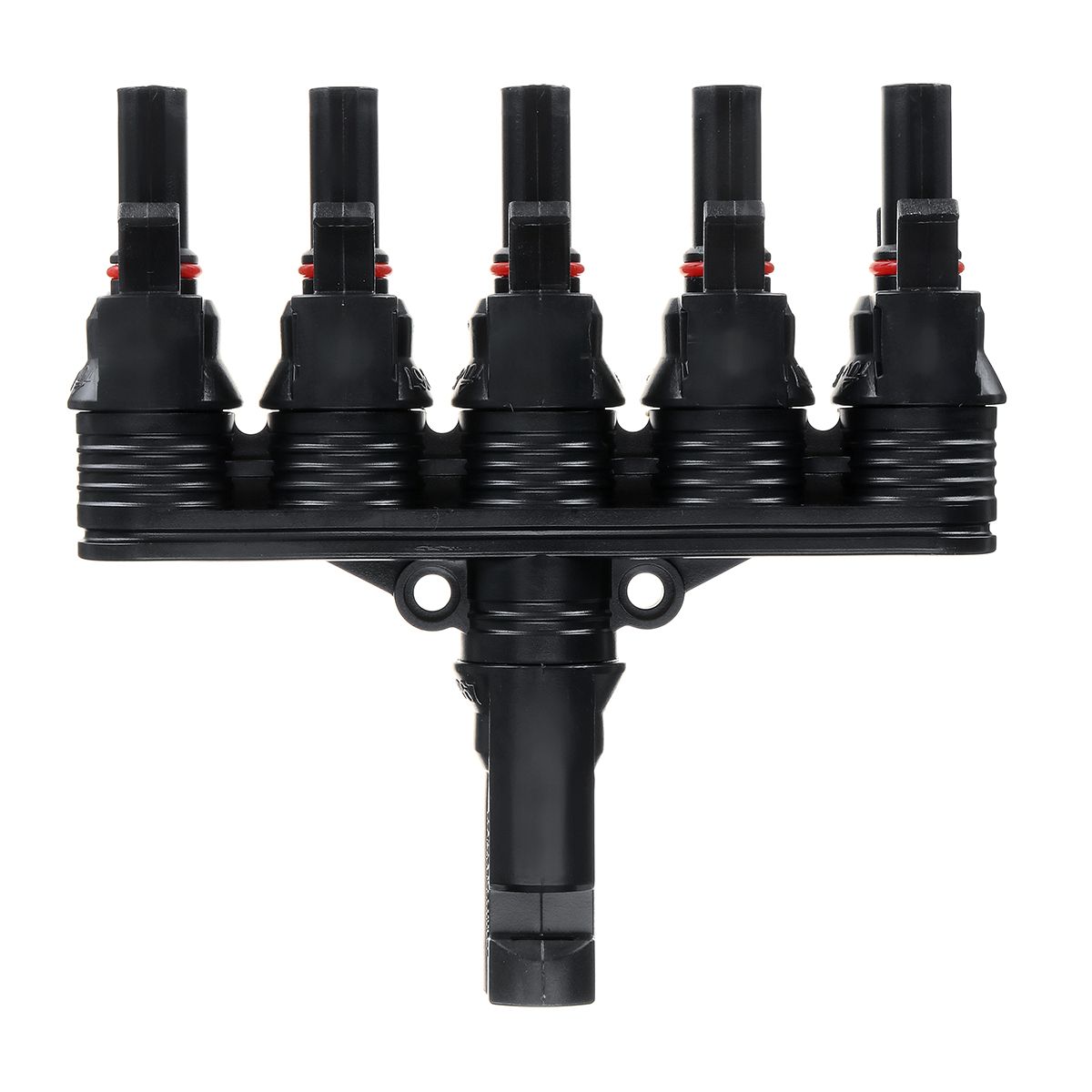

MC4 T-Branch Connector - 1 male to 5 female
MC4 T-Branch Connector - 1 female to 5 male
Contact resistance : ≤ 5mΩ
Terminal material ; copper,plate,tin

Package:
1* MC4 T Branch


MC4-T-Branch-Solar-Panel-Male-to-Female-Connectors-2345-Branch-Connector-IP65-1572108
MC4-T-Branch-Solar-Panel-Male-to-Female-Connectors-2345-Branch-Connector-IP65-1572108
MC4-T-Branch-Solar-Panel-Male-to-Female-Connectors-2345-Branch-Connector-IP65-1572108
MC4-T-Branch-Solar-Panel-Male-to-Female-Connectors-2345-Branch-Connector-IP65-1572108
MC4-T-Branch-Solar-Panel-Male-to-Female-Connectors-2345-Branch-Connector-IP65-1572108
MC4-T-Branch-Solar-Panel-Male-to-Female-Connectors-2345-Branch-Connector-IP65-1572108
MC4-T-Branch-Solar-Panel-Male-to-Female-Connectors-2345-Branch-Connector-IP65-1572108
MC4-T-Branch-Solar-Panel-Male-to-Female-Connectors-2345-Branch-Connector-IP65-1572108
MC4-T-Branch-Solar-Panel-Male-to-Female-Connectors-2345-Branch-Connector-IP65-1572108
