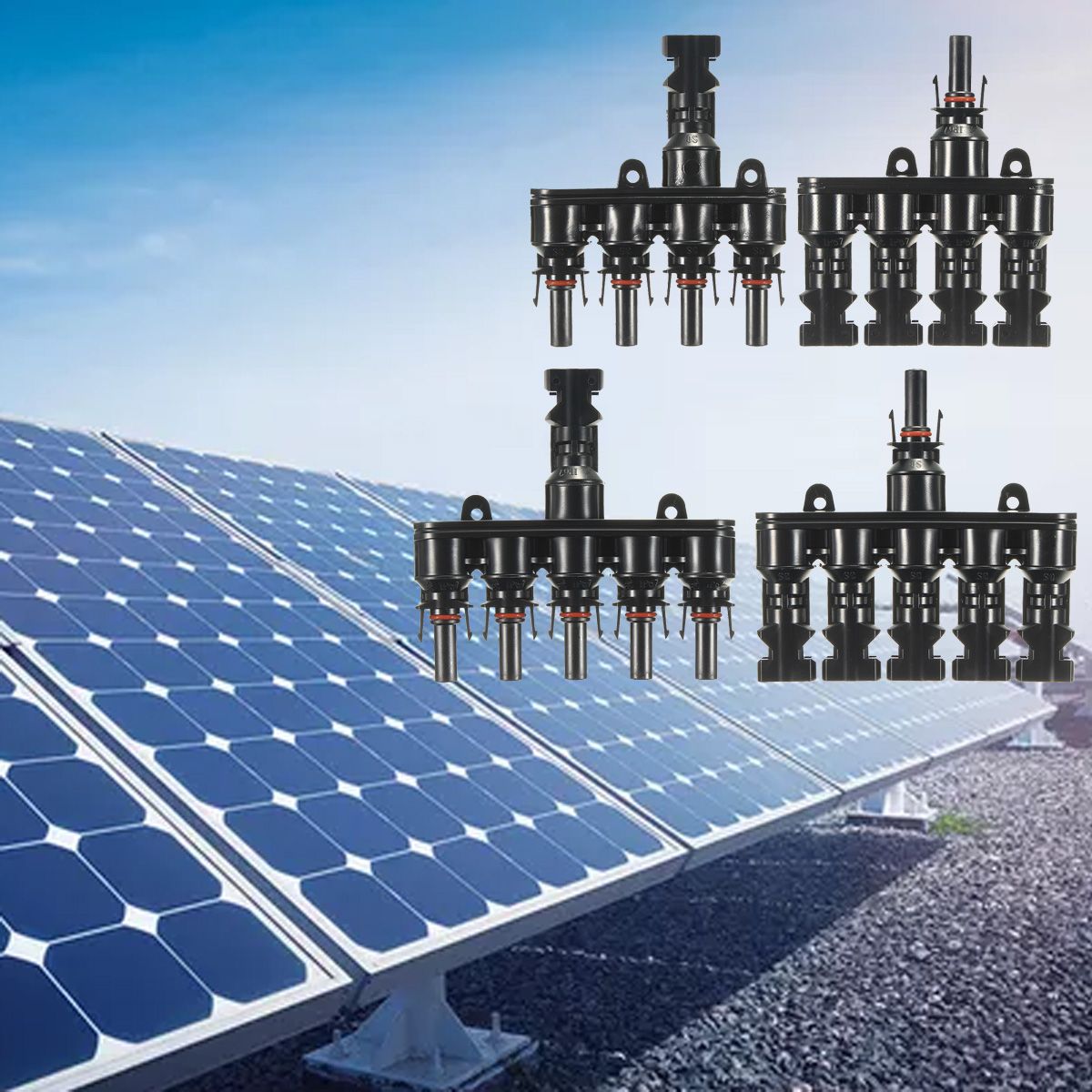

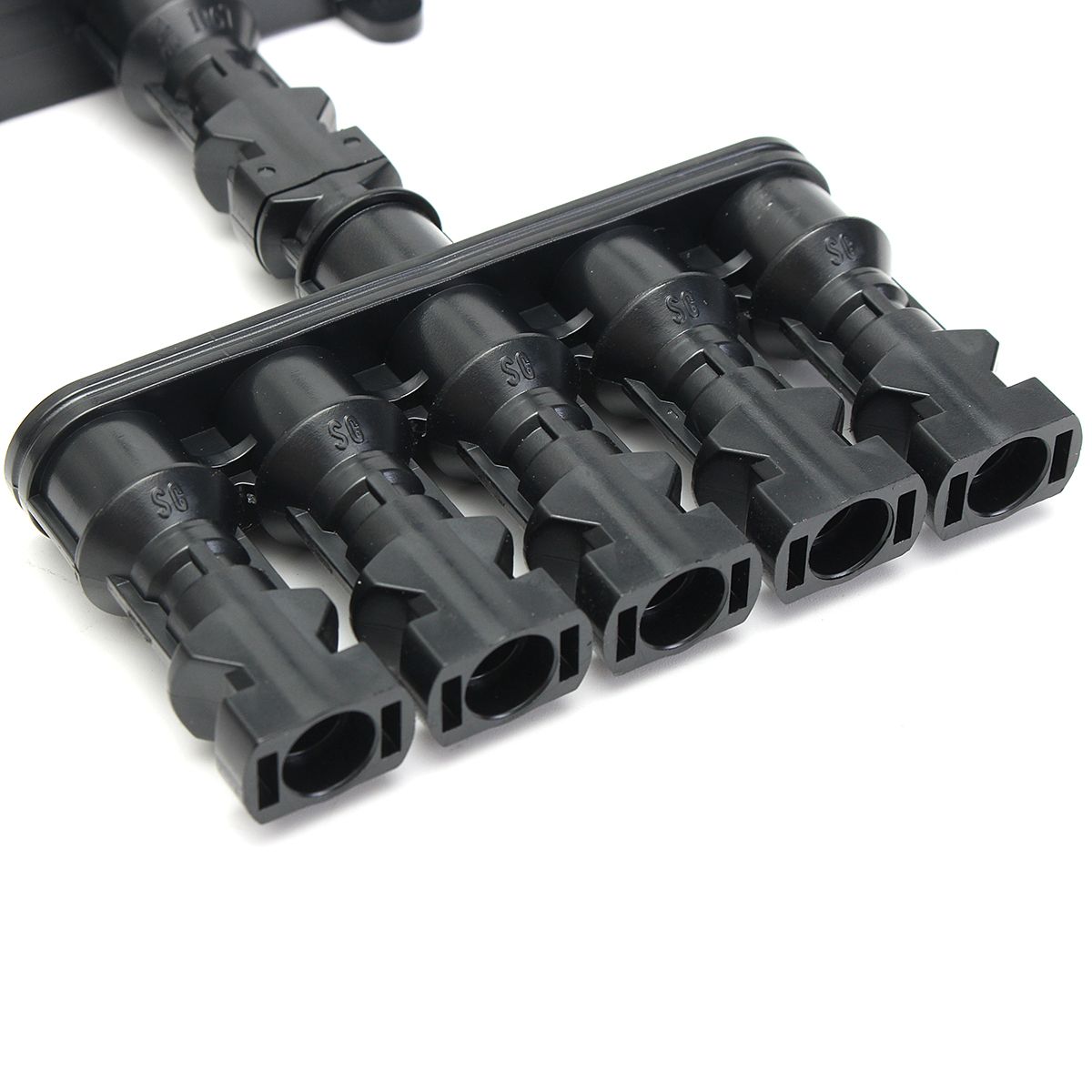

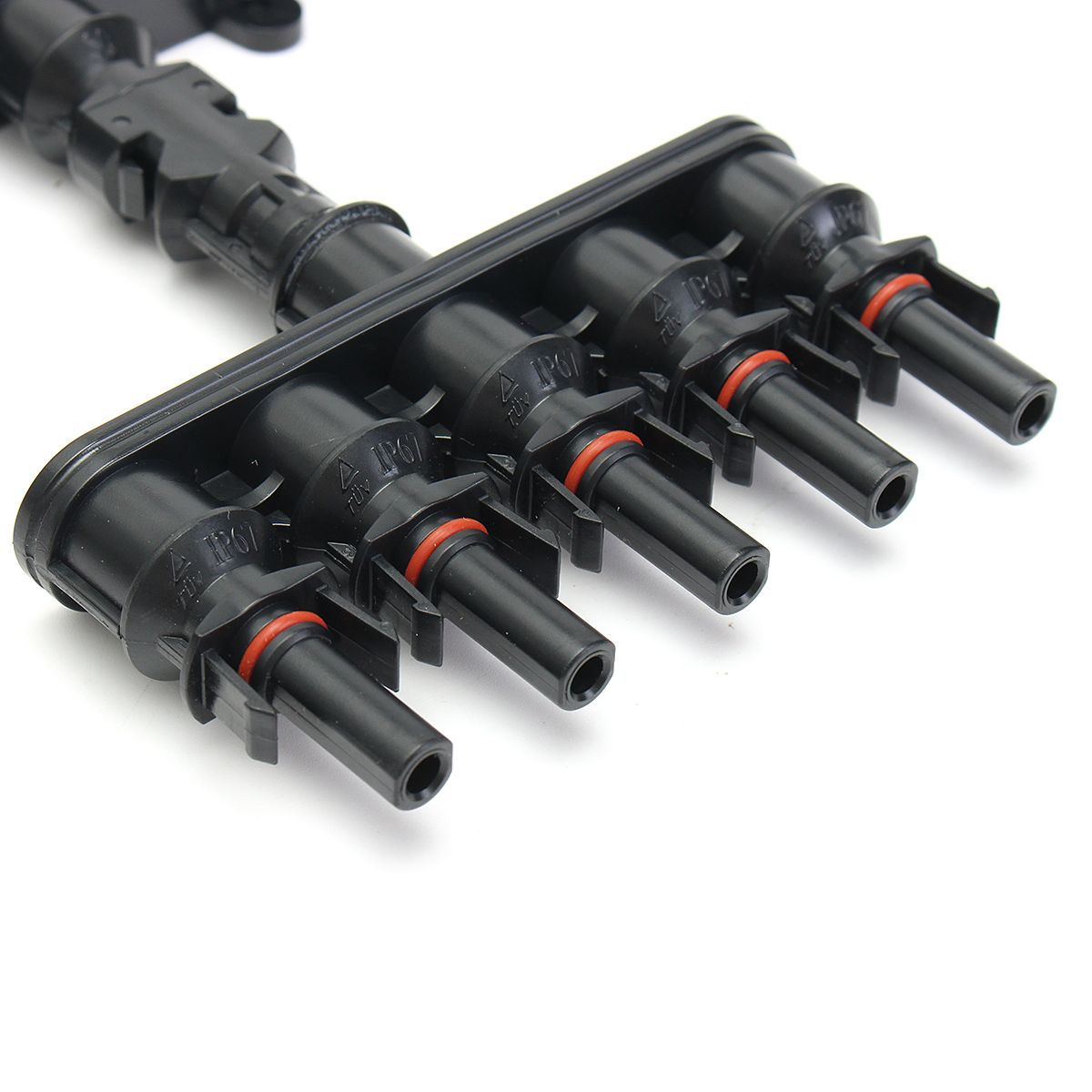

MC4 Connector Branching Male Connectors for Photovoltaic Solar Panel

Based on 0 reviews. - Write a review

$15.57

Ex Tax: $15.57

Stock: In Stock
Model: EB000376
SKU: EB000376

Available Options

Color

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Specifications:

Product name: MC4 Connectors

Color: Black

Rated voltage: TUV, 1000V, DC / UL, 600V, DC

Bus belt connection: Welding

Rated current: 20A to 30A

Wire specifications: 2.5mm2 ~ 4.0mm2 / 14AWG to 12AWG

Terminal specification: Phi 4.0mm

Withstand voltage: TUV, 6000V, AC (1Min) / UL, 2200V, DC (Min)

Connection number: 1 lines

Protection level: Class II

Terminal material: copper, tin plated

Contact resistance: ≤ 5mΩ

Connector material: PPO

IP protection level: IP67 (IEC 60529)

Test temperature: - 40 to +85 DEG C

Flame retardant grade: UL94V - 0

Note:

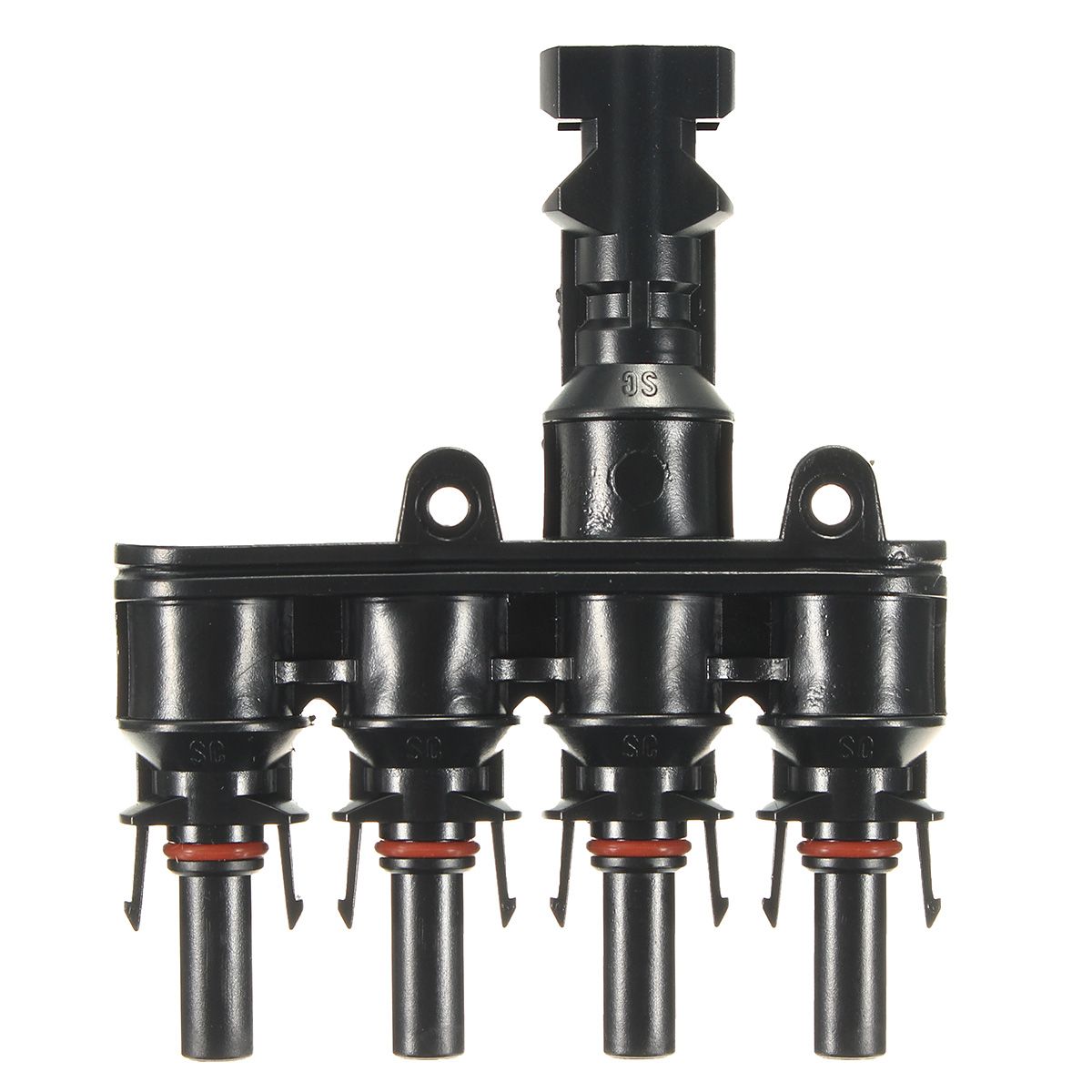

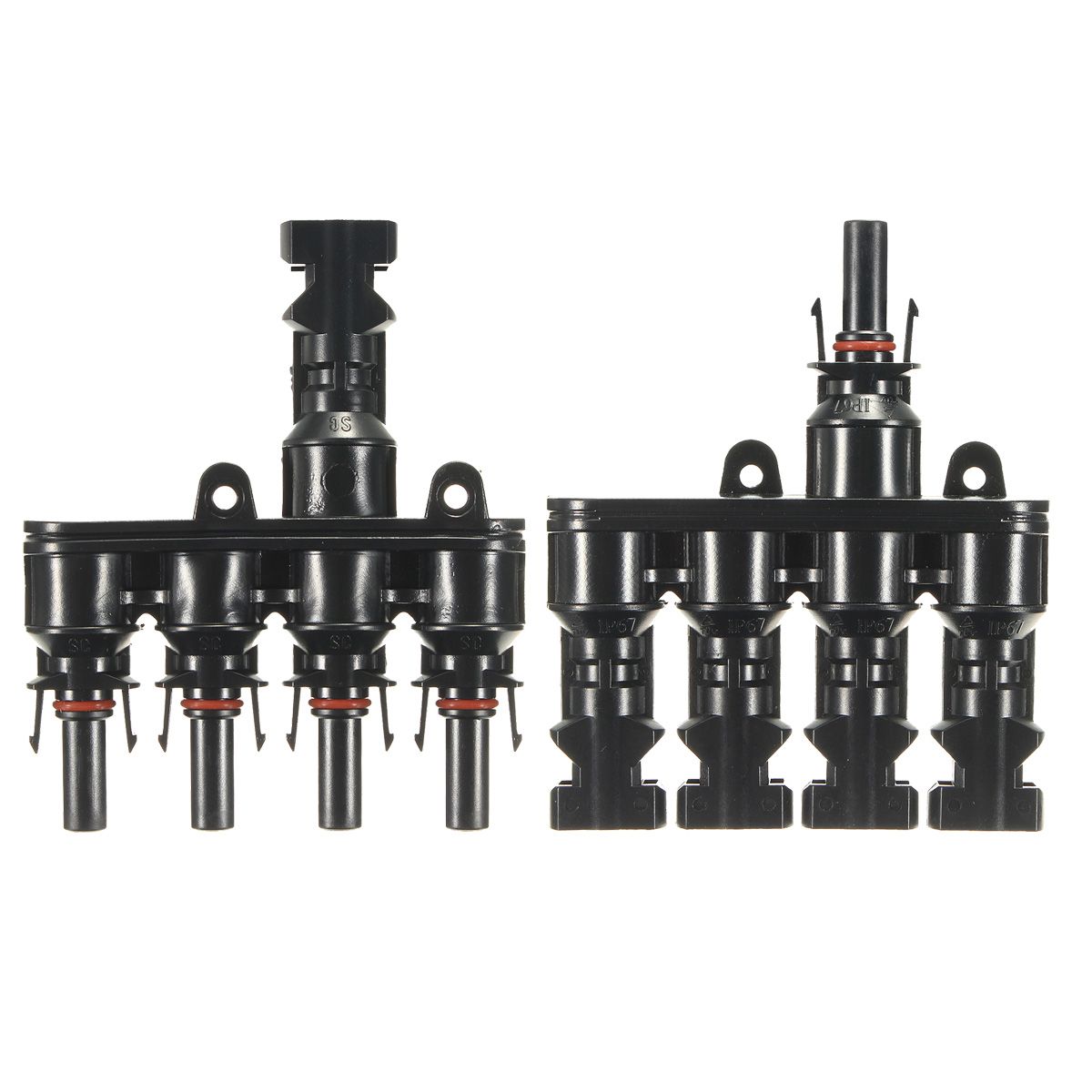

#1: 4 to 1

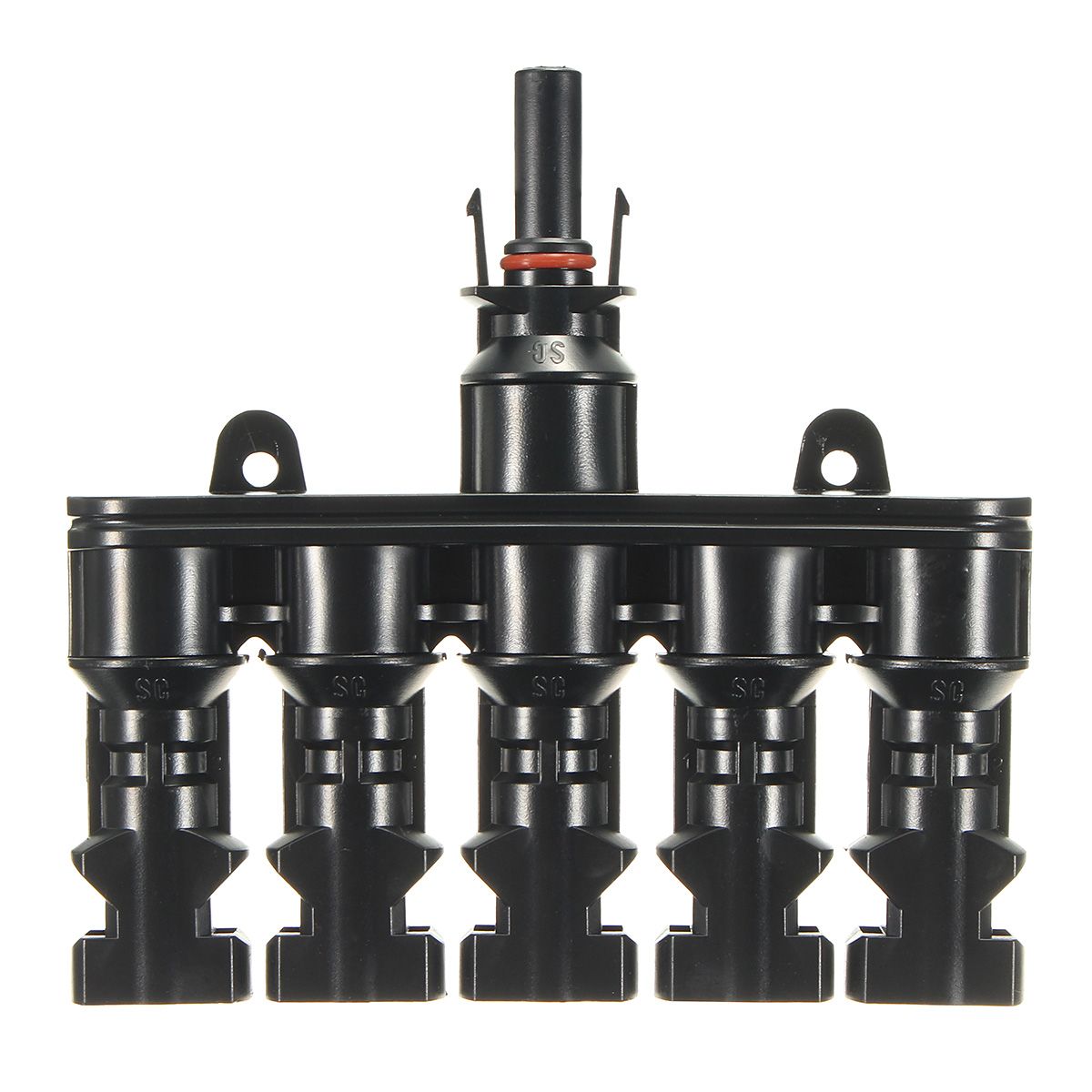

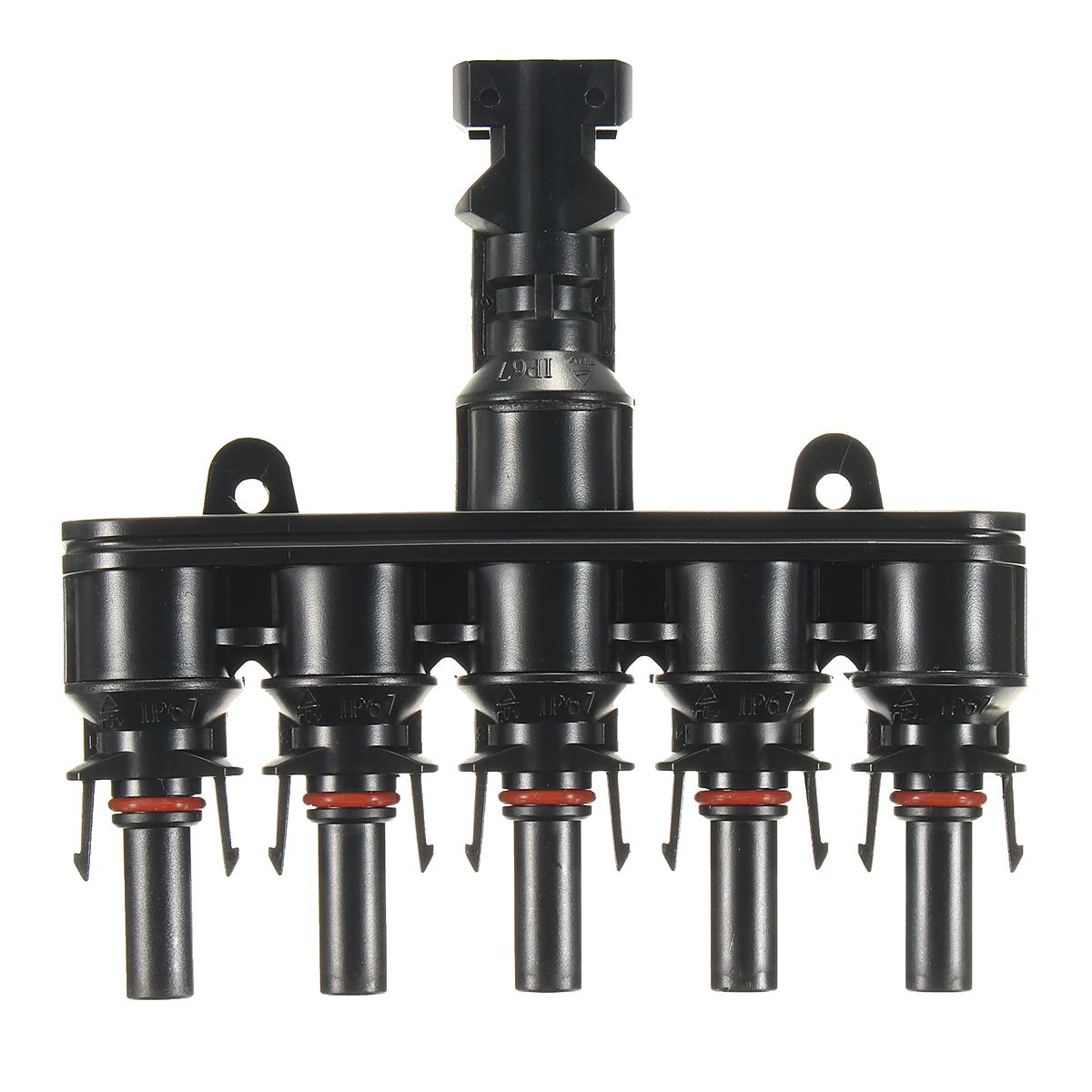

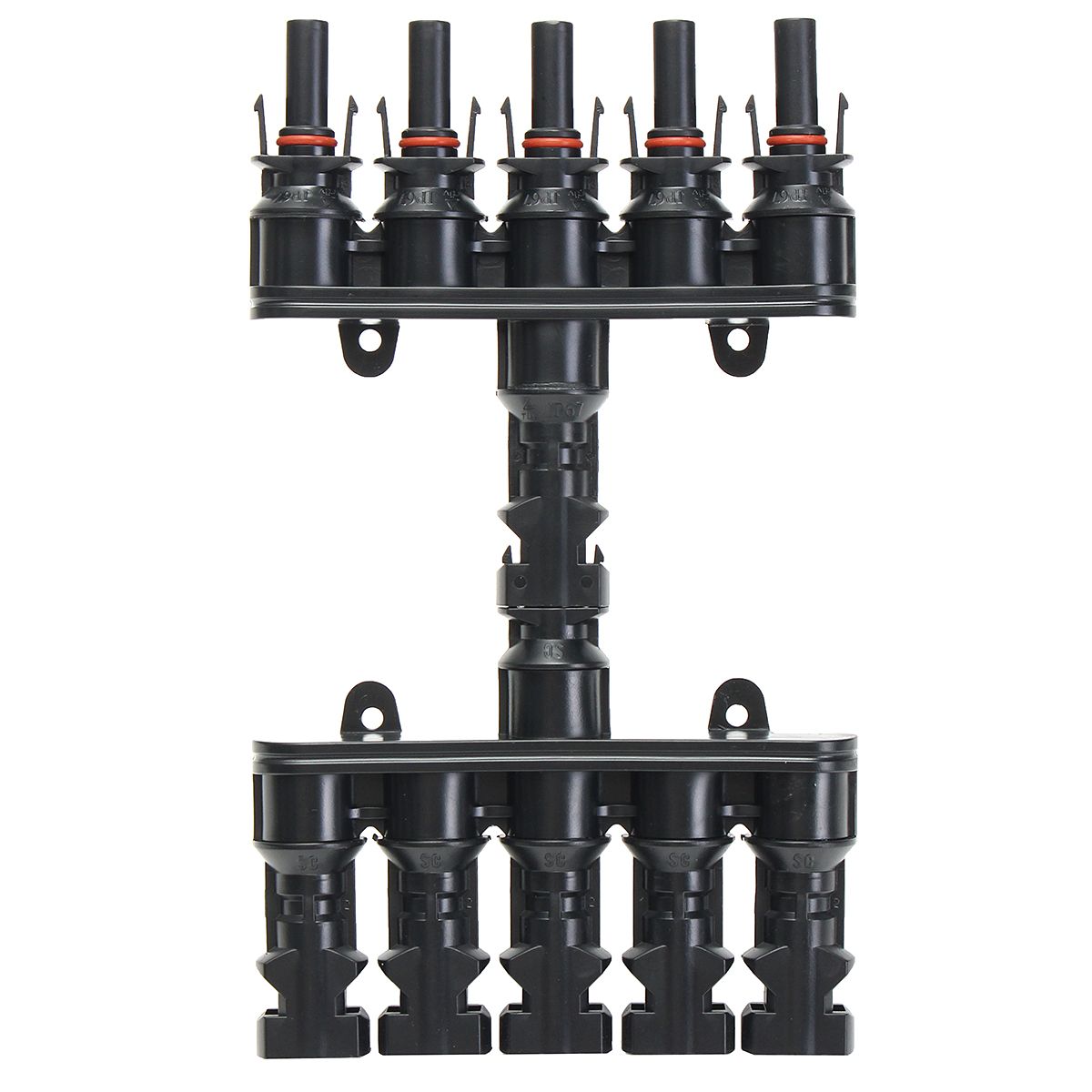

#2: 5 to 1

Feature:

-The connector uses the PPO as the enclosure, and the copper tin plated as the conductor.

-The utility model has the characteristics of dust proof, waterproof, strong ageing resistance, ultraviolet resistance, light weight, easy use, simple installation, safety, long service life, etc..

-Compatible with all standard MC4 connectors, typically used for solar panel DC output, or extended with solar panel end output connections.

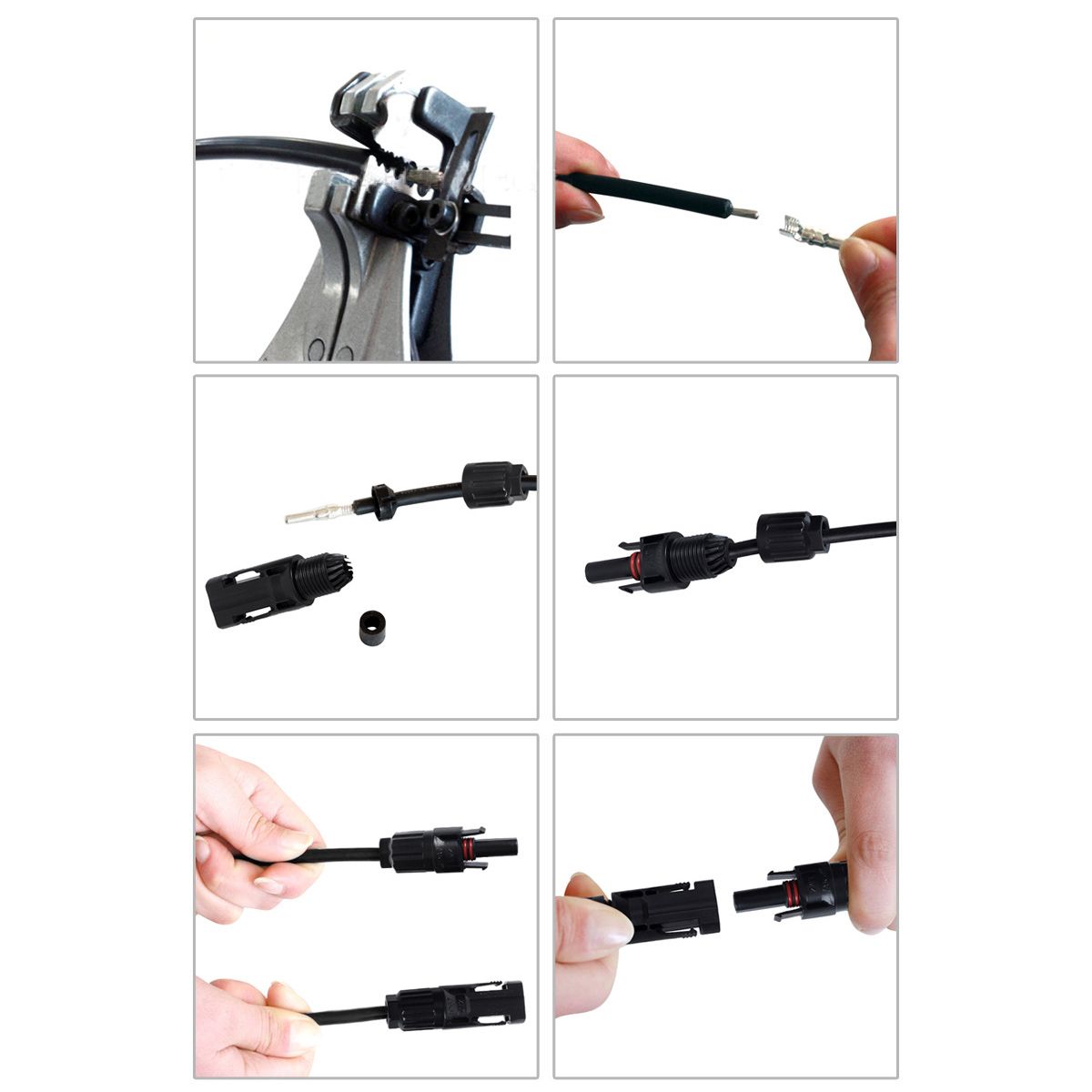

-Connect connector and cable by pressing and tight way, male and female head fixed with self-locking structure, stable freely.

Package Includes:

1 Pairs of MC4 Connectors

More Details:

MC4-Connector-Branching-Male-Connectors-for-Photovoltaic-Solar-Panel-1292727
