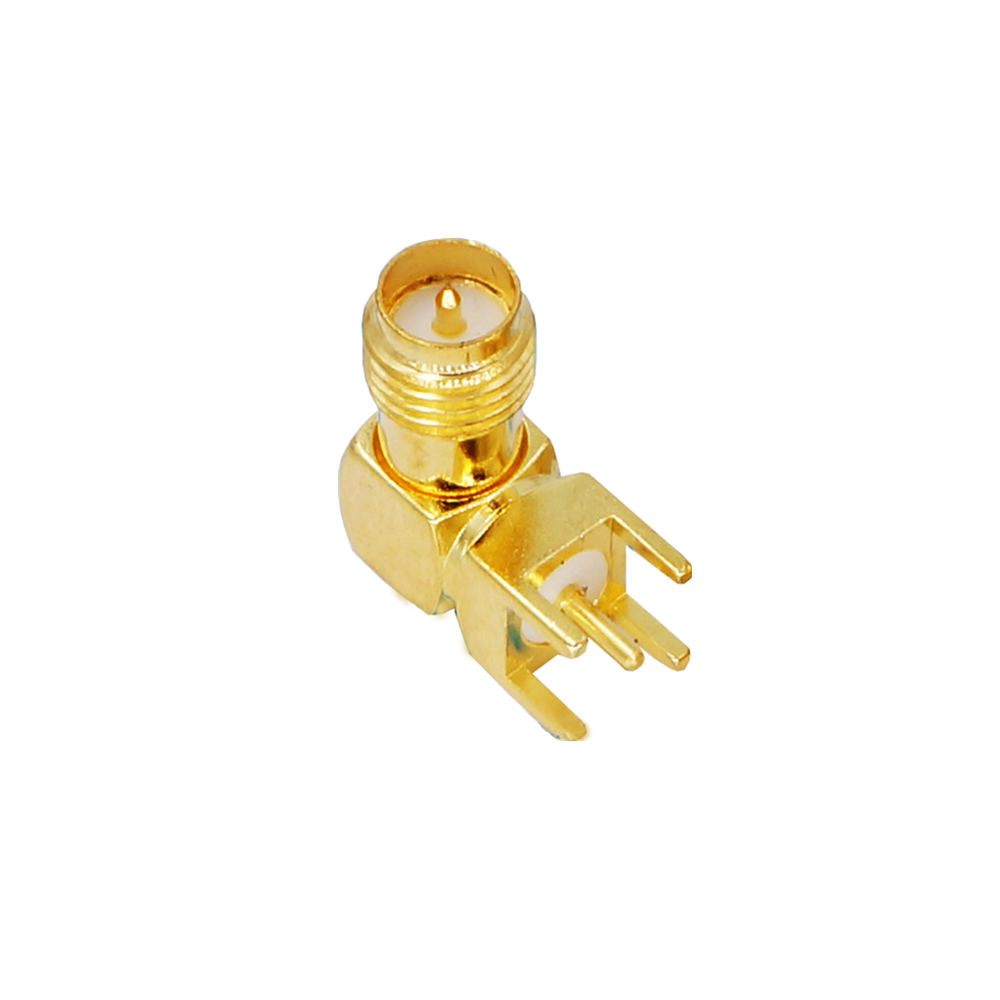

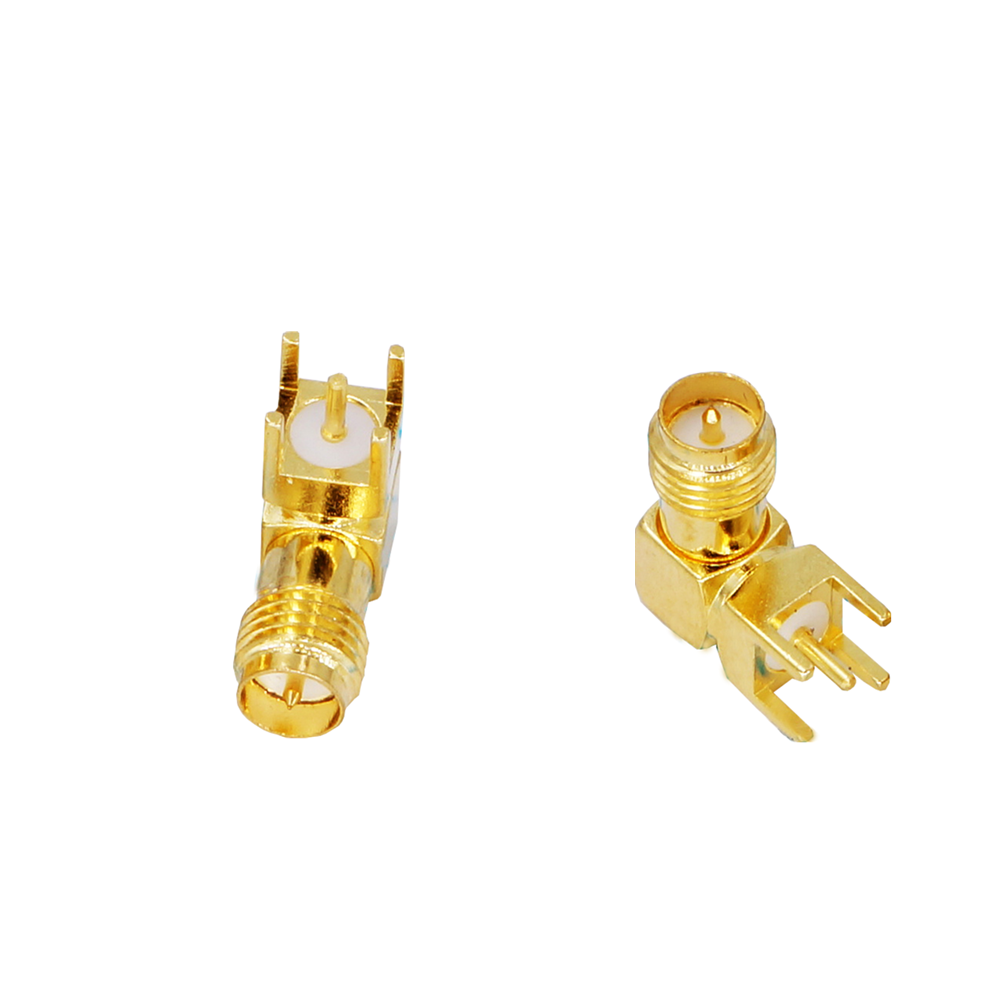

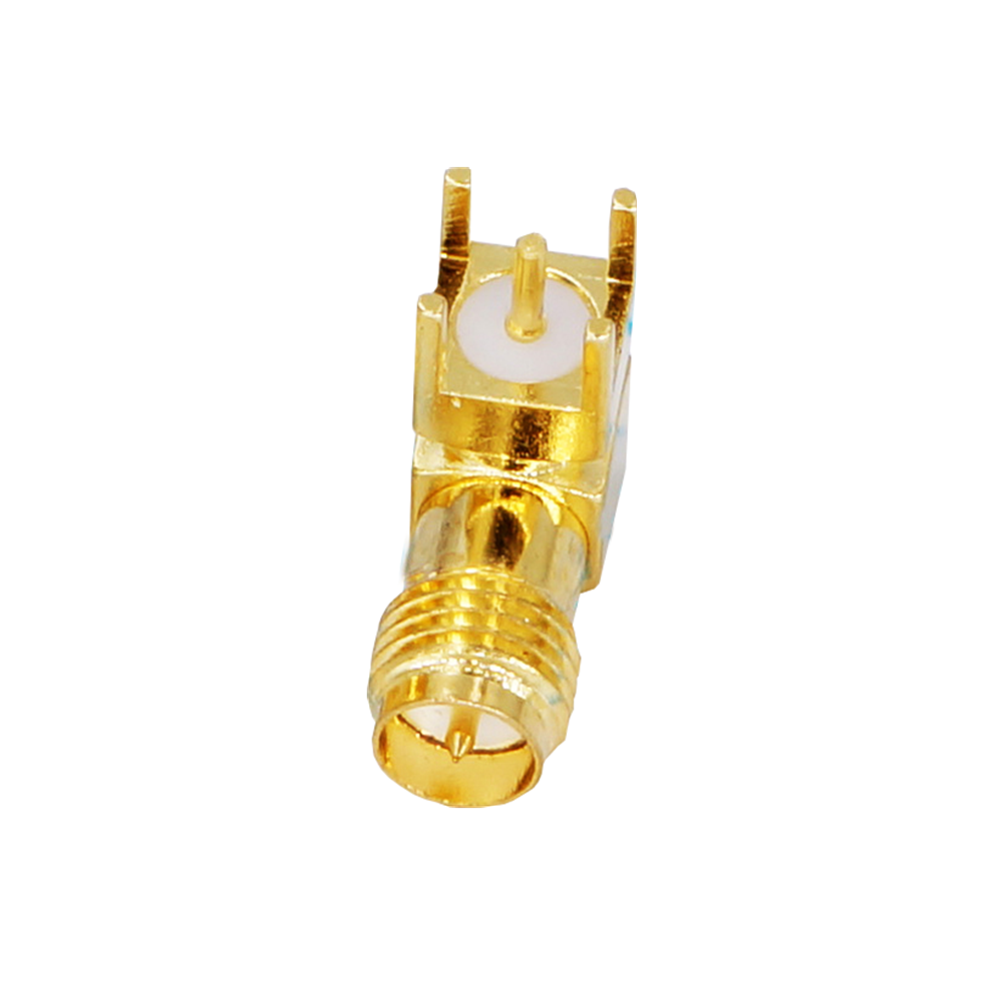

2pcs SMA-KWE to RP-SMA Female RF Connector Adapter for RC Drone

2pcs SMA-KWE to RP-SMA Female RF Connector Adapter for RC Drone
2pcs SMA-KWE to RP-SMA Female RF Connector Adapter for RC Drone
2pcs SMA-KWE to RP-SMA Female RF Connector Adapter for RC Drone
2pcs SMA-KWE to RP-SMA Female RF Connector Adapter for RC Drone
2pcs SMA-KWE to RP-SMA Female RF Connector Adapter for RC Drone
2pcs SMA-KWE to RP-SMA Female RF Connector Adapter for RC Drone
2pcs SMA-KWE to RP-SMA Female RF Connector Adapter for RC Drone
$2.99
Ex Tax: $2.99
  • Stock: In Stock
  • Model: EB001136
  • SKU: EB001136
Specification:
Item name: RF Connector Adapter
Connector: SMA-KWE to RP-SMA Female
Temperature range: -65 to +165 °C (PE Cable -40 to +85 °C)
Vibration: MIL-STD-202, Method 213
Characteristic impedance: 50Ω
Frequency range: DC ~ 12.4GHz (semi-rigid cable 0 ~ 18GHz)
Operating voltage: 335V max (effective value)
Withstand voltage: 1000V rms (minimum sea level)
Contact resistance:
≤ 3 mΩ between inner conductors
≤ 2 mΩ between outer conductors
Insulation resistance ≥ 5000 MΩ
Insertion loss ≤0.15 dB/6GHz
Voltage standing wave ratio Straight flexible cable ≤1.10+0.002f
Semi-rigid cable ≤1.05+0.001f
Curved flexible cable ≤1.20+0.003f
Semi-rigid cable ≤1.10+0.001f
Durability ≥500 cycles


Package included:
2 x SMA-KWE to RP-SMA Female RF Connector Adapter for RC Drone


2pcs-SMA-KWE-to-RP-SMA-Female-RF-Connector-Adapter-for-RC-Drone-1718796

2pcs-SMA-KWE-to-RP-SMA-Female-RF-Connector-Adapter-for-RC-Drone-1718796

2pcs-SMA-KWE-to-RP-SMA-Female-RF-Connector-Adapter-for-RC-Drone-1718796
