900Mhz GSM 2G/3G Phone Signal Boosters Repeater Amplifier Antenna

Based on 6 reviews. - Write a review

$32.28

Ex Tax: $32.28

Stock: In Stock
Model: EB001499
SKU: EB001499

Available Options

Color

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

1) High gain, easy installation and operation.

2) Full-duplex, single-port design, build-in power supply.

3) Use ALC technology, adjust extent automatically.

4) LED Light Working Signal Condition Indicators.

5) Big linear power, control intermodulation scatteration stably.

6) Dependability stand by GB6993-86 standard.

7) Compatibility of electromagnetism according with ETS300 609-4.

8) CE and Rohs Approved.

Specifications:

Optional Color: Gold/ Silver

Voltage : 110-220V AC or DC5V 1A

Frequency range : 890MHz--915MHz ( UP LINK )

935MHz--960MHz ( DOWN LINK )

Gain: Uplink: 50/55/60dB/±10dB Donwlink: 55/60/65/70dB/±10DB

Power: -70 ~ -40dBm/FA (1.23MHz)

Max Output power: Uplink: +23dBm/±3dBm Total power; Donwlink: +27dBm/±3dBm Total power

Seclusion: >65dB

Ambient temperature: -10℃-50℃

Configuration: 5V/ 1A prower

Impedance: 50 Ohm

Net weight : 0.28kg

Compact design: Indoor Use

Item dimension: 140*100*20mm

Application :

1) Small regions of signal or weak signal

blind area, such as underground or semi-underground place of business, basements, underground parking, etc.;

2) Complaints from small-scale

hot-signal areas, such as conference rooms, a small supermarket, small shopping malls, the office and small public areas, etc.;

3) Traffic

And social influence of large areas, such as bars, cafes, dance halls, cafes, fitness clubs, leisure and entertainment, etc.;

4) Elevator, lift wells in particular, not in the lift cables laid;

5) Home, office, luxury yachts, private cars, public security system and road safety management, etc.

Steps of Repeater Working:

1) The outside antenna receives the signal from the nearest mobile base station.

2) The outside antenna sends the received signal through the coax cable to the installed Repeater.

3) The Repeater accepts the low signal and improves it.

4) The improved signal goes to the inside antenna through the connection coax cable.

5) The inside antenna send the improved good signal to your mobile phone.

Installation Approaches:

1) Fix up outdoor antenna reception on housetop or outside the window and point it to the signal tower.

2) Connect outdoor antenna to BTS port in repeater machine through cable.

3) Connect indoor antenna(s) to MOBILE port in repeater machine through cable also.

4) Plug power adaptor into AC power socket and finish installation.

Package Included:

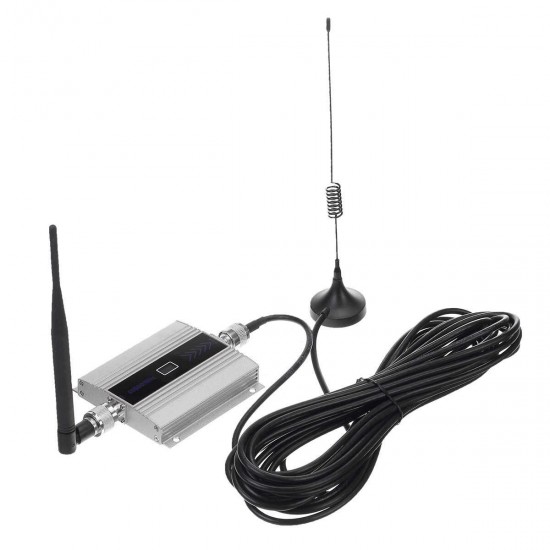

1 x 900MHz Booster

1 x Charger(We send US adapter, if you need other models, please leave a message)

1 x Indoor Antenna N Male

1 x Outdoor Antenna N Male with 10M Cable

1 x English User Manual

Details Pictures:

900Mhz-GSM-2G3G4G--Phone-Signal-Boosters-Repeater-Amplifier-Antenna-1730014
