3.5-45X 13MP Stereo Soldering Microscope Stand Lens Digital Camera for Repair Mobile Phone Tools Kits

Based on 0 reviews. - Write a review

$287.99

Ex Tax: $287.99

Stock: In Stock
Model: EB004819
SKU: EB004819

Available Options

Color

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

Plug and see, no need special knowledge, and you can check the small parts by LCD or eyepiece;

3.5-45X(with auxiliar LENS) Continuous Zoom Microscope;

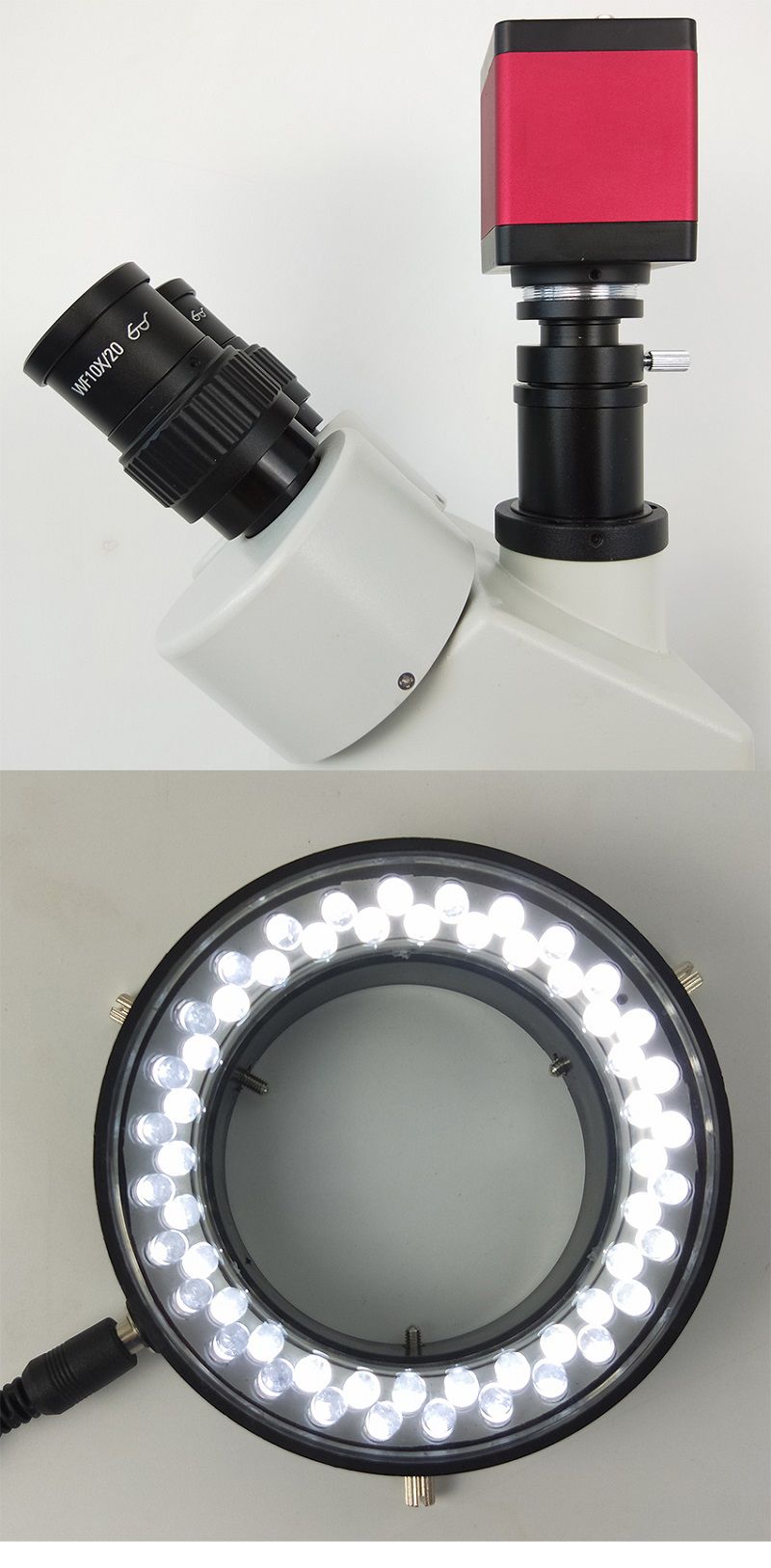

Special pillar clamps, LED and dimmer design, can make your operation space bigger

Simple design, no need connect many wire like others, just connect power and Video cable, then you can use the microscope.

Specifications:

Captures Microscope Images and Streams Live Video on big size TV

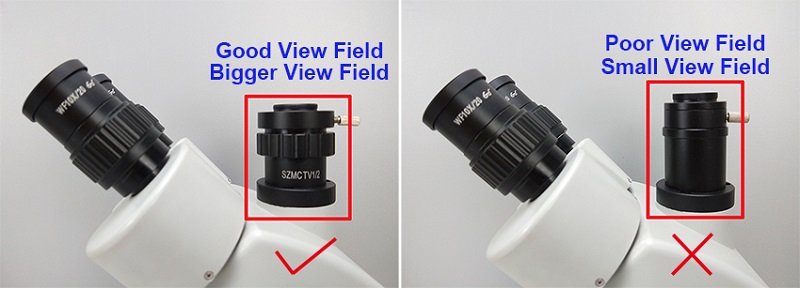

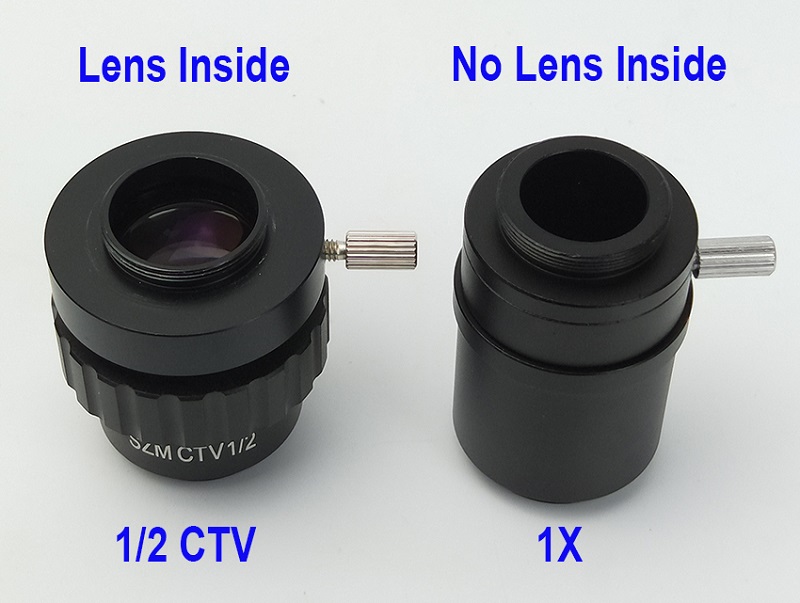

Built-in Reduction Lens Provides the Same Field of View on Screen as Through Eyepiece

Top quality optical glass elements

Zoom range 3.5~45x (with auxiliar LENS)

Big working distance allows enough operation space

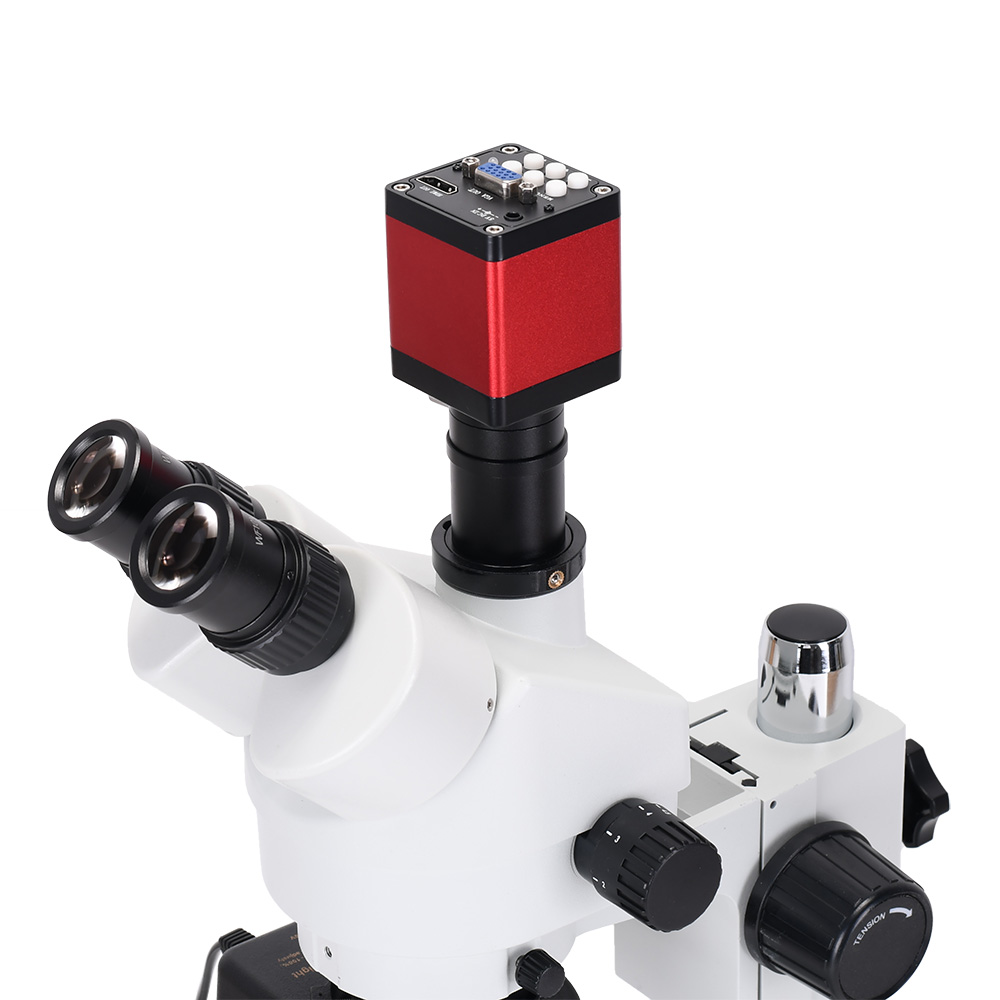

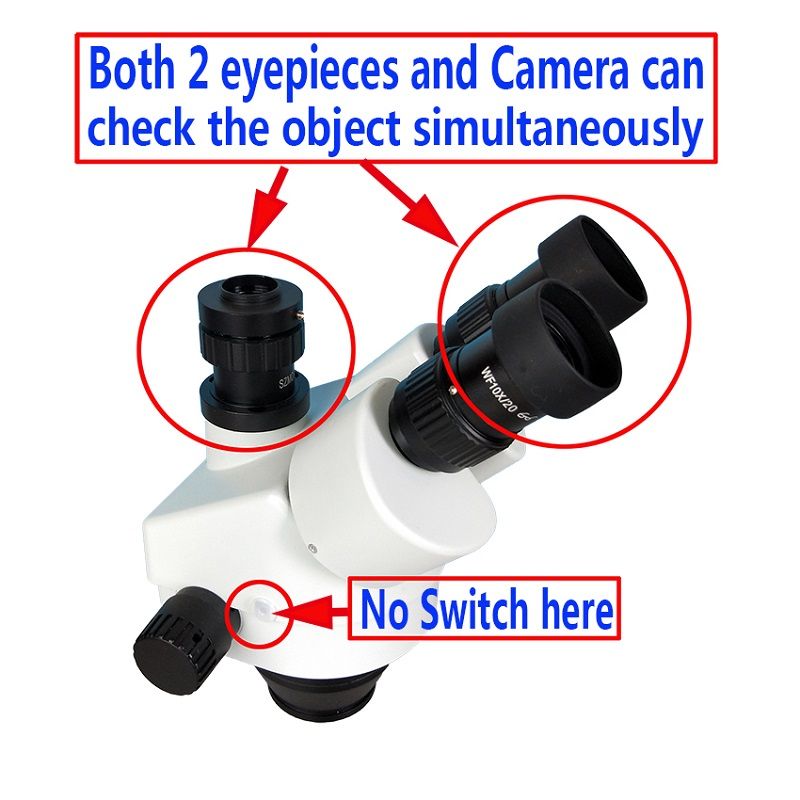

45°inclined 360°rotatable trinocular head

Sharp erect stereo images over a wide field view

Both ocular tubes have diopter adjustment

Adjustable inter-pupillary distance to fit anyone's eyes

Sturdy metal framewor

Head: 45°Inclined 360°rotatable trinocular

Eyepieces: wide field WF10X/20MM

Zoom ratio: 1:6.4

Objective zoom: 0.7x~4.5x

Total magnification: 3.5~45x (with auxiliar lens)

Both ocular tubes have diopter adjustment ±5dp

Interpupillary distance: 2-3/16" ~ 2-15/16"(55~75mm

Focus adjustment stroke: 2-3/8" (50mm)

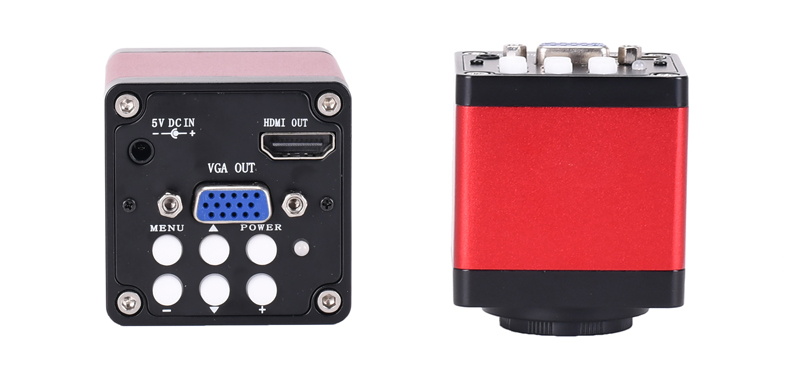

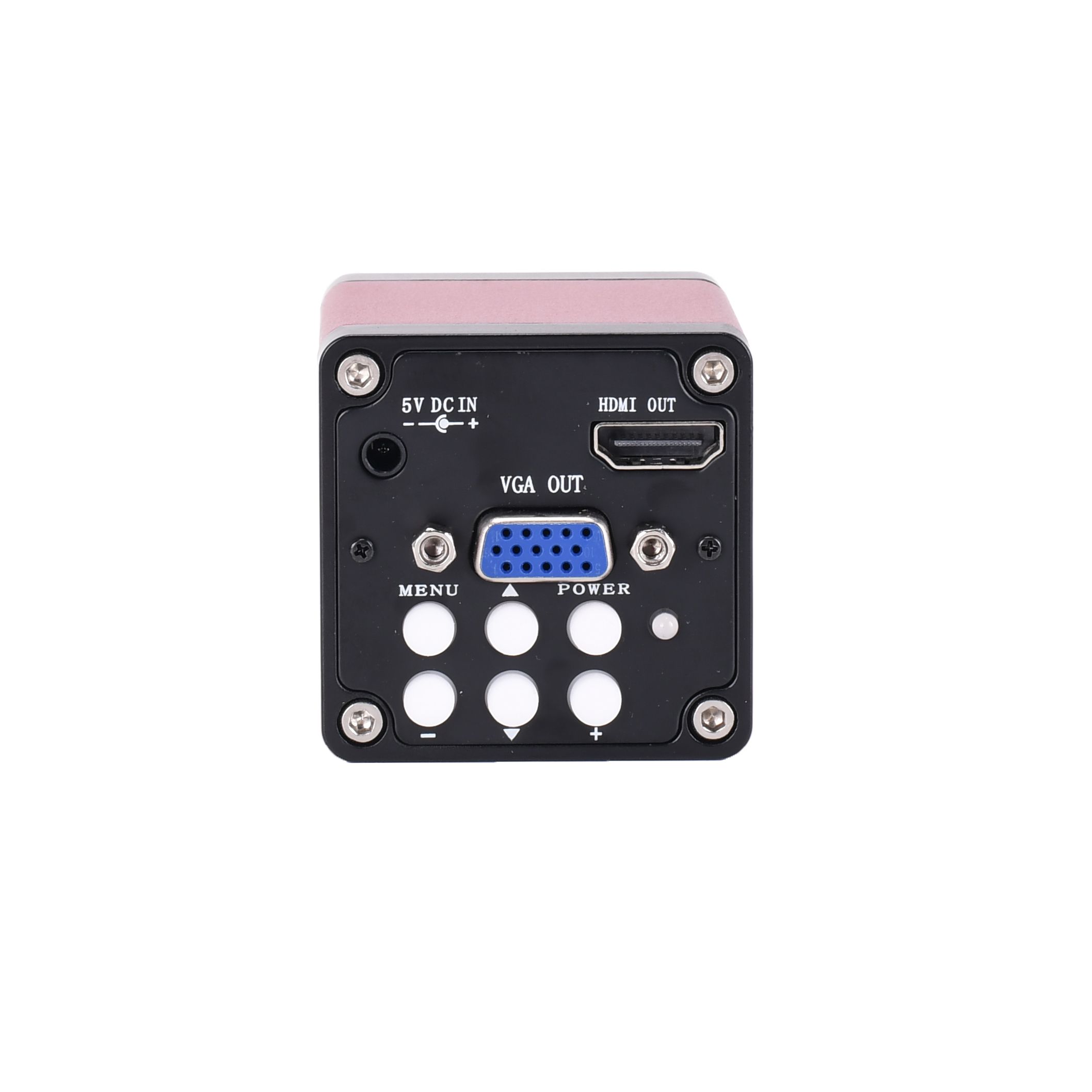

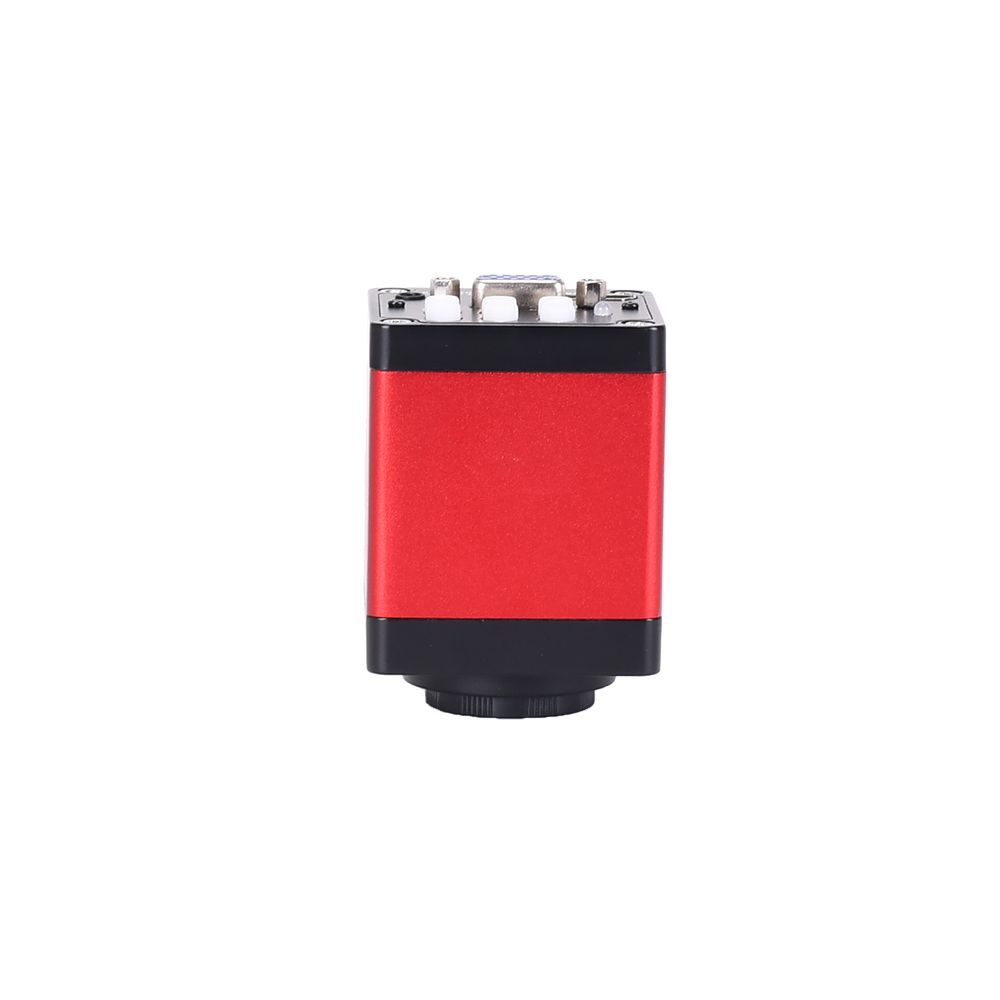

Camera Specification:

Video Interface: HDMI, VGA

Display Resolution: 1280*720 / 1024*768@60F/S

Lens Interface: C/CS

Working Voltage: DC 5-12V

Optical Format: 1/4 Inch

Pixel Size: 3.0*3.0 um

Valid Pixel: 1288*728
TV Lines: 1000

Max FPS: 60

Scanning Mode: Progressive

OSD Language: English/ Chinese

AWB Mode: AWB Correction Once/Manual/Auto

HDR: Support

Cross Line: 8 horizontal lines, 8 vertical lines, different color and width

B/W: Support
Negative: Support

Mirror: Left/Right, Up/Down

Freeze: Support

Compare: Support Image Parameter: Can set bright, contrast, sharp, saturation

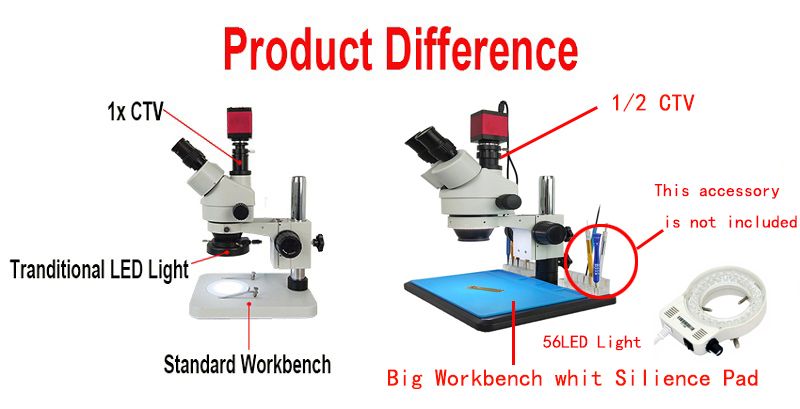

Package Include (Small Workbench):

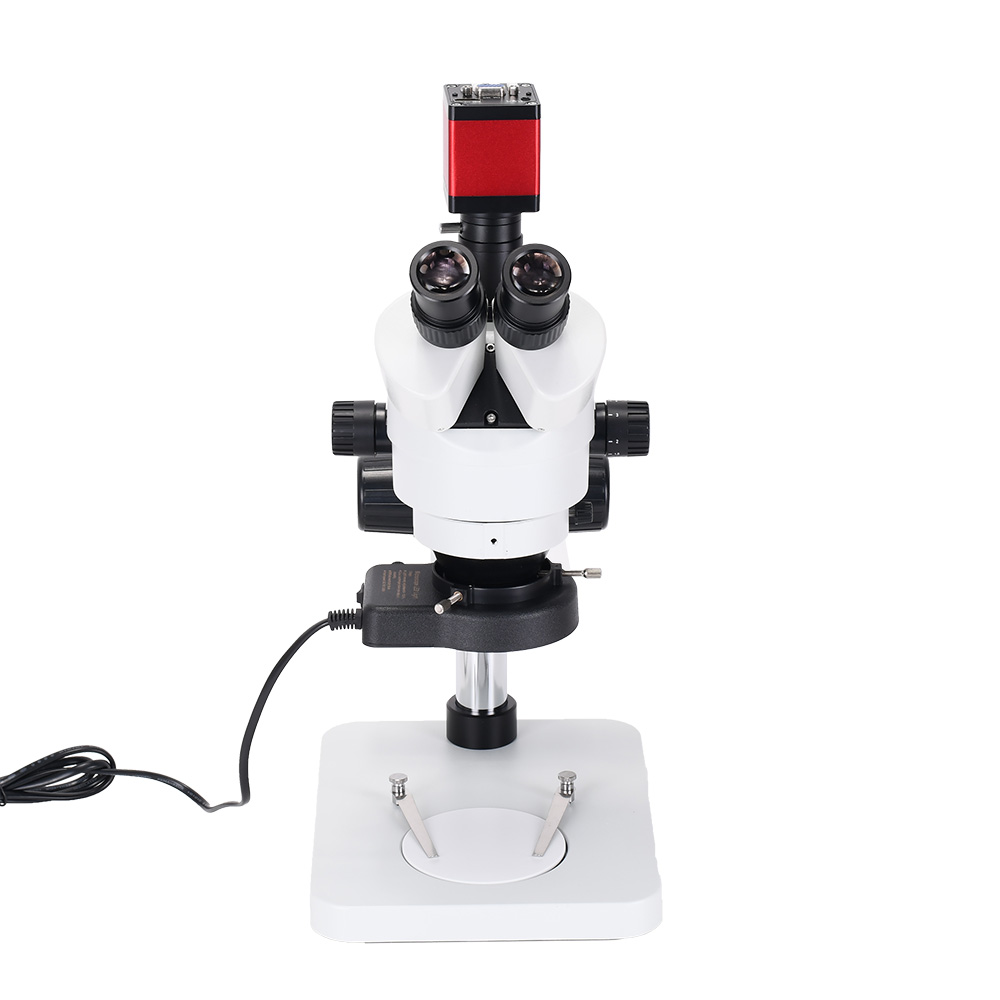

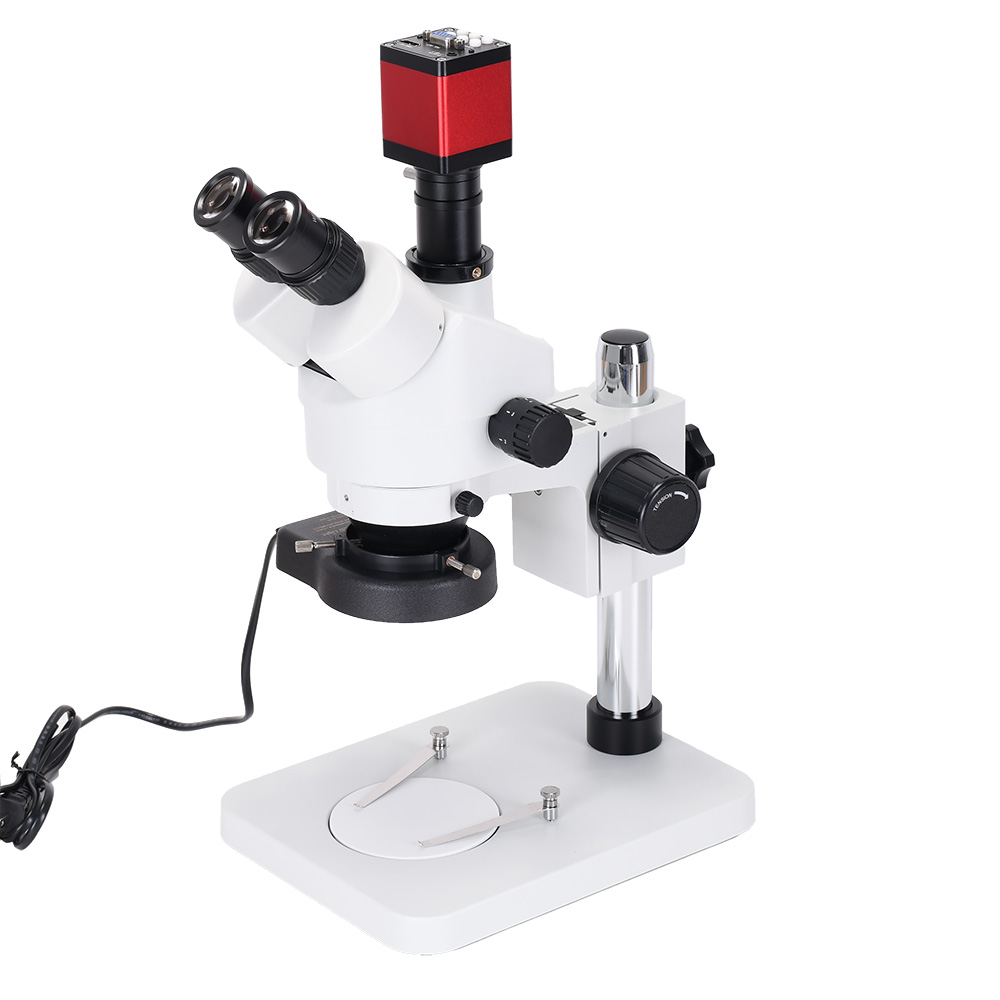

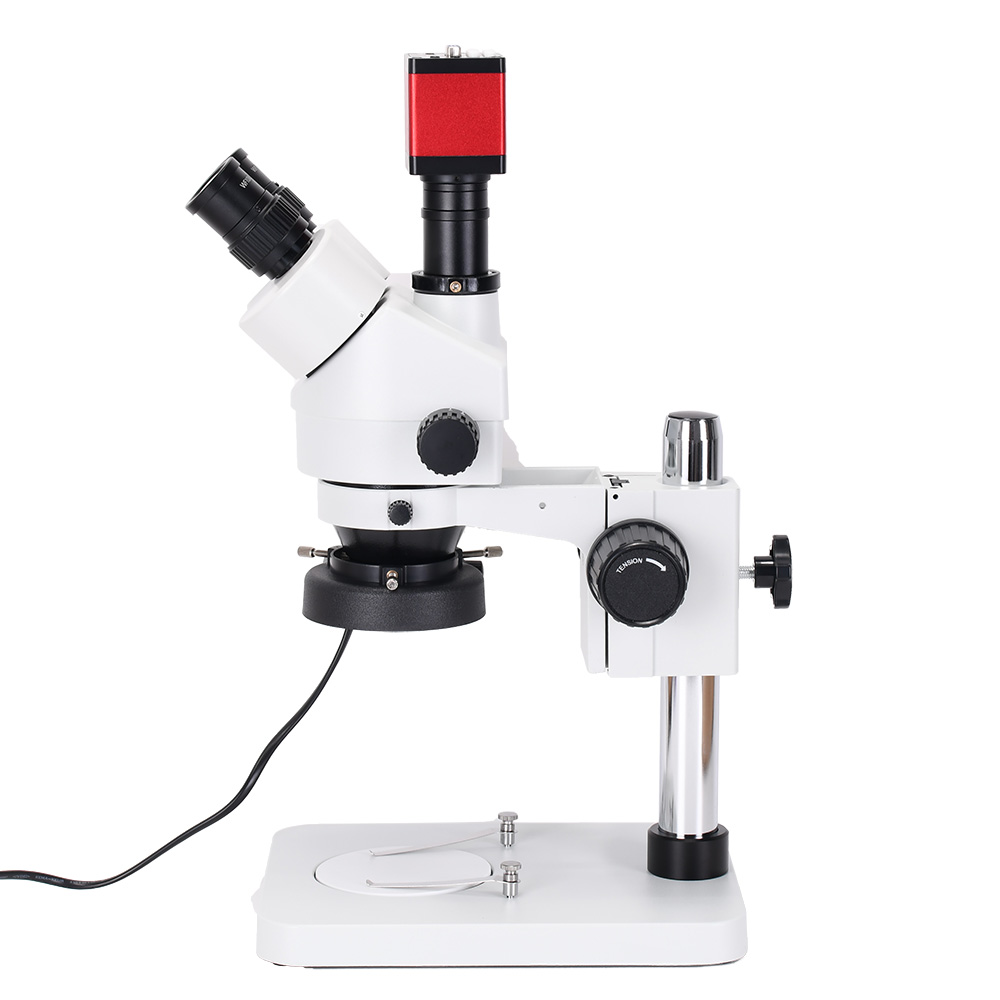

1x Trinocular stereo microscope with Microscope Stand ;

1x CMOS Microscope Camera with HDMI Cable, and LED Dimmer

1x Dust Cover;

1x Microscope Power;

1 pair of WF10X/20mm eyepiece with rubber eye guards.

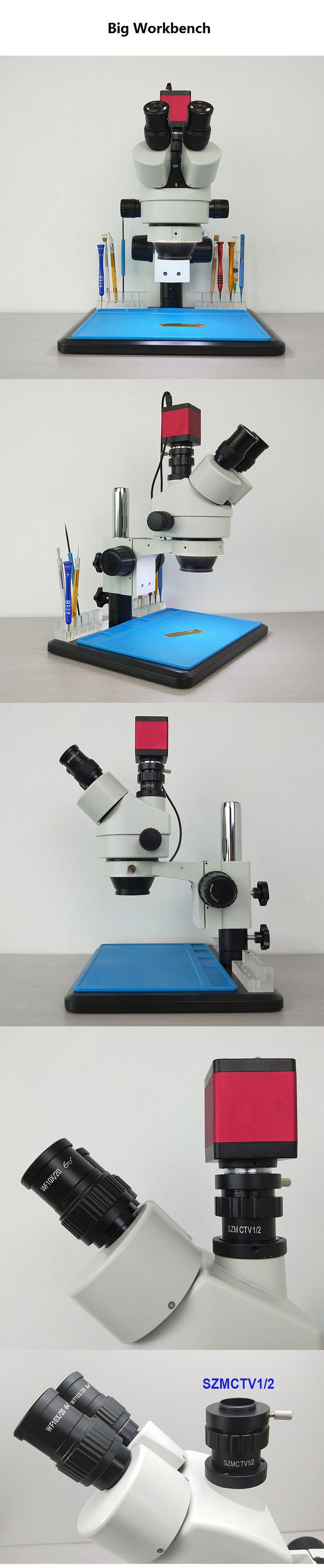

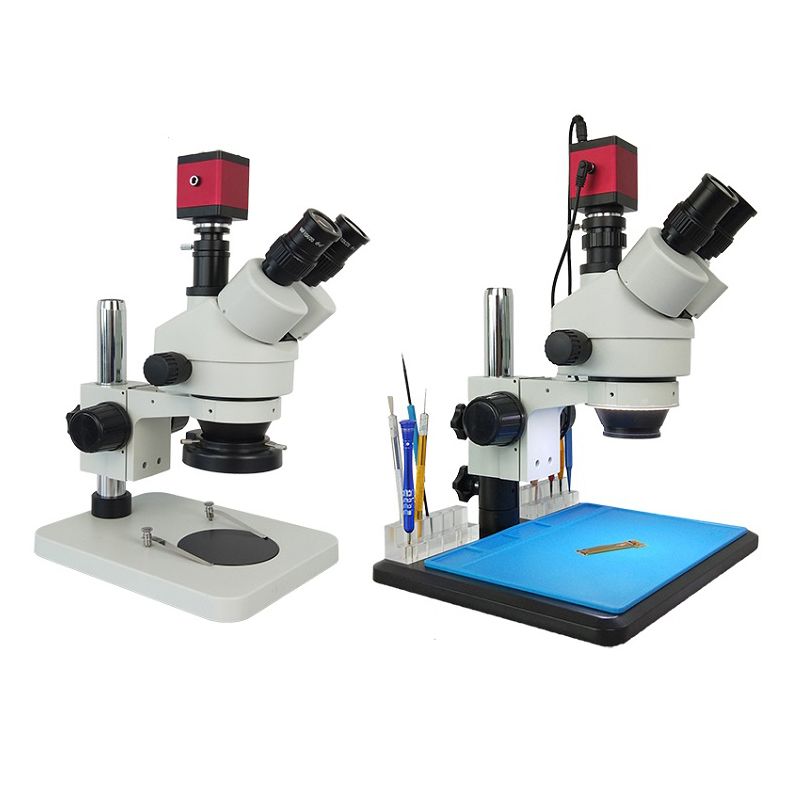

Package Include (Big Workbench):

1x Trinocular stereo microscope with Microscope Stand (include LED Light);

1x CMOS Microscope Camera with HDMI Cable, and LED Dimmer

1x Big Workbench

1x Position Ring

1x Blue Silicone Pad

1x Dust Cover;

1x Microscope Power

1 pair ofWF10X/20mm eyepiece with rubber eye guards.

Details Pictures:
