ET8102 Digital Multimeter TRMS 6000 Counts Tester Non Contact AC/DC/OHM Detector
- Stock: In Stock
- Model: EB004432
- SKU: EB004432

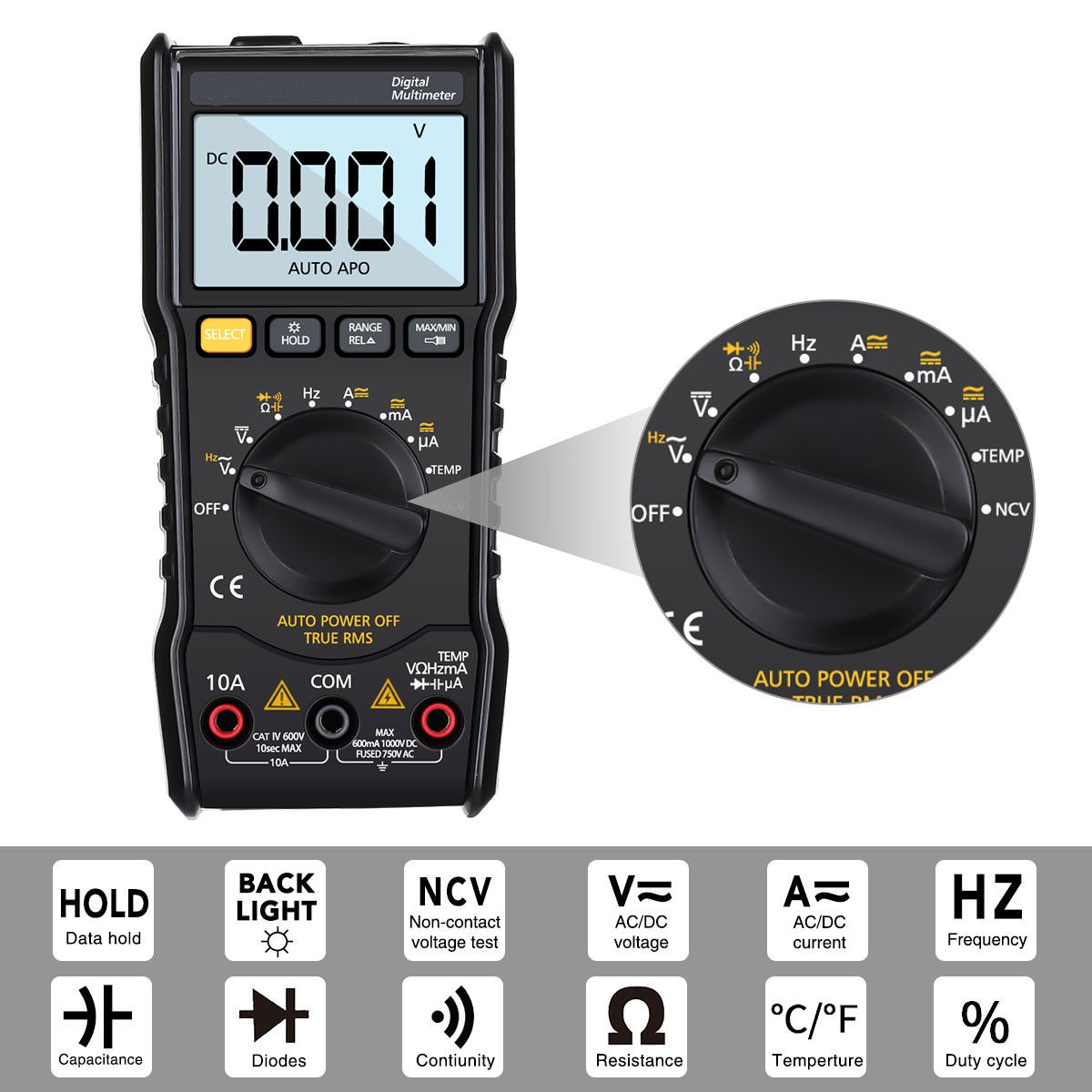

Features:
LARGE RANGE MEASURING - 6000 Counts, DC Voltage to 1000V, AC Voltage to 750V, AC/DC Current to 10A, Resistance to 60MΩ, Capacitance to 100mF, with type K thermocouple to measure the temperature, continuity test
PERFECT MEASURING TOOL- 2-3 times/sec for sampling, quickly solve the safety problems of automotive and household electrical. Data hold and 2.7 inches large backlit LCD display for visibility in dimly light areas (Built-in support stand for hand free use)
NCV SENSITIVE TEST - If AC voltage detected, the LED lights will shine according to the signal density (low, medium, high), the beeper sounds at different frequencies to indicate. If strong signal, red light brights, high sensitivity.

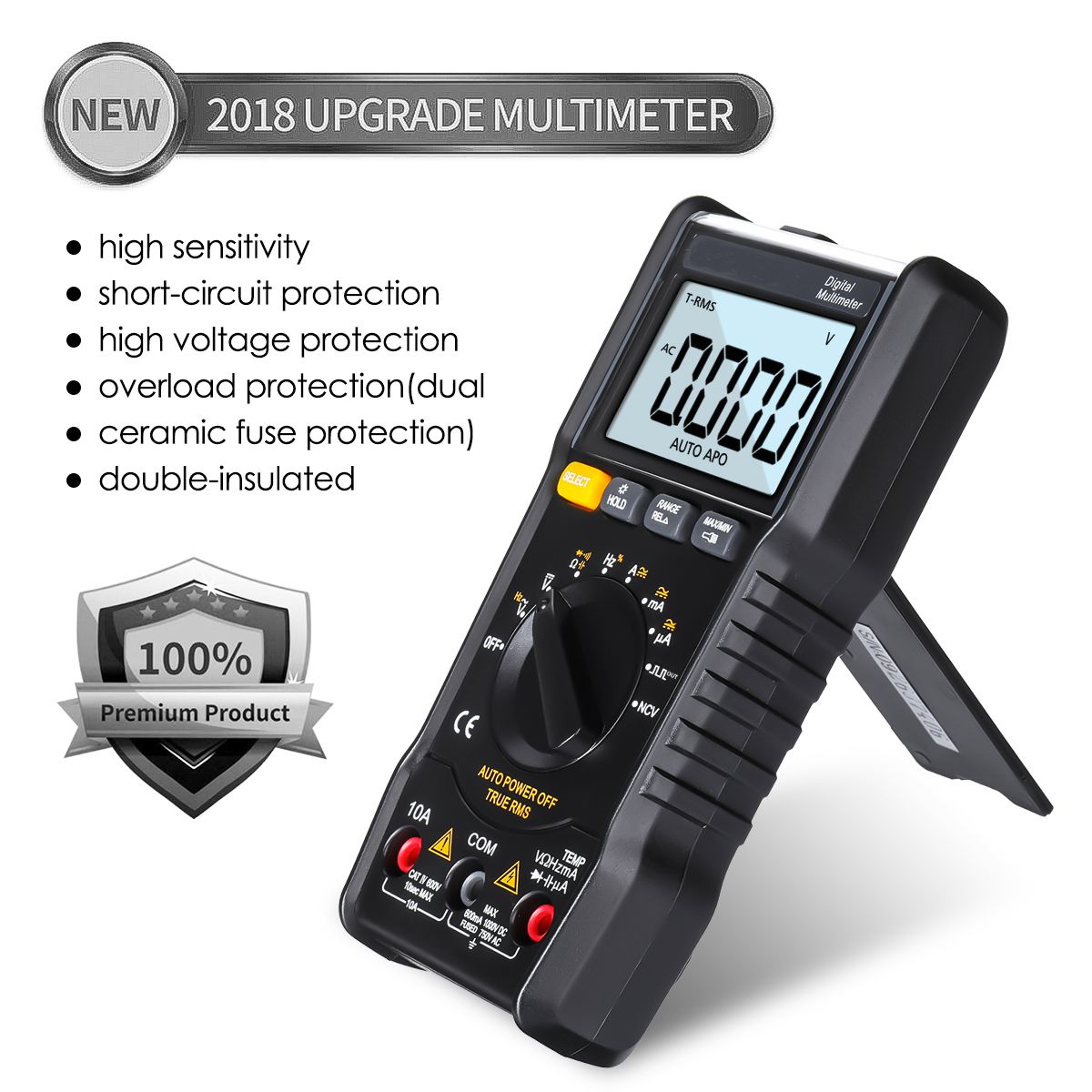

MEASURE SAFETY- Confirm to the security requirements of 600V CAT IV 1000V CAT III , Ceramic Fuse & Thermistor protection circuit provide you the HIGHEST SECURITY during the working.
BACKLIGHT DISPLAY- Designed with 3 1/2 digit LCD display and 'Backlight', showing the reading clearly in low light areas.
Specification:
DC Voltage Range and Accuracy: 6V/60V/600V (0.5%+3), 1000V (0.8%+10)

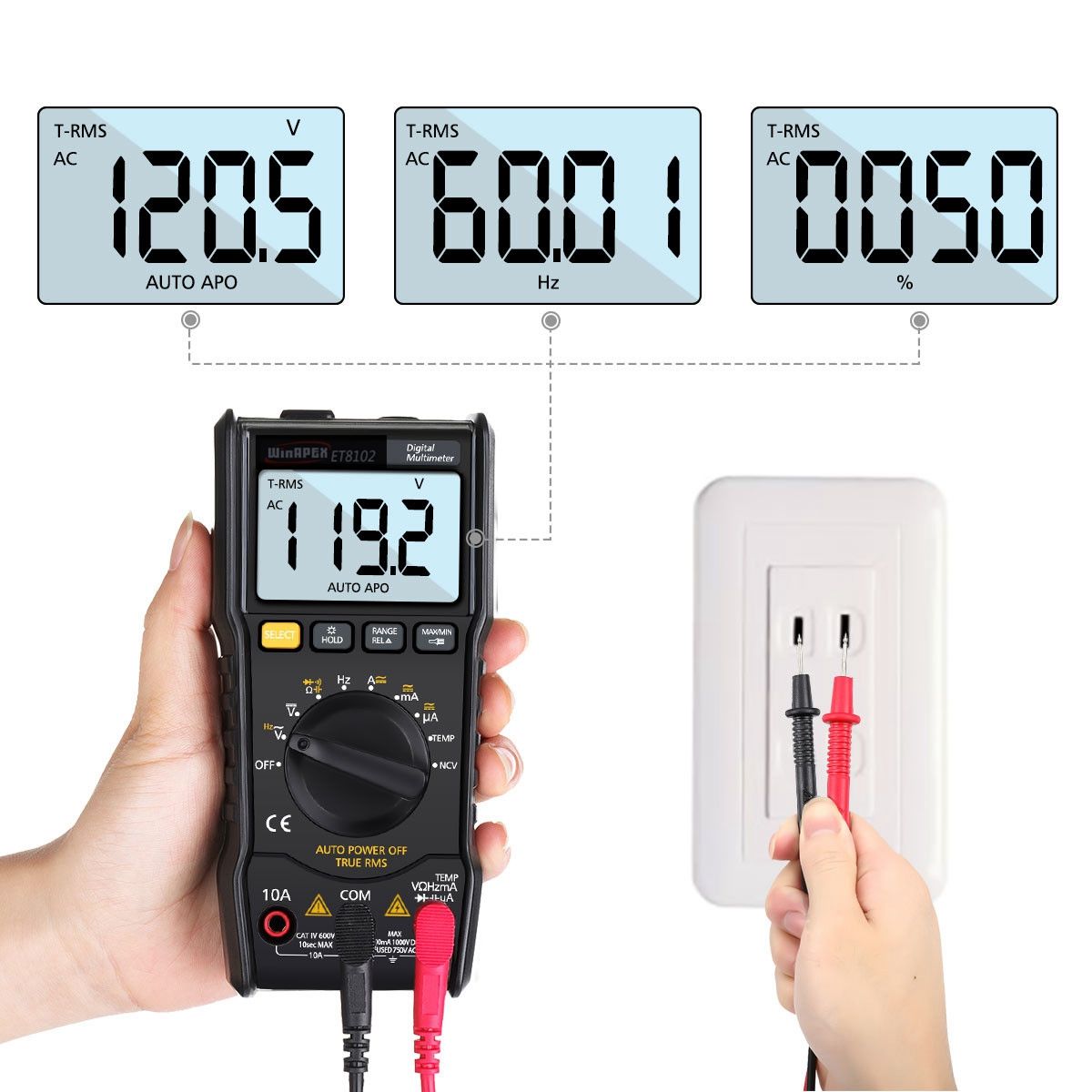

AC Voltage Range and Accuracy: 6V/60V (0.8%+3), 600V/750V (1.2%+10)
DC Current Range and Accuracy: 60mA/600mA (1.2%+10)
AC Current Range and Accuracy: 60mA/600mA (1.2%+10)
Resistance Range and Accuracy: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ (0.8%+3), 40MΩ (2.5%+3)
Capacitance Range and Accuracy: 6nf/60nf/600nf/6uf/60uf/600uf/6MF (3.5%+20), 30MF (5.0%+3)

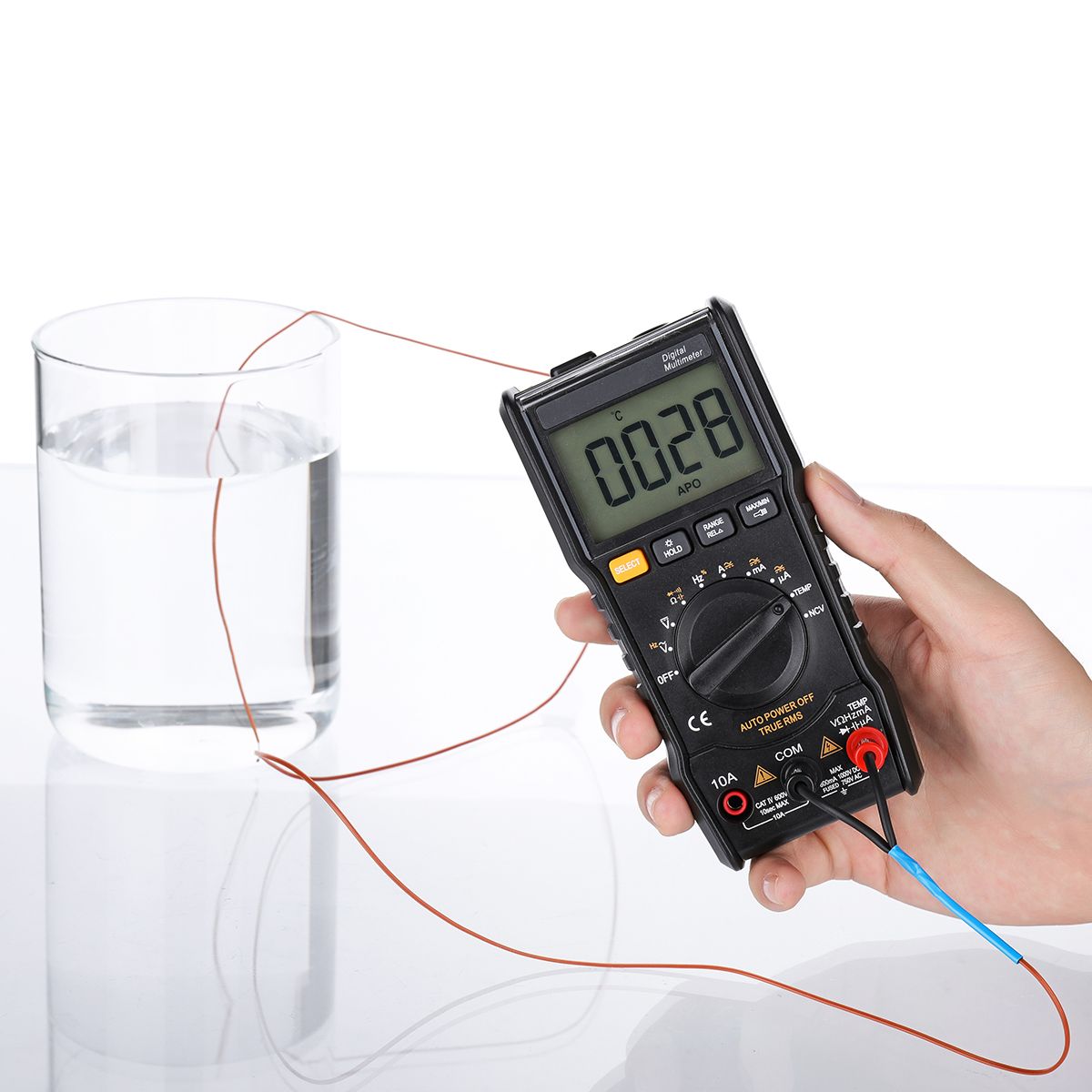

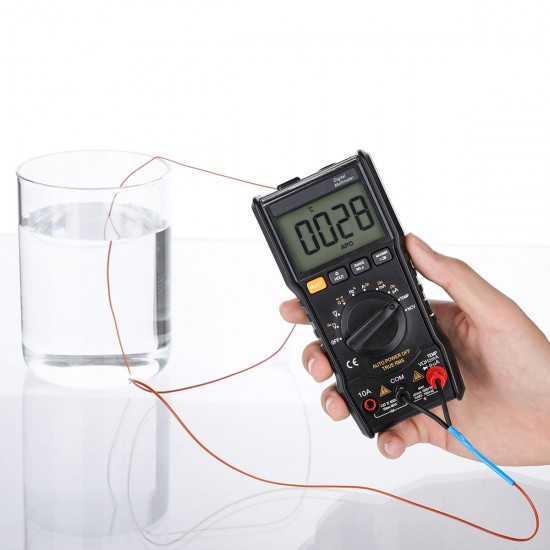

Temperature Range and Accuracy: -20℃-1000℃/0℉-1832℉ (1.0%+5)
Frequency: 10Hz-5MHz(0.1%+3)
Input impedance:10MΩ
Duty Cycle: 10 - 95%
NCV Measurement(Non-contact AV voltage sensing)
Measurement: double integral A/D conversion
Sampling rate: about 3 times per second
Overrange display: the most significant bit was "OL"
Working environment: (0-40)℃, relative humidity <80%

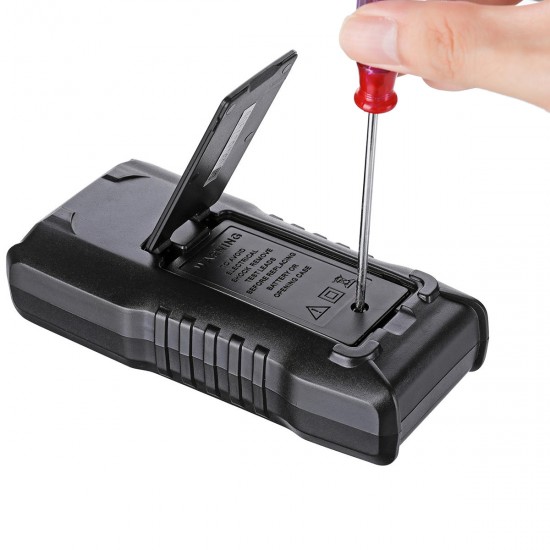

Power supply: AAA1.5V battery (not included)

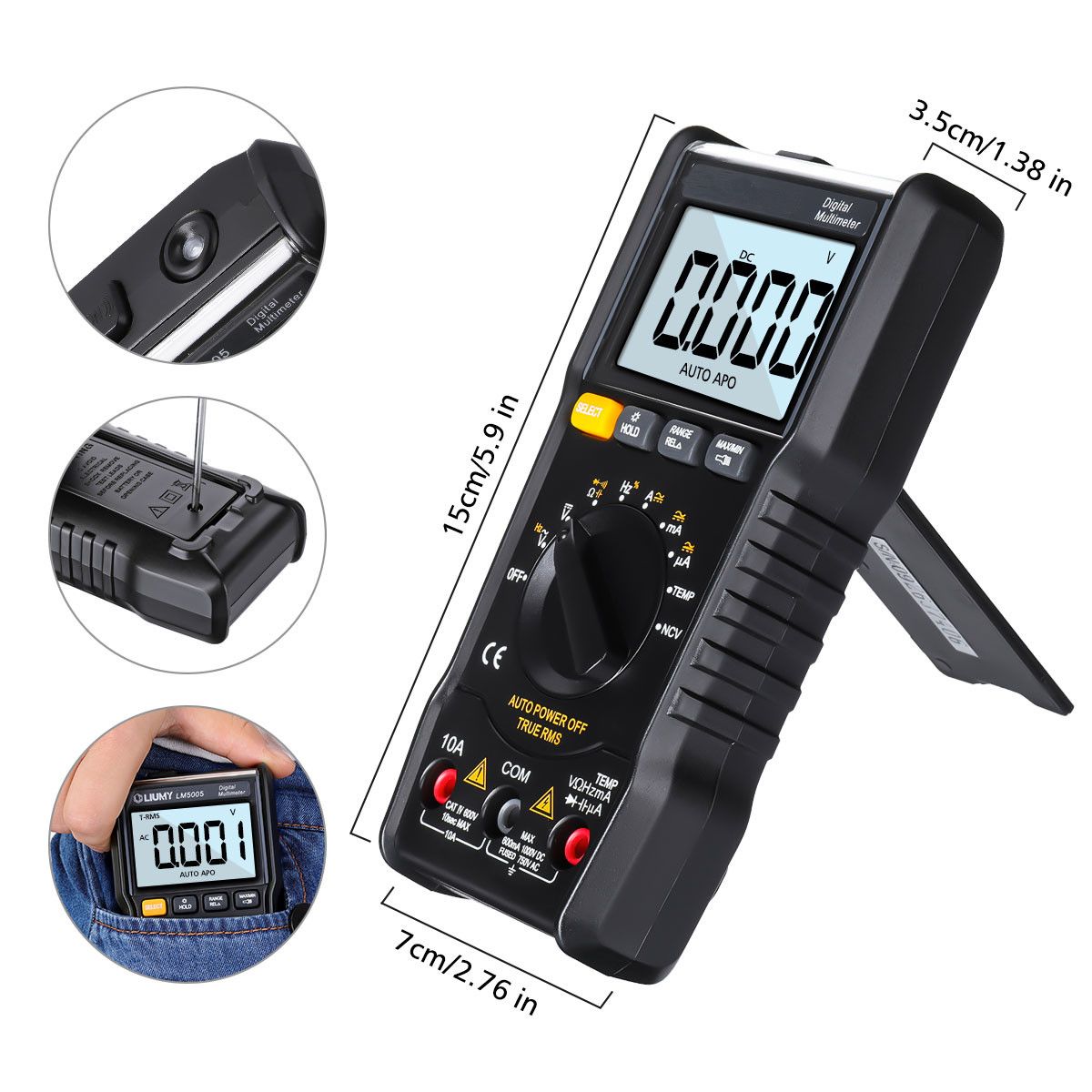

Volume (size): 142 x 70 x 32mm(L x W x H)
Weight: about 205g
Package Included:
1 x LIUMY LM5005 Digital Multimeter
2 x Test Leads
1 x Thermocouple
1 x English User Manual
Details Pictures:
