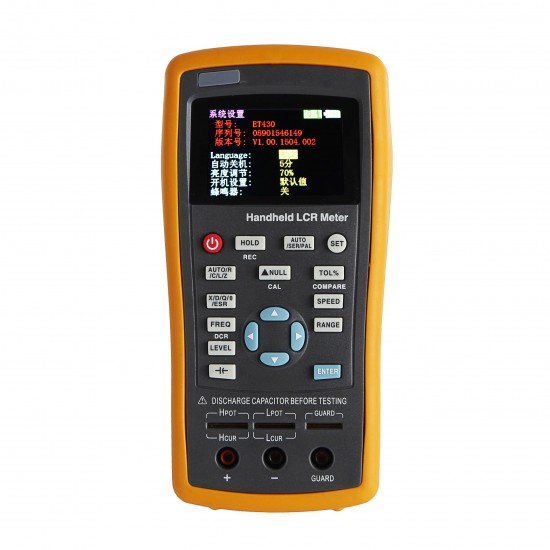

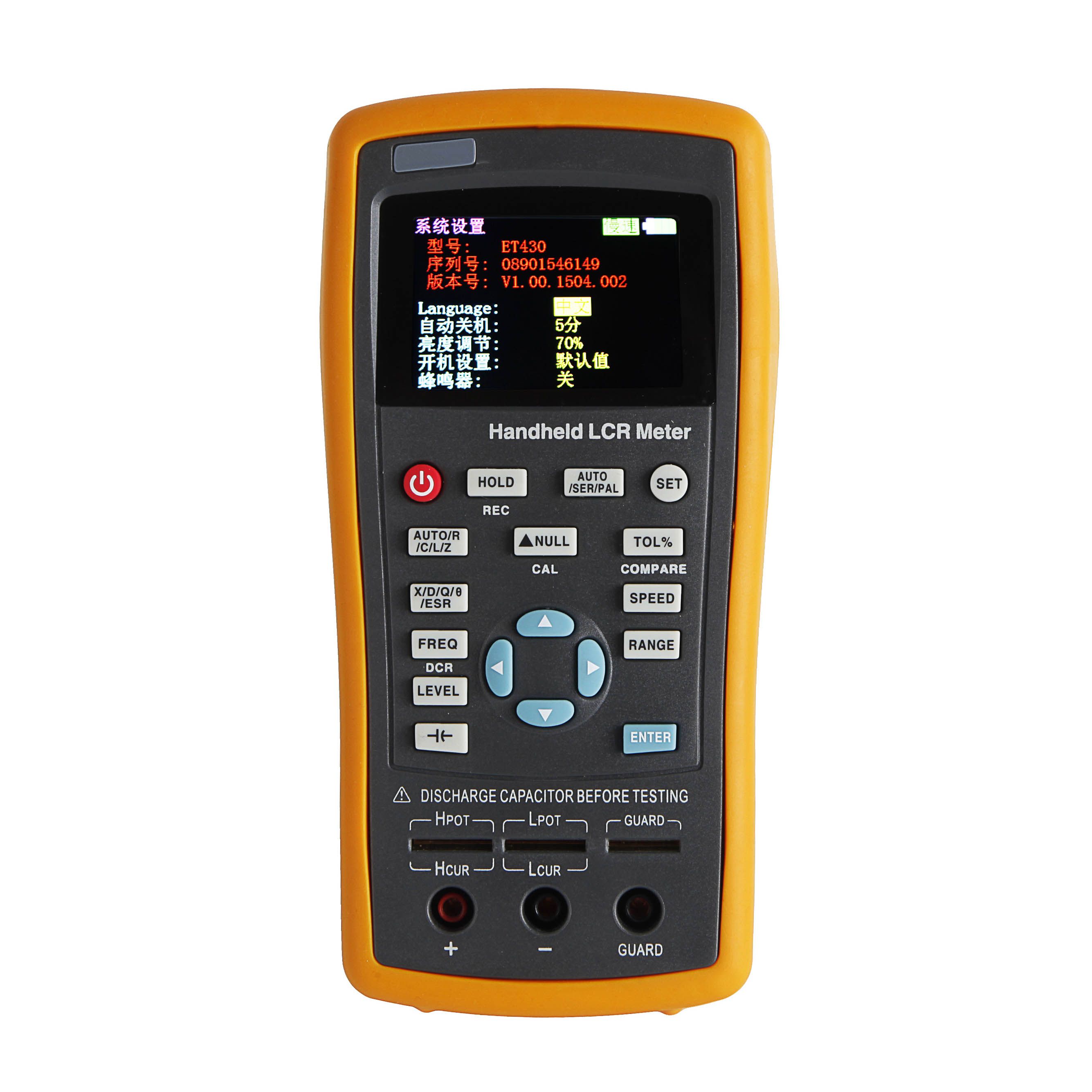

ET430B Digital LCR Meter 10KHz Testing Frequency Capacitance Inductance Resistance Meter Precision 1KHz 10KHz Handheld LCR Bridge Meter
- Stock: In Stock
- Model: EB004808
- SKU: EB004808
Features:
Ø The measurement frequency reach to 100kHz, the 1Hz stepping can be adjusted continuously.
Ø DC resistance, electrolytic capacitance measurement
Ø Internal bias voltage output (10mV-500mV)
Ø Automatic identification of component measurement
Ø Support for screening and deviation measurement
Ø 2.8 inch TFT display, 4 half display
Ø USB communication interface
Ø Large capacity lithium battery power supply
Ø Support SCPI protocol
Ø Provide system settings, according to their own requirements configuration language, buzzer, screen brightness, etc.
Ø Basic measurement accuracy 0.2%, measurement speed can be adjusted
Ø Manual and automatic range
Ø Open circuit fault
Specification:
| Model | ET430B | ET430 | ET431 | ET432 | ET433 | |||
| Measurement parameters | Main parameter Secondary parameter | |||||||
| Equivalent mode | Series, parallel | |||||||
| Mode of range | Manual, automatic | |||||||
| Measurement speed | Fast | |||||||
| Configuration of the test terminal | 3-terminal, 5-terminal | |||||||
| Correctionfunction | Short circuit, open circuit | |||||||
| Communication interface | Mini-USB | |||||||
| Frequency of test signal | 100Hz, 120Hz, 1kHz, 10kH | 100Hz, 120Hz, 1kHz, 10kHz, 40kHz, 100kHz | 100Hz, 120Hz, 1kHz, 10kHz | 100Hz, 120Hz, 1kHz, 10kHz, 40kHz, 100kHz | 10Hz-100KHz adjustable, 1Hz stepping | |||
| Level of test signal | 0.6Vrms | 0.6Vrms,0.3Vrms, 0.1Vrms | 0.1Vrms-0.7Vrms adjustable, 1mVrms stepping | |||||
| Output impedance | 100Ω | |||||||
| Highest accuracy (see accuracy indicators for details) | 0.3% | 0.2% | ||||||
| Electrolysis and capacitance mode | No | Yes | ||||||
| DCR mode | No | Yes | ||||||
| Internal bias | No | 0-500mV adjustable, 1mV stepping | ||||||
| Scope of measurement | L:0-2000H C R | |||||||

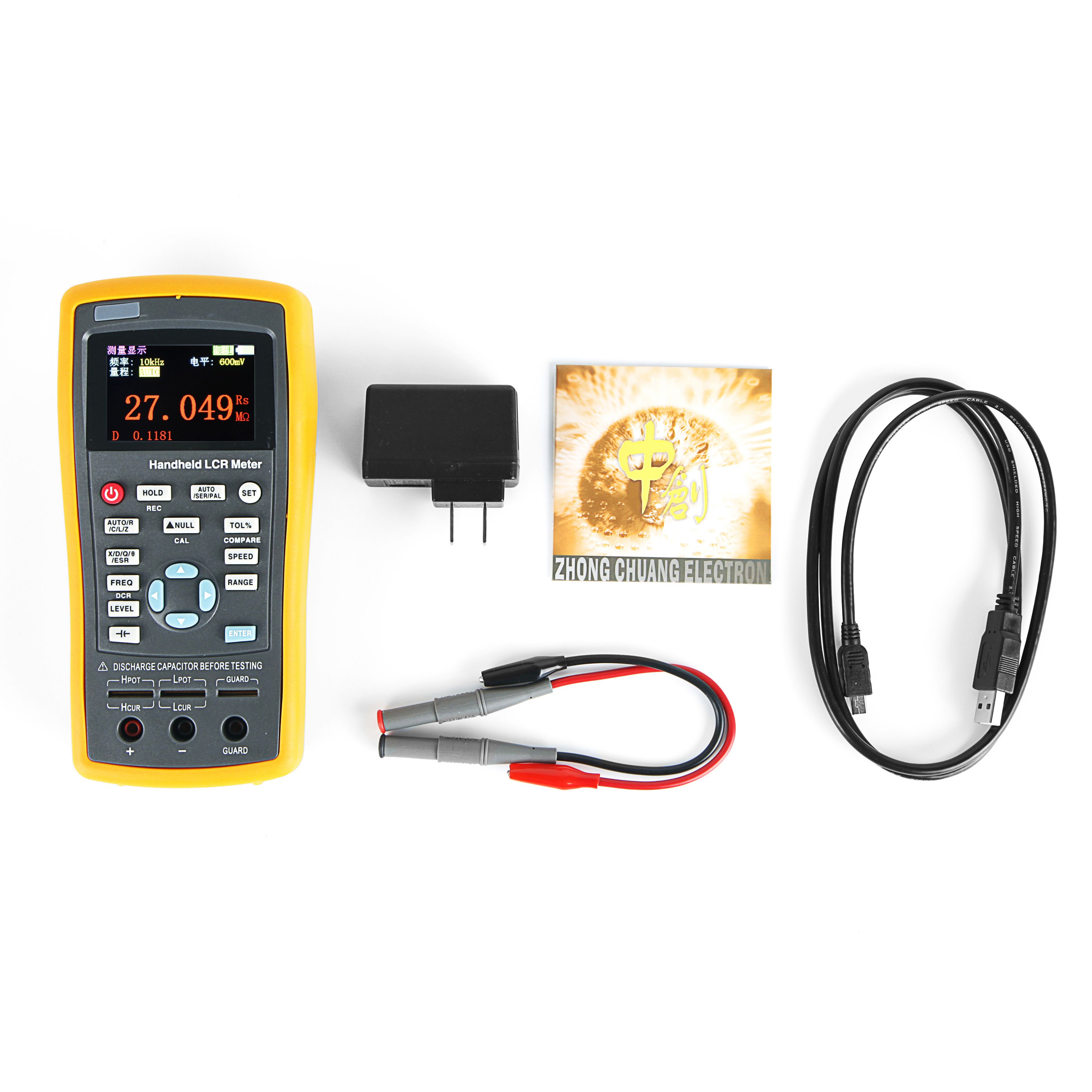

Package includes:
1 X ET430B LCR Meter
1 X USB Line
1 X US Plug (We will send you a plug adapter according to your country.)
1 X English User Manual

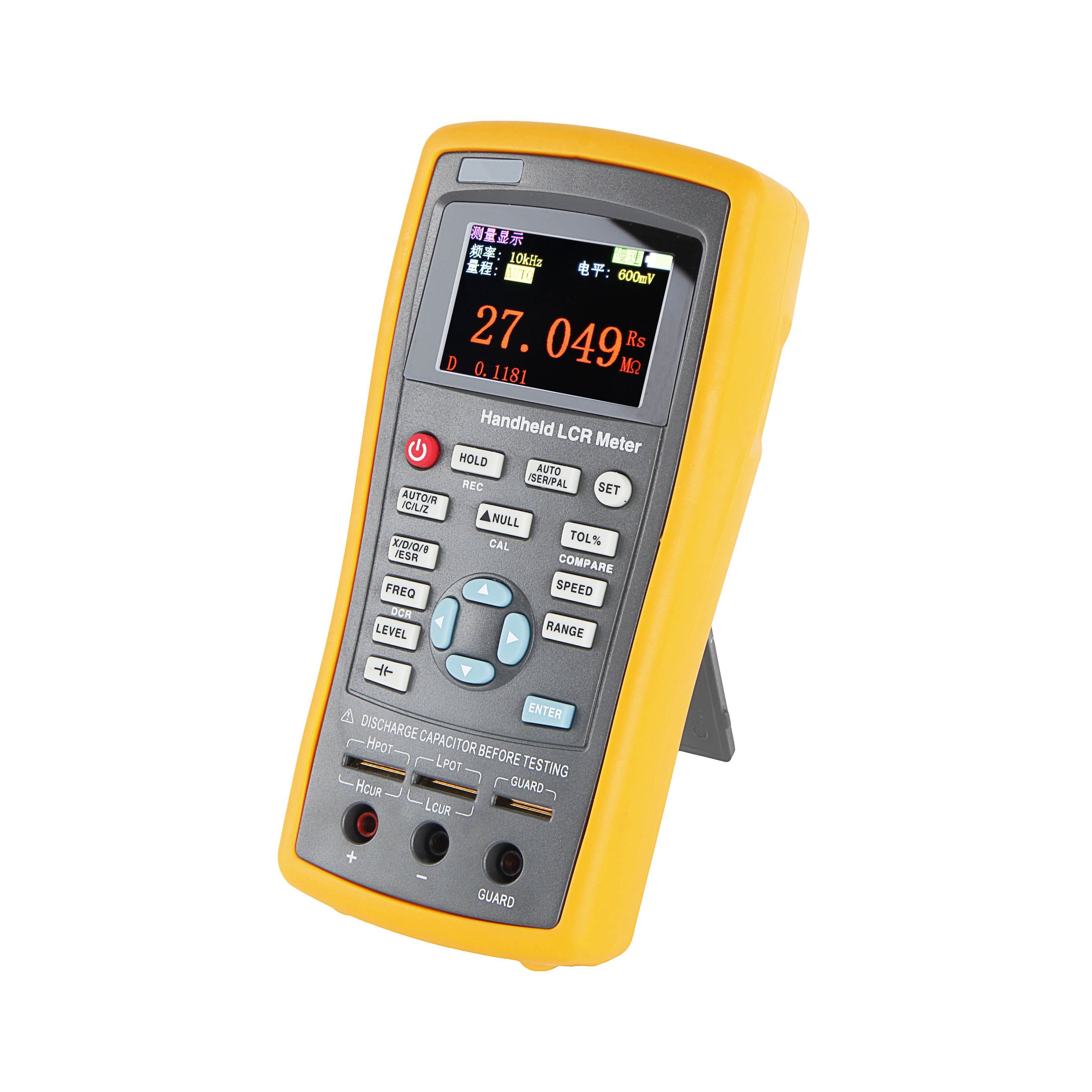

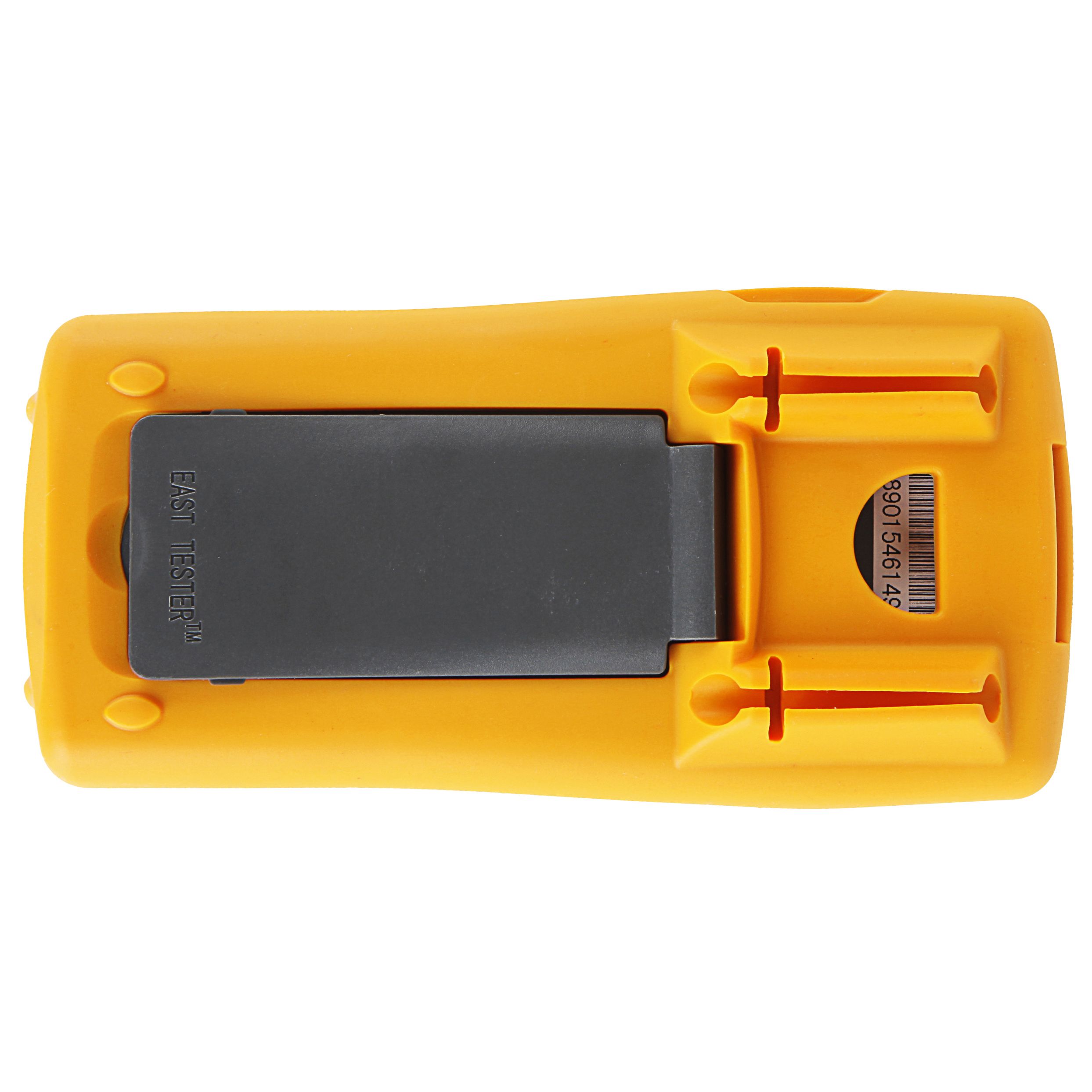

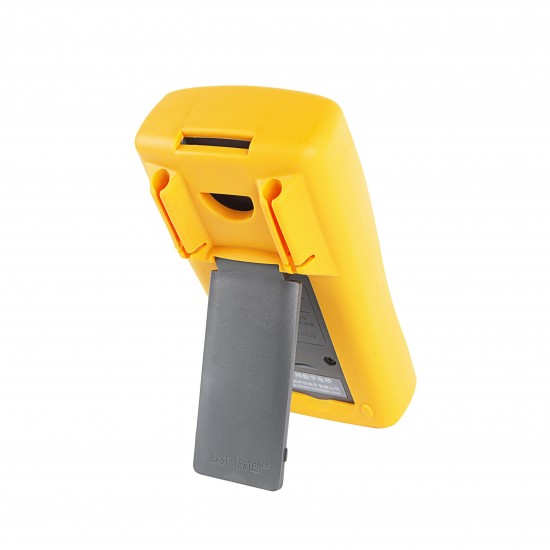

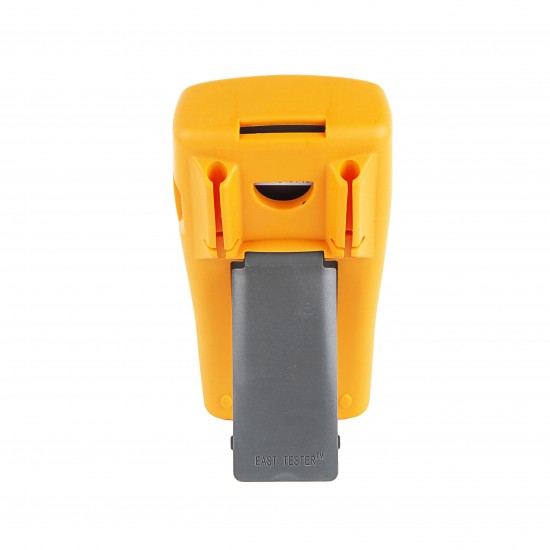

Details pictures:
