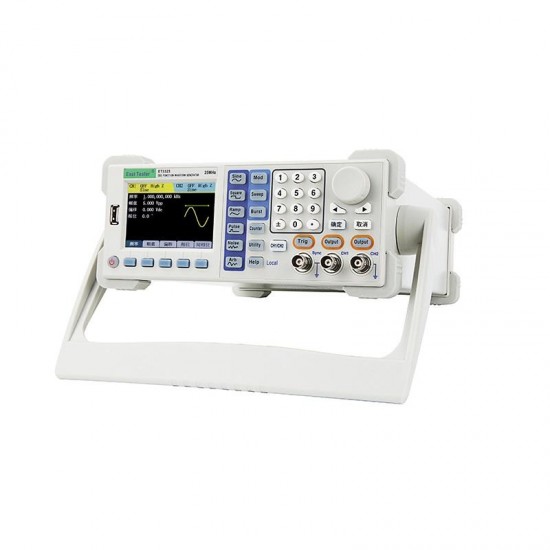

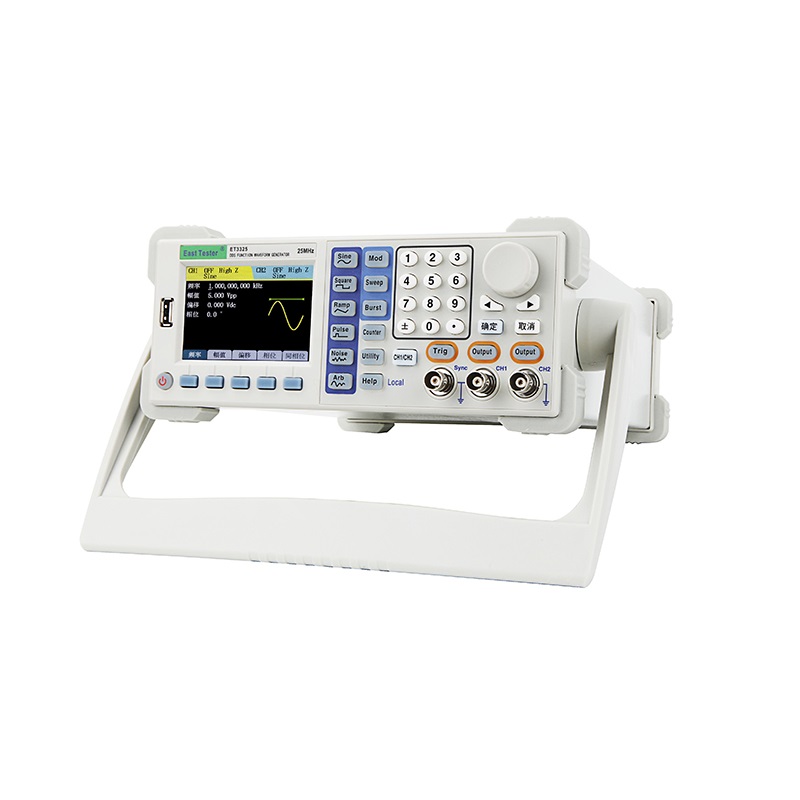

ET3325 Dual Channel Function Signal Generator Arbitrary Waveform Generator 25MHz
- Stock: In Stock
- Model: EB004733
- SKU: EB004733
ET33 series two-channel function / arbitrary waveform generator adopts direct digital synthesis (DDS) technology to design, enabling to generate output signal which is accurate, stable and of low distortion
3.5-inch 480×320TFT LCD with clear graphic interface
Chinese / English menu available
Press key for help and information
File management supporting USB flash disk and local storage
Features:
For two-channel output, the highest output frequency is: ET3325 Model is 25MHz, ET3340 Model is 40MHZ, ET3360 Model is 60MHz and ET3370 Model is 70MHz
The two channels are independent from each other and have the function of phase synchronization
Sampling rate of 160MSa/S, vertical resolution of 12 bit and storage depth of 16k
Five basic waveforms and 32 arbitrary waveforms in-built
Waveform storage: Supports 10 user-defined set of waveform editing
Pulse wave output set in edge time
Internal/external AM, FM, FSK, PM, ASK, PSK modulation function
Output of linear/logarithmic frequency sweep and burst waveform
Frequency meter of high precision of 200MHz
With RS232 interface, USB Device, USB Host interface supporting USB flash disk storage
Multi-functional arbitrary waveform editing software equipped

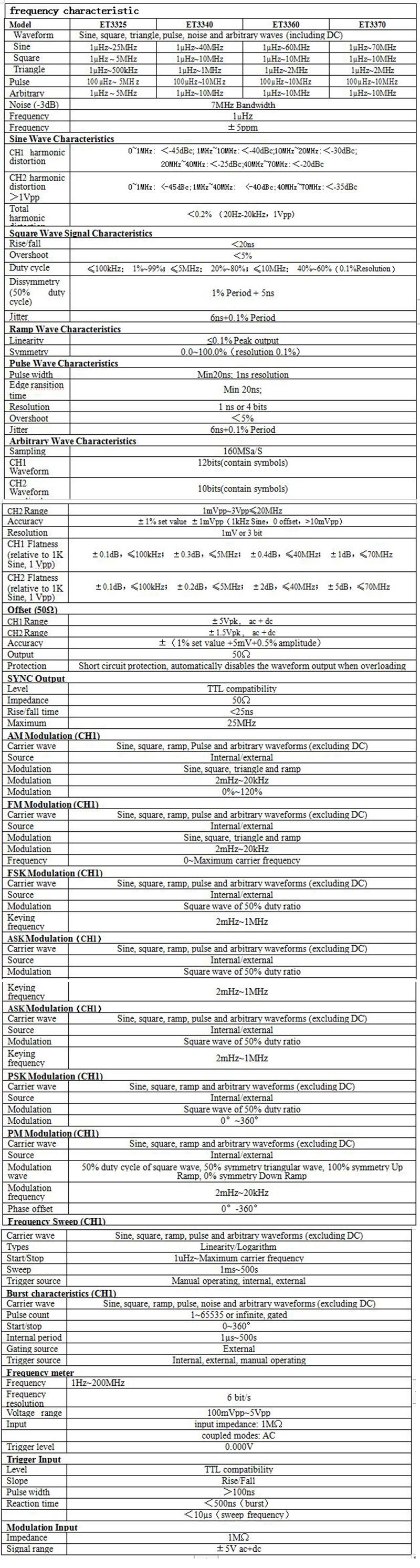

Specifications:
Supply voltage:220V±10% , 45~65Hz
Power consumption:< 40W
Types:3.5-inch TFT LCD screen, Resolution480×320, 16M color
Environment:Operation 10 ℃ ~ +40 ℃, Non-operation -10℃~+60℃
Humidity range:Within the range of 0 ~ 40 ℃, ≤90% relative humidity

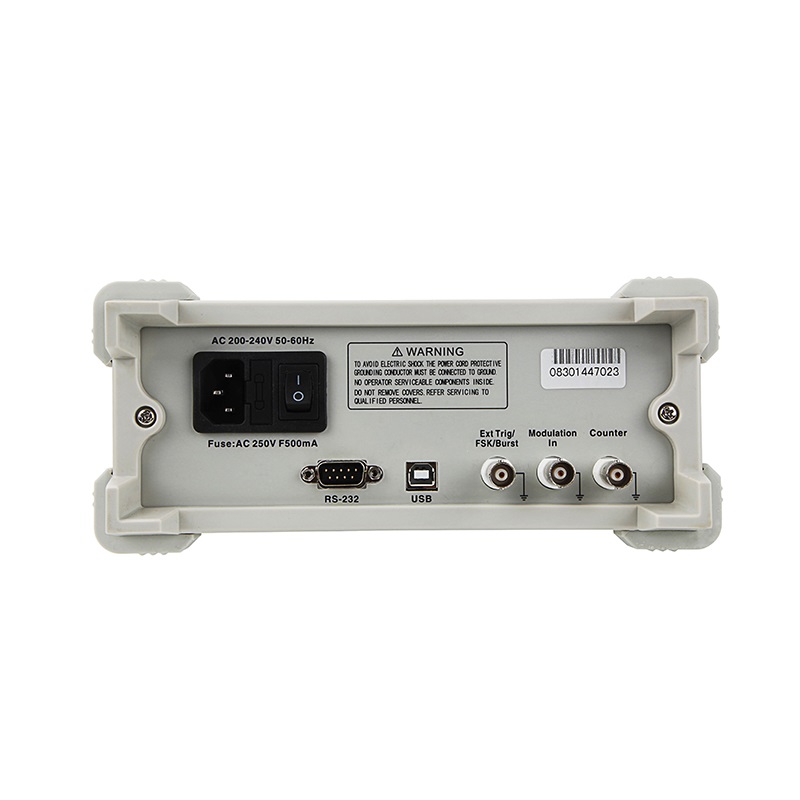

Interface:RS232, USB Host, USB Device
Display: 3.5 inch TFT LCD screen, 480 x 320 resolution
Size: 265 x 105 x 305 mm (width x height x deep)
Weight: 2.6 kg

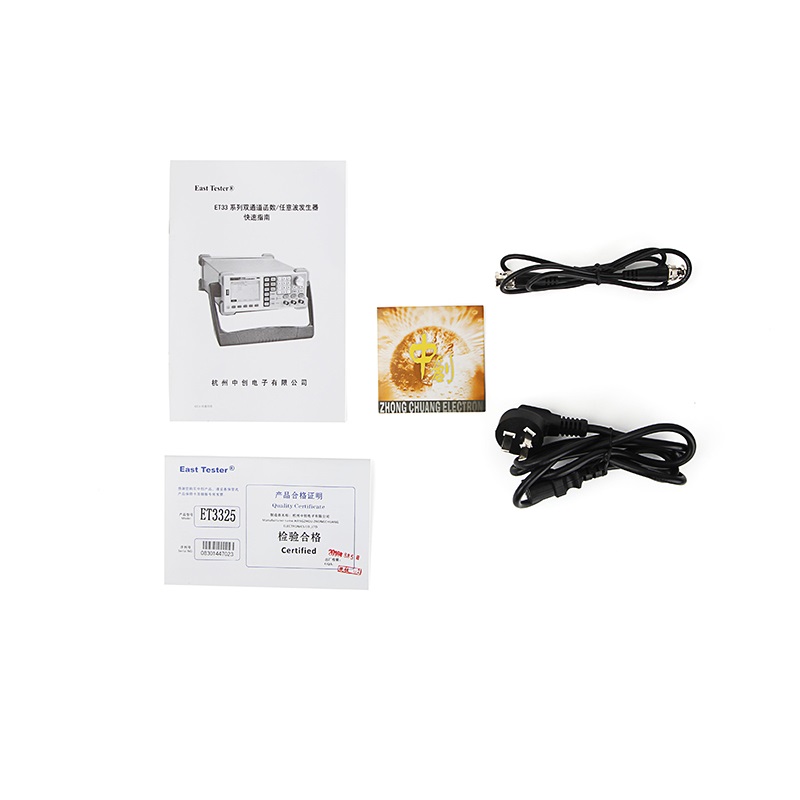

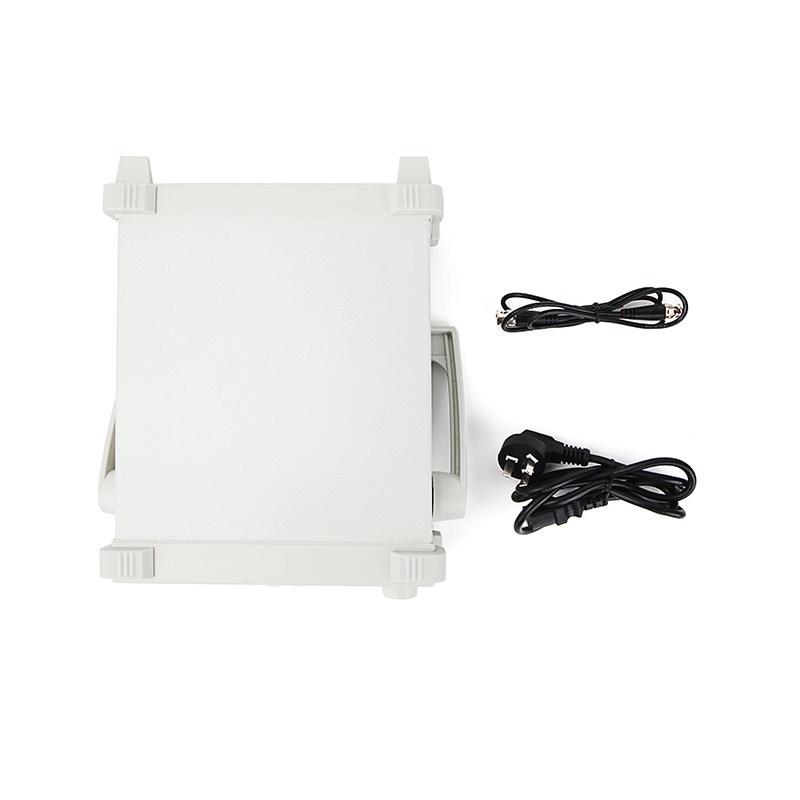

Package Includes:
1 x Signal Generator
1 x BNC Cable
1 x Power Line(EU)
1 x CD
Note:
We will send you a plug adapter according to your country.

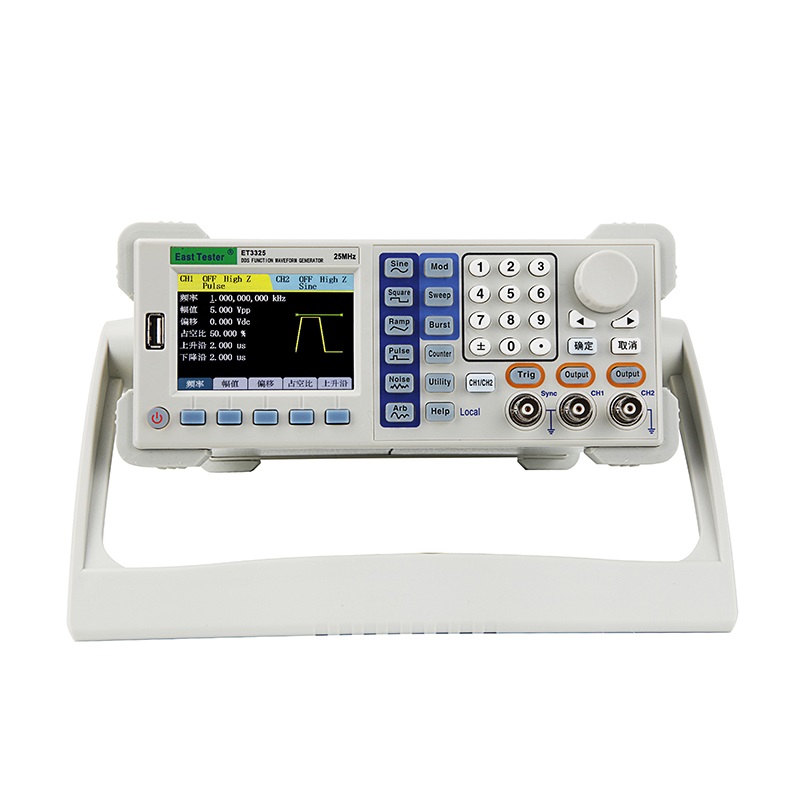

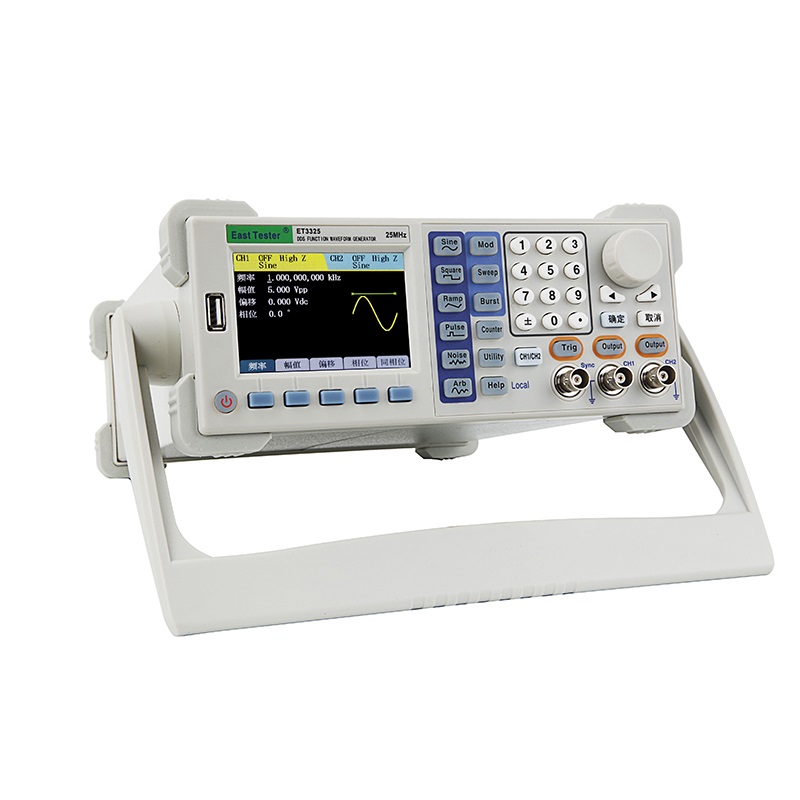

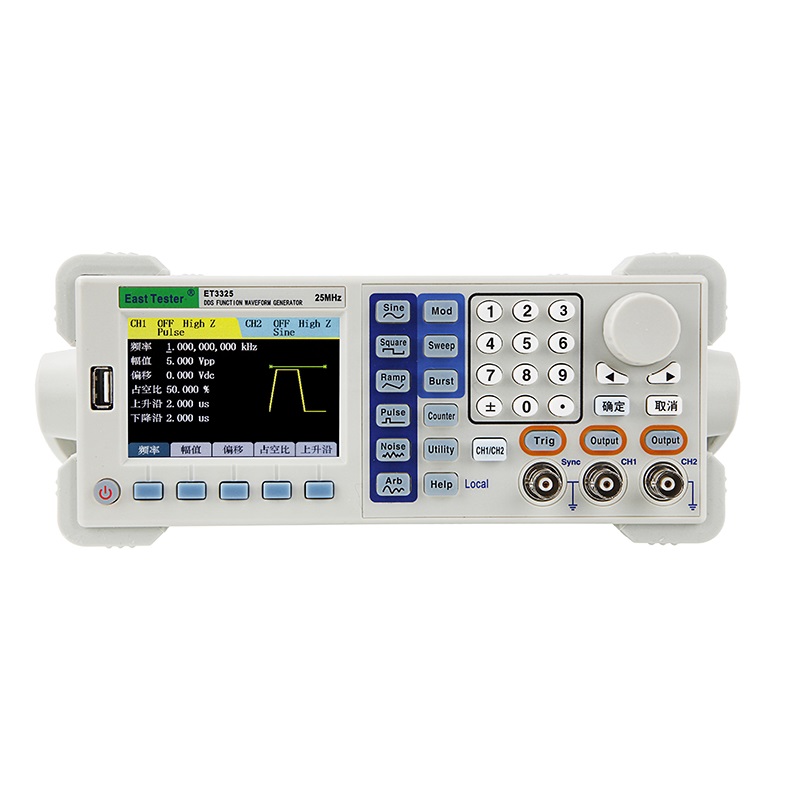

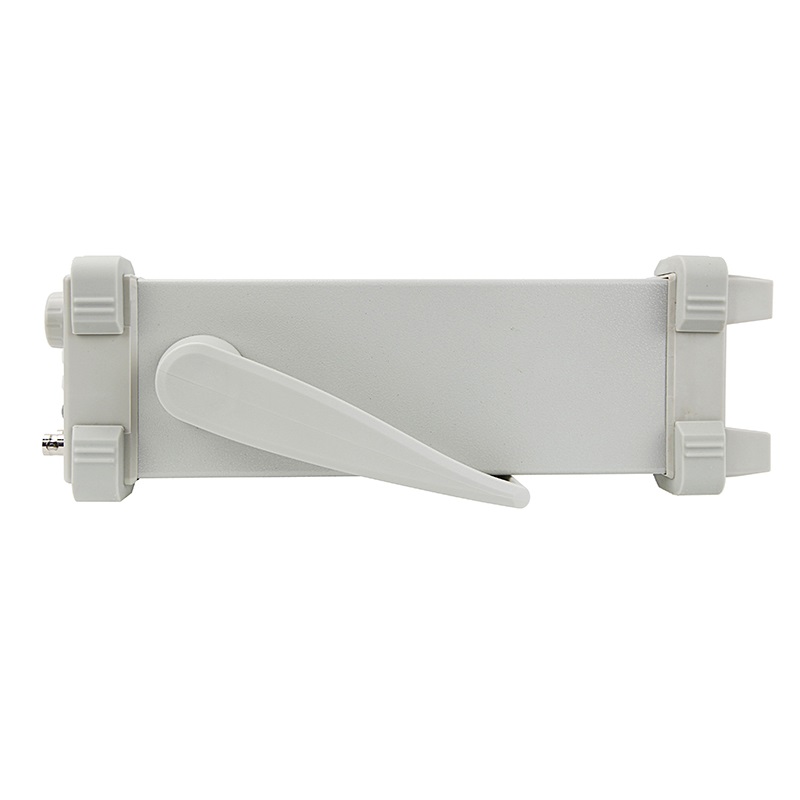

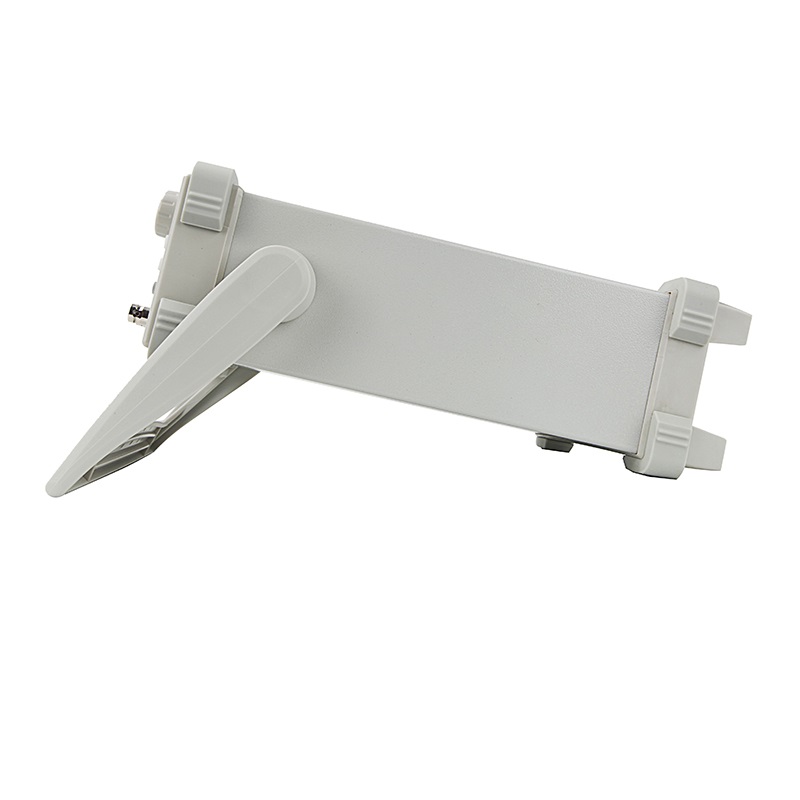

Details Pictures:
