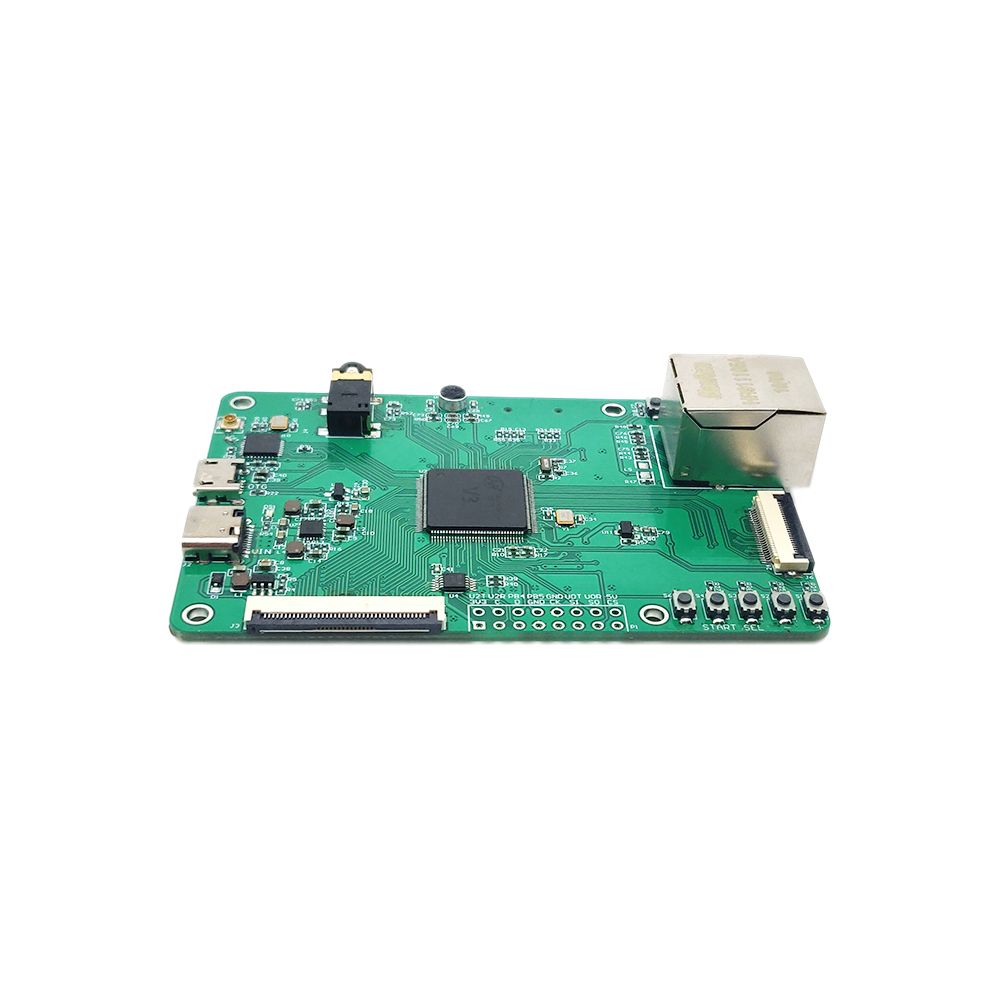

ESP8089 LC-CherryPi-PC-V3S Cortex A7 CPU Development Controller 64MB DDR2 RAM Network Module

Based on 0 reviews. - Write a review

$25.99

Ex Tax: $25.99

Stock: In Stock
Model: EB0042017
SKU: EB0042017

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description:

LC-CherryPi-PC-V3S is a ARM Cortex A7 CPU Development Controller.It uses V3s chip.V3s is a car-grade SoC with built-in ARM Cortex A7 CPU and integrated 64MB DDR2 RAM. V3S Soc has high performance, complete functions, and high cost performance. It can be a development board for various DIY products, and it is convenient to integrate opencv and realize face recognition. The board is equipped with multiple interfaces.

Features:

1. Support wired network control

2. Support voice control

3. Support face recognition function

4. Support audio control

5. Support LCD screen display

Parameters:

1. Product name: LC-CherryPi-PC-V3S ARM Cortex A7 CPU Development Controller

2. Model:LC-CherryPi-PC-V3S

3. LCD:Onboard 480x272 LCD, universal 40pin interface

4. WIFI:Onboard ESP8089

5. Wired Network:100M Ethernet (contain EPHY)

6. USB:OTG USB (microUSB)

7. Camera Interface:MIPI CSI 24pin interface

8. Work Humidity:10%~85%RH

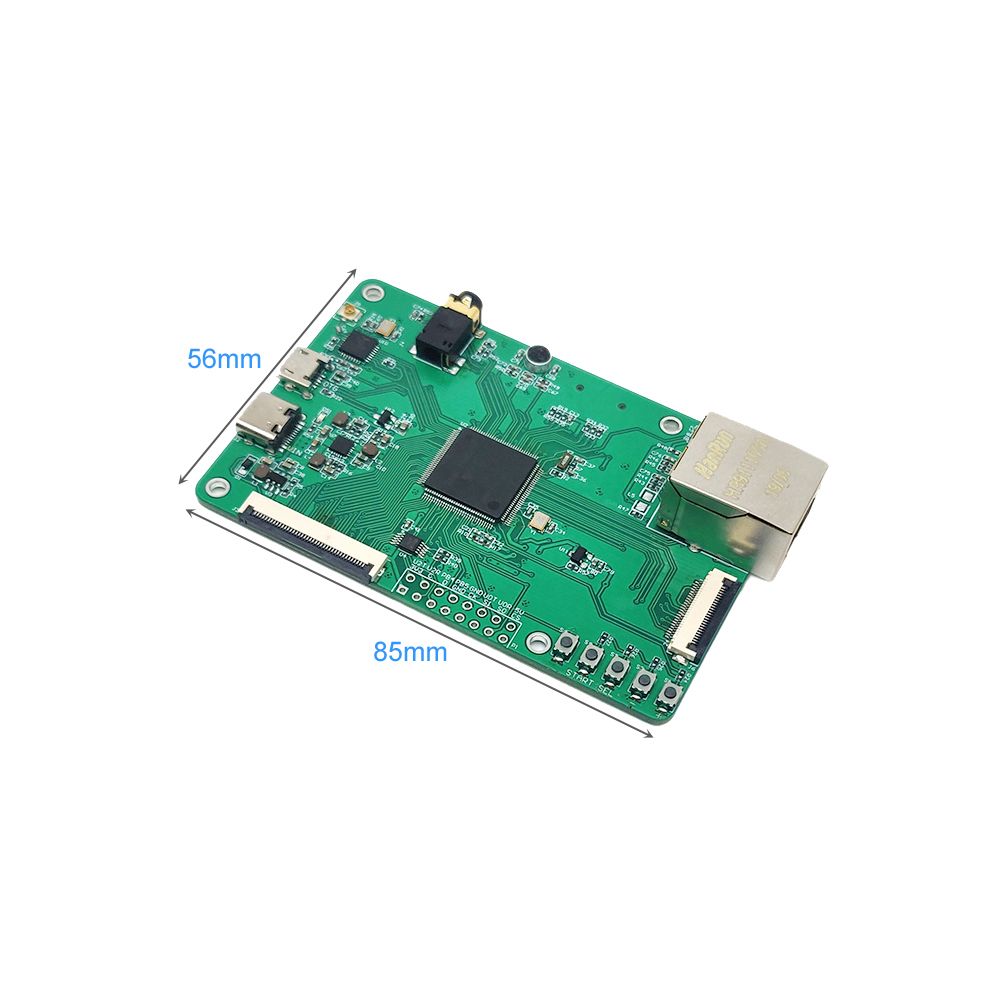

9. PCB Size:85*56*20mm

10. Work Temperature:-20℃~85℃

V3S Chip Parameters:

1. CPU:ARM Cortex-A7,maximum frequency 1.2G

2. DRR2:Soc integrated 512Mbit DDR2

3. ROM:Onboard 1Gbit SPI NAND FLASH

Application:

1. Embedded system control

2. Industrial control

3. Micro mobile device control

Package included:

1 x LC-CherryPi-PC-V3S ARM Cortex A7 CPU Development Controller
