ESP32 PICO Color LCD Mini IoT Development Board Finger Computer + Thermal Image Sensor Camera Module with MLX90640 IR Sensor Compatible for M5StickC
- Stock: In Stock
- Model: EB0041935
- SKU: EB0041935
>>>More M5Stack Item: Click here to open<<<
Description:

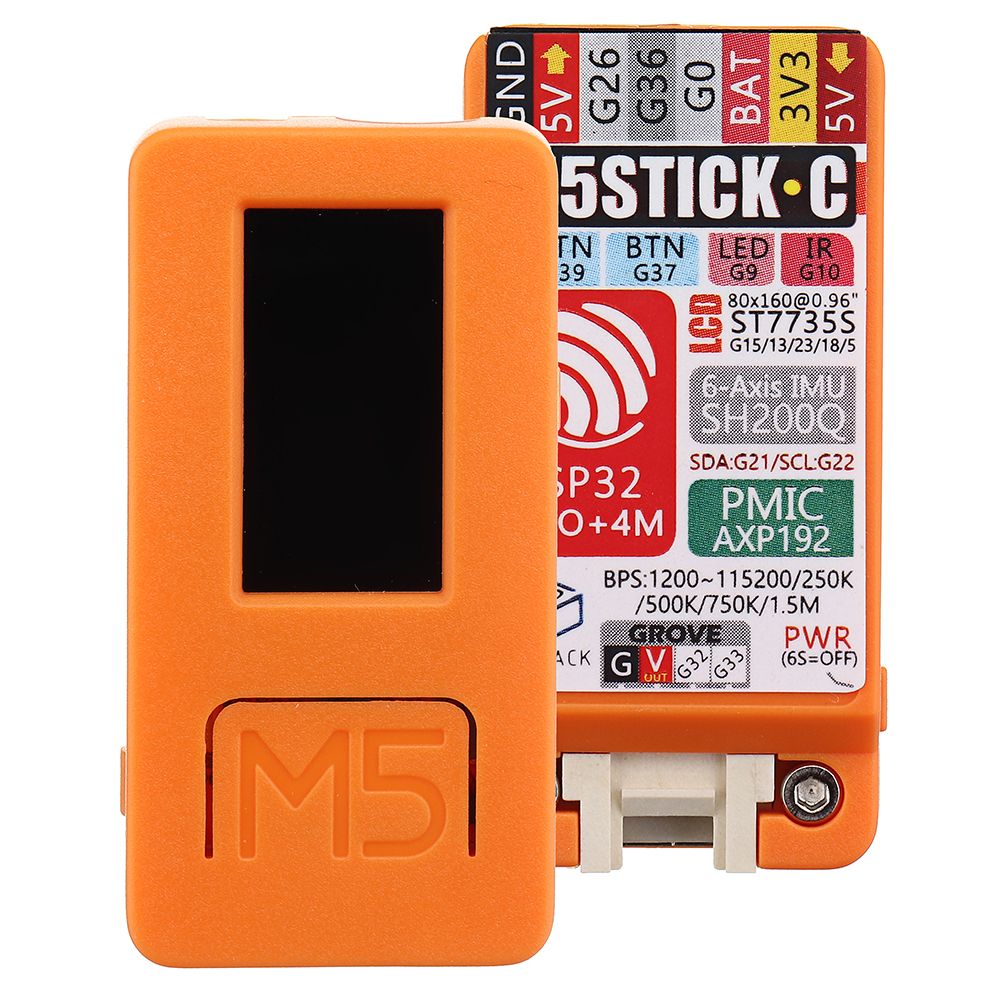

RED LED & IR Transmitter & BUTTON A & BUTTON B
| ESP32 | GPIO10 | GPIO9 | GPIO37 | GPIO39 |
| RED LED | LED PIN | |||
| IR Transmitter | Transmitter Pin | |||
| Button A | Button Pin | |||
| Button B | Button Pin |

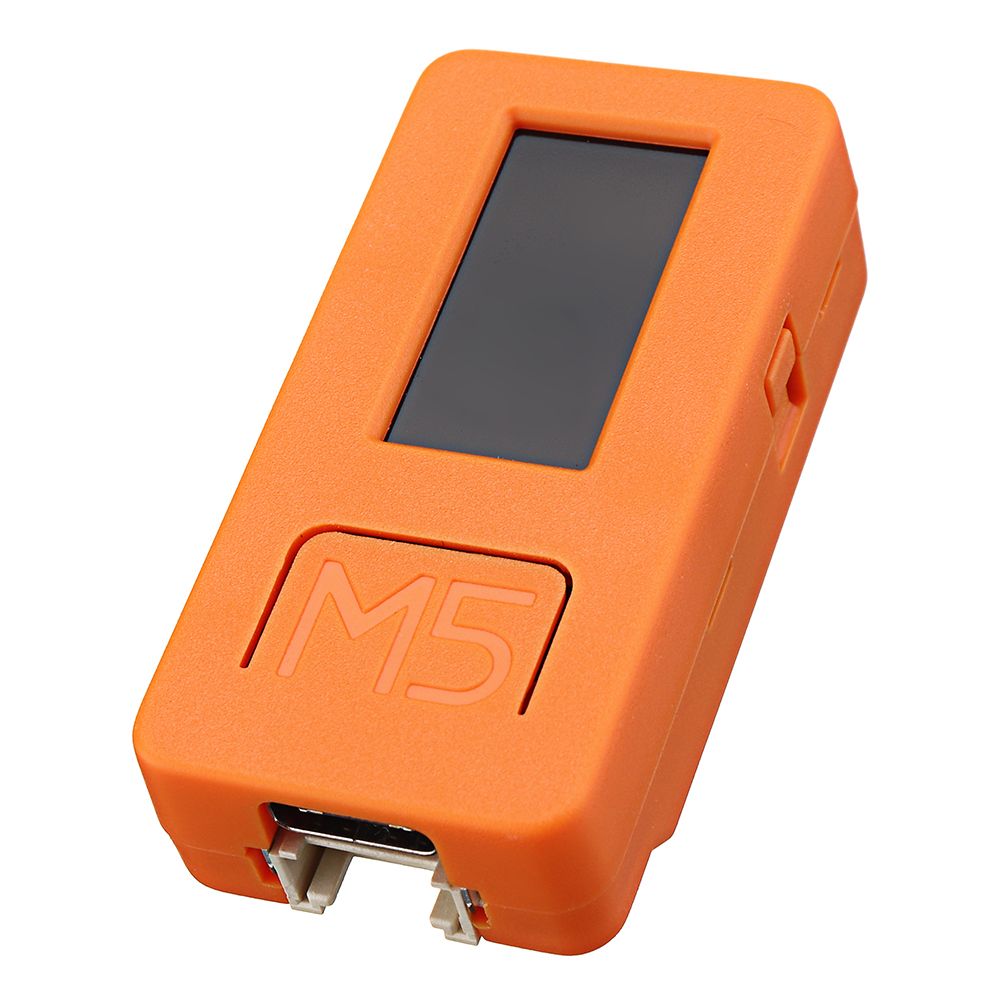

TFT LCD
Driver IC:ST7735S
Resolution:80 * 160
| ESP32 | GPIO15 | GPIO13 | GPIO23 | GPIO18 | GPIO5 |
| TFT LCD | TFT_MOSI | TFT_CLK | TFT_DC | TFT_RST | TFT_CS |
GROVE PORT
| ESP32 | GPIO33 | GPIO32 | 5V | GND |
| GROVE port | SCL | SDA | 5V | GND |
MIC (SPM1423)
| ESP32 | GPIO0 | GPIO34 |
| MICPHONE | SCL | SDA |
6- posture sensor (MPU6886) & power management IC (AXP192)
| ESP32 | GPIO22 | GPIO21 |
| 6- posture sensor | SCL | SDA |
| power management IC | SCL | SDA |
datasheet
Example
Comparision Between Different Development Kits of M5
For details click here
Download chart click here
M5StickC facory test code
M5StickC Vending Machine
Description:
Hat SPK is an M5StickC compatible speaker, integrated PAM8303 amplifier (3w single channel type D power amplifier), High PSRR and differential inputs eliminate noise and rf interference, thus it has the characteristics of simple functions and high audio reproduction.
Product Feature:
- Ultra-low EMI interference, 20dB better than FCC class B standard at 300MHz
- Voltage 5 v power supply, with 4 Ω load power output 3 w, 10% of the total harmonic distortion.
- Ultra-low noise without input
- Power: 2.8V - 5.5V
- Shortcut protection.
Description:

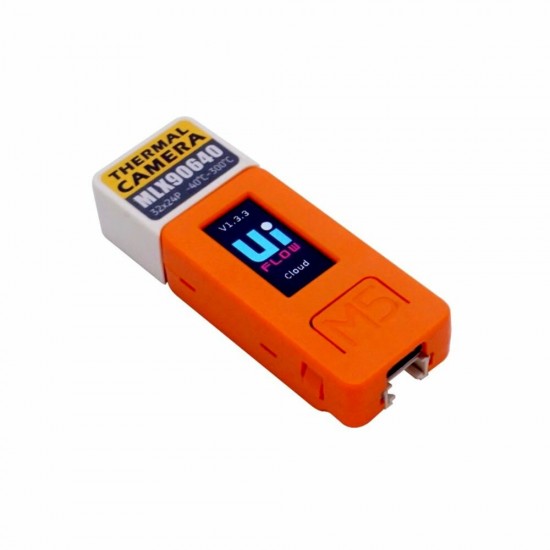

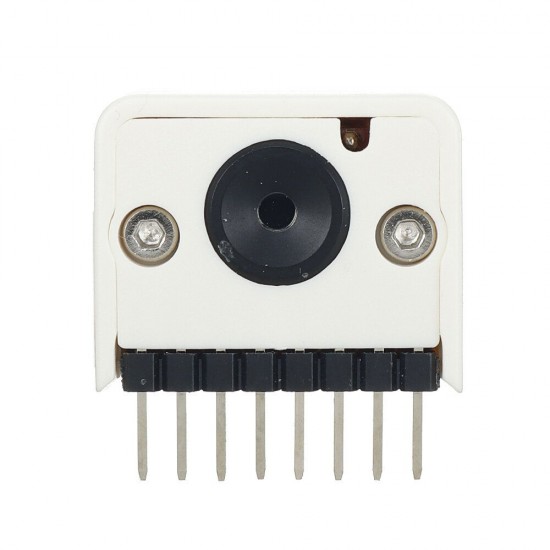

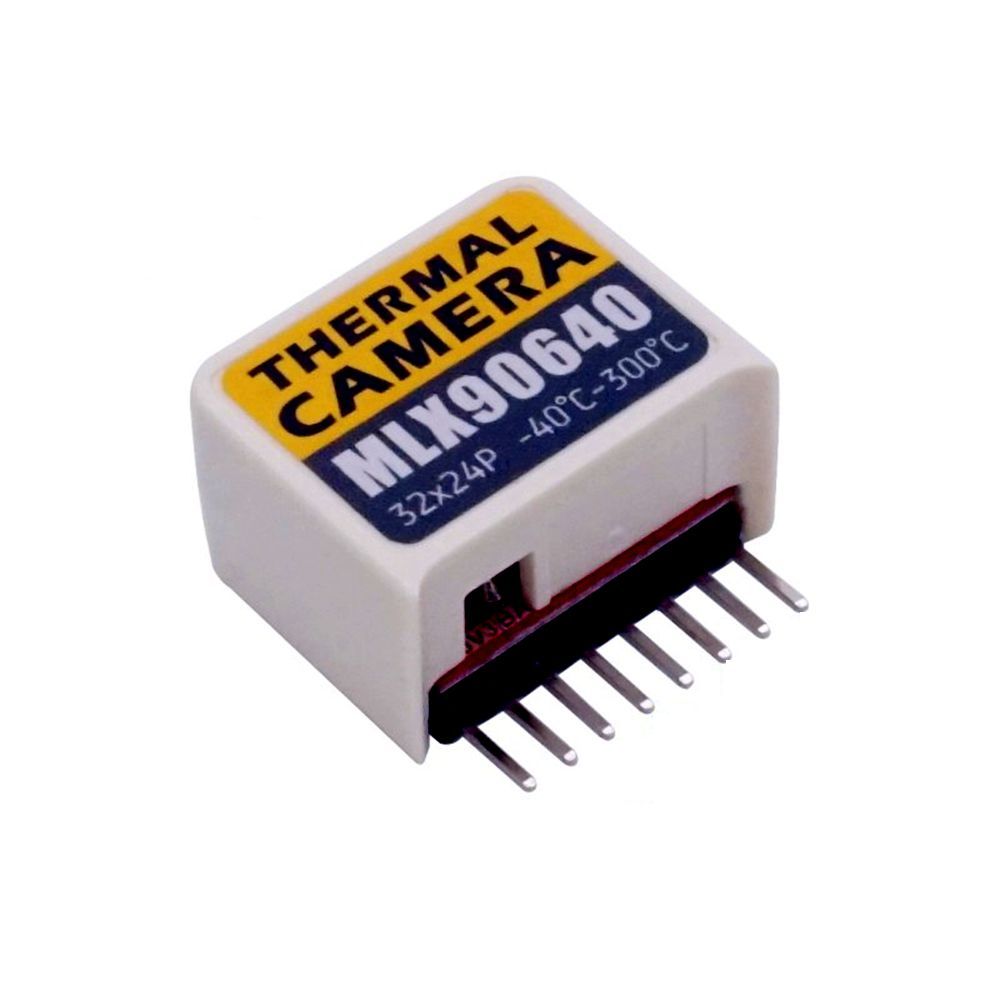

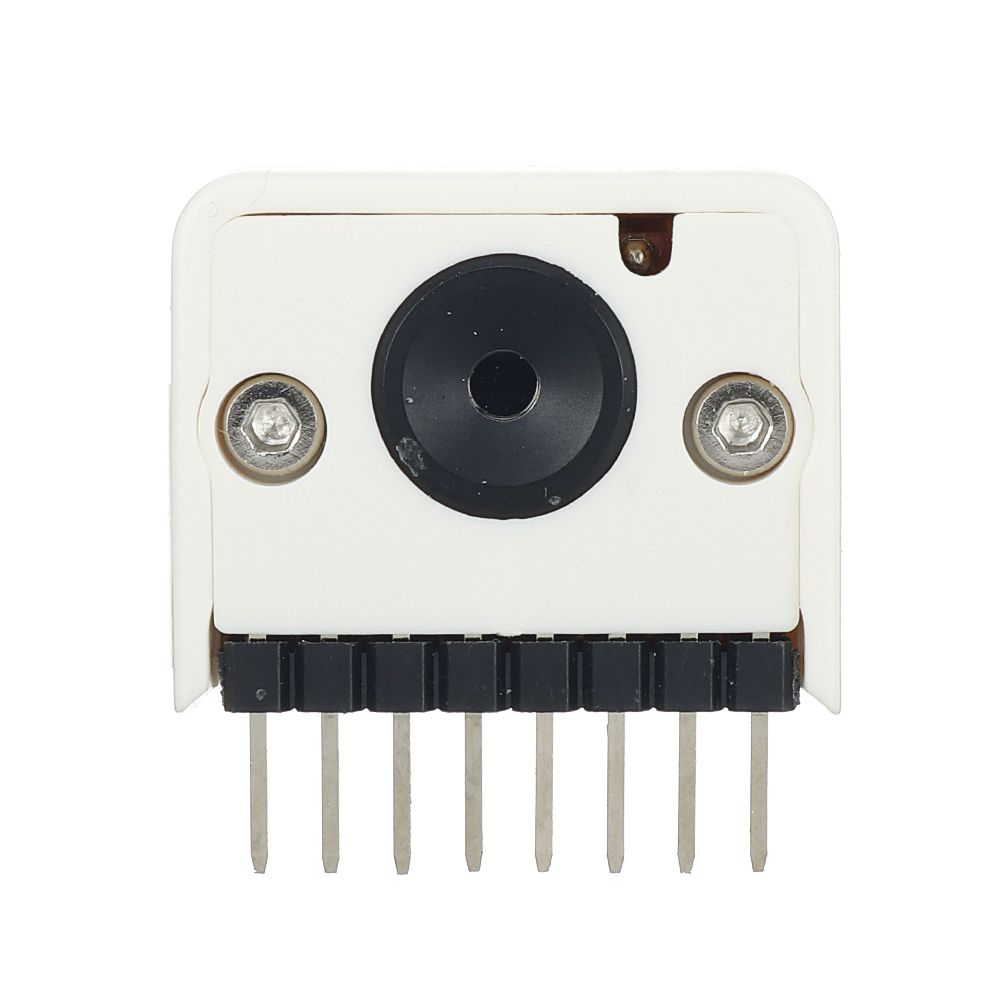

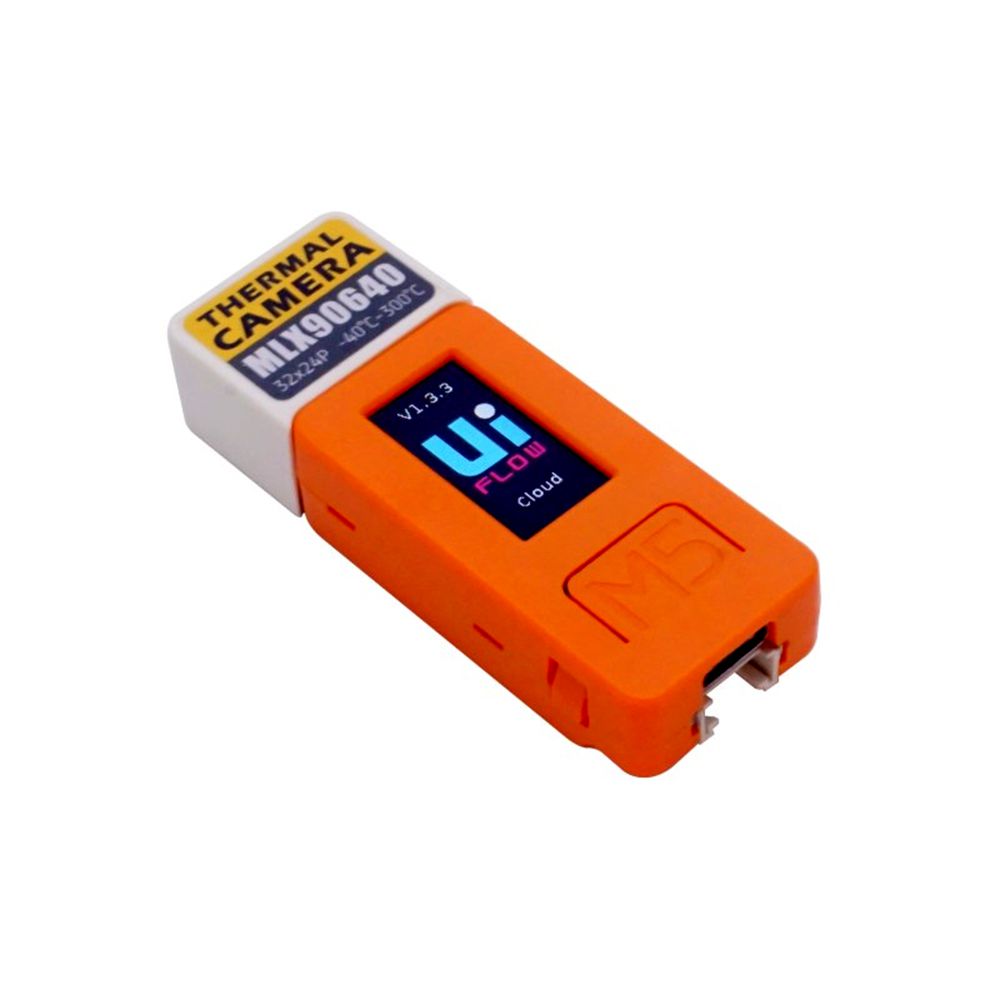

THERMAL HAT is an M5StickC compatible thermal camera. Same as M5Unit THERMAL, this stickc HAT module Integrates MLX90640 which can be used to measure the surface temperature of an object and form a thermographic image by a temperature gradient composed of different surface temperatures. Now that it has a cover of case of stickc HAT, you can pretty much move all the implementations to stickc-based controller, featured with tiny, low-cost and highly-productization.
The MLX90640 Infrared (IR) sensor array combines high resolution and reliable operation in harsh environments, providing a cost-effective alternative to more expensive high-end thermal imaging cameras. Unlike the case of a microbolometer, the sensor does not require frequent recalibration, ensuring continuous monitoring and reducing system cost.
The field of view (FoV) option includes a standard 55° x 35° version and a wide angle version of 110° x 75°. This Unit is 110°×75° FoV, also known as the BAA package.
Connect with M5StickC via GOIO 0/26 (I2C add: 0x33).
Product Features:
- M5StickC Compatible
- Operating Voltage: 3V ~ 3.6V
- Current Consumption: 23mA
- Field of View: 55°x35°
- Measurement: -40°C ~ 300°C
- Resolution: ±1.5°C
- Refresh Rate: 0.5Hz-64Hz
- Operating temperature: -40°C ~ 85°C
Package Included:

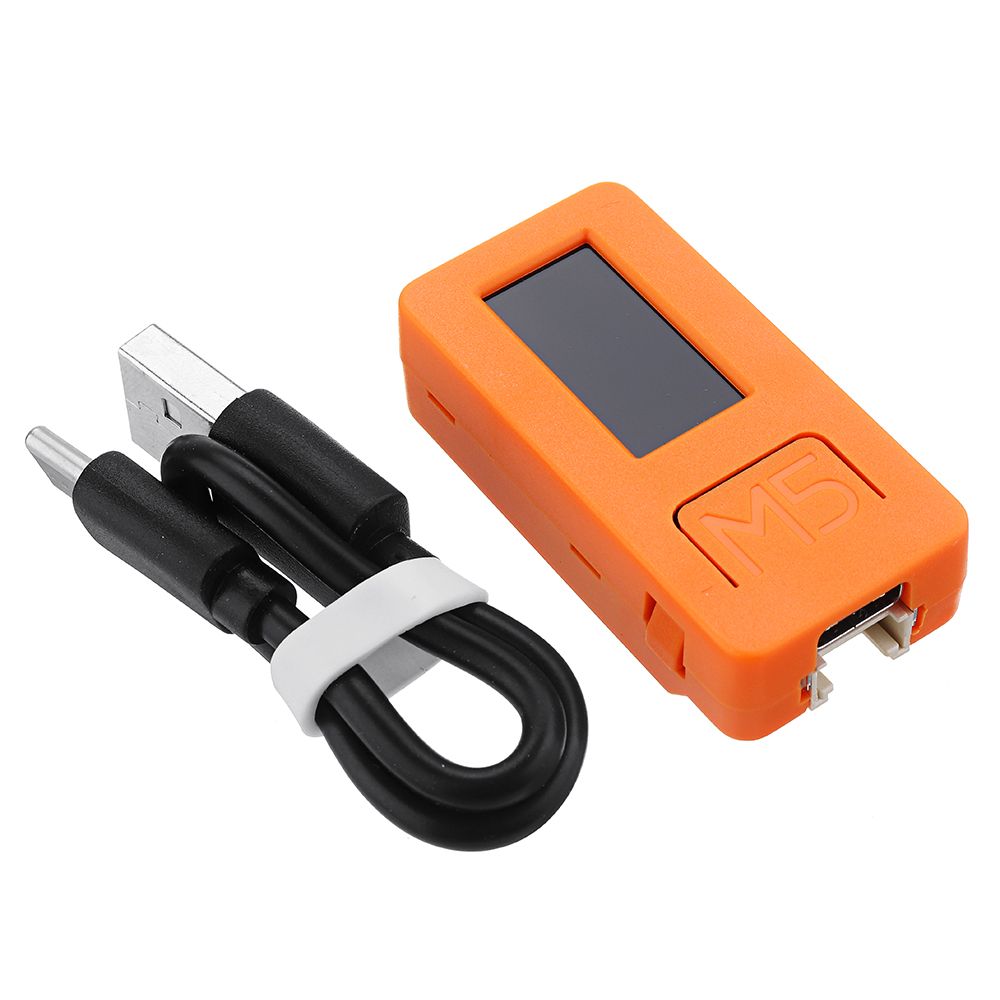

1 x M5StickC
1 x USB Type-C cable
1 x SPK Hat
1 x THERMAL CAMERA HAT
