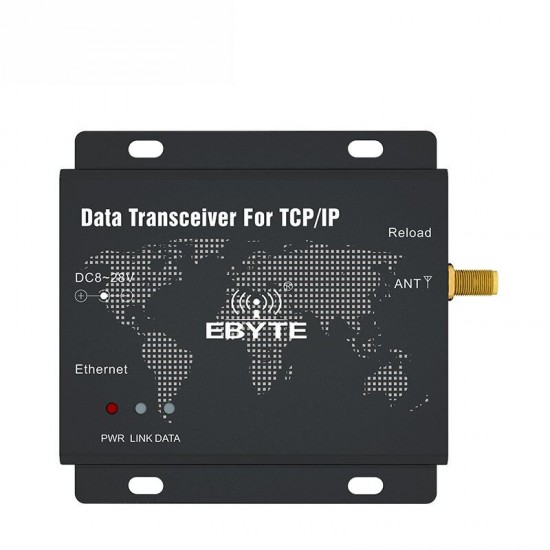

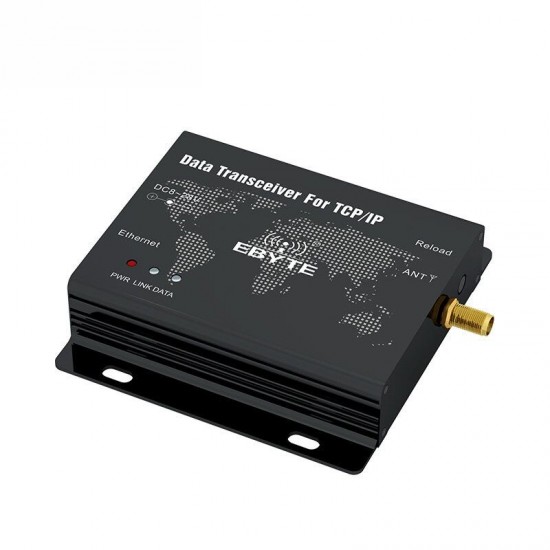

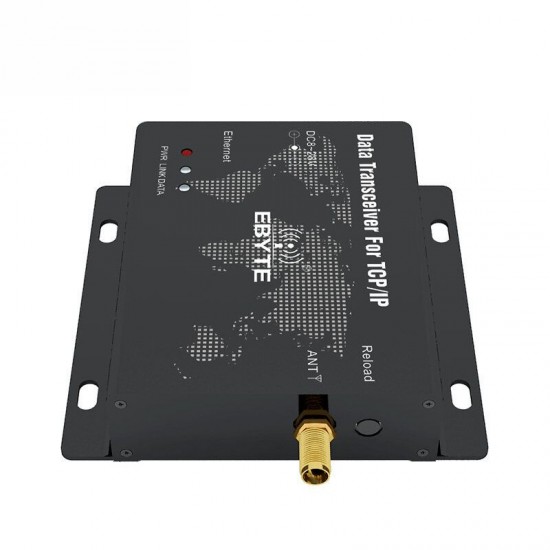

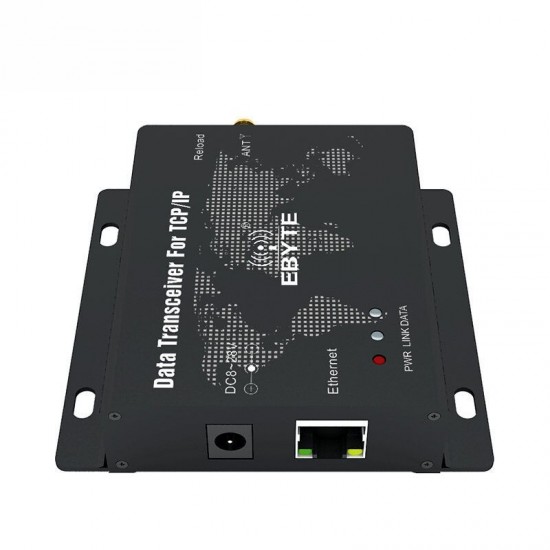

E90-DTU(400SL30-ETH) SX1262/SX1268 10km DTU 433mhz Radio TCXO RJ45 Ethernet Module Modem IOT Device
- Stock: In Stock
- Model: EB0042523
- SKU: EB0042523
| RF Parameter | Value | Remark |
| Working frequency | 410.125~493.125 | Default: 433MHz |
| Transmitting power | 30 dBm | About 1W |
| Air data rate | 0.3k~62.5 kbps | Configured by user |
| Test distance | 10000 meter | - |
| Hardware Parameter | Value | Remark |
| Size | 84 * 82 * 25 mm | Without SMA-K |
| Antenna type | SMA-K | - |

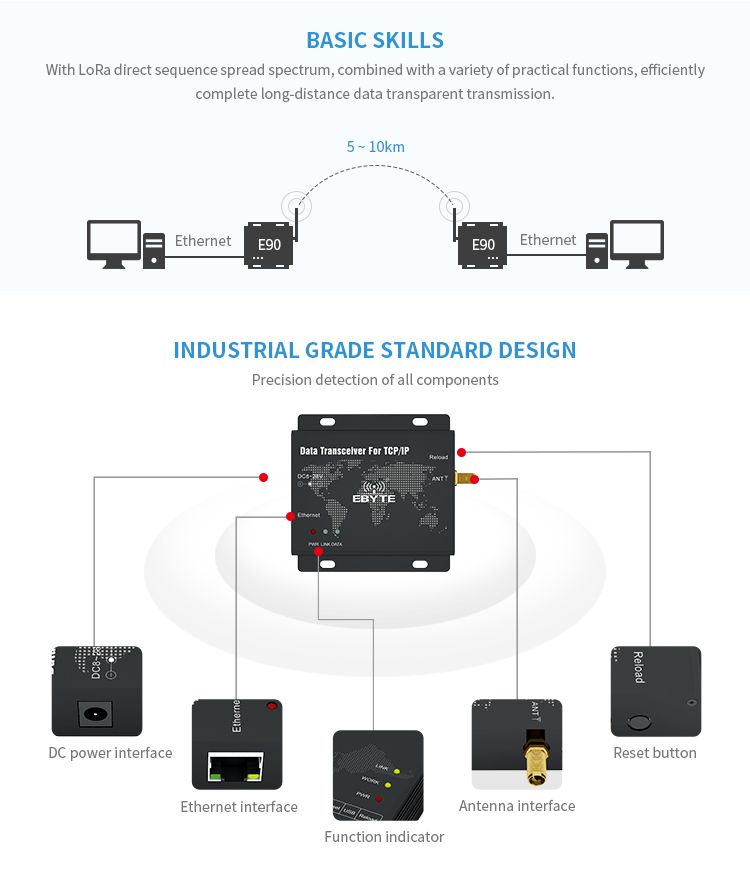

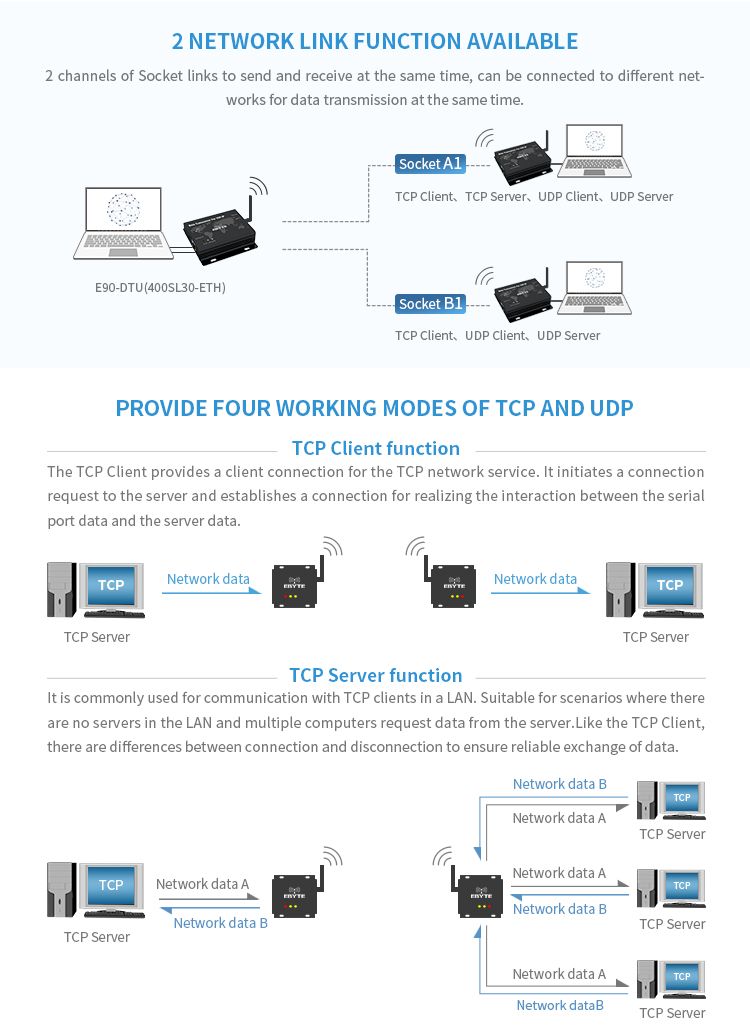

| Communication interface | Ethernet | - |
| Transmission length | 240 Byte | Can be set as 32/64/128/240 bytes each packet |
| Receiving length | 1000 Byte | - |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply | 8 | 12 | 28 | V | It is recommended to use 12V or 24V |
| Transmitting current | - | 337.6 | - | mA | Instant power consumption |
| Stand-by current | - | 72.3 | - | mA | - |
| Operating temperature | -40 | - | 85 | ℃ | - |
| Operating humidity | 10 | - | 90 | % | - |
| Storage temperature | -40 | - | 125 | ℃ | - |
