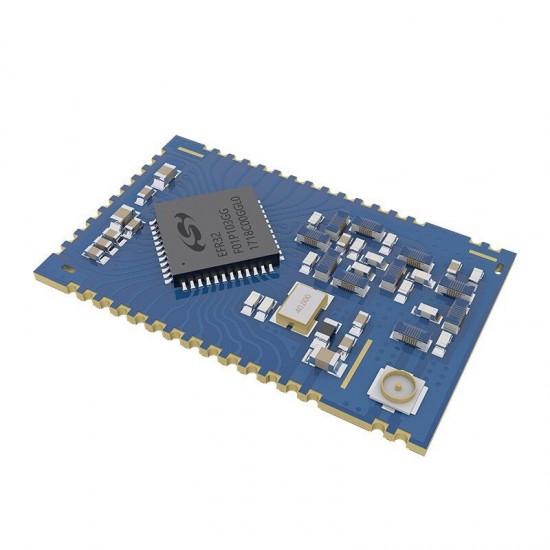

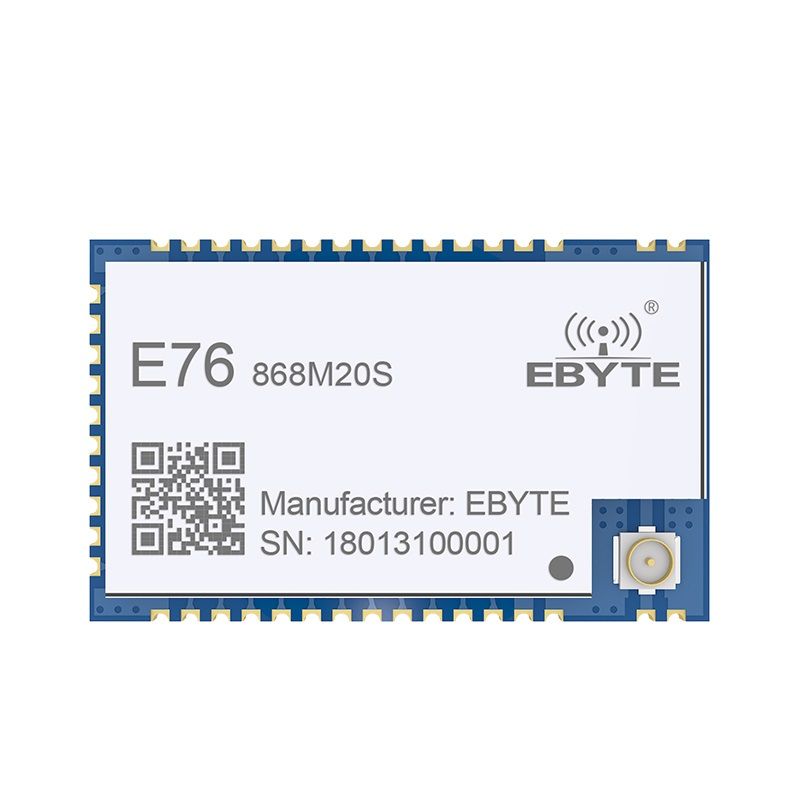

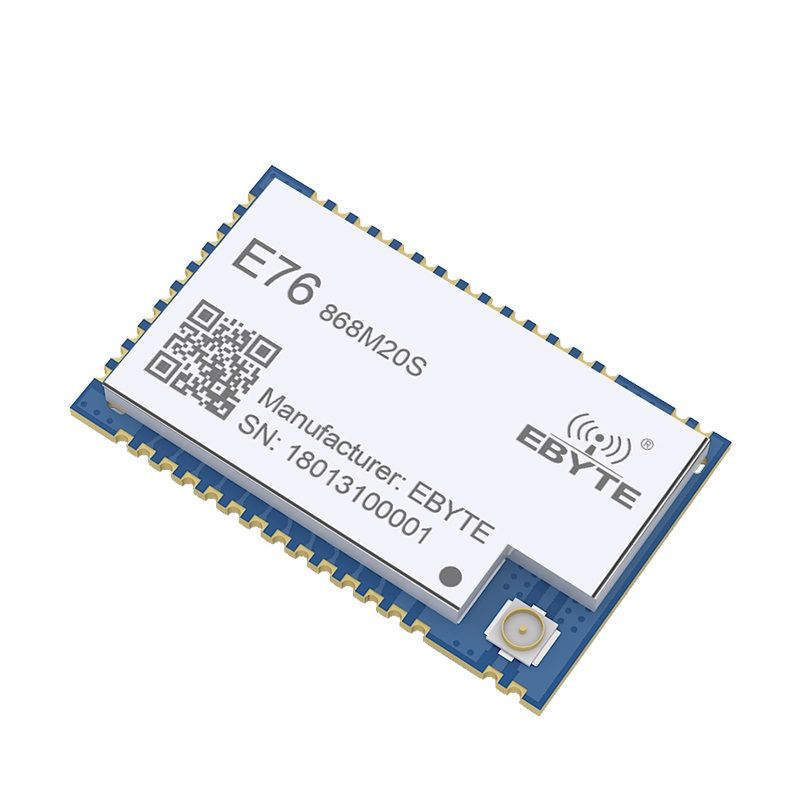

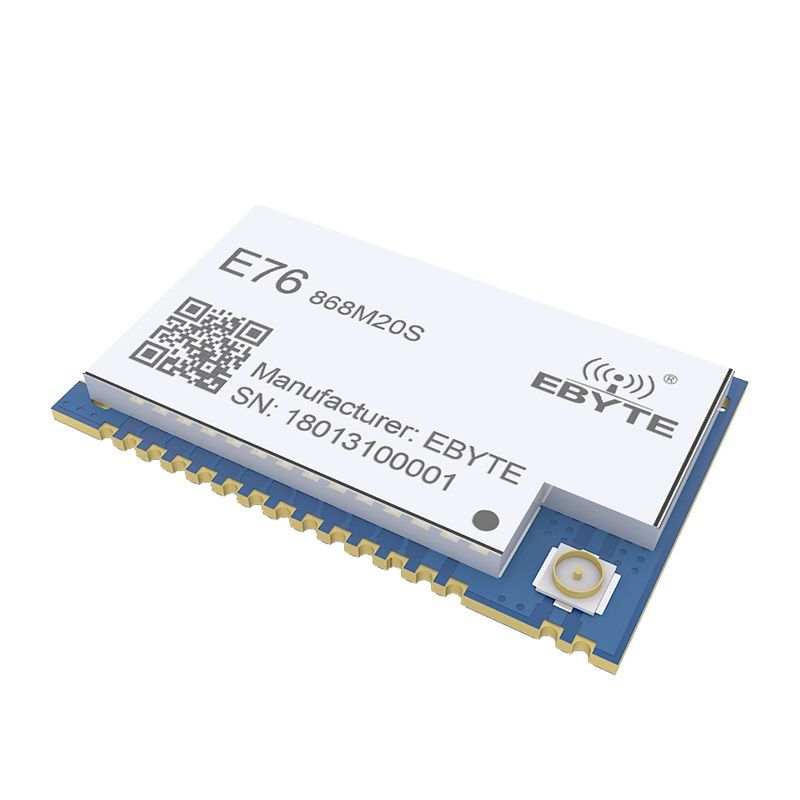

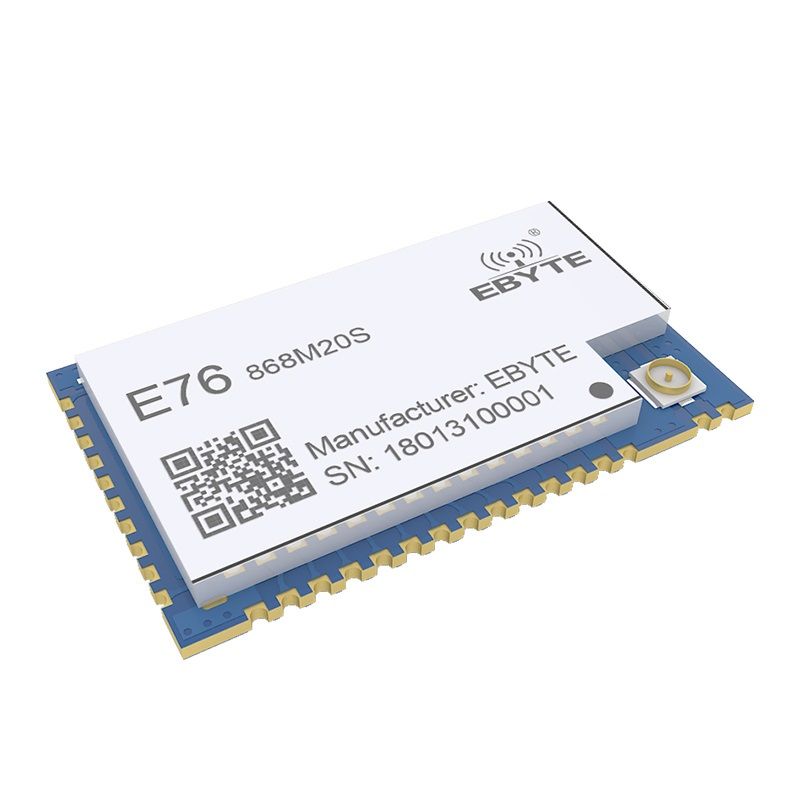

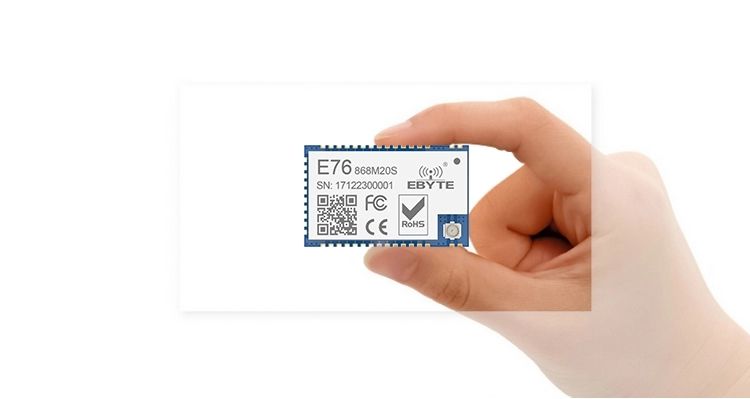

E76-868M20S EFR32 EFR32FG1P1 SOC 868MHz 20dBm SMD Wireless Receiver Transceiver IOT Module
- Stock: In Stock
- Model: EB0045333
- SKU: EB0045333
Specification:
RF Parameter
| Value | Remark |
Working frequency
| 863~875MHz | Support ISM band |
Transmitting power
| 20dBm | About 100mW |
Receiving sensitivity
| -107dBm | Air data rate: 1kbps |
Air data rate | 0.1K~2M | Controlled via user’s programming |
Test distance | 2500m | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 250kbps |
Hardware Parameter | Value | Remark |

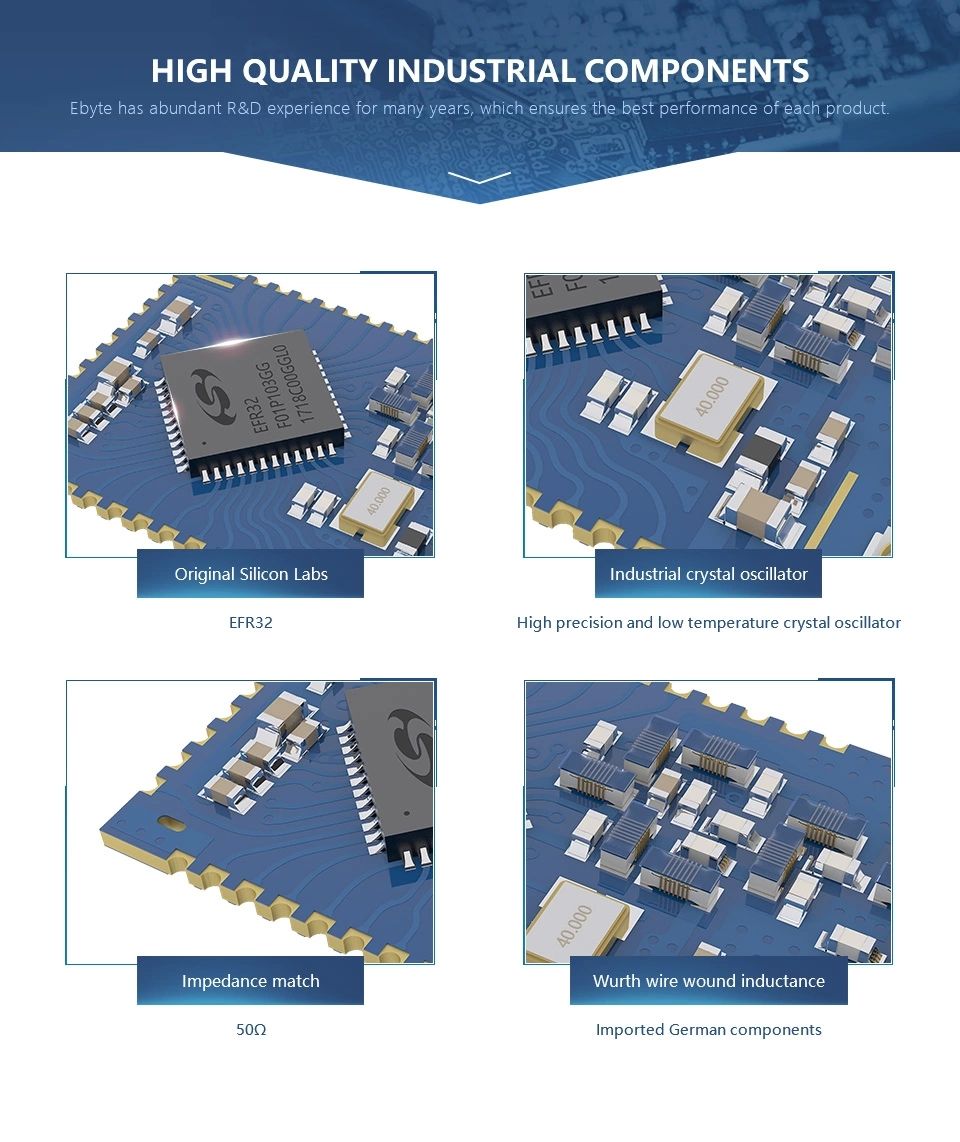

IC | EFR32FG1P131F256GM48 | / |
FLASH | 256KB | / |
RAM | 32 KB | / |
CORE | ARM Cortex M4 | / |

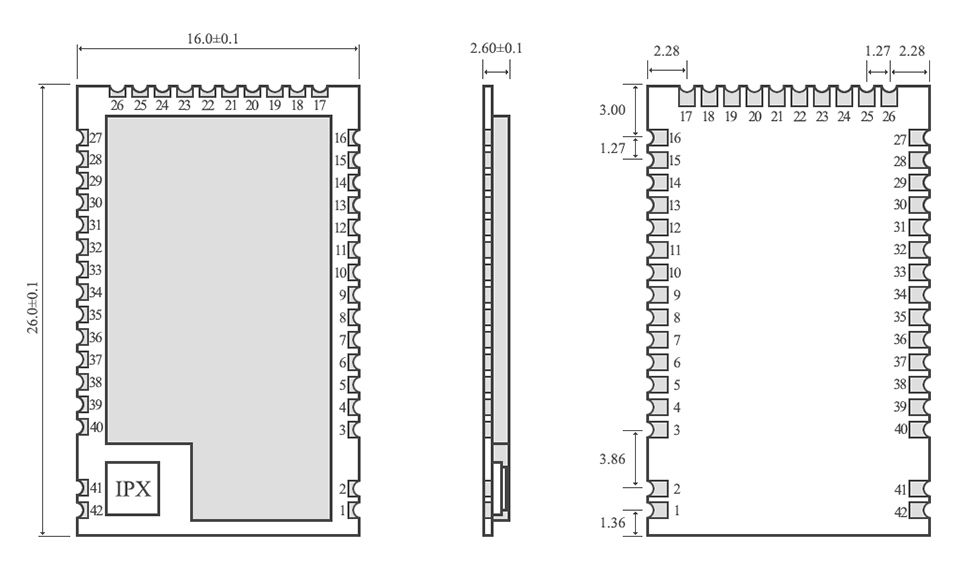

Size | 16* 26mm | / |
Antenna type | IPEX / Stamp hole | / |
Interface | SPI | / |
Package | SMD | / |
Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
Power supply | 1.85 | 3.3 | 3.8 | V | ≥3.3V ensures output power |
Communication level | - | 3.3 | - | V | For 5V TTL, it may be atrisk of burning down |
Transmitting current | - | 98 | - | mA | Instant power consumption |
Receiving current | - | 17 | - | mA | - |
Sleep current | - | 1 | - | μA | Software is shut down |
Operating temperature | -40 | - | +85 | ℃ | Industrial design |
Operating humidity | 10 | - | 90 | % | - |
Storage temperature | -40 | - | +125 | ℃ | - |
Package included:
