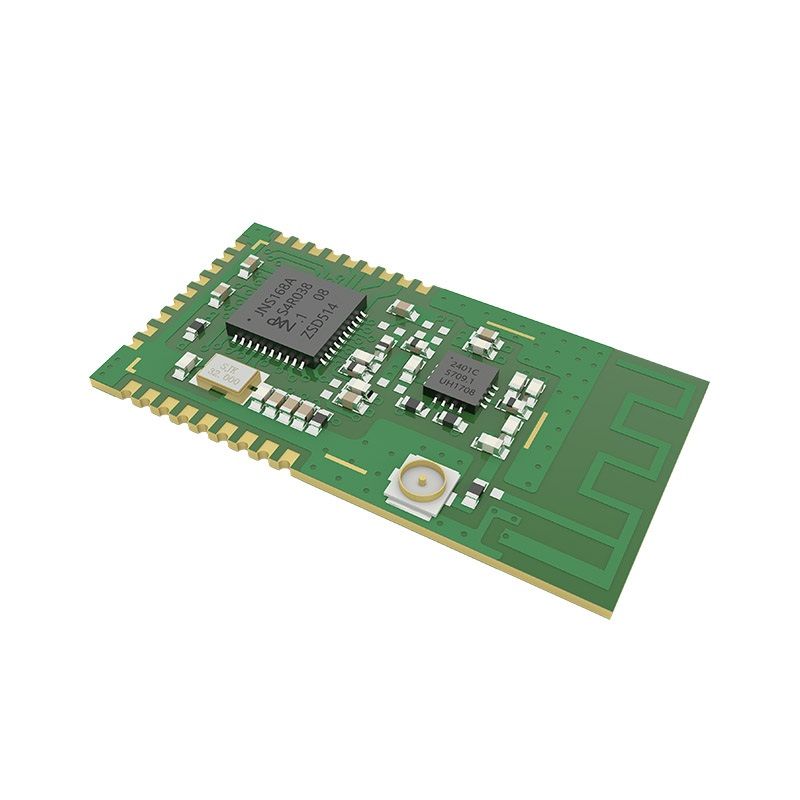

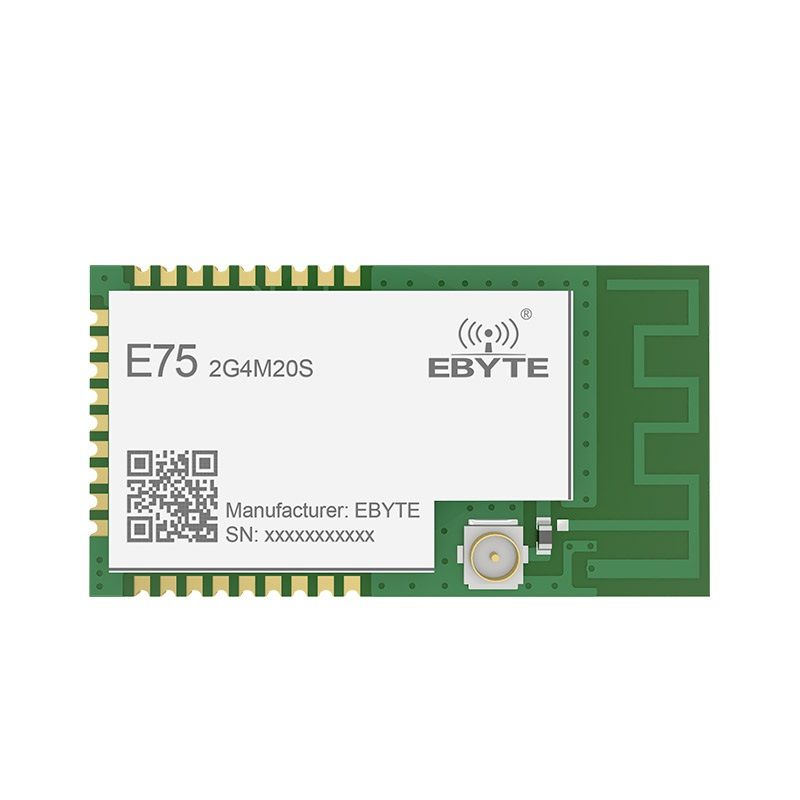

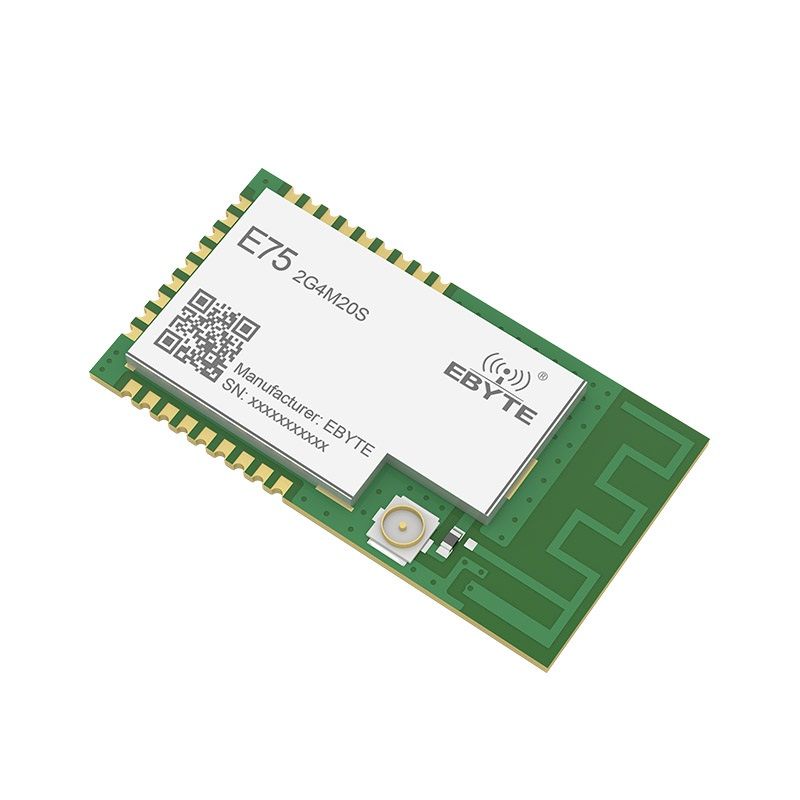

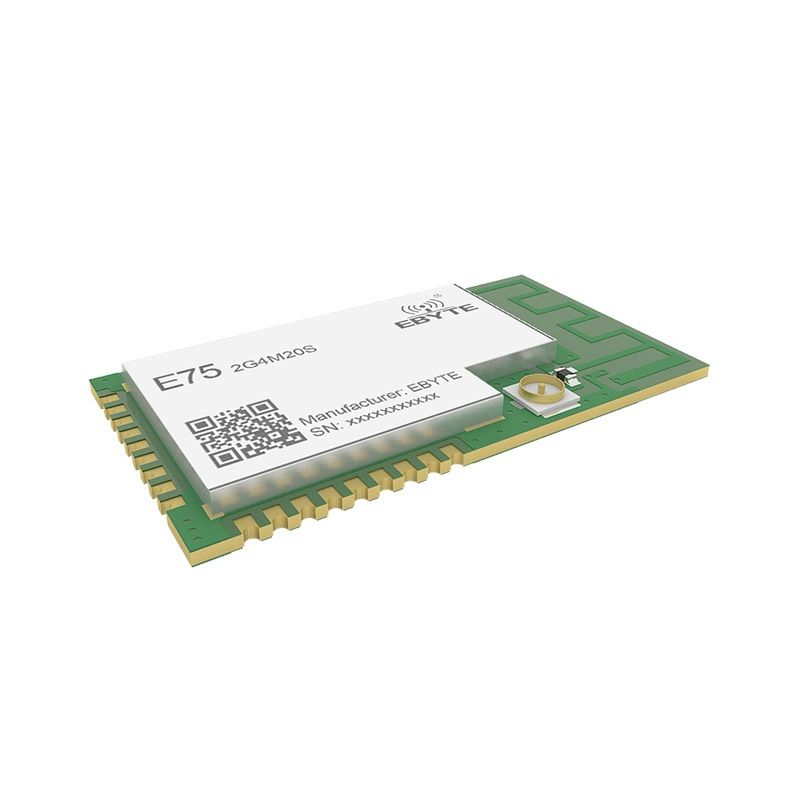

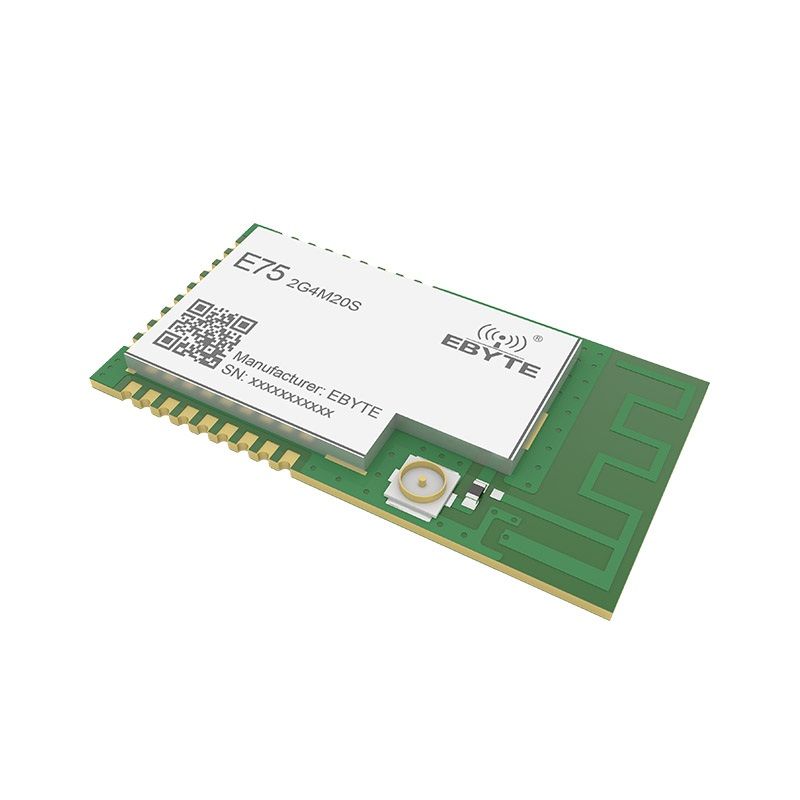

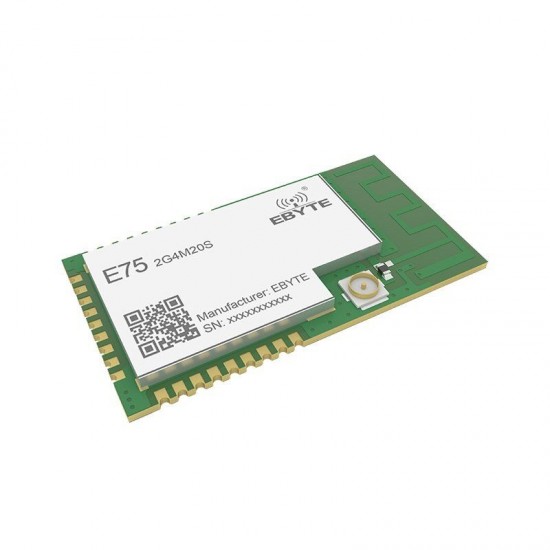

E75-2G4M20S JN5168 IEEE802.15.4 ISM 2.4GHz 1000m Long Range 20dBm Wireless IOT Module for ZigBee
- Stock: In Stock
- Model: EB0047442
- SKU: EB0047442
Specification:
|
RF Parameter
|
Value |
Remark |
|
Working frequency
|
2405~2480MHz |
Default: 2.4GHz (32MHz oscillator) |
|
Transmitting power
|
20dBm |
About 100mW |
|
Receiving sensitivity
|
-100dBm |
Air data rate: 250kbps |
Air data rate |
250kbps |
|
Test distance |
1000m |
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 250kbps |
Hardware Parameter |
Value |
Remark |
IC |
JN5168ASGU482/QFN40 | / |
FLASH |
256KB |
/ |
RAM |
32 KB |
/ |
CORE |
32bit RISC CPU |
/ |

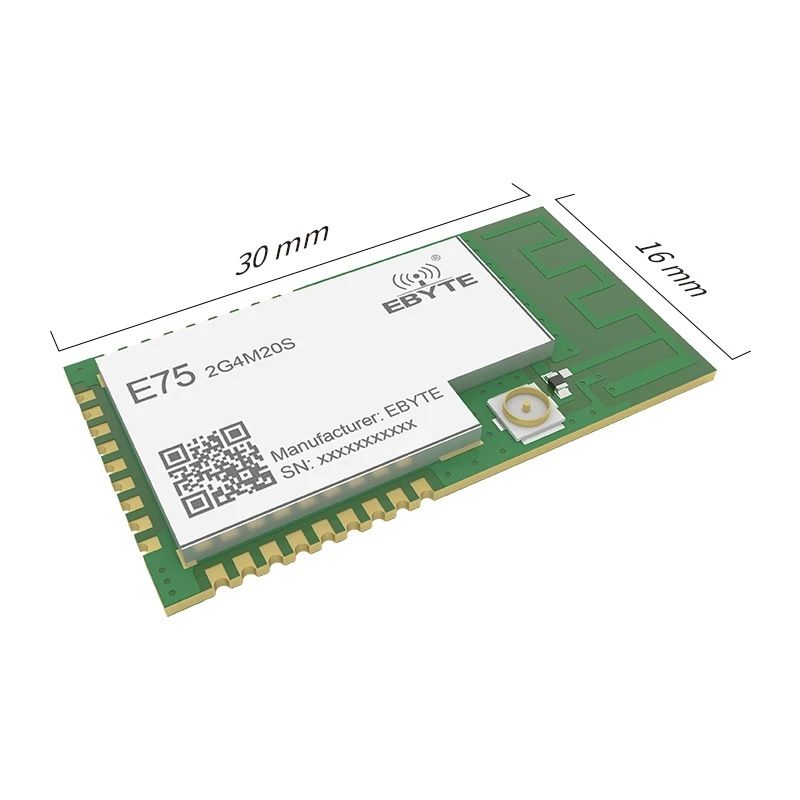

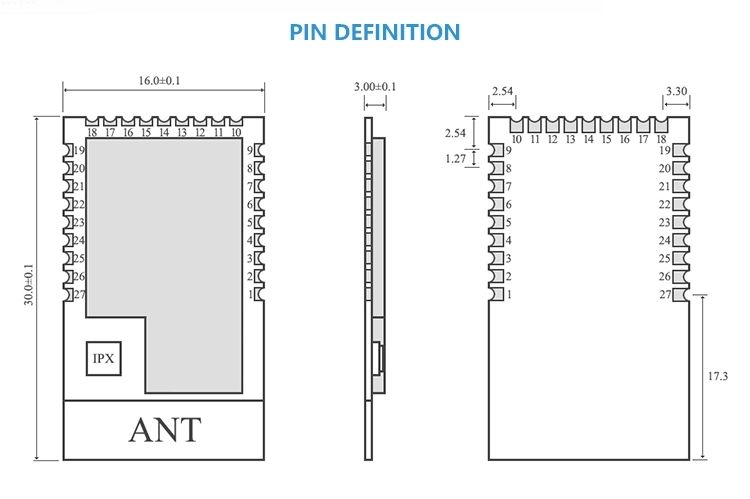

Size |
16* 30mm |
/ |

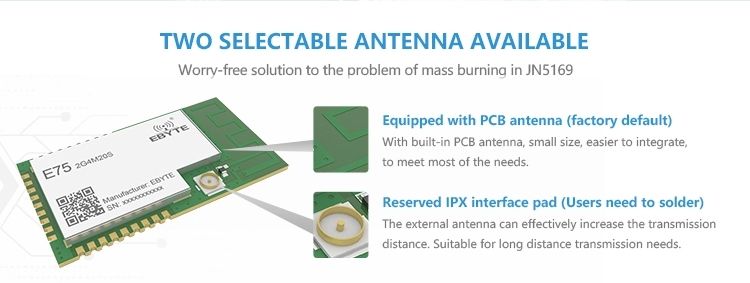

Antenna type |
PCB / Stamp hole |
/ |
Interface |
SPI |
/ |
Package |
SMD |
/ |
Electronic parameter |
Min. |
Typ. |
Max. |
Unit |
Condition |
Power supply |
2.0 |
3.3 |
3.6 |
V |
|
Communication level |
2.0 | 3.3 |
3.6 | V |
|
Transmitting current |
136 | 145 | 160 | mA |
20dBm (100mW) |
Receiving current |
24 | 26 | 29 | mA |
|
Sleep current |
1 | 2 |
3 | μA |
|
Operating temperature |
-40 |
20 | +85 |
℃ |
|
Operating humidity |
10 |
60 | 90 |
% |
|
Storage temperature |
-40 |
20 | +125 |
℃ |
|
Package included:
