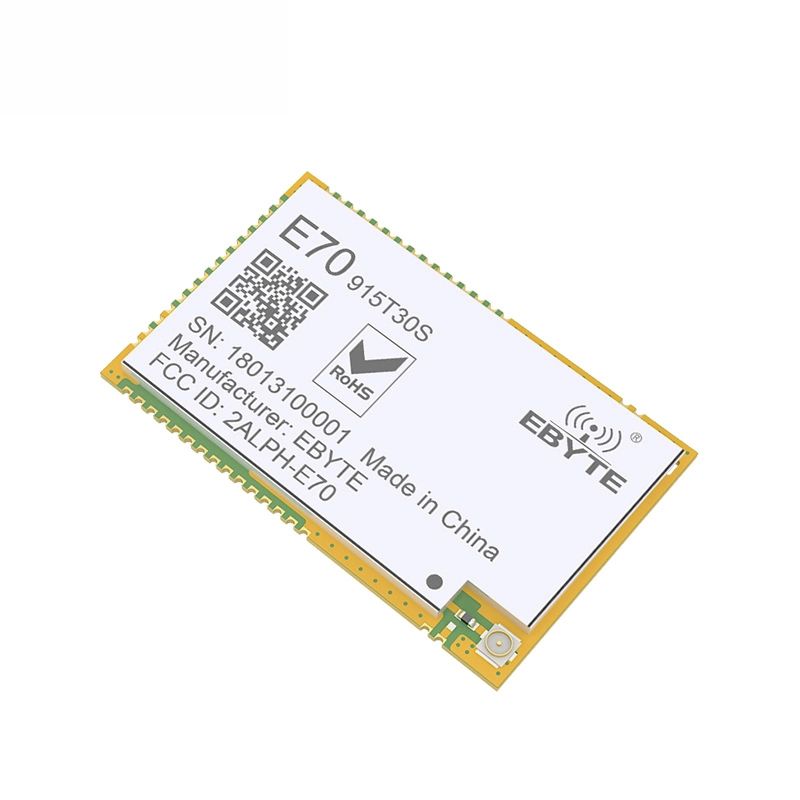

E70-915T30S CC1310 1W SoC SMD UART 915MHz IPX Interference Transceiver Wireless Receiver RF Module
- Stock: In Stock
- Model: EB0042842
- SKU: EB0042842
Specifications:
Power:30dBm
Distance: 6000m
Supply voltage: 2.6~5.5V
Frequency: 915MHz
Antenna type:Stamp hole/IPX
Connector:SMD
| RF Parameter | Value | Remark |
| Working frequency | 907~922.5 MHz | Default: 915MHz (24MHz oscillator) |
| Transmitting power | 17~30 dBm | Default: 30dBm（About 1W） |
| Receiving sensitivity | -110 dBm | Air data rate: 50kbps |
| Air data rate | 2.5k~168kbps | Default: 2.5kbps |
| Test distance | 6000m | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 2.5kbps |
| Hardware Parameter | Value | Remark |

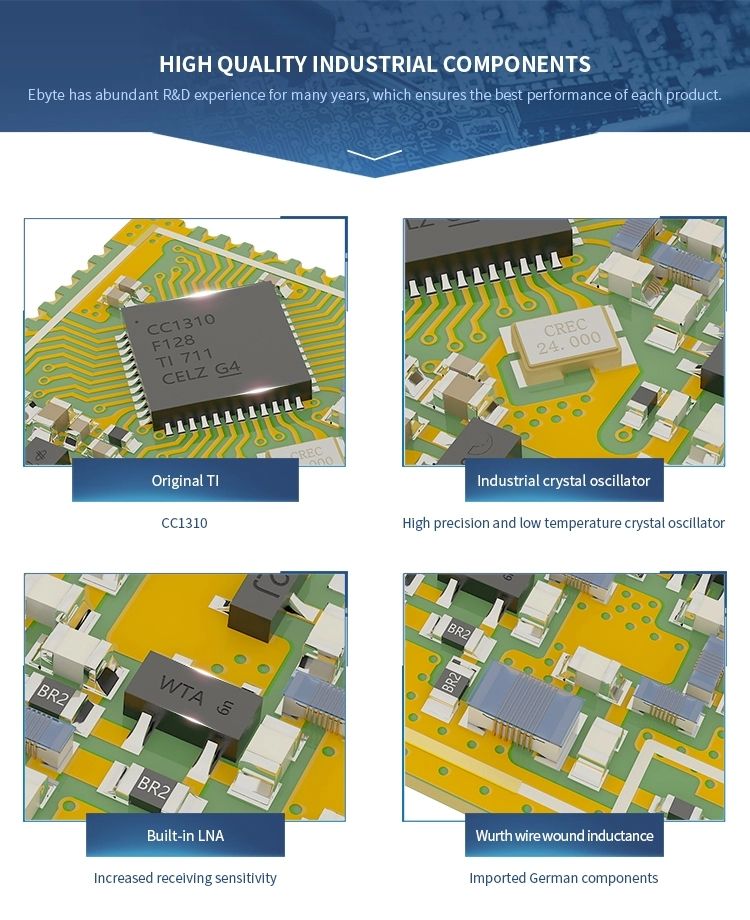

IC | CC1310F128RGZ |
|
FLASH | 128 KB |
|
RAM | 20 KB |
|
Core | Cortex-M3（MCU）+Cortex-M0（RF） |
|

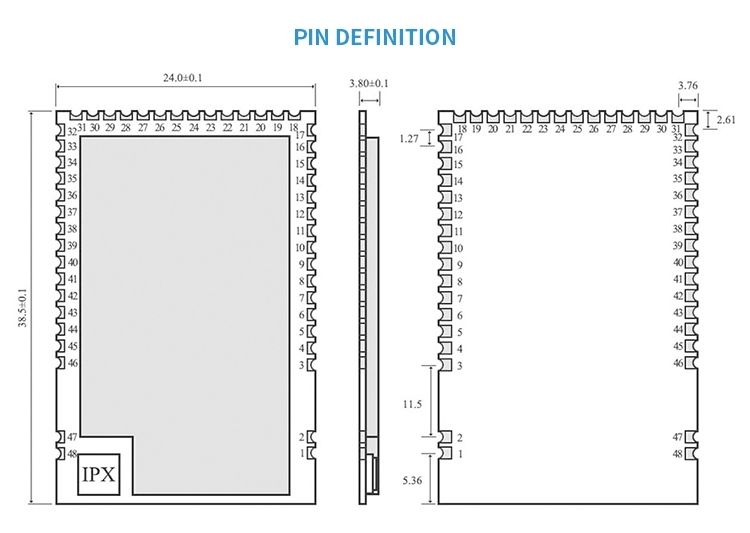

Size | 24 * 38.5 mm | Without SMA |
Antenna type | IPEX / Stamp hole |
|

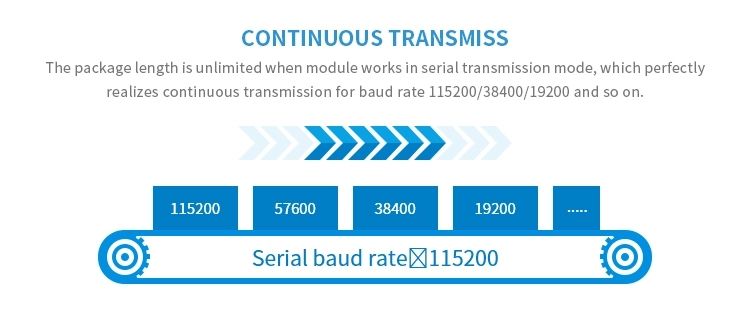

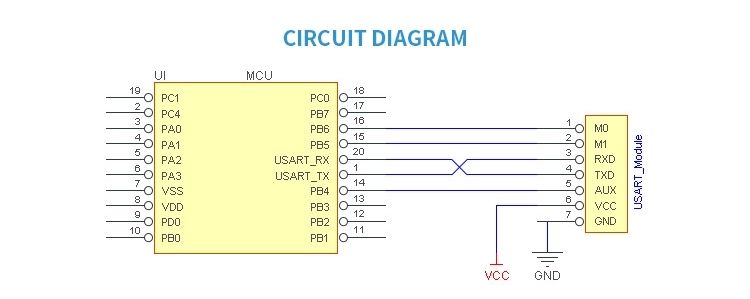

Communication interface | UART | Baud rate: 1200~115200, default: 9600 |
Package | SMD |
|
Buffer | 2048 bytes buffer | Defined by user |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply | 2.6 | 5.0 | 5.5 | V | |
| Communication level | 2.1 | 3.3 | 3.8 | V | |
| Transmitting current | 570 | 600 | 660 | mA | 30dBm（1W） |
| Receiving current | 13 | 14 | 15 | mA | |
| Sleep current | 2.0 | 4.0 | 5.5 | μA | |
| Operating temperature | -40 | 20 | +85 | ℃ | |
| Operating humidity | 10 | 60 | 90 | % | |
| Storage temperature | -40 | 20 | +125 | ℃ |
Package included:
1 x E70-915T30S Transceiver Module
