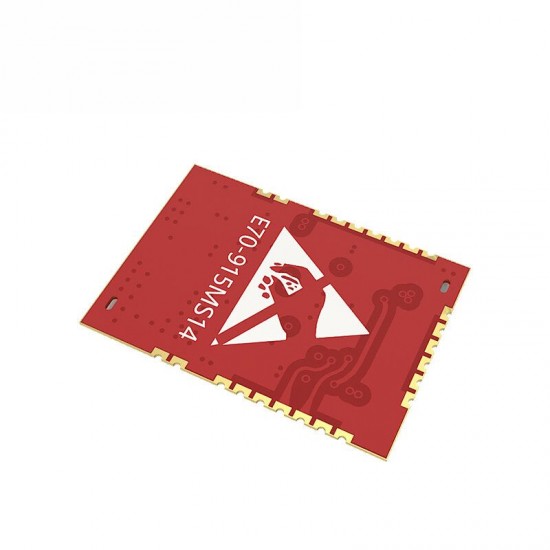

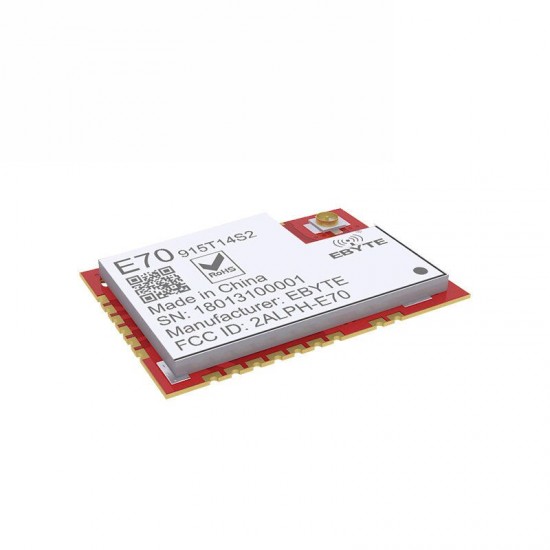

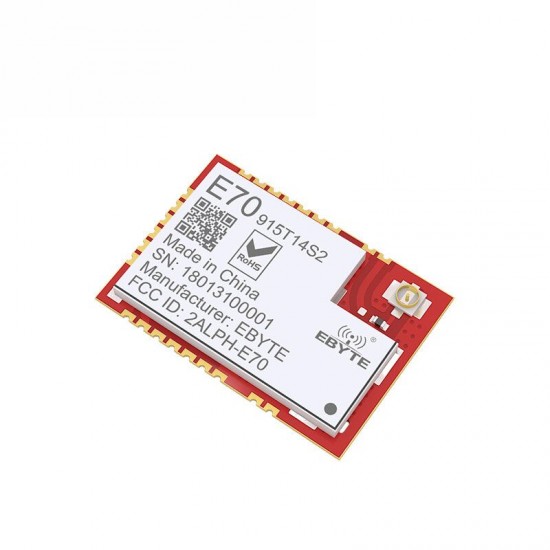

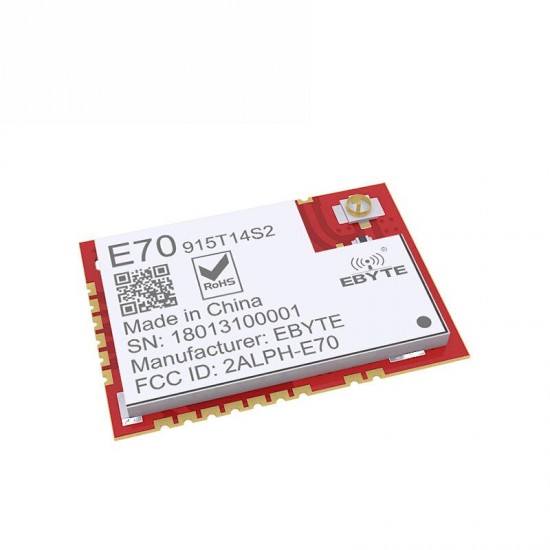

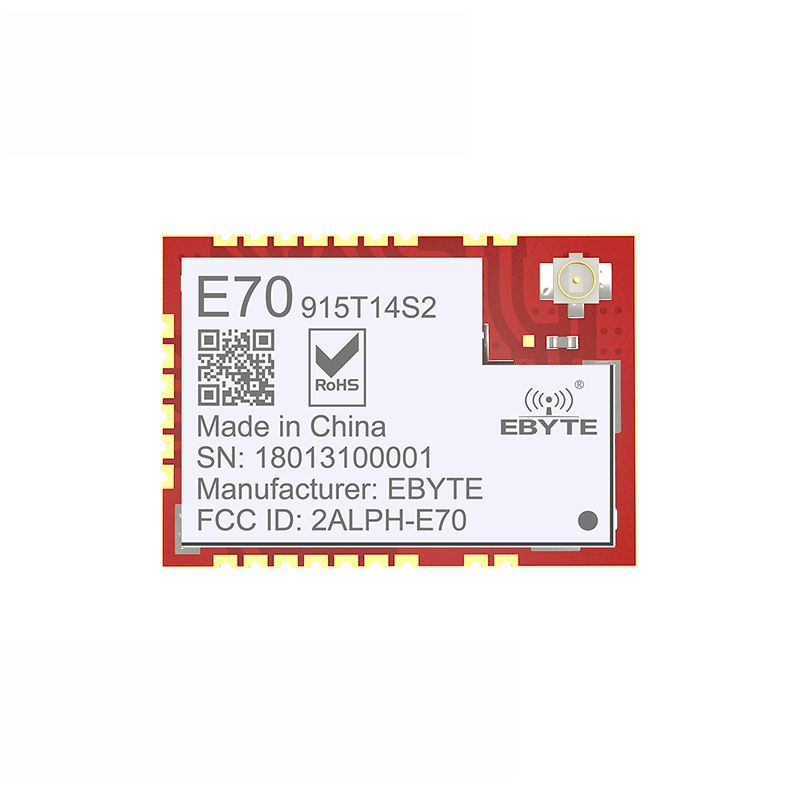

E70-915T14S2 CC1310 915MHz 14dBm 1500m SOC Small Size Wireless Transmitter and Receiver RF Module
- Stock: In Stock
- Model: EB0047479
- SKU: EB0047479
Specifications:
Interface: UART
Power:14dBm (25mW)
Distance:1500m
Antenna: IPEX/Stamp Hole
Frequency:915MHz (907~923MHz)
Supply voltage: 2.2 ~ 3.8V
| RF Parameter | Value | Remark |
| Working frequency | 907~922.5 MHz | Default: 915MHz (24MHz oscillator) |
| Transmitting power | 4~14 dBm | Default: 14dBm（About 25mW） |
| Receiving sensitivity | -108 dBm | Air data rate: 50kbps |
| Air data rate | 2.5k~168kbps | Default: 2.5kbps |
| Test distance | 1500m |
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 2.5kbps |
| Hardware Parameter | Value | Remark |
IC |

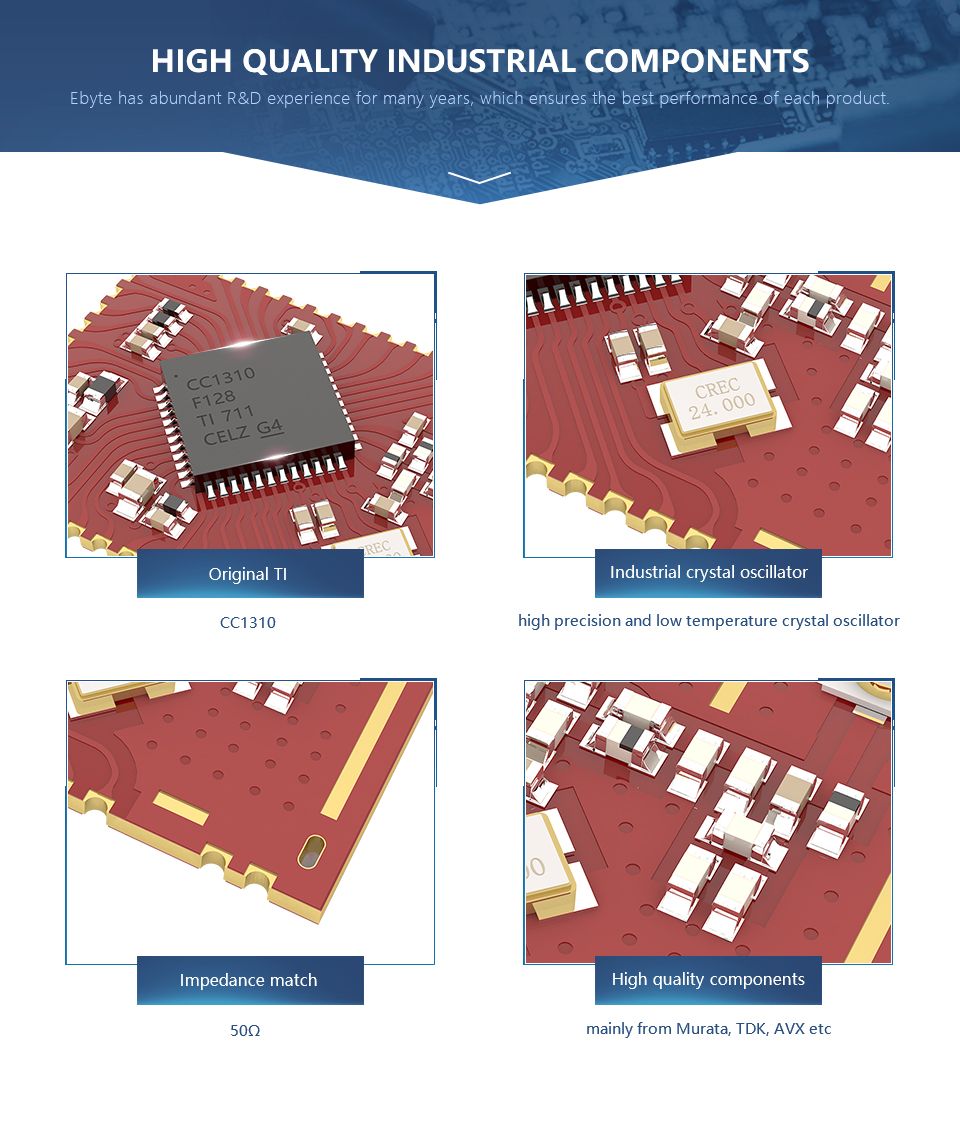

CC1310F128RSM |
|
FLASH |
128 KB |
|
RAM |
20 KB |
|
Core |
Cortex-M3（MCU）+Cortex-M0（RF） |
|
Size |
14 * 20 mm |
Without SMA |
Antenna type |
IPEX / Stamp hole |
|
Communication interface |
UART |
Baud rate: 1200~115200, default: 9600 |
Package |
SMD |
|
Buffer |
2048 bytes buffer |
Defined by user |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply | 2.1 | 3.3 | 3.8 | V | |
| Communication level | 2.1 | 3.3 | 3.8 | V | |
| Transmitting current | 33 | 36 | 40 | mA | 14dBm（25mW） |
| Receiving current | 6 | 8 | 9 | mA | |
| Sleep current | 1.0 | 1.2 | 2.7 | μA | |
| Operating temperature | -40 | 20 | +85 | ℃ | |
| Operating humidity | 10 | 60 | 90 | % | |
| Storage temperature | -40 | 20 | +125 | ℃ |
Package included:
1 x E70-915T14S2 Transceiver Module
