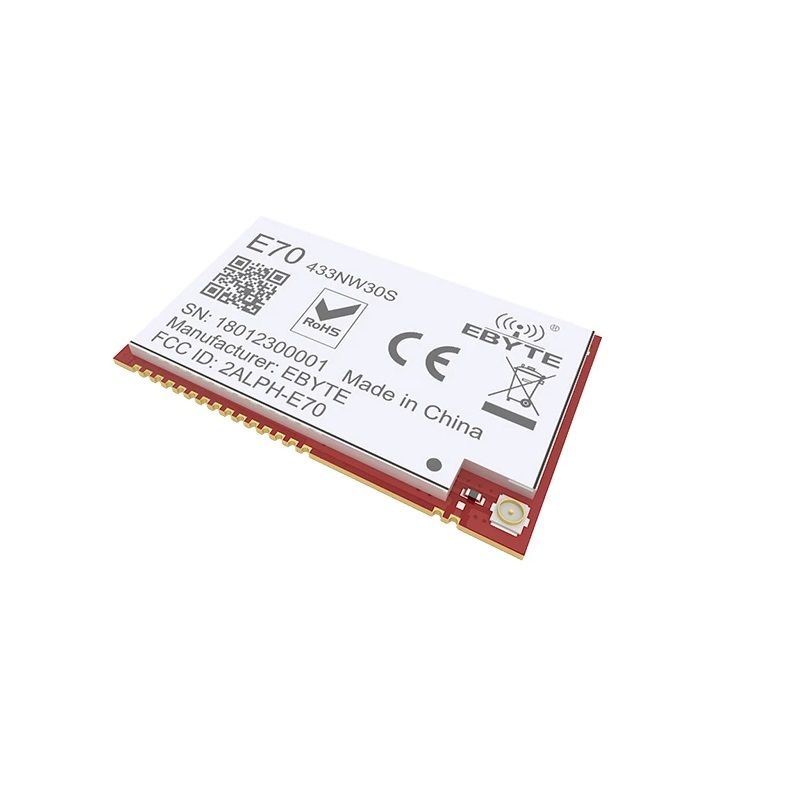

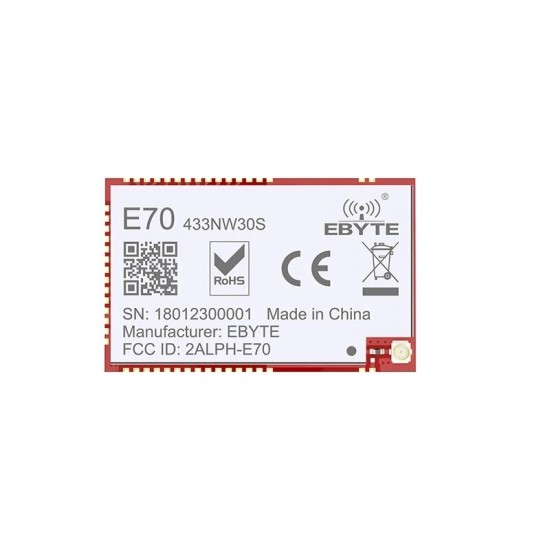

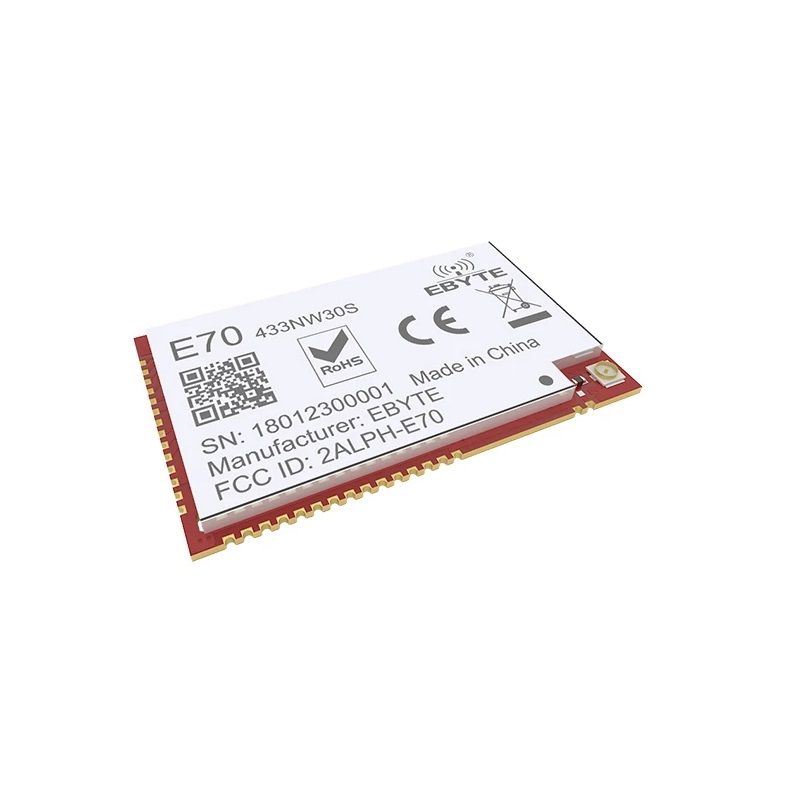

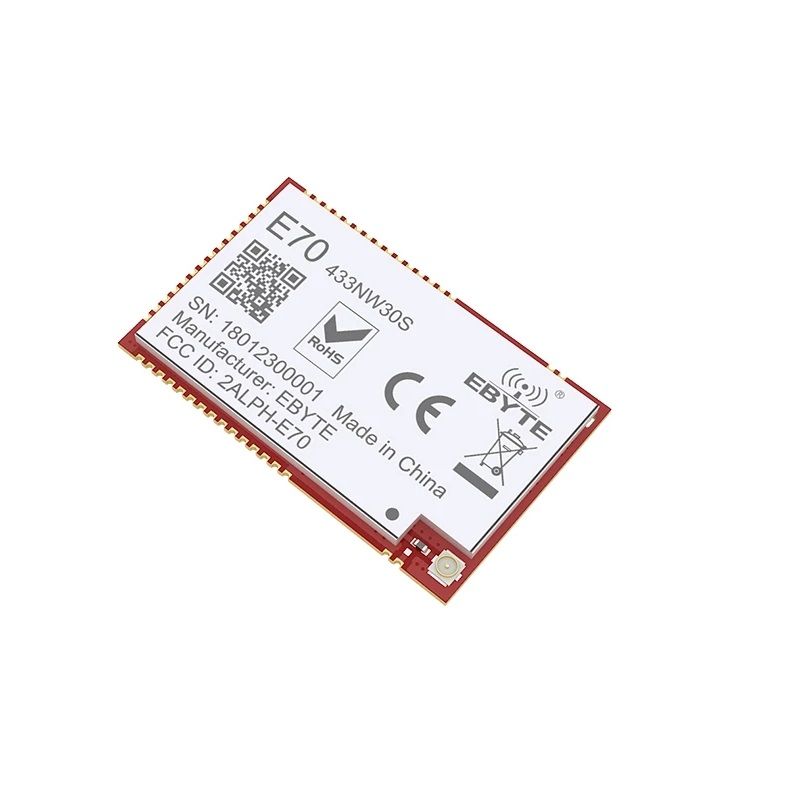

E70-433NW30S CC1310 433MHz RF Module 1W Star Network IPEX Antenna UHF Wireless Transceiver Transmitter Receiver
- Stock: In Stock
- Model: EB0047502
- SKU: EB0047502
|
RF Parameter |
Value |
Remark |
|
Working frequency |
433.3MHz~434.5MHz |
Support ISM band |
|
Transmitting power |
30dBm |
- |
|
Receiving sensitivity |
-110 dBm |
Air data rate: 5kbps |
|
Air data rate |
5k~50kbps |
Controlled via user's programming |
Test distance |
6500m |
Test condition:clear and open area, antenna gain: 5dBi,antenna height: 2.5m，air data rate: 5kbps |
Hardware Parameter |
Value |
Remark |

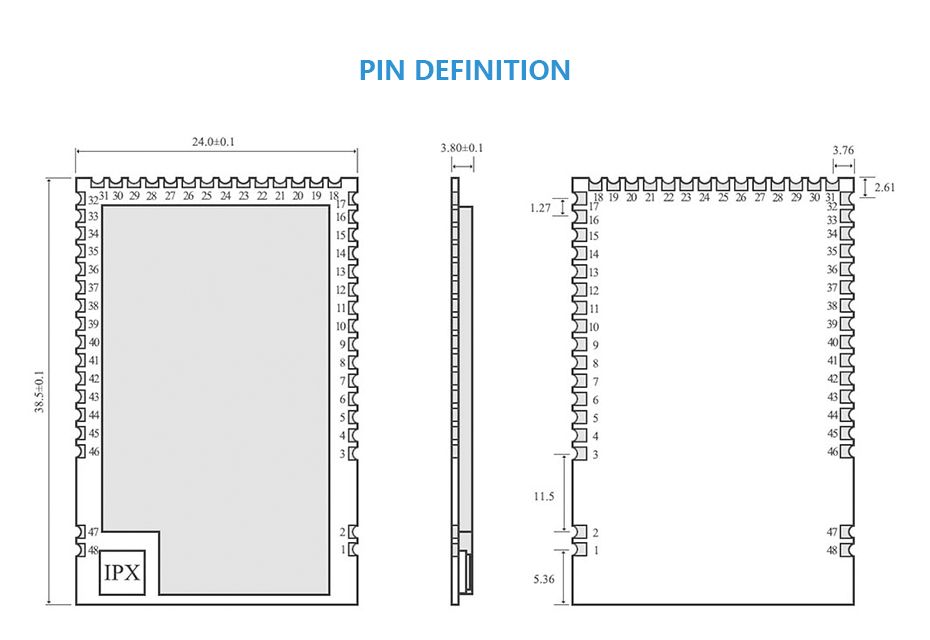

Size |
25 * 38.5mm |
- |
Antenna type |
IPEX / Stamp hole |
50 ohm impedance |

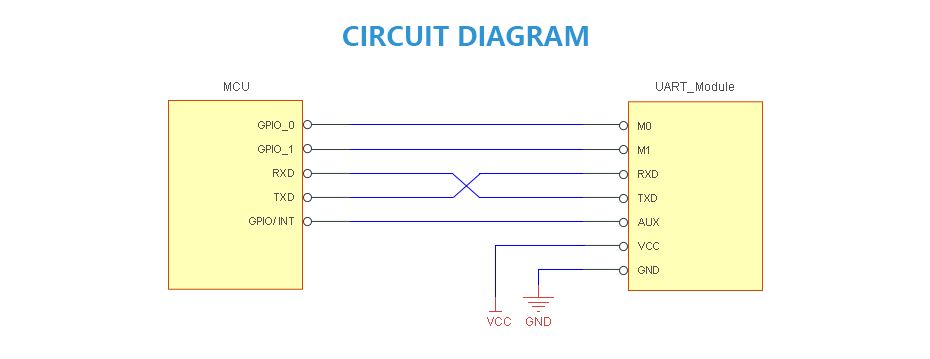

Communication interface |
UART |
- |
Package |
SMD |
- |
Buffer |
512byte |
A single packet may not exceed 128 bytes |
Electronic parameter |
Min. |
Typ. |
Max. |
Unit |
Condition |
Power supply |
3.3 | 5.0 | 5.2 | V |
≥3.3 V ensures output power |
Communication level |
- |
3.3 |
- |
V |
For 5V TTL, it may be at risk of burning down |
Transmitting current |
- |
610 |
- |
mA |
Instant power consumption |
Receiving current |
- |
13 |
- |
mA |
|
Sleep current |
- |
2 |
- |
μA |
Software is shut down |
Operating temperature |
-40 |
- |
+85 |
℃ |
|
Operating humidity |
10 |
- |
90 |
% |
|
Storage temperature |
-40 |
- |
+125 |
℃ |
|
