E22-400T22S SX1268 SMD 22dBm UART Wireless Transceiver 433MHz Radio IOT Module
- Stock: In Stock
- Model: EB0045334
- SKU: EB0045334
Specification:
RF Parameter
| Value | Remark |
Working frequency
| 410.125~493.125MHz | Default: 433MHz |
Transmitting power
| 22dBm | Max. Power (160mW) |
Receiving sensitivity
| -138dBm | - |
Air data rate | 0.3k~62.5kbps
| - |
Test distance | 4000m | In open and clear air, with Max. Power,5dBi antenna gain, height of 2m |
Hardware Parameter | Value | Remark |

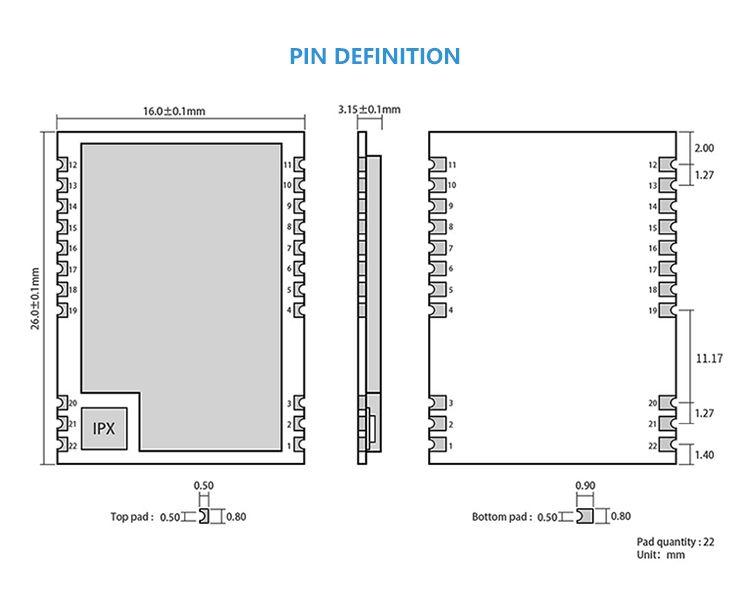

Size | 16* 26mm | / |
Antenna type | IPEX/Stamp hole | / |
Interface | UART | / |
Package | SMD | / |
Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
Power supply | 2.3 | 3.6 | 5.5 | V |
|
Communication level | 3.0 | 3.3 | 3.6 | V | |
Transmitting current | 95 | 100 | 105 | mA | 22dBm(160mW) |
Receiving current | 6 | 6.5 | 7 | mA |
|

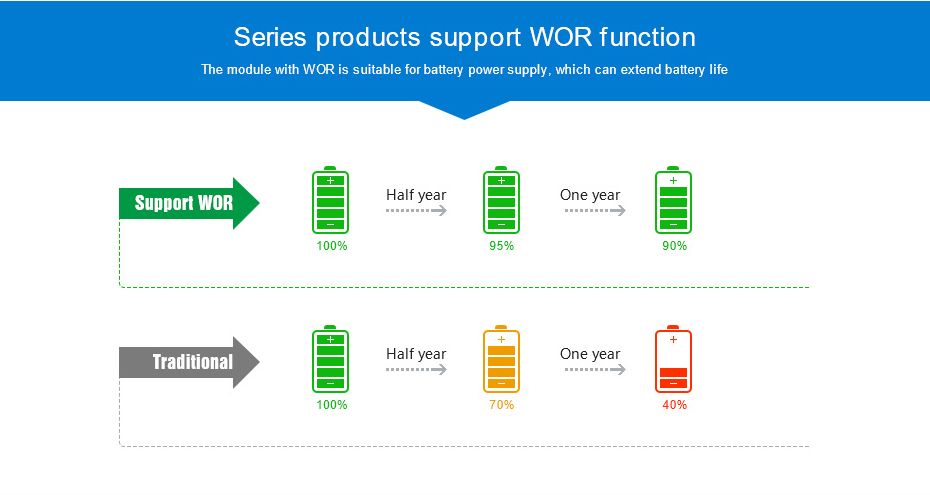

Sleep current | 1 | 2 | 3 | μA | |
Operating temperature | -40 | 20 | +85 | ℃ |
|
Operating humidity | 10 | 60 | 90 | % | |
Storage temperature | -40 | 20 | +125 | ℃ |
|
