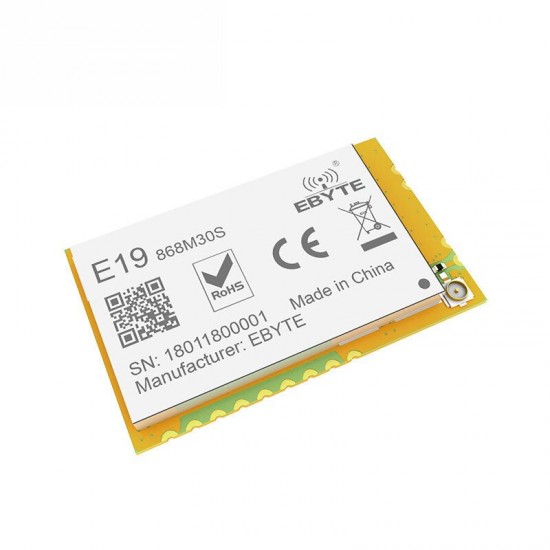

E19-868M30S SX1276 1W SMD SPI 10km Long Range 868MHz RF Modulator Wireless Transceiver Module
- Stock: In Stock
- Model: EB0045298
- SKU: EB0045298
Specifications:
| RF Parameter | Value | Remark |
| Working frequency | 900~931 MHz | Default: 915MHz (32MHz oscillator) |
| Transmitting power | 30 dBm | Max. Power (1W) |
| Receiving sensitivity | -148 dBm | Air data rate: 0.3kbps |
| Air data rate | 0.018k~37.5kbps | Default: 0.3kbps |
| Test distance | 10000m | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 0.3kbps |
| Hardware Parameter | Value | Remark |
Size | 25 * 40 mm |
|
Antenna type | Stamp hole / IPEX |
|
Communication interface | SPI |
|
Package | SMD |
|
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply | 3.3 | 5.0 | 5.5 | V | |
| Communication level | 1.8 | 3.3 | 3.6 | V | |
| Transmitting current | 570 | 630 | 690 | mA | 30dBm（1W） |
| Receiving current | 21 | 23 | 25 | mA | |
| Sleep current | 1.5 | 3.0 | 4.5 | μA | |
| Operating temperature | -40 | 20 | +85 | ℃ | |
| Operating humidity | 10 | 60 | 90 | % | |
| Storage temperature | -40 | 20 | +125 | ℃ |
Package included:
1 x E19-868M30S Transceiver Module
