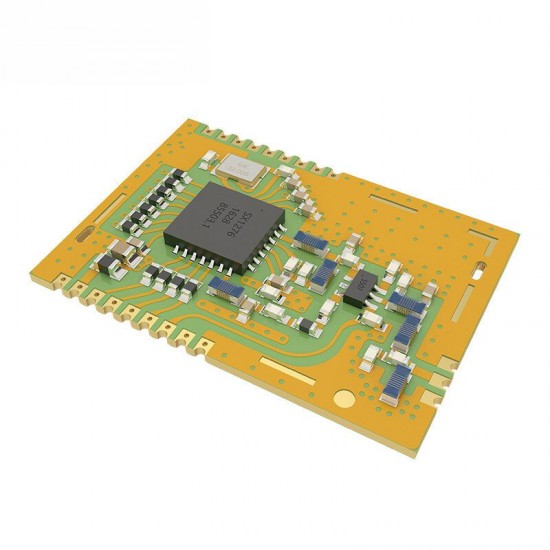

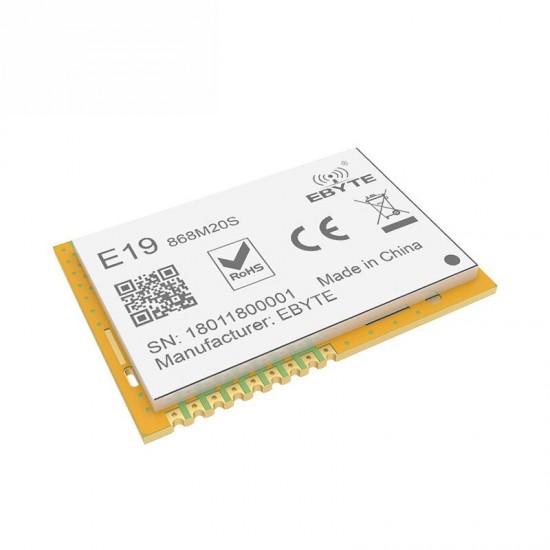

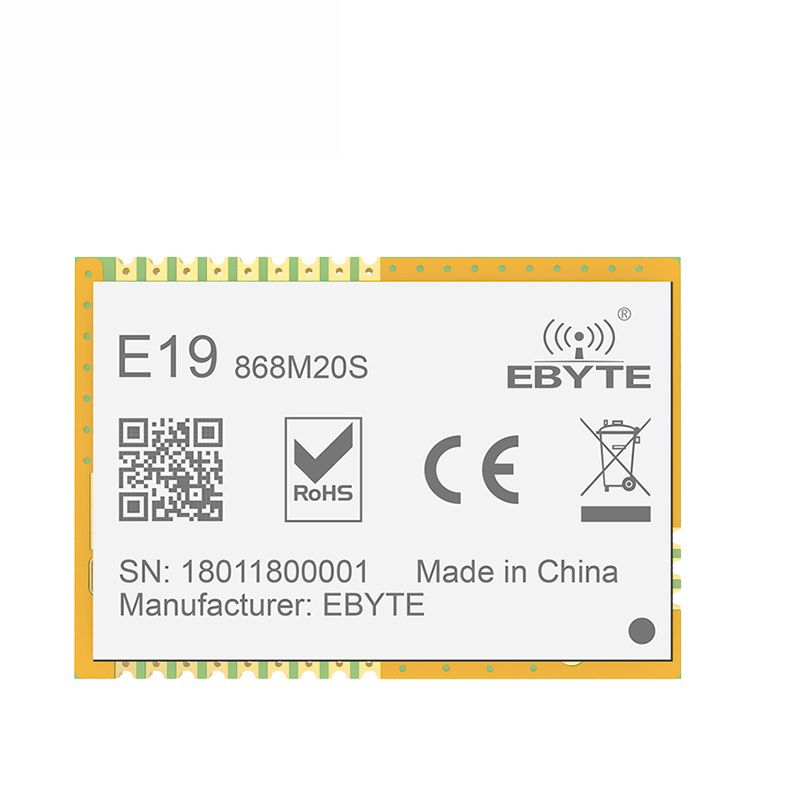

E19-868M20S SPI 20dBm SX1276 Long Distance 868MHz Transceiver Wireless RF Modulator Module
- Stock: In Stock
- Model: EB0042929
- SKU: EB0042929
Specifications:
| RF Parameter | Value | Remark |
| Working frequency | 862~893 MHz | Default: 868MHz (32MHz oscillator) |
| Transmitting power | 20 dBm | Max. Power (100mW) |
| Receiving sensitivity | -147 dBm | Air data rate: 0.3kbps |
| Air data rate | 0.018k~37.5kbps | Default: 0.3kbps |
| Test distance | 5000m | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 0.3kbps |
| Hardware Parameter | Value | Remark |

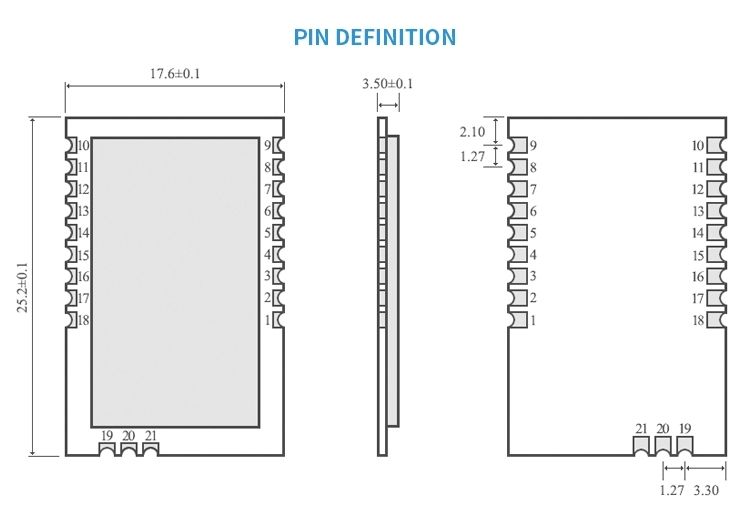

Size | 17.6 * 25.2 mm |
|
Antenna type | Stamp hole |
|

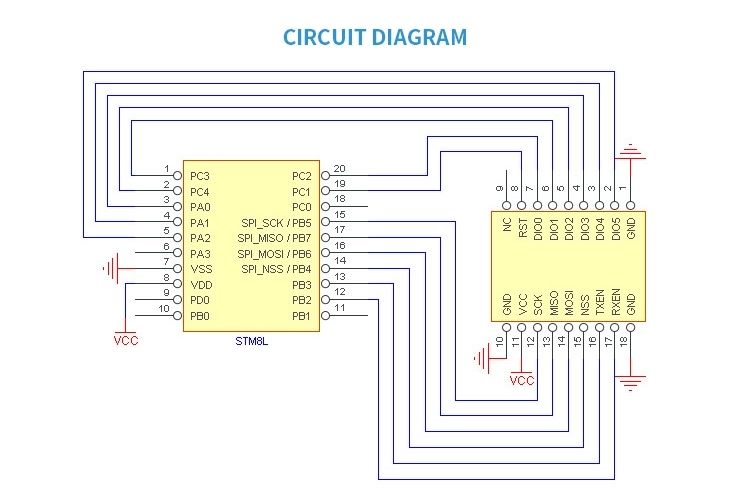

Communication interface | SPI |
|
Package | SMD |
|
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply | 1.8 | 3.3 | 3.6 | V | |
| Communication level | 1.8 | 3.3 | 3.6 | V | |
| Transmitting current | 100 | 110 | 120 | mA | 20dBm（100mW） |
| Receiving current | 13 | 14 | 15 | mA | |
| Sleep current | 0.5 | 1.0 | 2.5 | μA | |
| Operating temperature | -40 | 20 | +85 | ℃ | |
| Operating humidity | 10 | 60 | 90 | % | |
| Storage temperature | -40 | 20 | +125 | ℃ |
Package included:
1 x E19-868M20S Transceiver Module
