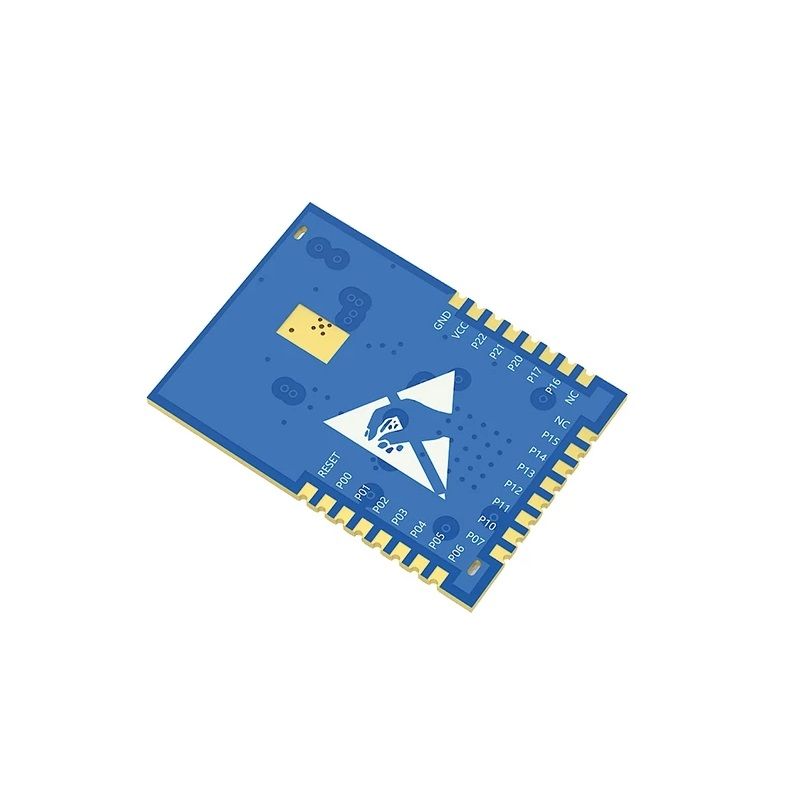

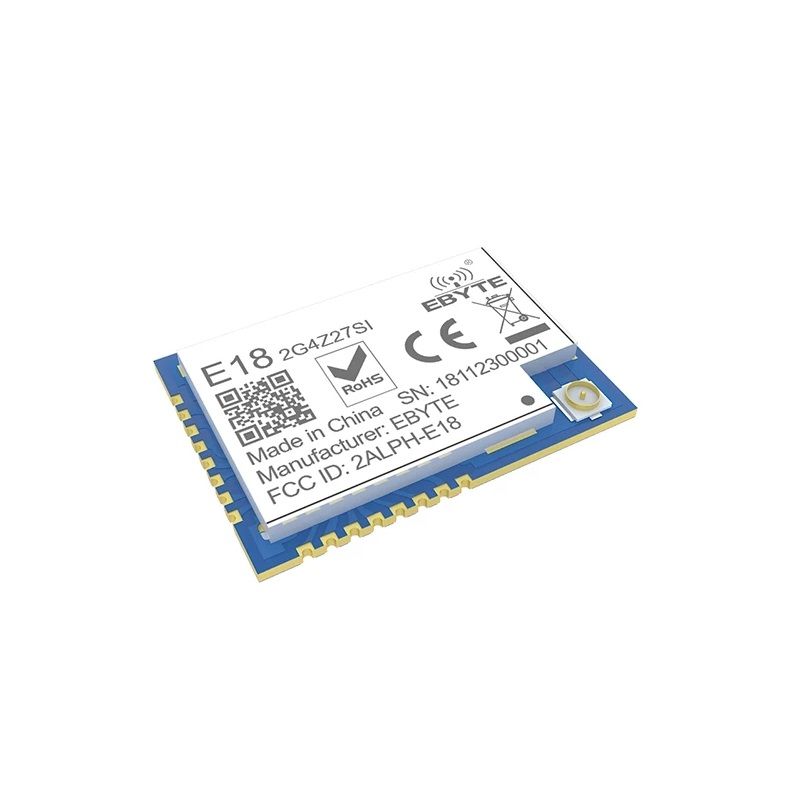

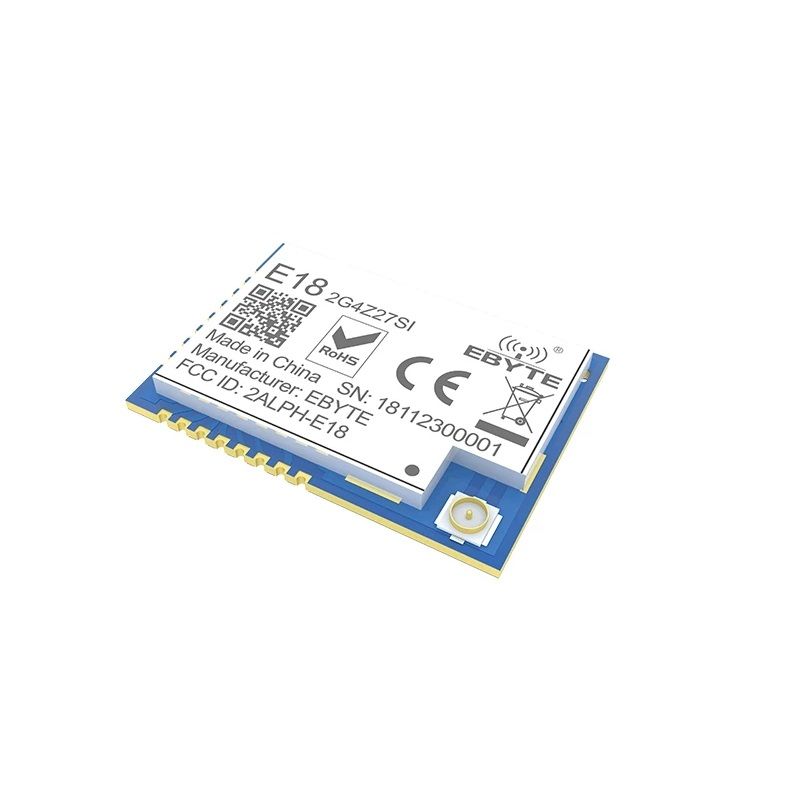

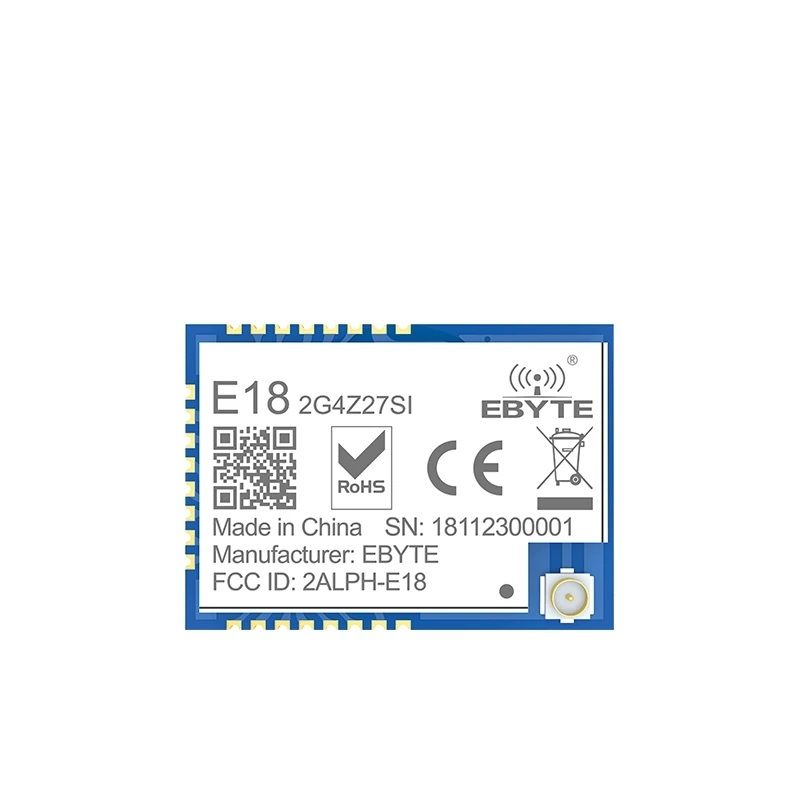

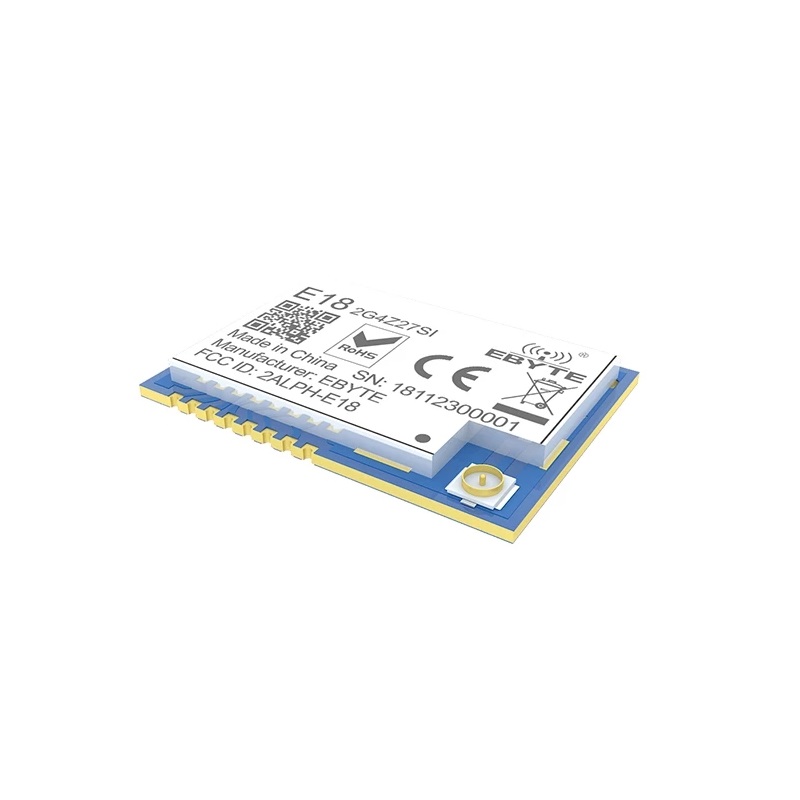

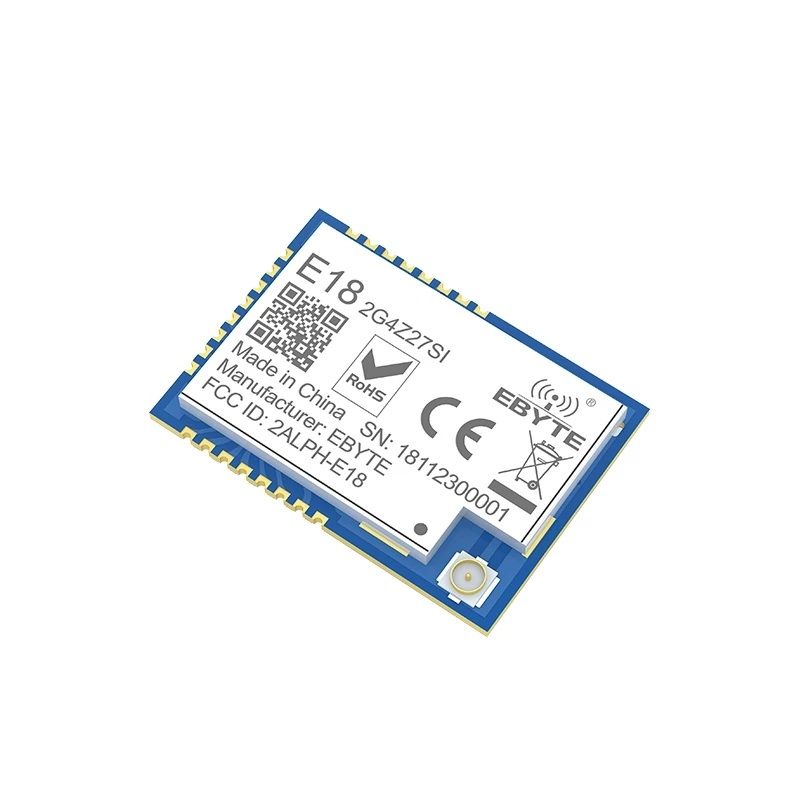

E18-2G4Z27SI CC2530 PA CC2592 2.4GHz IOT 500mW Wireless Transceiver RF Module for Zigbee
- Stock: In Stock
- Model: EB0047399
- SKU: EB0047399
Specification:
|
RF Parameter |
Value |
Remark |
|
Working frequency |
2400~2480MHz |
Support ISM band |
|
Transmitting power |
27dBm |
- |
|
Receiving sensitivity |
-99dBm |
Air data rate: 250kbps |
|
Protocol |

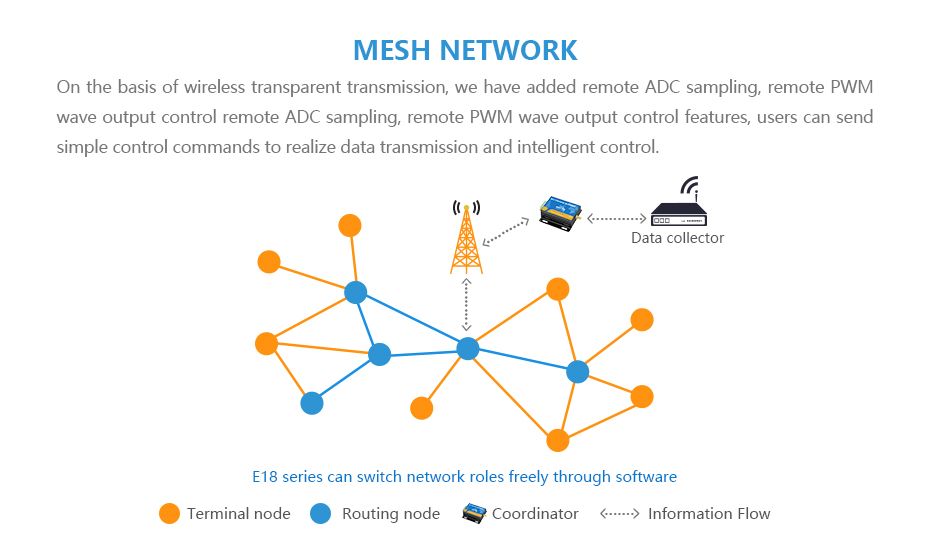

for ZigBee |
|
Test distance |
2500m |
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 250kbps |
Hardware Parameter |
Value |
Remark |

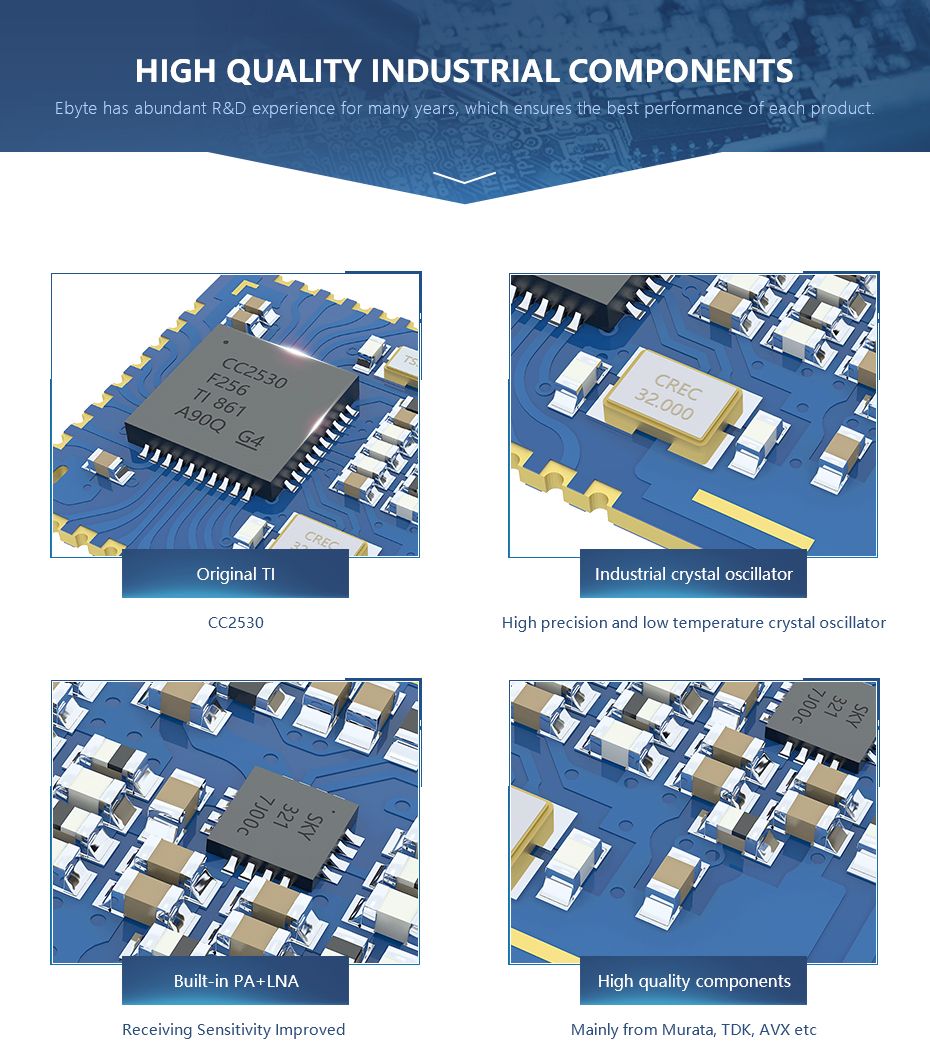

IC |
CC2530F256RHAT/QFN40 |
Built-in PA+LNA |
FLASH |
256KB |
/ |
RAM |
8 KB |
/ |
CORE |
8051 MCU |
/ |

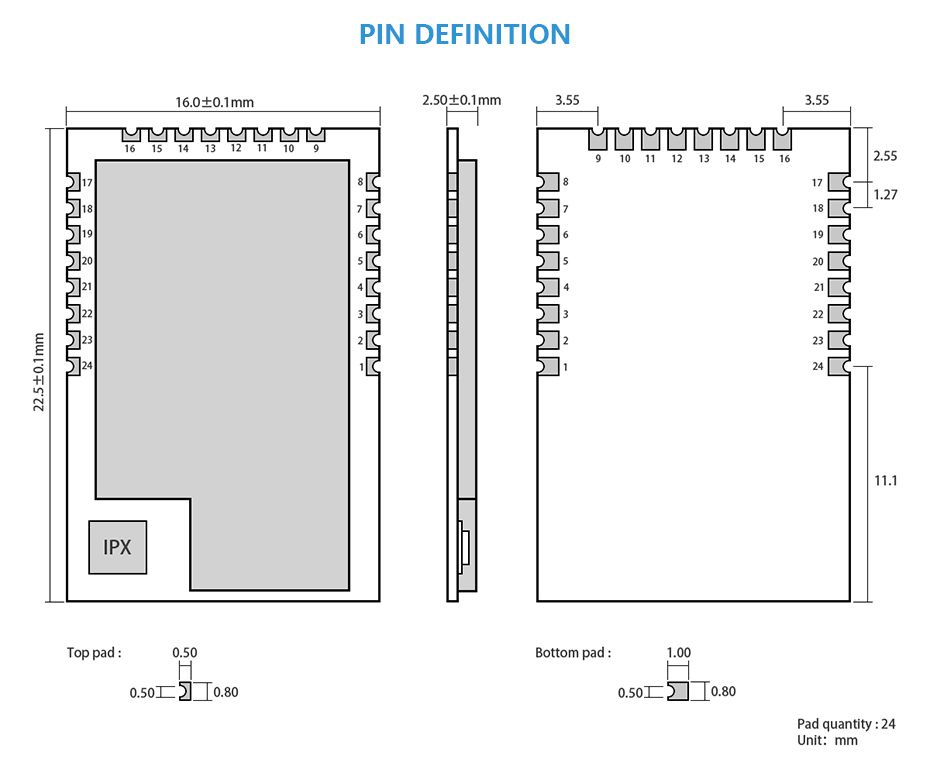

Size |
16.0* 22.5mm |
/ |
Antenna type |
IPEX |
/ |
Interface |
I/O |
/ |
Package |
SMD |
/ |
Electronic parameter |
Min. |
Typ. |
Max. |
Unit |
Condition |
Power supply |
2.5 |
3.3 |
3.6 |
V |
≥3.3 V ensures output power |
Communication level |
- |
3.3 |
- |
V |
For 5V TTL, it may be at risk of burning down |
Transmitting current |
- |
500 | - |
mA |
Instant power consumption |
Receiving current |
- | 33 | - | mA |
|
Sleep current |
- |
2.4 |
- |
μA |
Software is shut down |
Operating temperature |
-40 |
20 |
+85 |
℃ |
- |
Operating humidity |
10 |
60 |
90 |
% |
- |
Storage temperature |
-40 |
20 |
+125 |
℃ |
- |
