E07-915MS10 915MHz CC1101 SPI 1.2km 10dBm Communication Interface RF Transceiver Module

E07-915MS10 915MHz CC1101 SPI 1.2km 10dBm Communication Interface RF Transceiver Module
E07-915MS10 915MHz CC1101 SPI 1.2km 10dBm Communication Interface RF Transceiver Module
E07-915MS10 915MHz CC1101 SPI 1.2km 10dBm Communication Interface RF Transceiver Module
E07-915MS10 915MHz CC1101 SPI 1.2km 10dBm Communication Interface RF Transceiver Module
E07-915MS10 915MHz CC1101 SPI 1.2km 10dBm Communication Interface RF Transceiver Module
E07-915MS10 915MHz CC1101 SPI 1.2km 10dBm Communication Interface RF Transceiver Module
E07-915MS10 915MHz CC1101 SPI 1.2km 10dBm Communication Interface RF Transceiver Module
E07-915MS10 915MHz CC1101 SPI 1.2km 10dBm Communication Interface RF Transceiver Module
E07-915MS10 915MHz CC1101 SPI 1.2km 10dBm Communication Interface RF Transceiver Module
E07-915MS10 915MHz CC1101 SPI 1.2km 10dBm Communication Interface RF Transceiver Module
E07-915MS10 915MHz CC1101 SPI 1.2km 10dBm Communication Interface RF Transceiver Module
$7.99
Ex Tax: $7.99
  • Stock: In Stock
  • Model: EB0042986
  • SKU: EB0042986
  • WiFi: YES
    Precise details>>

    Specifications:


    RF ParameterValueRemark
    Working frequency900~925.5 MHz

    Default:  915MHz (26MHz oscillator)

    Transmitting power10 dBm

    Max. Power (10mW)

    Receiving sensitivity-109 dBm

    Air data rate: 0.6kbps

    Air data rate0.6k~500kbps

    Default: 0.6kbps

    Test distance1000m

    In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 0.6kbps



    Hardware ParameterValueRemark

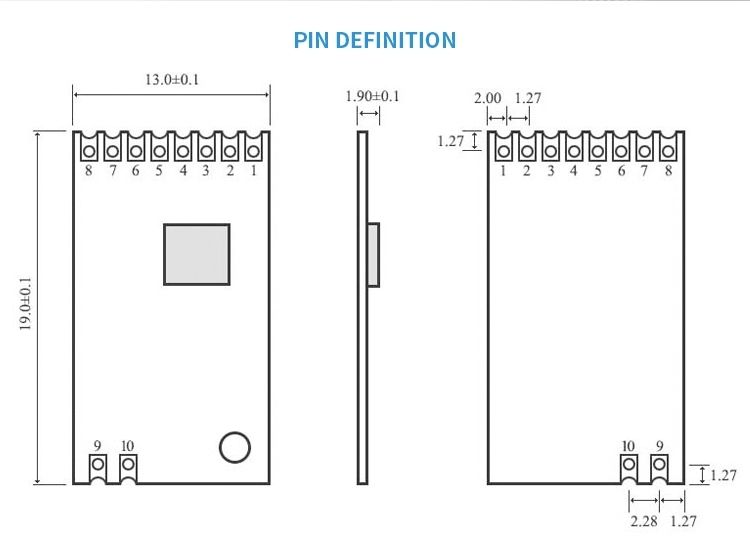

    Size

    13 * 19 mm



    Antenna type

    Stamp hole

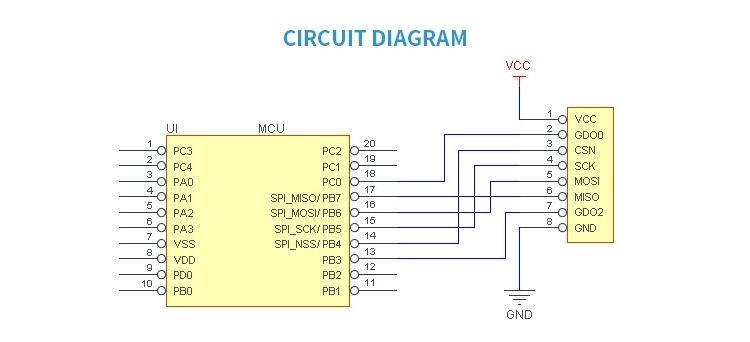

    Communication interface

    SPI



    Package

    SMD





    Electronic parameterMin.Typ.Max.UnitCondition
    Power supply1.83.33.6V
    Communication level1.83.33.6V
    Transmitting current343741mA10dBm(10mW)
    Receiving current182022mA
    Sleep current0.30.62.1μA
    Operating temperature-4020+85
    Operating humidity106090%
    Storage temperature-4020+125


    Package included:


    1 x E07-915MS10 Transceiver Module
