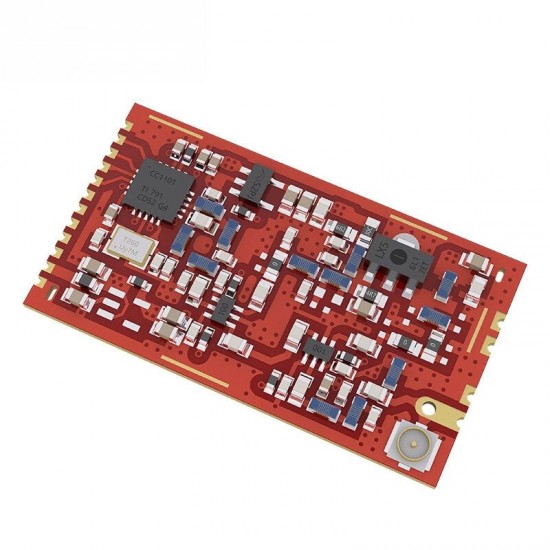

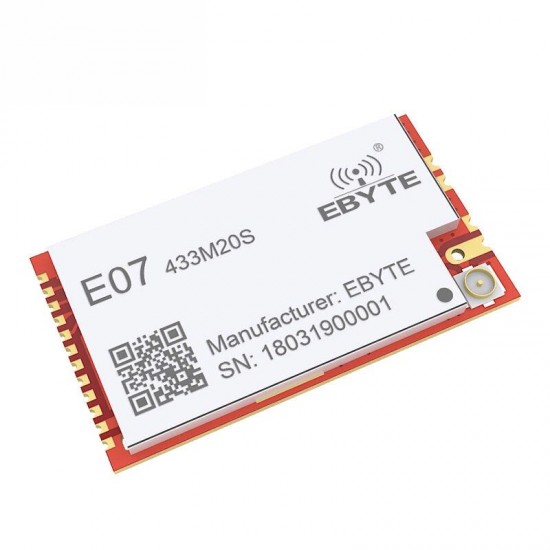

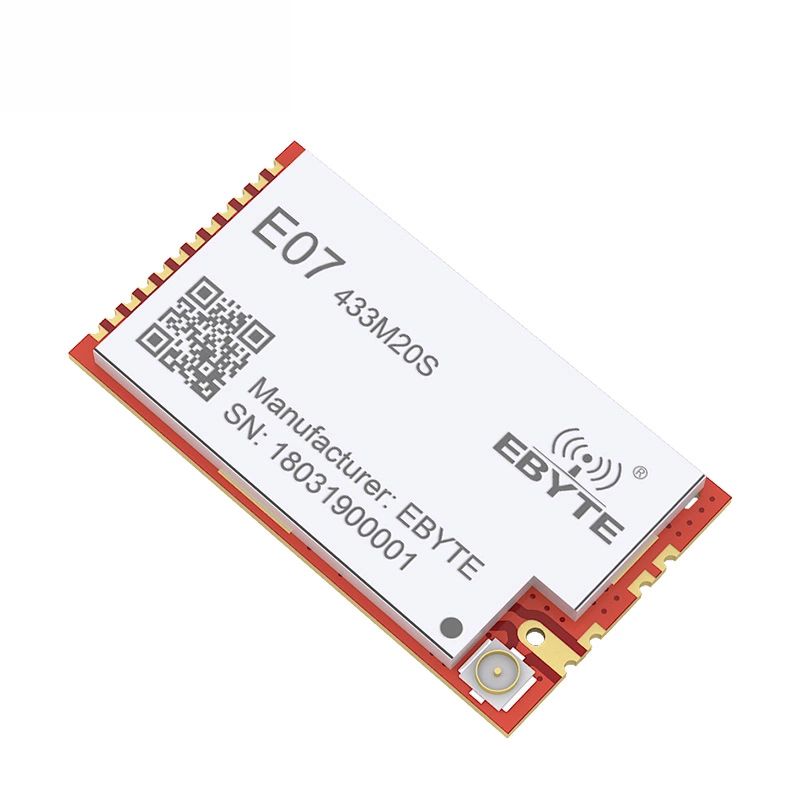

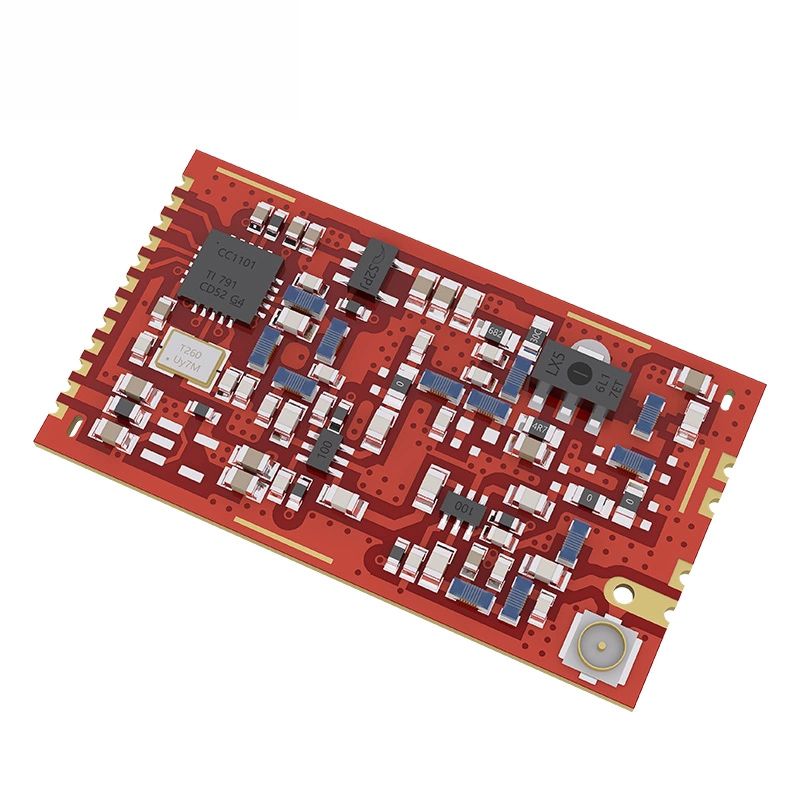

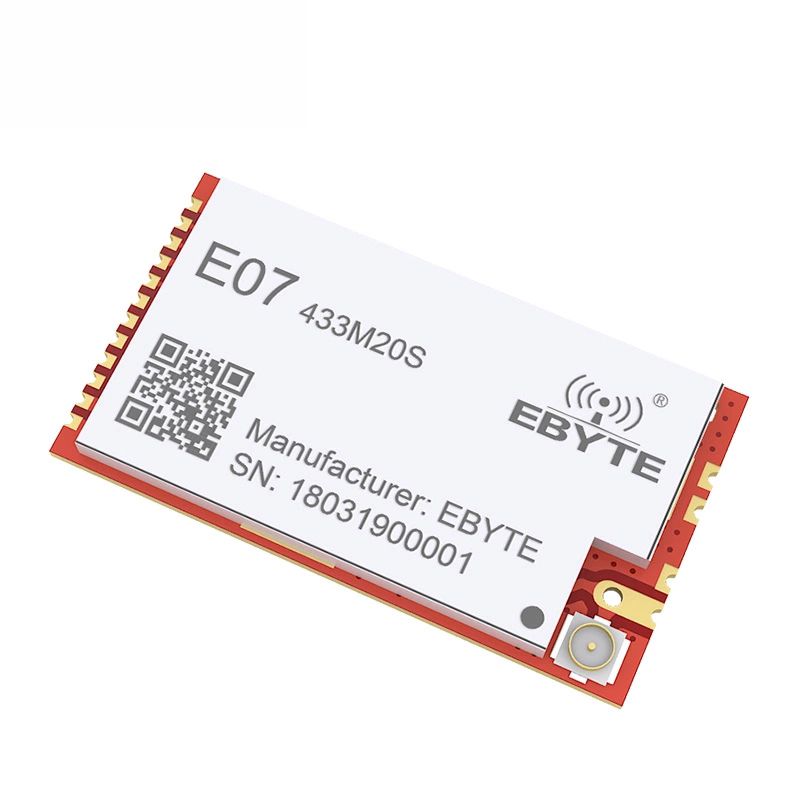

E07-433M20S CC1101 10dBm Stamp Hole IPEX Antenna Transmitter and Receiver SMD Transceiver 433MHz RF Module
- Stock: In Stock
- Model: EB0047463
- SKU: EB0047463
Feature:
| RF Parameter | Value | Remark |
| Working frequency | 425~450.5 MHz | Default: 433MHz (26MHz oscillator) |
| Transmitting power | 20 dBm | Max.Power (100mW) |
| Receiving sensitivity | -109 dBm | Data rate: 0.6kbps |
| Data rate | 0.6k~500kbps | Default: 0.6kbps |

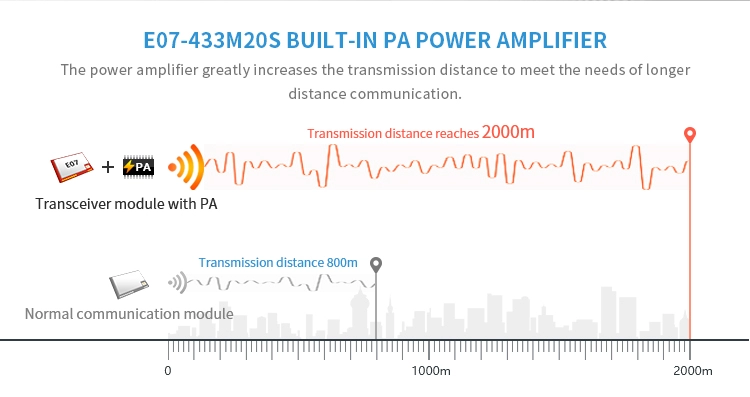

| Test distance | 2000m | In open and clear, with maximum power, 5dBi antenna gain, height of 2m, data rate: 0.6kbps |
| Hardware Parameter | Value | Remark |

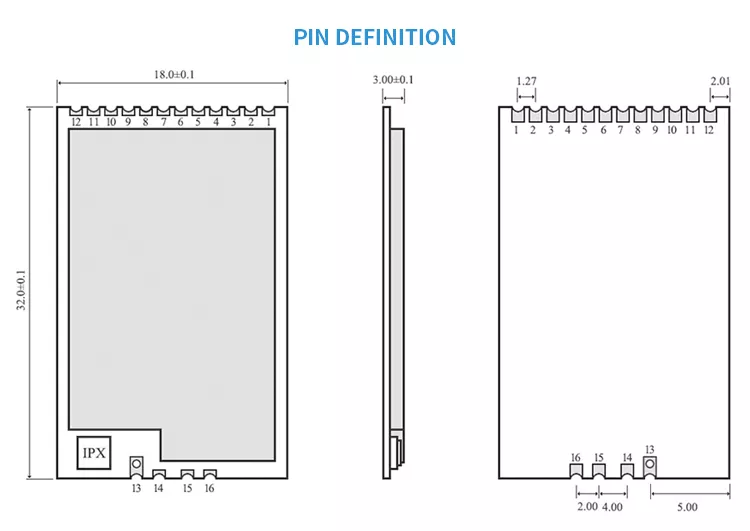

| Size | 18 * 32 mm | |
| Antenna type | Stamp hole / IPEX | |
| Communication interface | SPI | |
| Package | SMD |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply | 2.1 | 3.3 | 3.6 | V | |
| Communication level | 2.1 | 3.3 | 3.6 | V | |
| Transmitting current | 90 | 100 | 110 | mA | 20dBm(100mW) |
| Receiving current | 18 | 20 | 22 | mA | |
| Sleep current | 1.4 | 2 | 2.2 | μA | |
| Operating temperature | -40 | 20 | 85 | ℃ | |
| Operating humidity | 10 | 60 | 90 | % | |
| Storage temperature | -40 | 20 | 125 | ℃ |
Specification:
Interface: SPI(SMD)
Power: 10dBm
Distance:400m
Supply voltage:2.0 ~ 3.6V DC
Frequency:2433MHz(387 ~ 464MHz)
Package Included:
1 x Module
