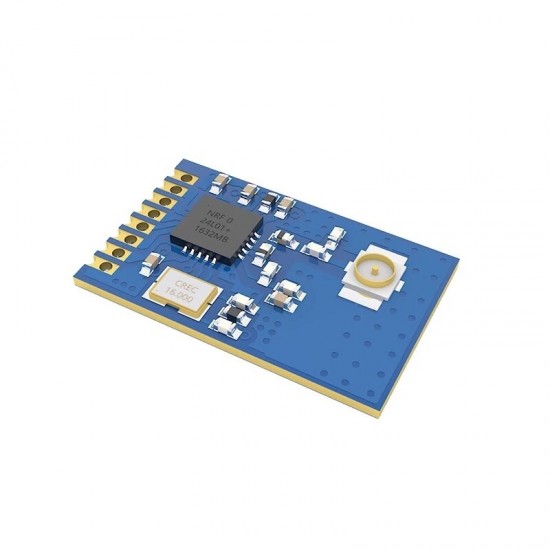

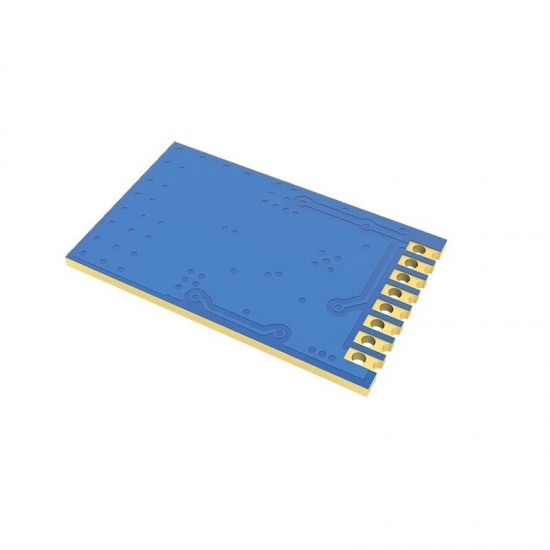

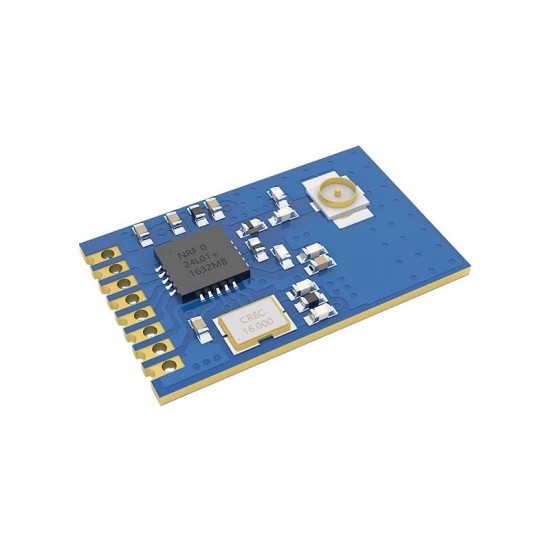

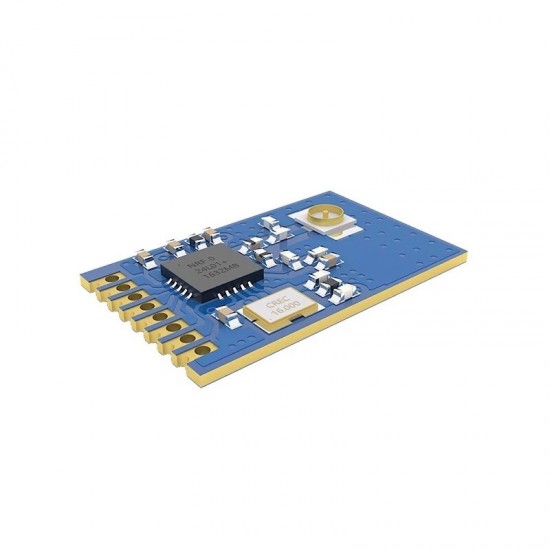

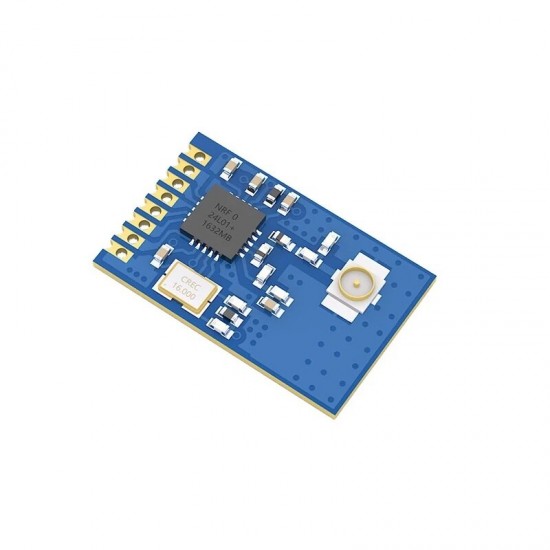

E01-ML01IPX 2.4GHz SPI 150m nRF24L01 PA SPI Wireless Transmitter Receiver RF Module for IOT
- Stock: In Stock
- Model: EB0045500
- SKU: EB0045500
- Voltage: DC3.3V
Precise details:
Specification:
RF Parameter | Value | Remark |
Working frequency | 2400~2525 MHz | Default: 2.4GHz (16MHz oscillator) |
Transmitting power | 0dBm | Max. Power (1mW) |
Receiving sensitivity | -93 dBm | Air data rate: 250kbps |
Air data rate | 250k~2Mbps | Default: 250kbps |
Test distance | 200m | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 250kbps |
Hardware Parameter | Value | Remark |

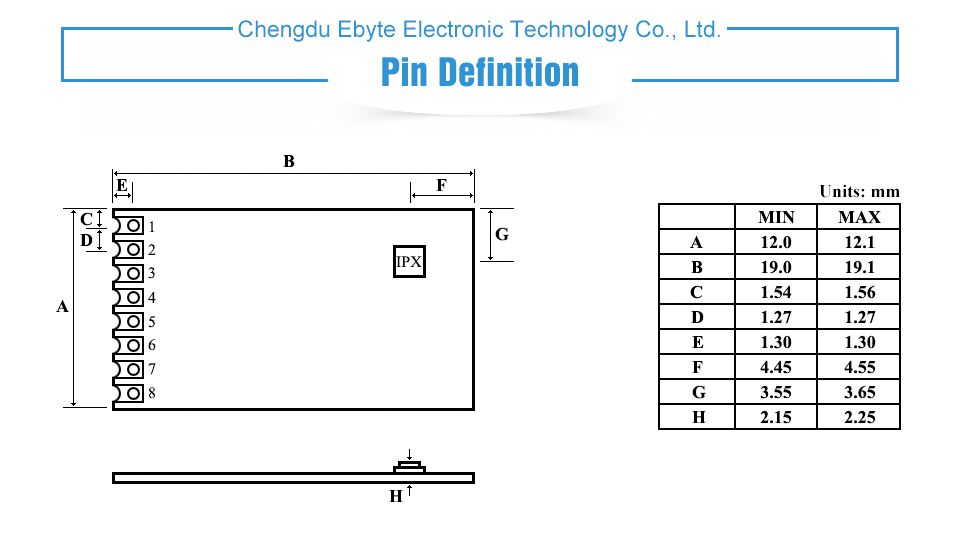

Size | 12 * 19 mm | Without SMA |
Antenna type | IPEX |
|

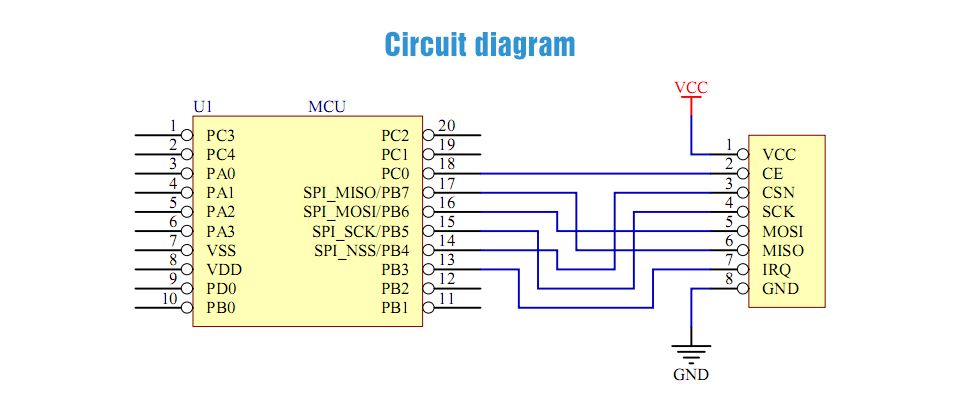

Communication interface | SPI |
|
Package | SMD |
|
Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
Power supply | 2.0 | 3.3 | 3.6 | V |
|
Communication level | 2.0 | 3.3 | 3.6 | V |
|
Transmitting current | 12 | 13 | 14 | mA | 0dBm(1mW) |
Receiving current | 11 | 12 | 13 | mA |
|
Sleep current | 0.5 | 1.0 | 2.0 | μA |
|
Operating temperature | -40 | 20 | +85 | ℃ |
|
Operating humidity | 10 | 60 | 90 | % |
|
Storage temperature | -40 | 20 | +125 | ℃ |
|
Specification:
RF Parameter | Value | Remark |
Working frequency | 2400~2525 MHz | Default: 2.4GHz (16MHz oscillator) |
Transmitting power | 0dBm | Max. Power (1mW) |
Receiving sensitivity | -93 dBm | Air data rate: 250kbps |
Air data rate | 250k~2Mbps | Default: 250kbps |
Test distance | 200m | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 250kbps |
Hardware Parameter | Value | Remark |
Size | 12 * 19 mm | Without SMA |
Antenna type | IPEX |
|
Communication interface | SPI |
|
Package | SMD |
|
