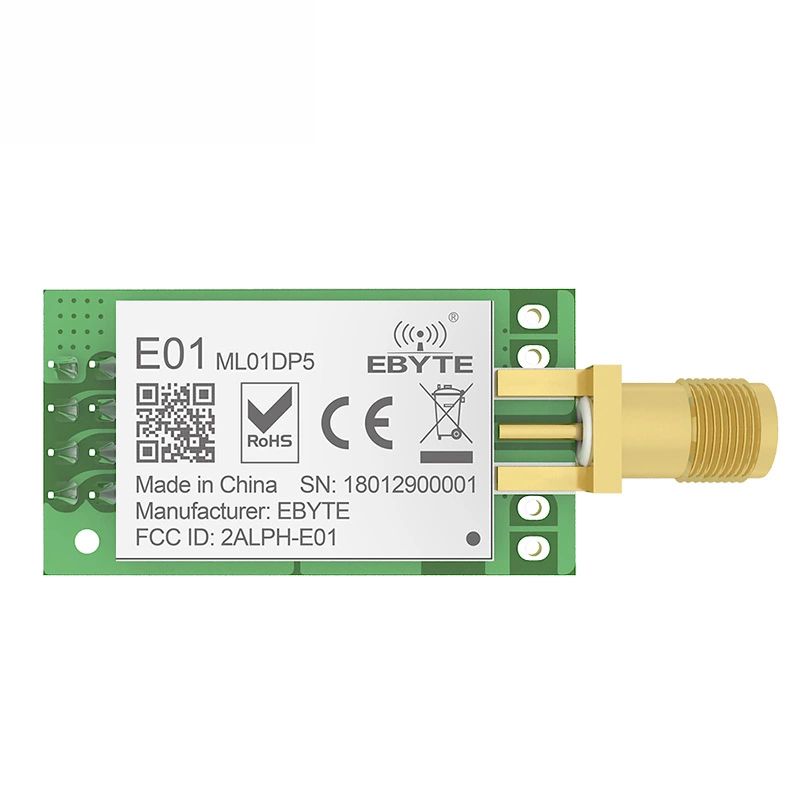

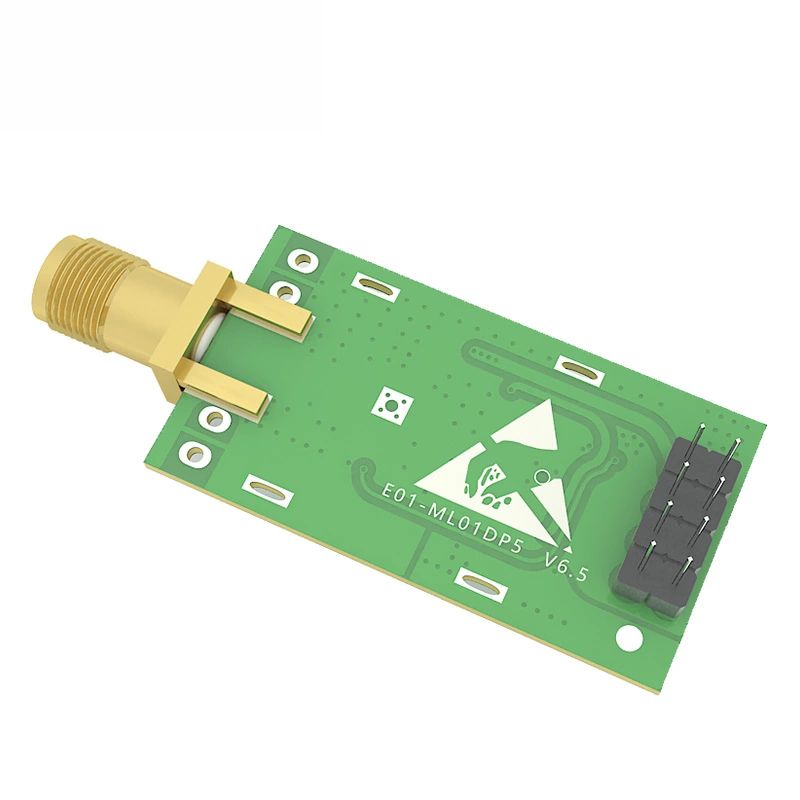

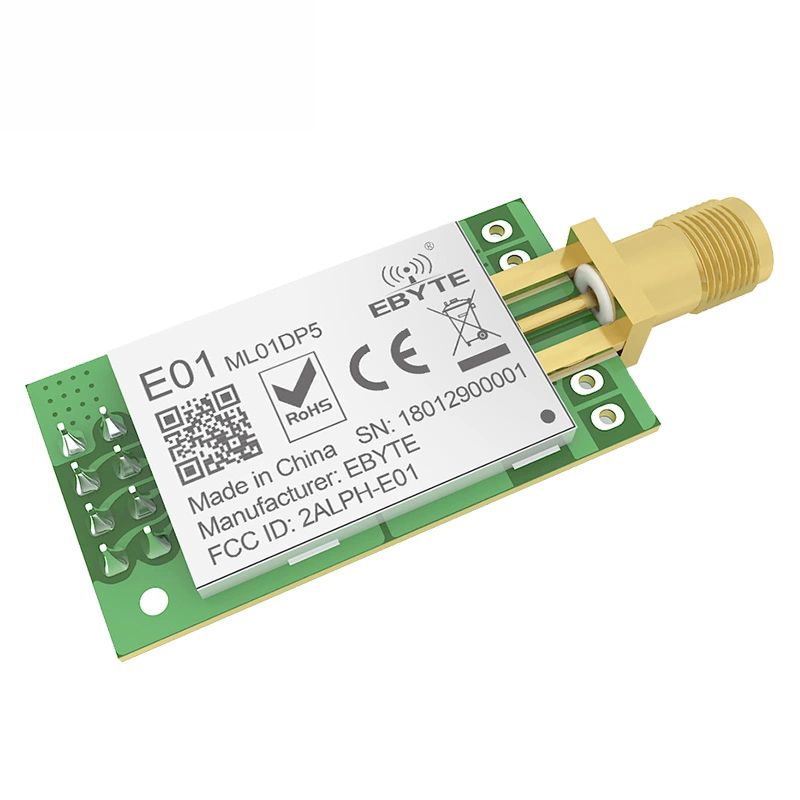

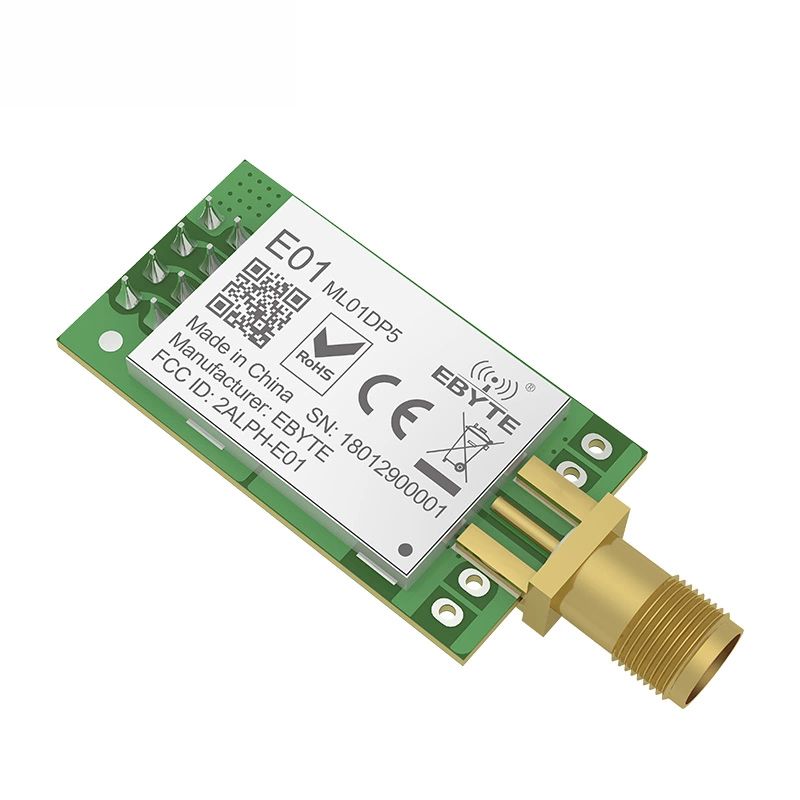

E01-ML01DP5 nRF24L01P 2.4GHz nRF24L01 PA LNA RF Wireless Transceiver RF Module
- Stock: In Stock
- Model: EB0042136
- SKU: EB0042136
- WiFi: YES
Precise details:
Feature:

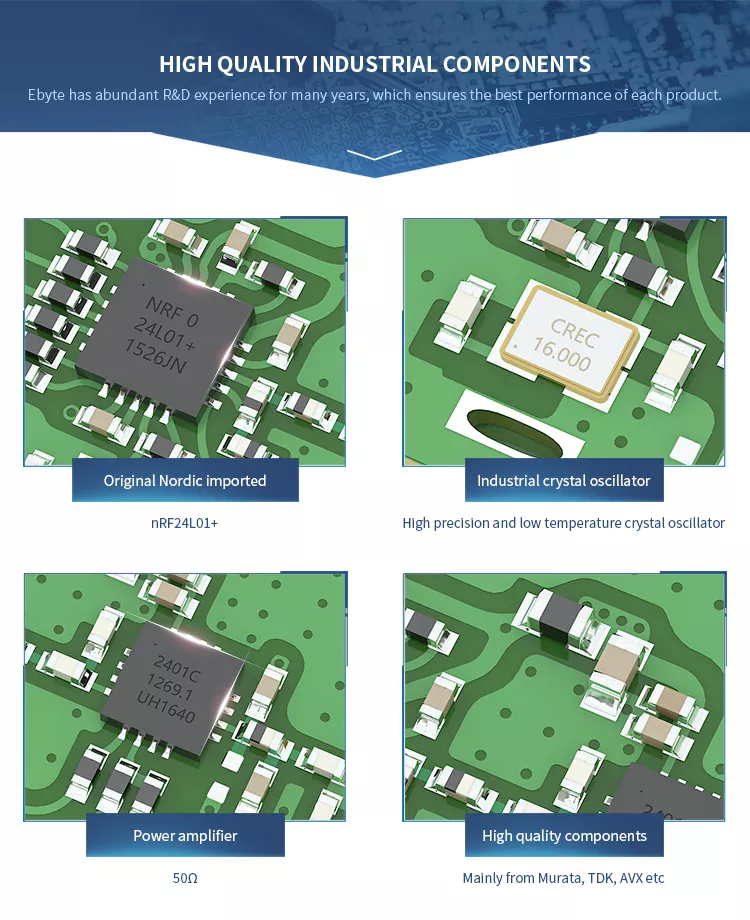

E01-ML01DP5 is based on original imported nRF24L01P form Nordic in Norway. And equipped with 20dBm power amplifier chip imported from USA, which makes the transmitting power achieves 100mW (20dBm) while the receiving sensitivity enhanced by 10dB. Those features make the transmitting distance 10 times longer than nRF24L01P itself. The anti-interference shielding cover on the module makes the anti-interference performance better.
| RF Parameter | Value | Remark |
| Working frequency | 2400~2525 MHz | Default: 2.4GHz (16MHz oscillator) |
| Transmitting power | 20 dBm | Max. Power (100mW) |
| Receiving sensitivity | -96 dBm | Data rate: 250kbps |
| Data rate | 250k~2Mbps | Default: 250kbps |
| Test distance | 2500m | In open and clear, with maximum power, 5dBi antenna gain, height of 2m, data rate: 250kbps |
| Hardware Parameter | Value | Remark |
| Size | 18 * 33.4 mm | Without SMA |
| Antenna type | SMA-K | |
| Communication interface | SPI | |
| Package | DIP |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply | 2 | 3.3 | 3.6 | V | |
| Communication level | 2 | 3.3 | 3.6 | V | |
| Transmitting current | 120 | 130 | 140 | mA | 20dBm(100mW) |
| Receiving current | 18 | 20 | 22 | mA | |
| Sleep current | 0.5 | 1 | 2 | μA | |
| Operating temperature | -40 | 20 | 85 | ℃ | |
| Operating humidity | 10 | 60 | 90 | % | |
| Storage temperature | -40 | 20 | 125 | ℃ |
Specification:
Interface: SPI
Power: 0dBm (1mW)
Distance:100m
Supply voltage:1.9V ~ 3.6V DC
Frequency:2.4GHz (2400MHz ~ 2525MHz)
Package Included:
1 x Module
Feature:
E01-ML01DP5 is based on original imported nRF24L01P form Nordic in Norway. And equipped with 20dBm power amplifier chip imported from USA, which makes the transmitting power achieves 100mW (20dBm) while the receiving sensitivity enhanced by 10dB. Those features make the transmitting distance 10 times longer than nRF24L01P itself. The anti-interference shielding cover on the module makes the anti-interference performance better.
| RF Parameter | Value | Remark |
| Working frequency | 2400~2525 MHz | Default: 2.4GHz (16MHz oscillator) |
| Transmitting power | 20 dBm | Max. Power (100mW) |
| Receiving sensitivity | -96 dBm | Data rate: 250kbps |
| Data rate | 250k~2Mbps | Default: 250kbps |
| Test distance | 2500m | In open and clear, with maximum power, 5dBi antenna gain, height of 2m, data rate: 250kbps |
| Hardware Parameter | Value | Remark |
| Size | 18 * 33.4 mm | Without SMA |
| Antenna type | SMA-K | |
| Communication interface | SPI | |
| Package | DIP |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply | 2 | 3.3 | 3.6 | V | |
| Communication level | 2 | 3.3 | 3.6 | V | |
| Transmitting current | 120 | 130 | 140 | mA | 20dBm(100mW) |
| Receiving current | 18 | 20 | 22 | mA | |
| Sleep current | 0.5 | 1 | 2 | μA | |
| Operating temperature | -40 | 20 | 85 | ℃ | |
| Operating humidity | 10 | 60 | 90 | % | |
| Storage temperature | -40 | 20 | 125 | ℃ |
Specification:
Interface: SPI
Power: 0dBm (1mW)
Distance:100m
Supply voltage:1.9V ~ 3.6V DC
Frequency:2.4GHz (2400MHz ~ 2525MHz)
Package Included:
1 x Module
