E01-ML01DP4 2.4GHz nRF24L01P SPI Interface 20dBm 2.4G nRF24L01 PA LNA PCB Antenna RF Transceiver Module
- Stock: In Stock
- Model: EB0045396
- SKU: EB0045396
- WiFi: YES
Precise details:
Feature:
E01-ML01DP4 is based on original imported nRF24L01P form Nordic in Norway. And equipped with 20dBm power amplifier chip imported from USA, which makes the transmitting power achieves 100mW (20dBm) while the receiving sensitivity enhanced by 10dB. With high-performance PCB antenna and impedance matching, it is convenient for embedded development without external antenna.
| RF Parameter | Value | Remark | |||
| Working frequency | 2400~2525 MHz | Default: 2.4GHz (16MHz oscillator) | |||
| Transmitting power | 20 dBm | Max. Power (100mW) | |||
| Receiving sensitivity | -96 dBm | Data rate: 250kbps | |||
| Data rate | 250k~2Mbps | Default: 250kbps | |||
| Test distance | 1800m | In open and clear, with maximum power, 5dBi antenna gain, height of 2m, data rate: 250kbps |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply | 2 | 3.3 | 3.6 | V | |
| Communication level | 2 | 3.3 | 3.6 | V | |
| Transmitting current | 100 | 110 | 120 | mA | 20dBm(100mW) |
| Receiving current | 18 | 20 | 22 | mA | |
| Sleep current | 0.5 | 1 | 2 | μA | |
| Operating temperature | -40 | 20 | 85 | ℃ | |
| Operating humidity | 10 | 60 | 90 | % | |
| Storage temperature | -40 | 20 | 125 | ℃ |

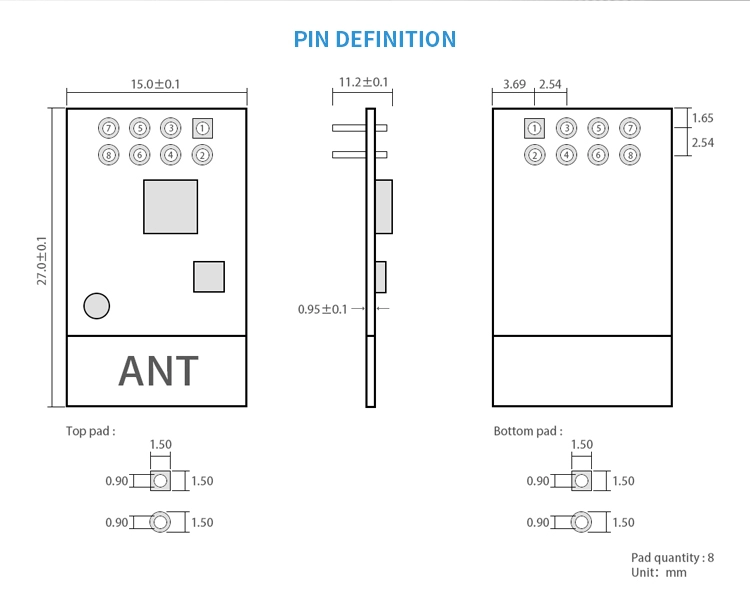

| Hardware Parameter | Value | Remark |
| Size | 15 * 27 mm | Without SMA |
| Antenna type | PCB | |
| Communication interface | SPI | |
| Package | DIP |
Specification:
Interface: SPI(SMD)
Power: 420dBm
Distance: 800m
Antenna type: PCB Antenna
Frequency: 2.4GHz(2400MHz-2525MHz)
Package Included:
1 x Module
Feature:
E01-ML01DP4 is based on original imported nRF24L01P form Nordic in Norway. And equipped with 20dBm power amplifier chip imported from USA, which makes the transmitting power achieves 100mW (20dBm) while the receiving sensitivity enhanced by 10dB. With high-performance PCB antenna and impedance matching, it is convenient for embedded development without external antenna.
| RF Parameter | Value | Remark | |||
| Working frequency | 2400~2525 MHz | Default: 2.4GHz (16MHz oscillator) | |||
| Transmitting power | 20 dBm | Max. Power (100mW) | |||
| Receiving sensitivity | -96 dBm | Data rate: 250kbps | |||
| Data rate | 250k~2Mbps | Default: 250kbps | |||
| Test distance | 1800m | In open and clear, with maximum power, 5dBi antenna gain, height of 2m, data rate: 250kbps |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply | 2 | 3.3 | 3.6 | V | |
| Communication level | 2 | 3.3 | 3.6 | V | |
| Transmitting current | 100 | 110 | 120 | mA | 20dBm(100mW) |
| Receiving current | 18 | 20 | 22 | mA | |
| Sleep current | 0.5 | 1 | 2 | μA | |
| Operating temperature | -40 | 20 | 85 | ℃ | |
| Operating humidity | 10 | 60 | 90 | % | |
| Storage temperature | -40 | 20 | 125 | ℃ |
| Hardware Parameter | Value | Remark |
| Size | 15 * 27 mm | Without SMA |
| Antenna type | PCB | |
| Communication interface | SPI | |
| Package | DIP |
Specification:
Interface: SPI(SMD)
Power: 420dBm
Distance: 800m
Antenna type: PCB Antenna
Frequency: 2.4GHz(2400MHz-2525MHz)
Package Included:
1 x Module
