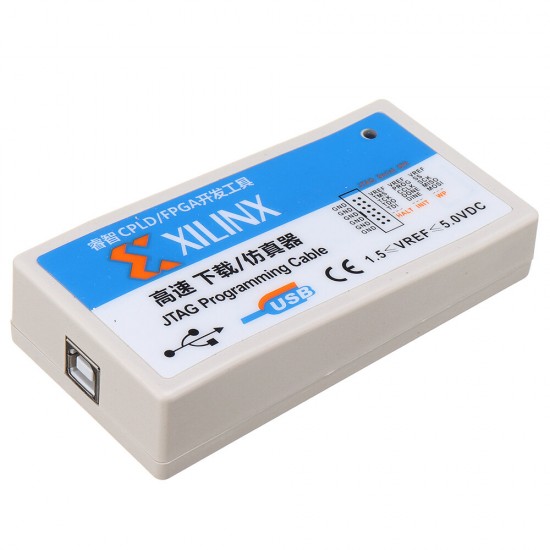

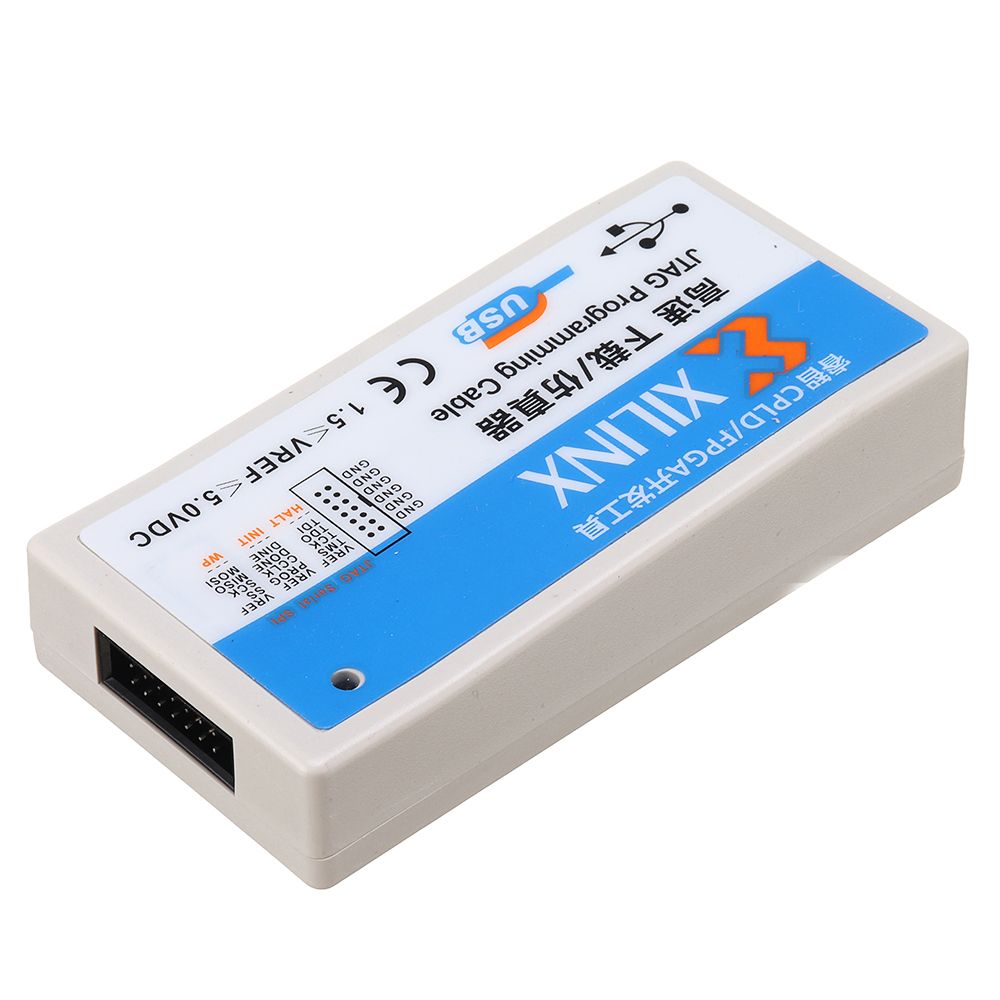

Downloader JTAG SMT2 Cable USB Download Line High Speed Version

Feature:

1. Fully compatible with the original XILINX Digilent Hi speed JTAG SMT2 downloader of XILINX, supports native drivers of ISE14.7 and above, impact, Chipscope, EDK, Vivado2013+ and other software.

2. Based on XILINX Digilent JTAG SMT2 high-speed downloader module circuit design.

3. Support XP, WIN7, WIN8, WIN10 32bit/64bit system and Linux system

4. Supported devices: Xilinx FPGAs, XILINX Zynq-7000, XILINX CoolRunner™/CoolRunner-II CPLDs, Xilinx Platform Flash ISP configuration PROMs, Select third-party SPI PROMs, Select third-party BPI PROMs

5. Automatically detect and adapt to the target I/O voltage, support devices that use 5V (TTL), 3.3V (LVCMOS), 2.5V, 1.8V and 1.5V interface levels, and the VREF level range is 1.5 to 5.5V (redesigned With the JTAG interface circuit, all can support at least 1.2V, and increase the interface protection circuit) as the official.

6. The target device download clock is optional, and supports the automatic speed adjustment of XILINX software.

7. Use expensive dedicated wide voltage level conversion interface chip, and add ESD protection circuit. The isolation is sufficiently complete, which is not comparable to the use of cheap and easily burned interface chips. Because the isolation is sufficiently complete, after the programming and debugging is completed, the plug can be directly unplugged from the JTAG port when the target board is powered off, avoiding the trouble of burning expensive FPGA chips on the system board due to misoperation. Even if VREF is connected incorrectly or reversed, it will easily damage the downloader or target board FPGA chip. This is the reason why many downloaders burn down the downloader or damage the expensive FPGA chip because of accidentally connecting the wrong signal line.

8. Two-color LED status indication, which can be used for programming and debugging of JTAG/SPI interface flash PROM devices.

9. The interface adapter board adopts anti-reverse insertion design. If it is inserted reversely, there is no way to insert it. Avoid the trouble of not working properly because of reverse plugging.

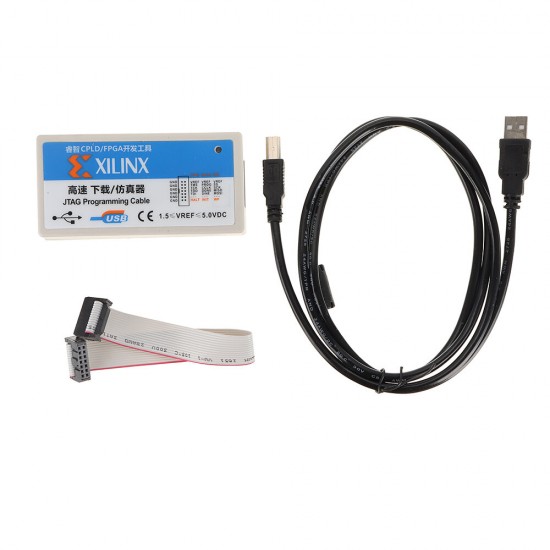

Package includes:

1 x Downloader

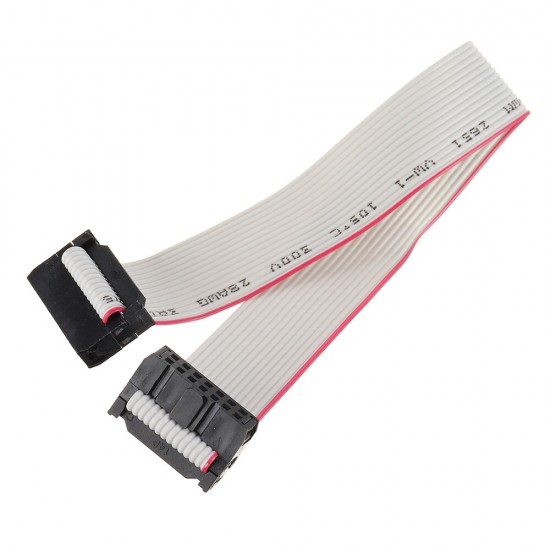

1 x 14pin 2.54jtag cable

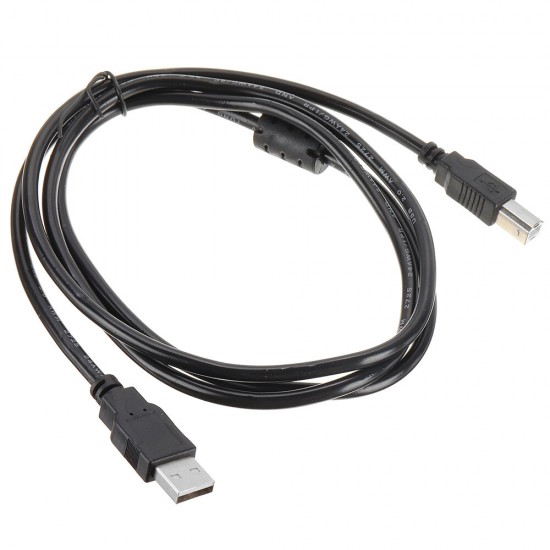

1 x 1.5M USB cable
