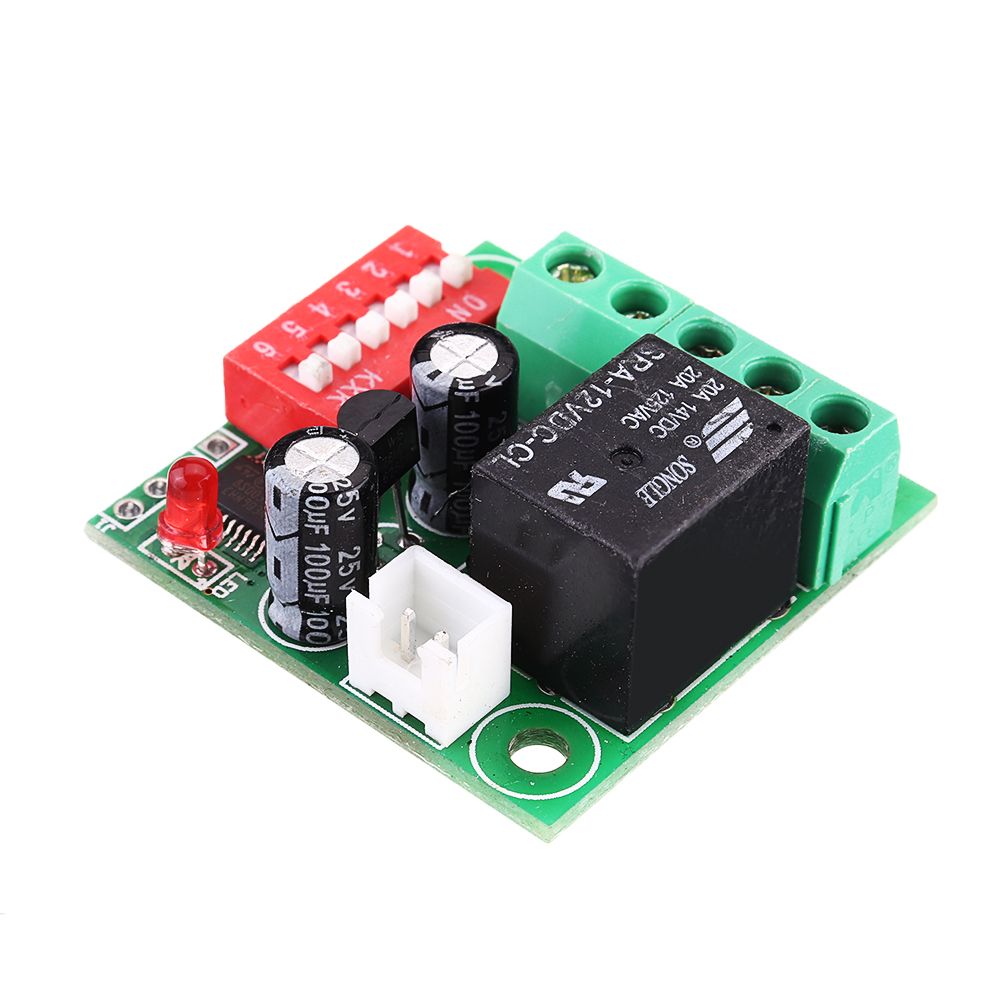

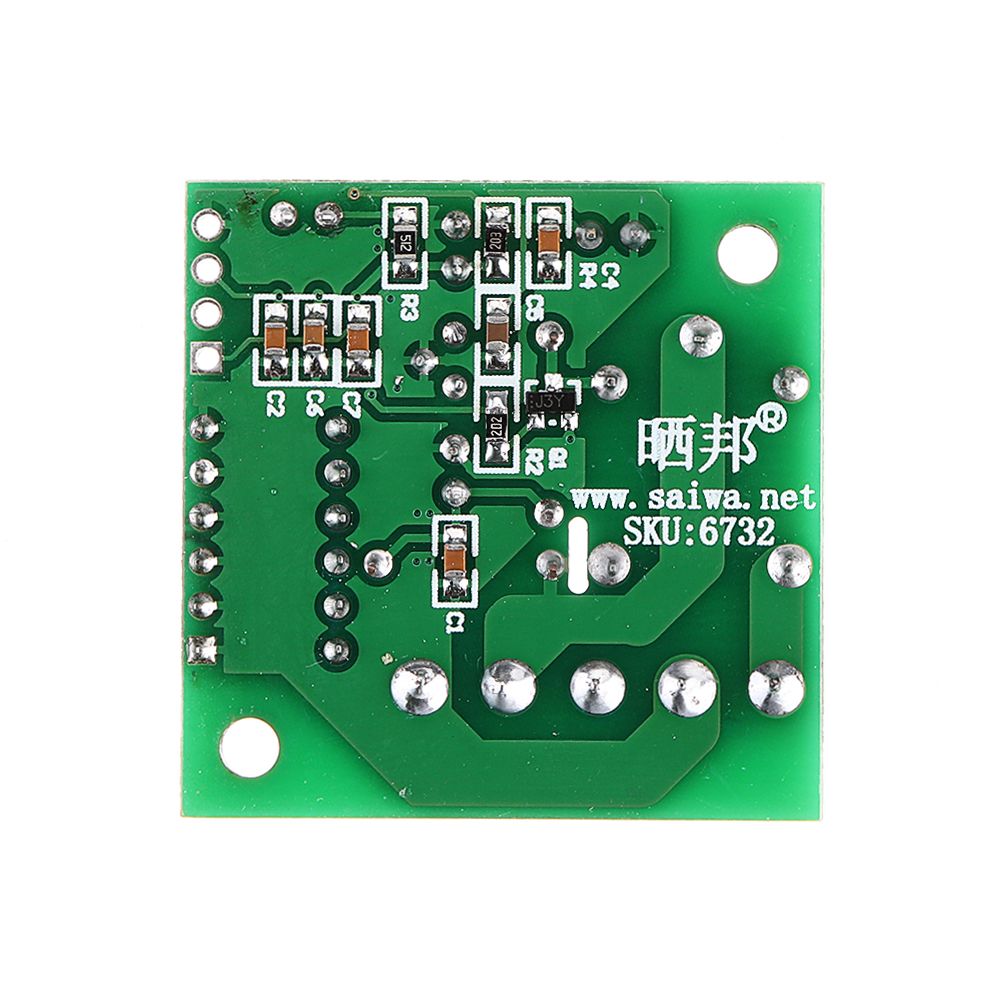

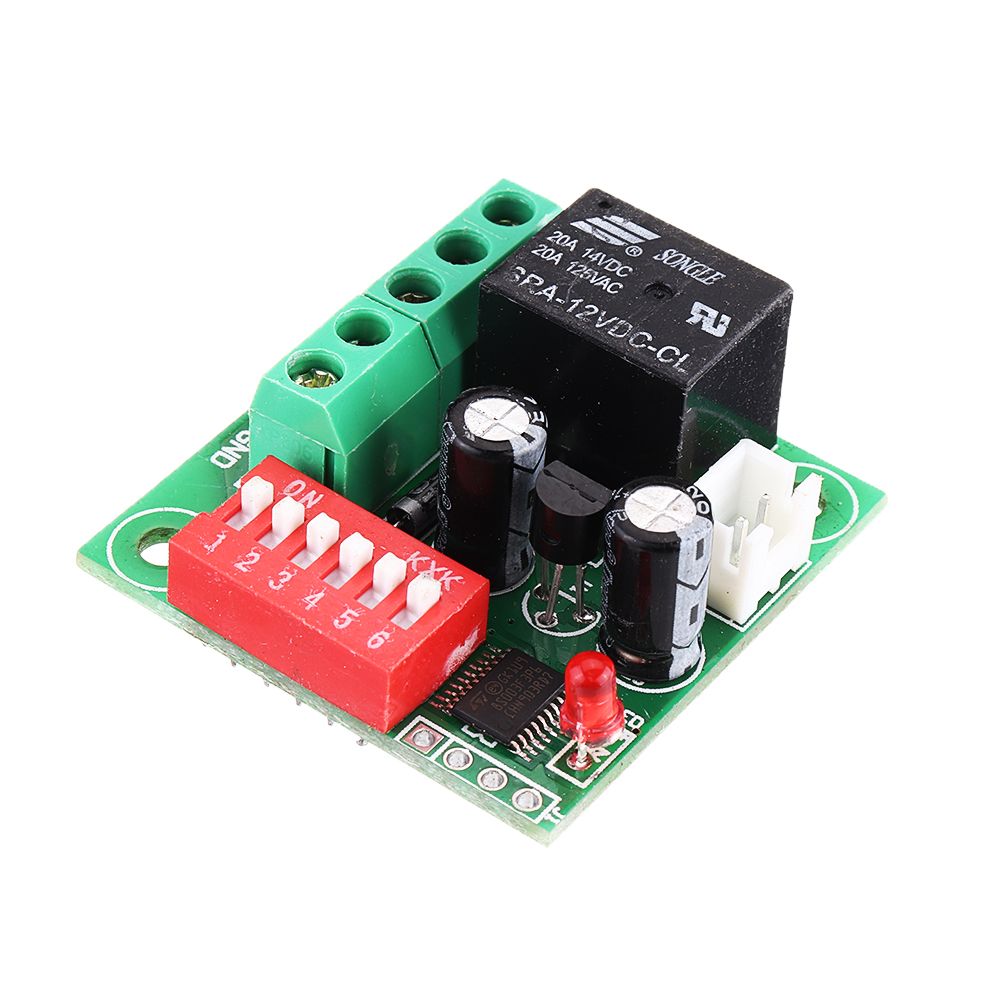

Digital Temperature Control Switch Adjustable Thermostat Temperature Switch 12V Cooling Controller W1701

Digital Temperature Control Switch Adjustable Thermostat Temperature Switch 12V Cooling Controller W1701
Digital Temperature Control Switch Adjustable Thermostat Temperature Switch 12V Cooling Controller W1701
Digital Temperature Control Switch Adjustable Thermostat Temperature Switch 12V Cooling Controller W1701
Digital Temperature Control Switch Adjustable Thermostat Temperature Switch 12V Cooling Controller W1701
Digital Temperature Control Switch Adjustable Thermostat Temperature Switch 12V Cooling Controller W1701
Digital Temperature Control Switch Adjustable Thermostat Temperature Switch 12V Cooling Controller W1701
Digital Temperature Control Switch Adjustable Thermostat Temperature Switch 12V Cooling Controller W1701
Digital Temperature Control Switch Adjustable Thermostat Temperature Switch 12V Cooling Controller W1701
Digital Temperature Control Switch Adjustable Thermostat Temperature Switch 12V Cooling Controller W1701
Digital Temperature Control Switch Adjustable Thermostat Temperature Switch 12V Cooling Controller W1701
Digital Temperature Control Switch Adjustable Thermostat Temperature Switch 12V Cooling Controller W1701
Digital Temperature Control Switch Adjustable Thermostat Temperature Switch 12V Cooling Controller W1701
Digital Temperature Control Switch Adjustable Thermostat Temperature Switch 12V Cooling Controller W1701
Digital Temperature Control Switch Adjustable Thermostat Temperature Switch 12V Cooling Controller W1701
Digital Temperature Control Switch Adjustable Thermostat Temperature Switch 12V Cooling Controller W1701
Digital Temperature Control Switch Adjustable Thermostat Temperature Switch 12V Cooling Controller W1701
Digital Temperature Control Switch Adjustable Thermostat Temperature Switch 12V Cooling Controller W1701
Digital Temperature Control Switch Adjustable Thermostat Temperature Switch 12V Cooling Controller W1701
Digital Temperature Control Switch Adjustable Thermostat Temperature Switch 12V Cooling Controller W1701
Digital Temperature Control Switch Adjustable Thermostat Temperature Switch 12V Cooling Controller W1701
Digital Temperature Control Switch Adjustable Thermostat Temperature Switch 12V Cooling Controller W1701
$8.99
Ex Tax: $8.99
  • Stock: In Stock
  • Model: EB0047649
  • SKU: EB0047649
>
Specification:

Model: W1701

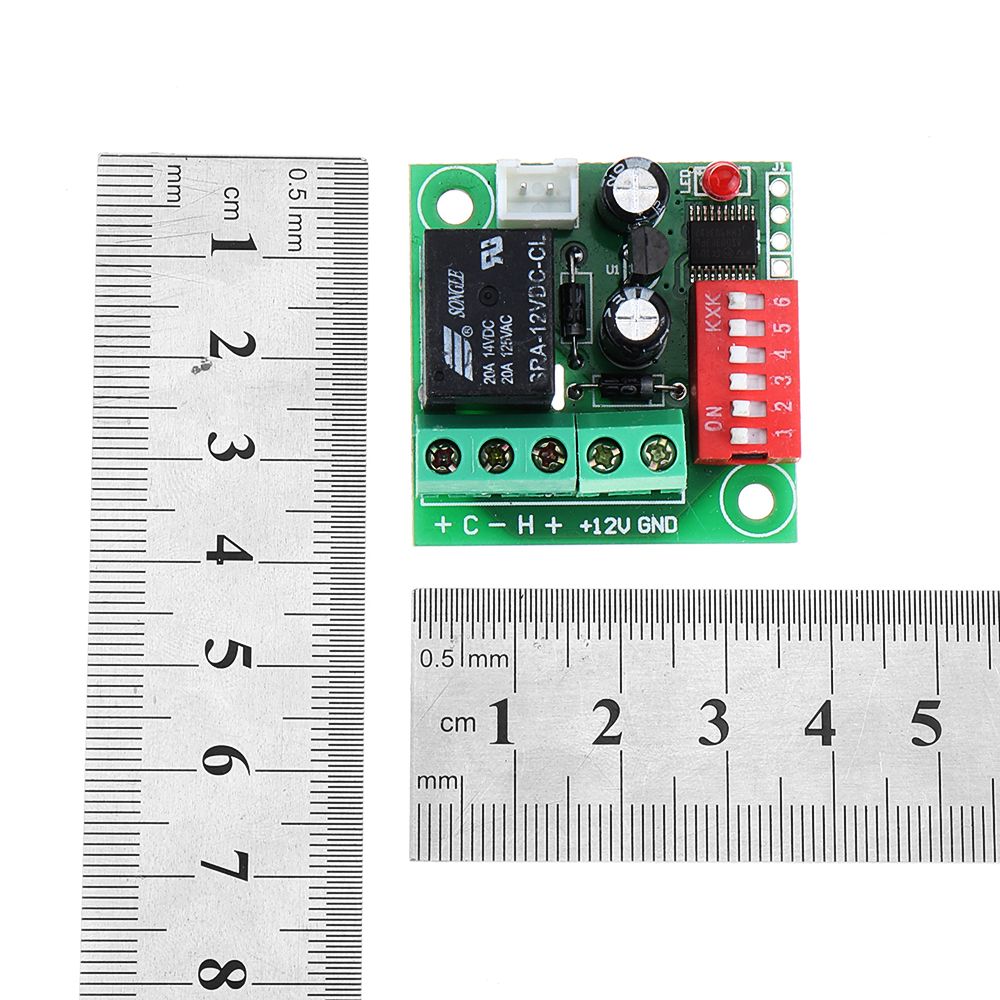

Size: Approx. 36.5 x 36.5 x 18 mm/1.44 x 1.44 x 0.71 inch
Installation screw: M3 * 2 diagonal size 39.5mm
Temperature range: 20-90 °C
Control Mode: Heating, Cooling, Heat dissipation
Control Accuracy: 0.1 °C

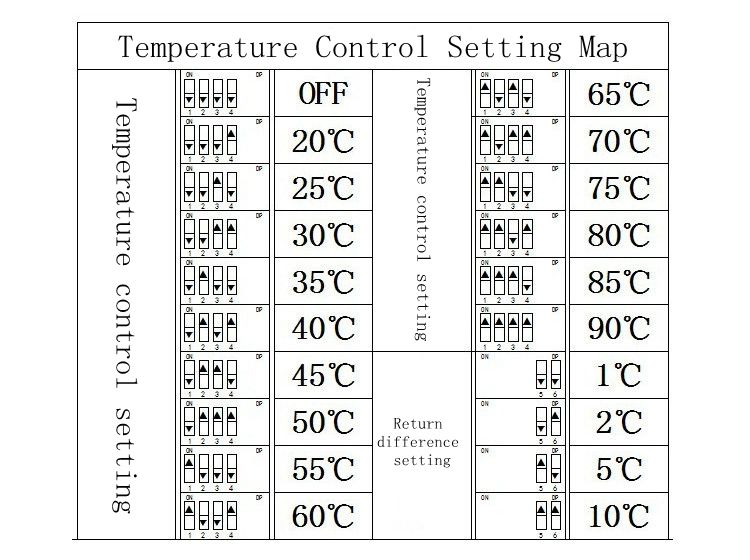

Hysteresis Setting: 1-10 °C
Refresh Rate: 0.5S
Supply Voltage: DC 12V
Output Voltage: DC 12V
Output Power: Max 200W
Static Current: ≤ 3MA, attract current ≤ 60MA

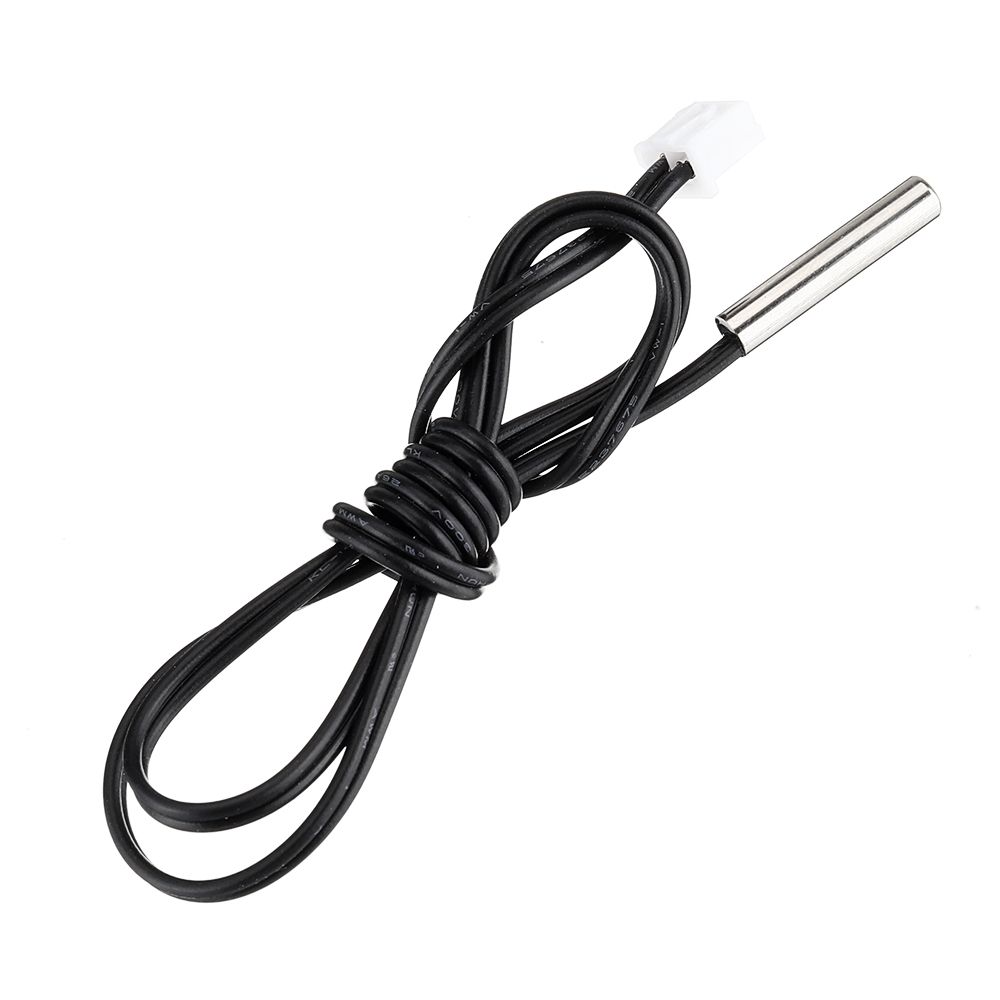

Temperature Probe: 10K thermistor
B25 = 10K 3950

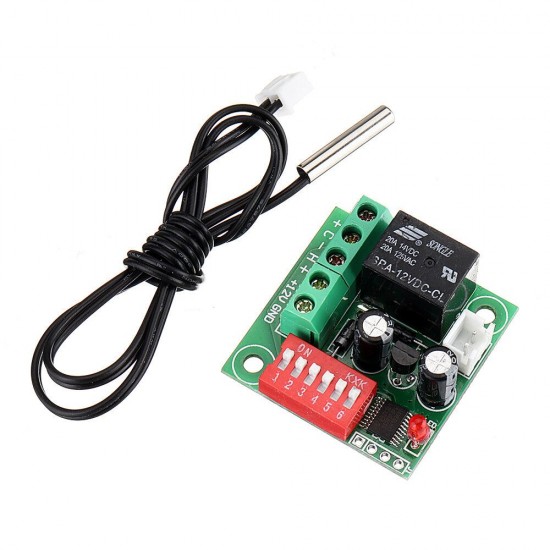

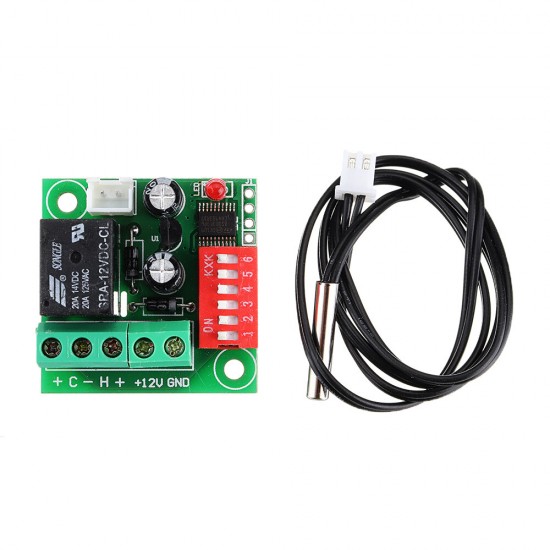

30cm Waterproof Sensor
Environmental Requirements: -10 ~ 60 °C
Humidity: 20% -85%
It can be used in the (liquid, mold, space) and other control heating, Also it can be used (box, the device, water, pet rooms, air conditioning) and other control refrigeration.

Instructions:

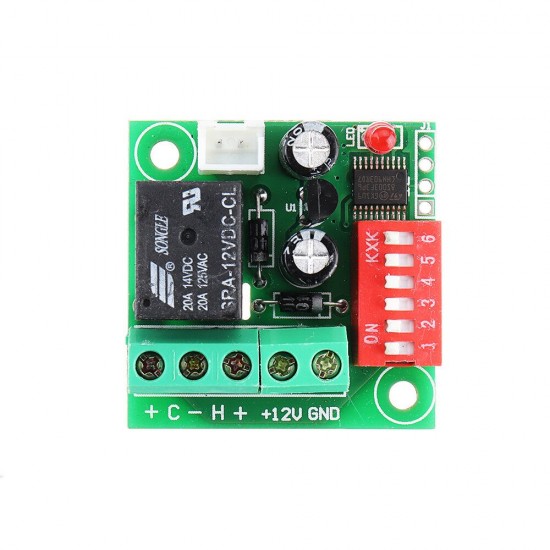

Please connect the circuit according to the wiring diagram, power supply is DC12V (+12 V is positive , and GND is negative).
The probe is connected to the object you want to control.

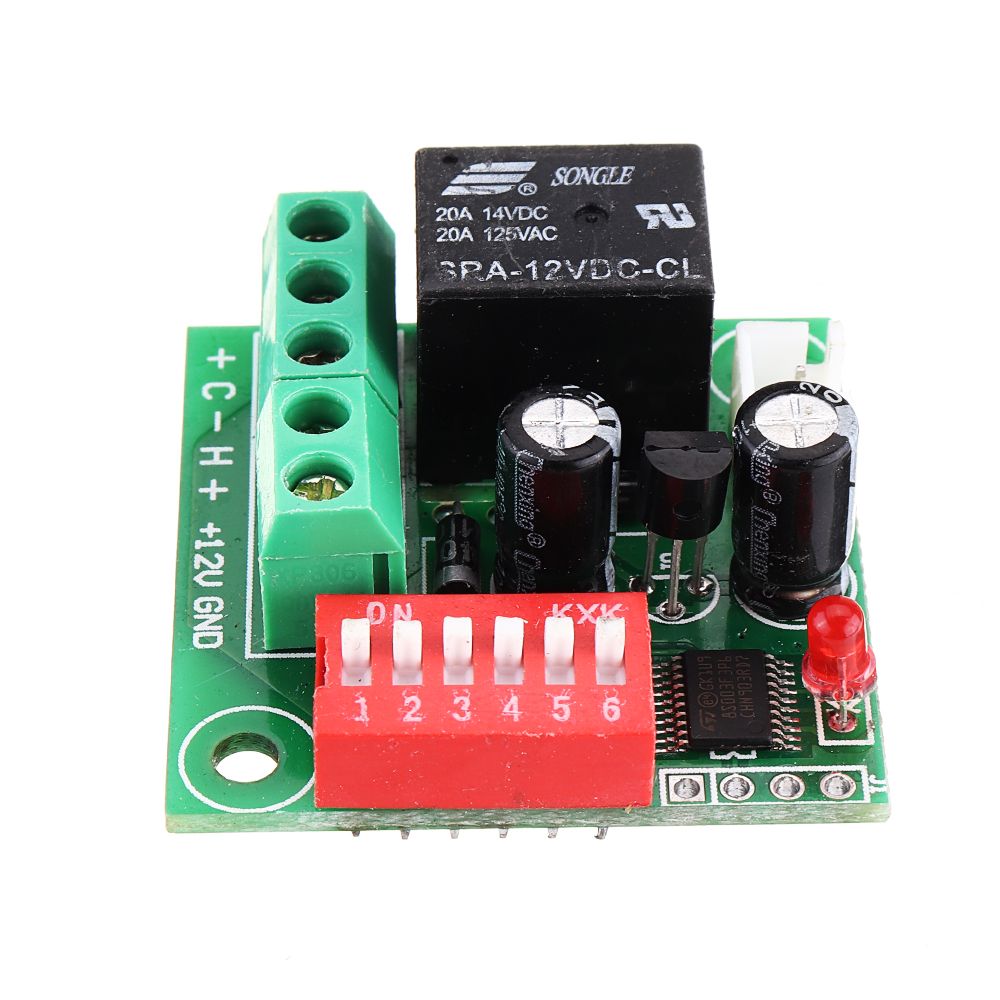

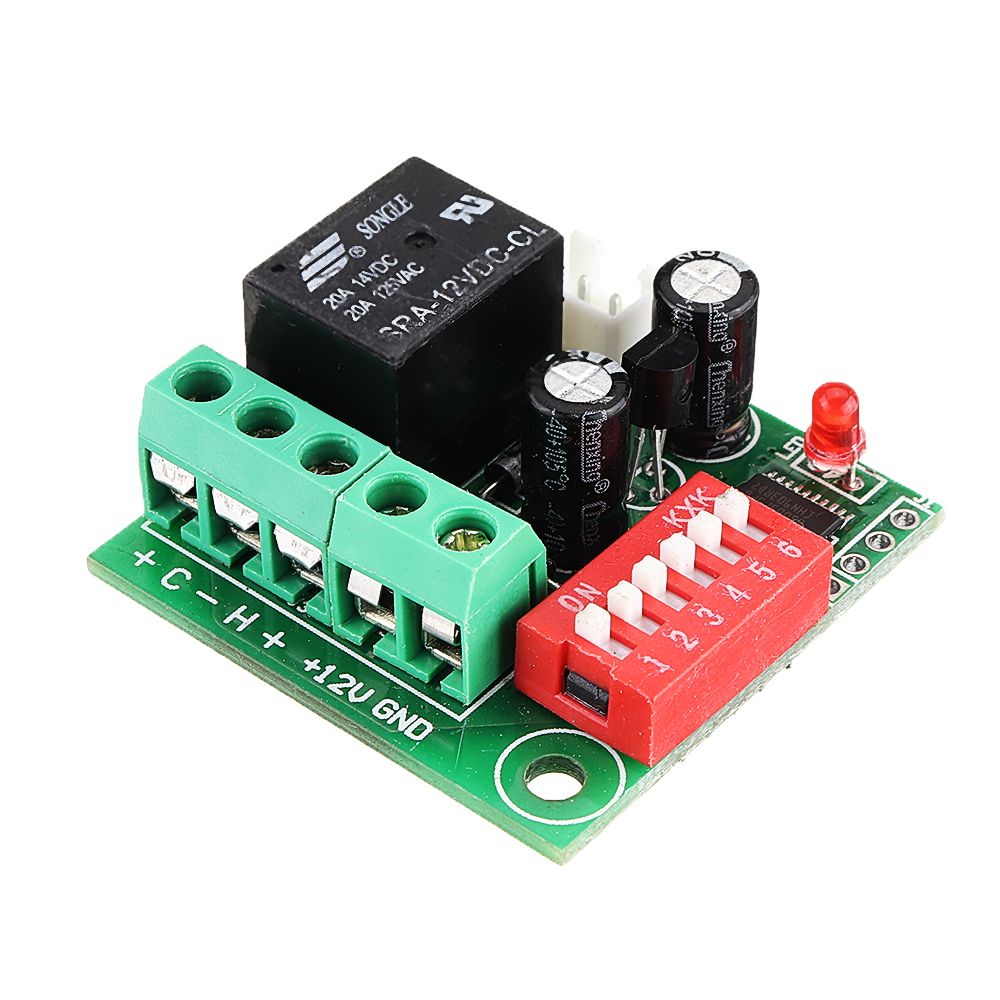

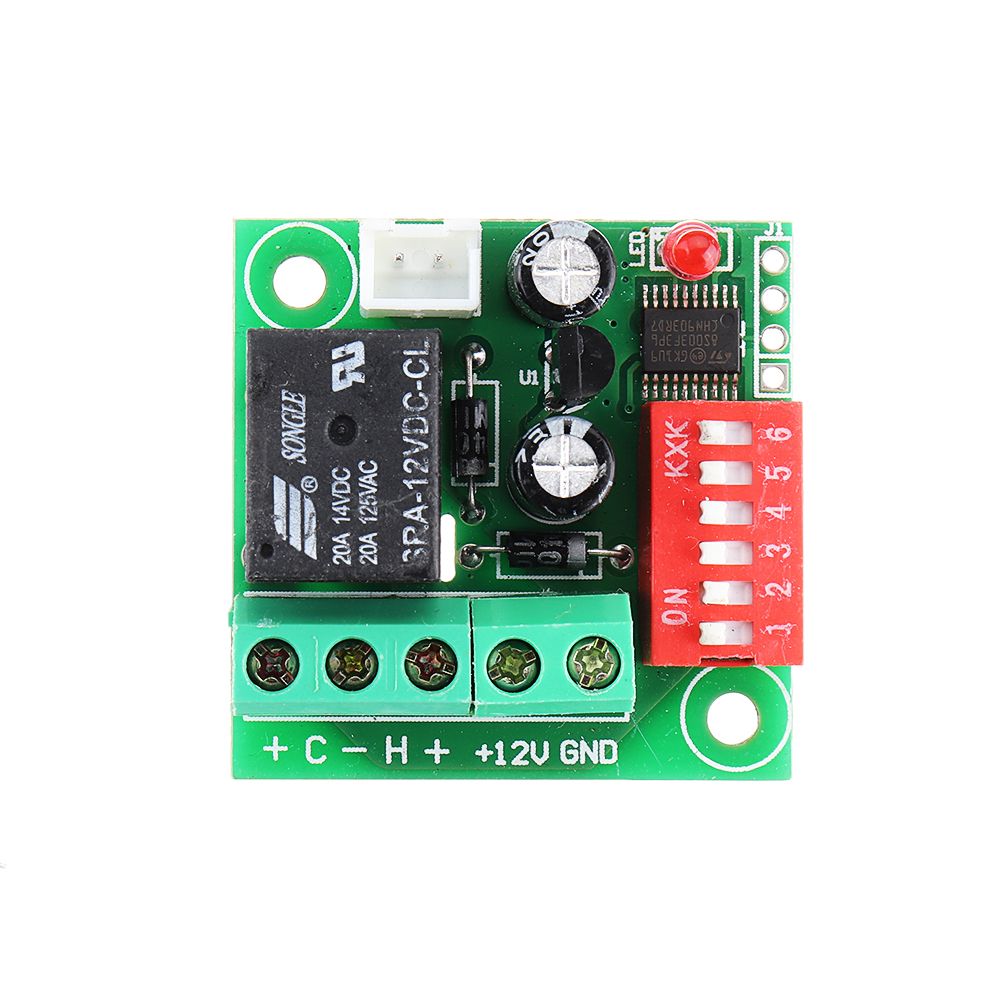

For heating: Please connect 12V heater to the - H +
For cooling: Please connect cooler to the + C -
For heat-sinking: Please connect cooler or heatsink connected to the + C -
Indicator Status: the red light is on indicating the cooling (+ C-) output, and the light is off indicating heating (-H +) output

Digital-Temperature-Control-Switch-Adjustable-Thermostat-Temperature-Switch-12V-Cooling-Controller-W-1587150

Package included:

1 x Heat Cool Temp Thermostat Digital Temperature Control Switch



Digital-Temperature-Control-Switch-Adjustable-Thermostat-Temperature-Switch-12V-Cooling-Controller-W-1587150

Digital-Temperature-Control-Switch-Adjustable-Thermostat-Temperature-Switch-12V-Cooling-Controller-W-1587150

Digital-Temperature-Control-Switch-Adjustable-Thermostat-Temperature-Switch-12V-Cooling-Controller-W-1587150

Digital-Temperature-Control-Switch-Adjustable-Thermostat-Temperature-Switch-12V-Cooling-Controller-W-1587150

Digital-Temperature-Control-Switch-Adjustable-Thermostat-Temperature-Switch-12V-Cooling-Controller-W-1587150

Digital-Temperature-Control-Switch-Adjustable-Thermostat-Temperature-Switch-12V-Cooling-Controller-W-1587150

Digital-Temperature-Control-Switch-Adjustable-Thermostat-Temperature-Switch-12V-Cooling-Controller-W-1587150

Digital-Temperature-Control-Switch-Adjustable-Thermostat-Temperature-Switch-12V-Cooling-Controller-W-1587150

Digital-Temperature-Control-Switch-Adjustable-Thermostat-Temperature-Switch-12V-Cooling-Controller-W-1587150

Digital-Temperature-Control-Switch-Adjustable-Thermostat-Temperature-Switch-12V-Cooling-Controller-W-1587150
