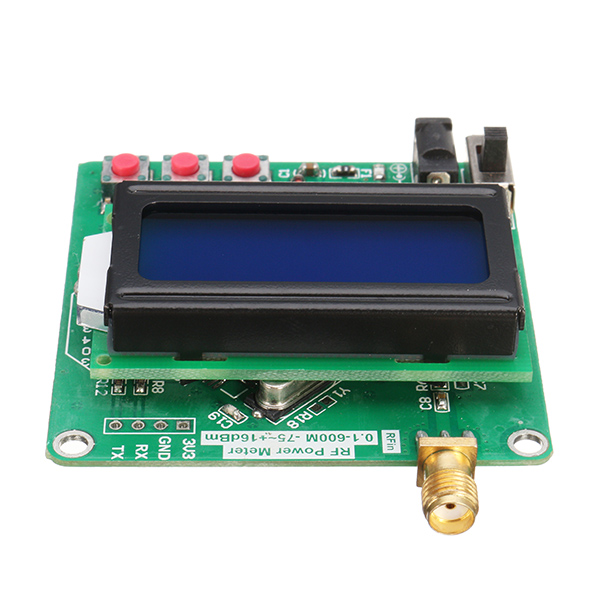

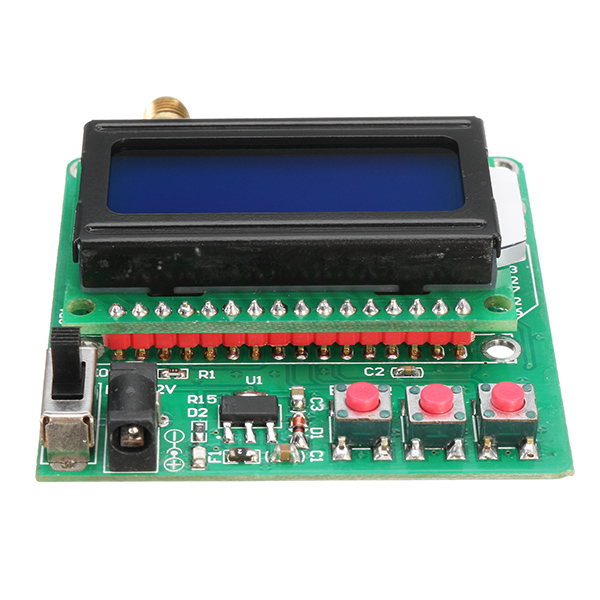

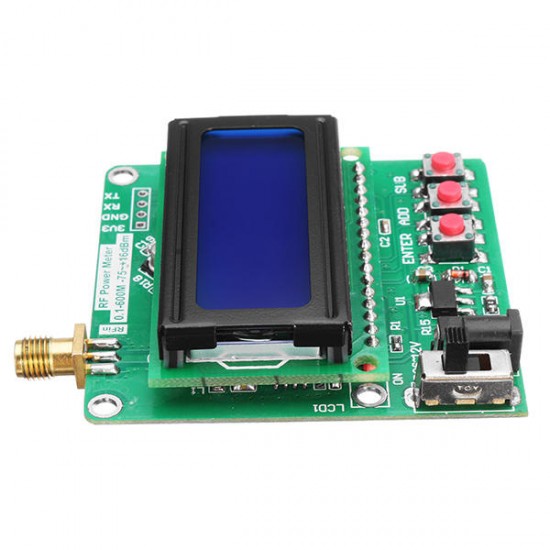

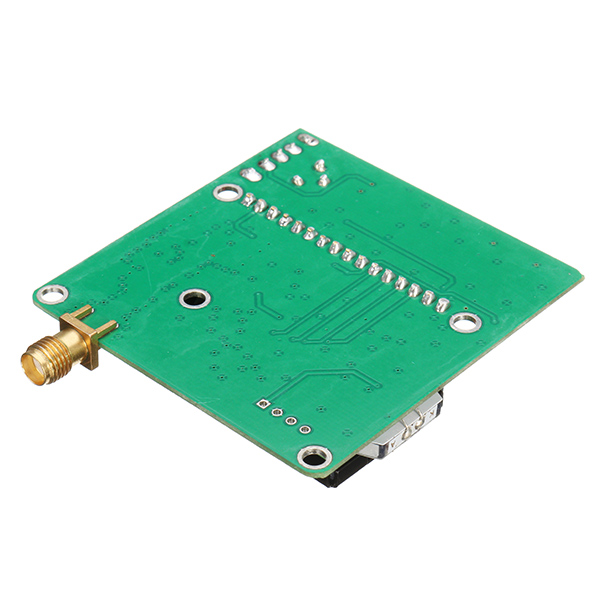

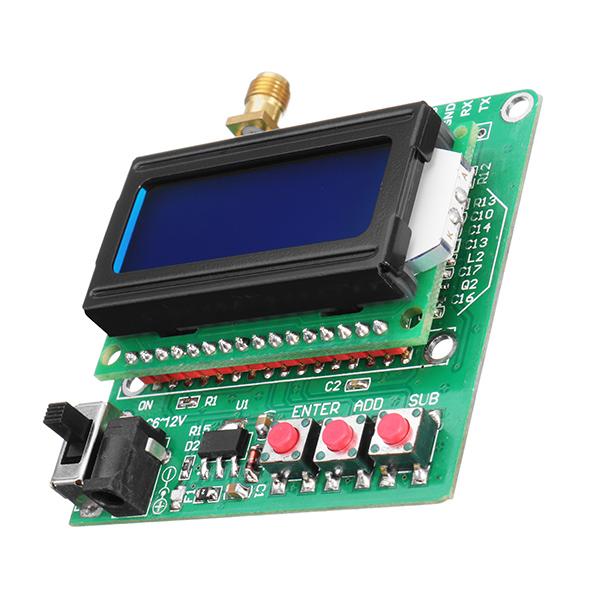

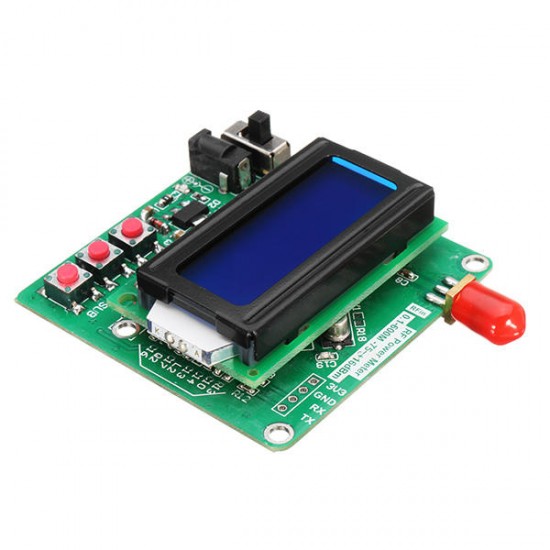

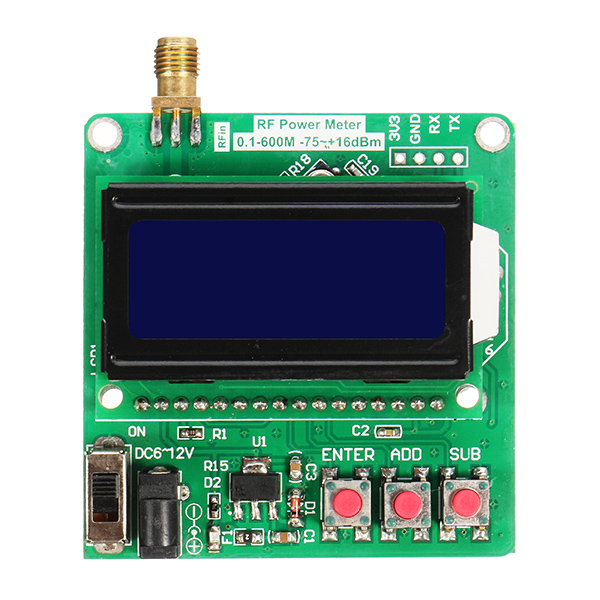

Digital Radio Frequency Power Meter -75~+16dBm Power Attenuation Can Be Set Ultra Small LCD Automatic Backlight
- Stock: In Stock
- Model: EB0045879
- SKU: EB0045879
1. Measurement power range: -75 ~ +16 dBm (external RF attenuator can be extended to 100dBm)
2. Measurement power resolution: 0.1 dBm
3. Measurement frequency range: 1 ~ 600 MHz

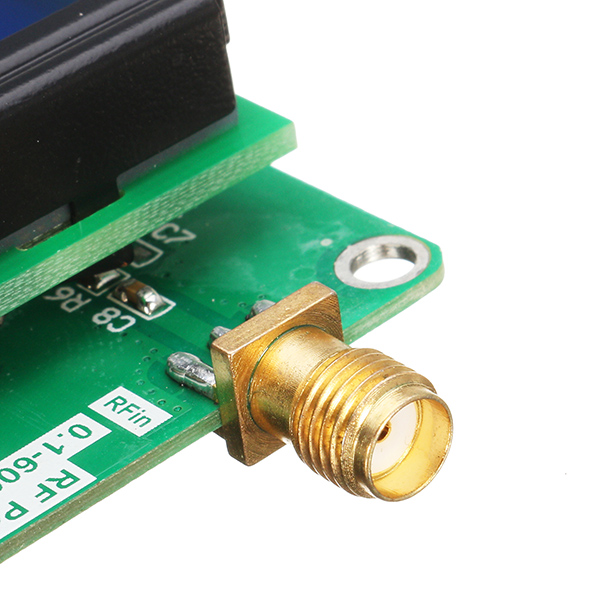

4. output interface: SMA_K
5. Operating voltage: 6 ~ 12 VDC
6. Operating current: <45 mA (backlight on)
7. working temperature: -40 ℃ ~ 65 ℃
8. Storage temperature: -40 ℃ ~ 65 ℃
9. Size: 57 * 58 * 14 mm (length * width * height)

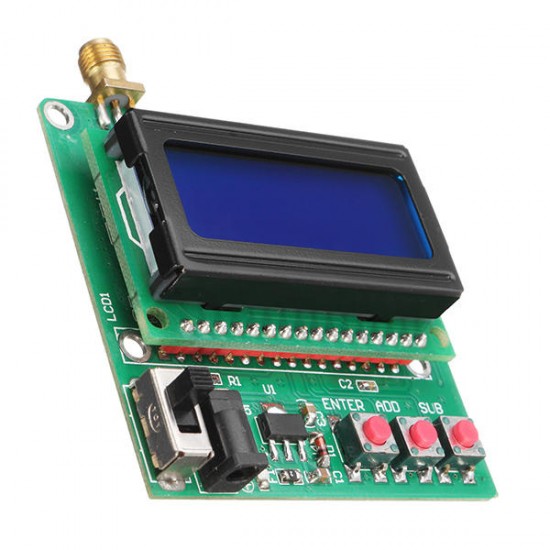

Interface display and operating instructions:

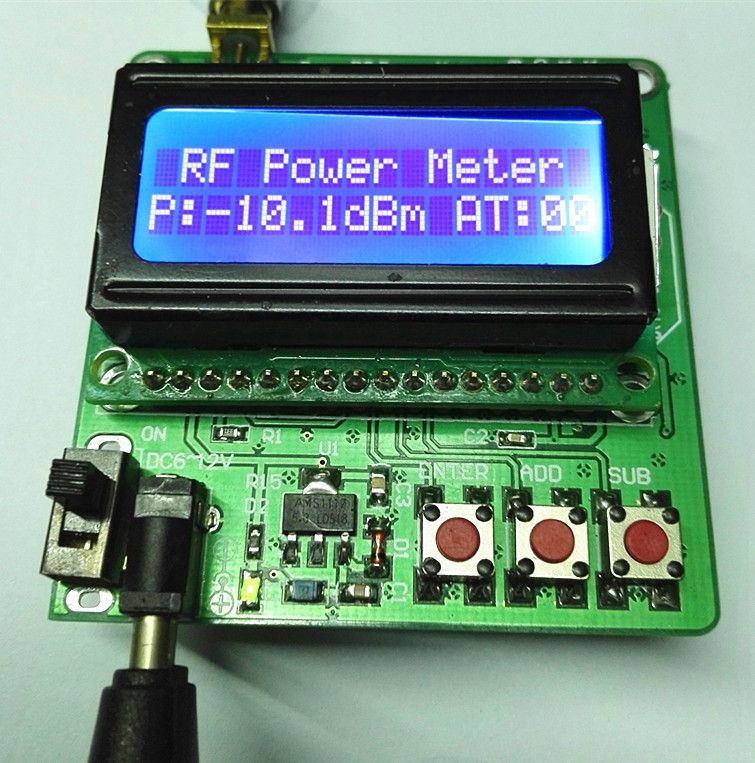

1. Main display, the first line display shows the RF Power Meter
The second line shows the P:power dBm; AT: attenuation dB
The main menu is measurement results, can not be adjusted.
2. Function menu
A. Attenuation setting menu,the first line shows Attenuation Menu
The second line shows ATTN: XXdB
Enter the menu function key: Long press ENTER and press again exit, ADD SUB to execute +, - operation
B. internal compensation set, the first line is ADC Offset Menu
The second line is Offset: +/- xx
Enter the menu function key: press ADD+SUB and ENTER at the same time to exit, ADD SUB to execute +, - operation
C. automatic backlighting function: when it is no backlight, press any key to open the backlight
Package included:
1 x Digital Radio Frequency Power Meter
