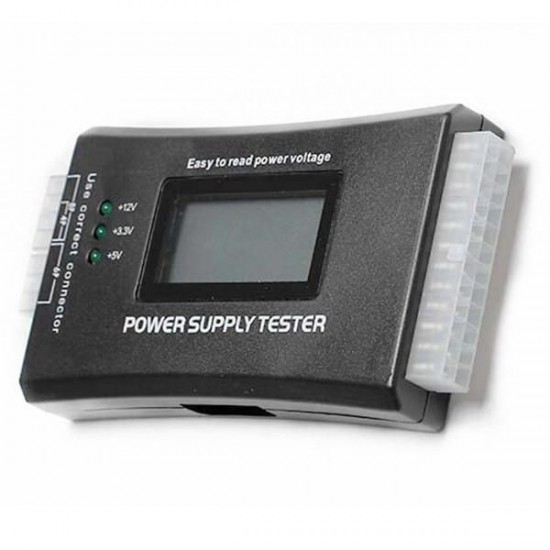

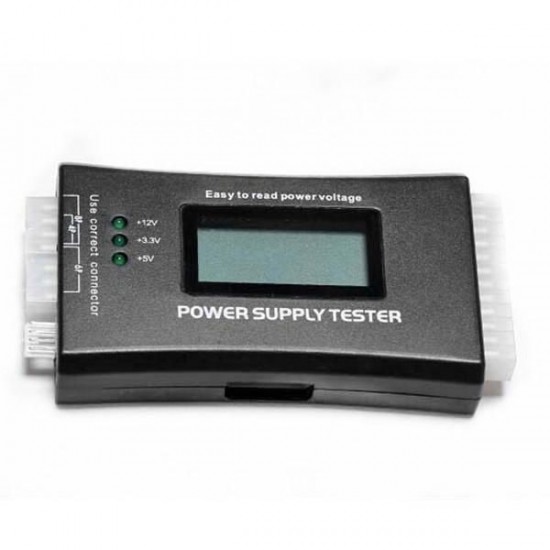

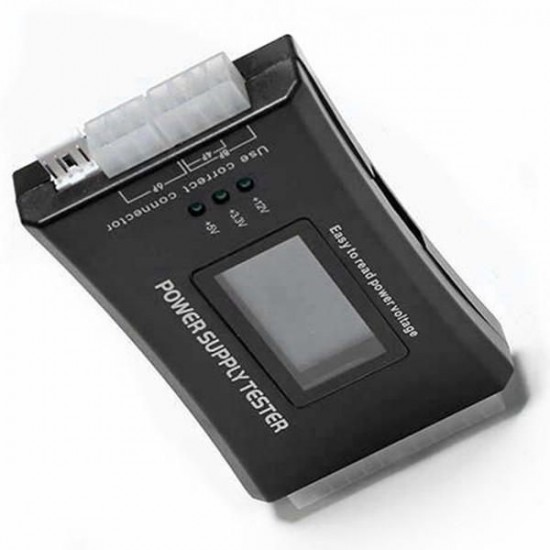

Digital LCD Power Supply Tester for PCATX/BTX/ITX 4Pin SATA HDD
- Stock: In Stock
- Model: EB0026333
- SKU: EB0026333
Description:

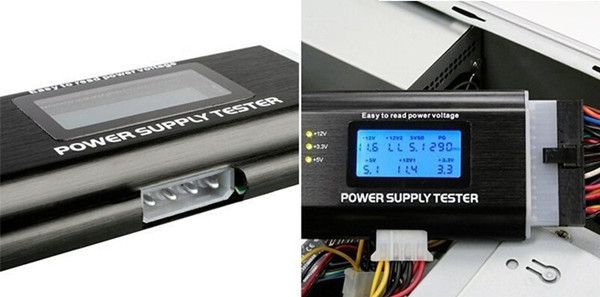

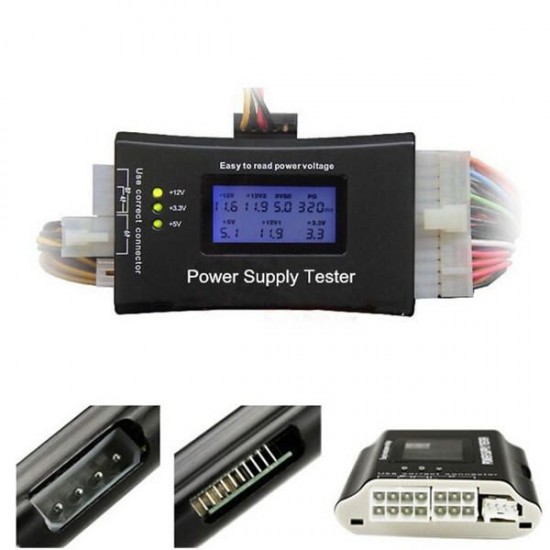

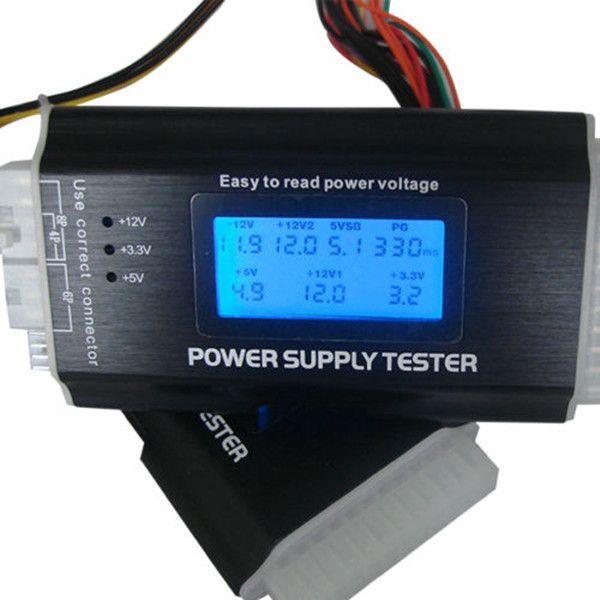

This 20/24 Pin PSU ATX BTX ITX PC Power Supply Tester With LCD is a powerful testing equipment for PC power supply. it can detect ATX, BTX, ITX computer power supply and avoid damage to your expensive computer equipments. Simply plug the tester in to your power supply's 20/24 pin female molex connector and the LED lights will indicate the actual status of your power supply and the LCD will show the unnomal voltage
The SD power supply tester is a robust voltage, tester for PC-power supply, ATX . BTX and ITX compliant, power supplies can be tested. LCD's indicate the status of voltage
The PC / SPS is suitable for the ambitious hobby user, as well as for a quick functional check in specialized trade
Features:
Weight: 82g
Size ( about ): 12 x 6 x 2 cm
Voltage source : 20/24 pin ( ATX - connector )
Voltage test : +12V , -12V , +5V , -5V , +3.3V , +5V Stand by (SB) 12V power Good ( PG )

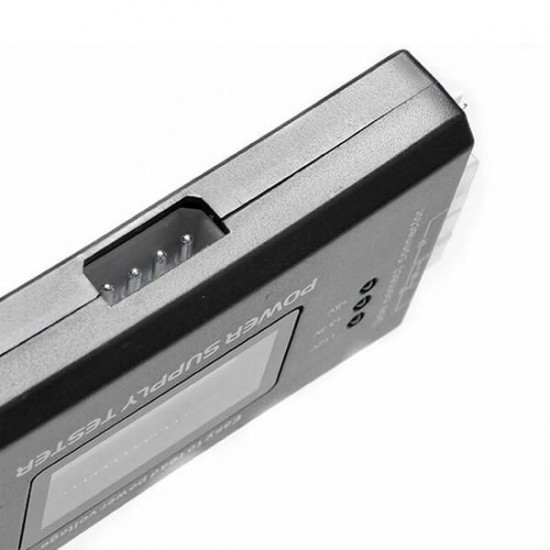

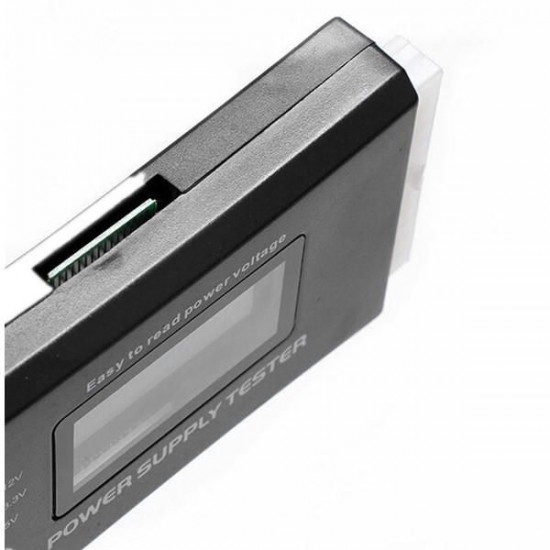

Connectors : Floppy, HDD , CDROM , SATA , 4pin ( P4 ) , 8pin ( Dual-CPU ) , 6pin ( PCI-Express )
Product Introduction:
The SD power supply tester is a robust voltage, tester for PC-power supply, ATX . BTX and ITX compliant, power supplies can be tested. LCD`s indicate the status of voltage .The PC / SPS is suitable for the ambitious hobby user , as well as for a quick functional check in specialized trade.
The methods of operation:
Plug power supply 24 PIN and P4 , P6 or P8 into the corresponding jack of the power test suite
Power on the supply of power, will hear "DuDu" ring , if no flicker then the power supply output voltage is normal.
If a certain voltage signal was not detected, or the detected voltage value over the normal, will issue a "DuDu" long buzzer ; if the corresponding voltage value or PG flicker too, then the power is failed.
Package include:
1 x Power supply tester
,
,
