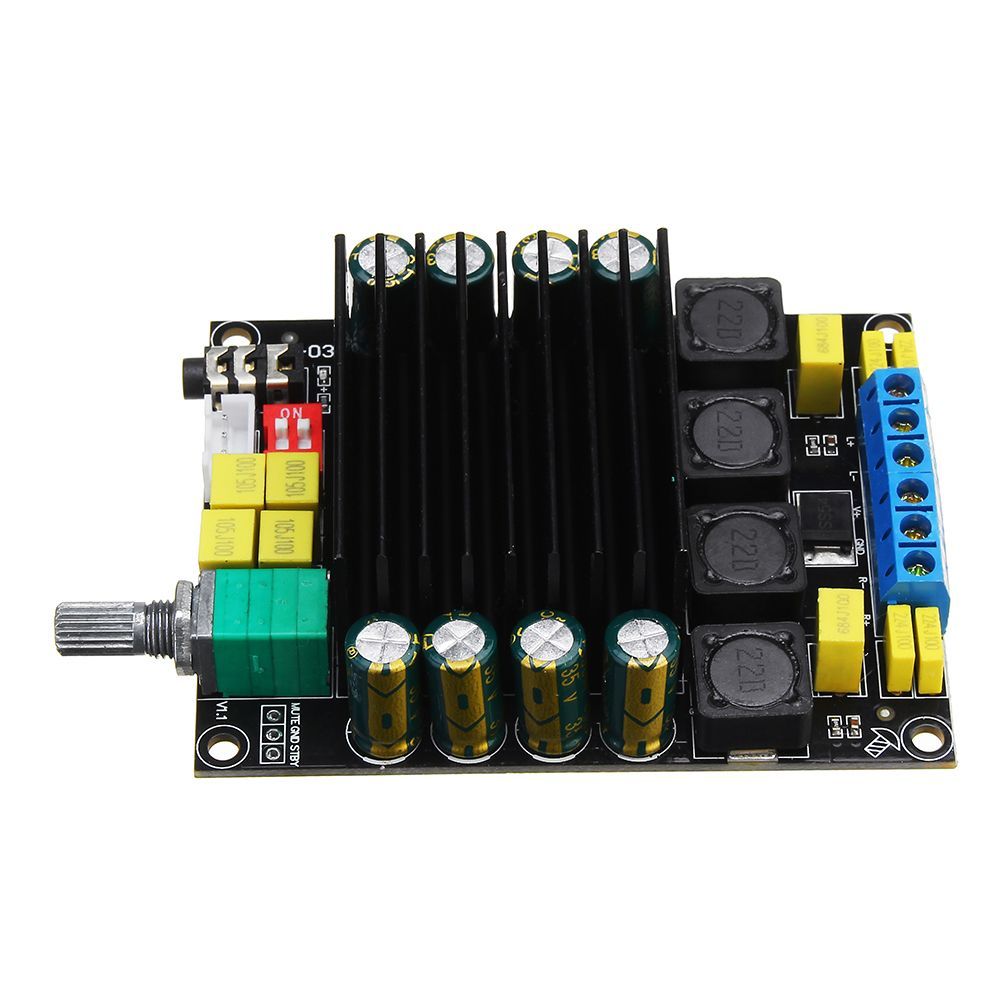

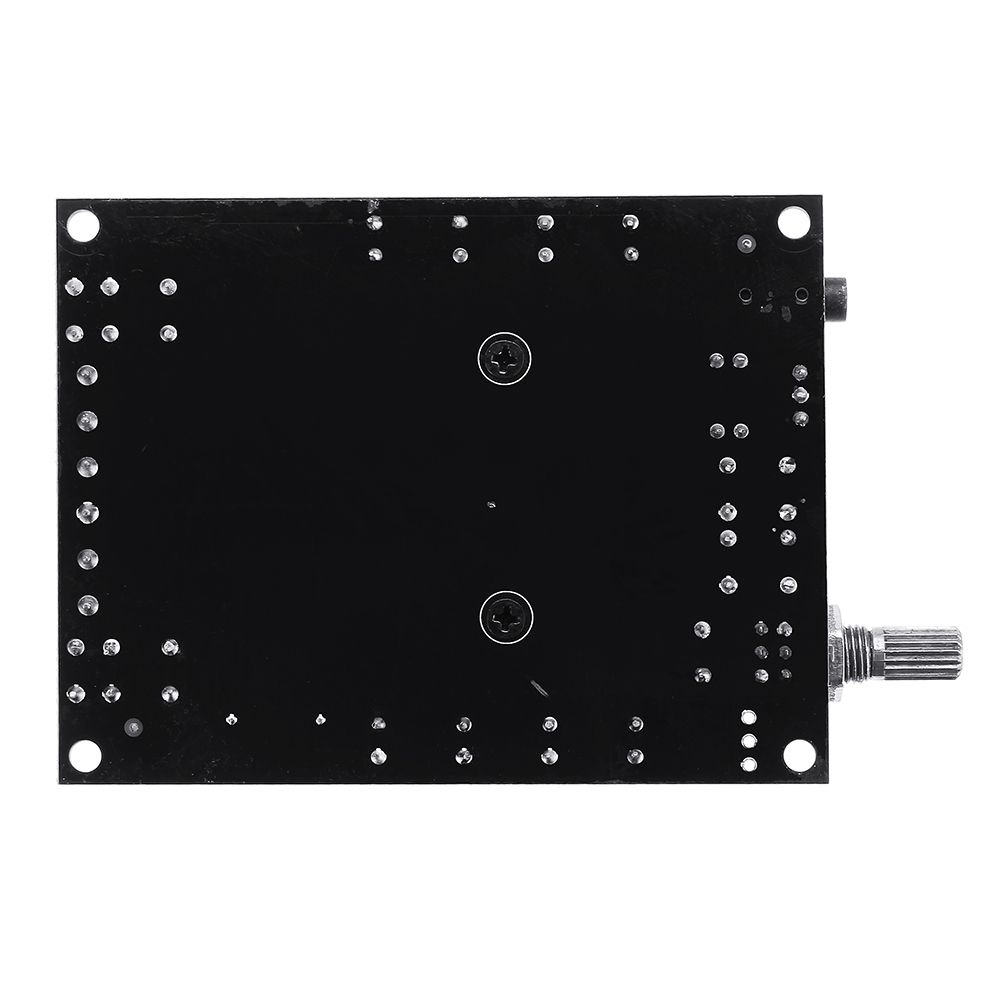

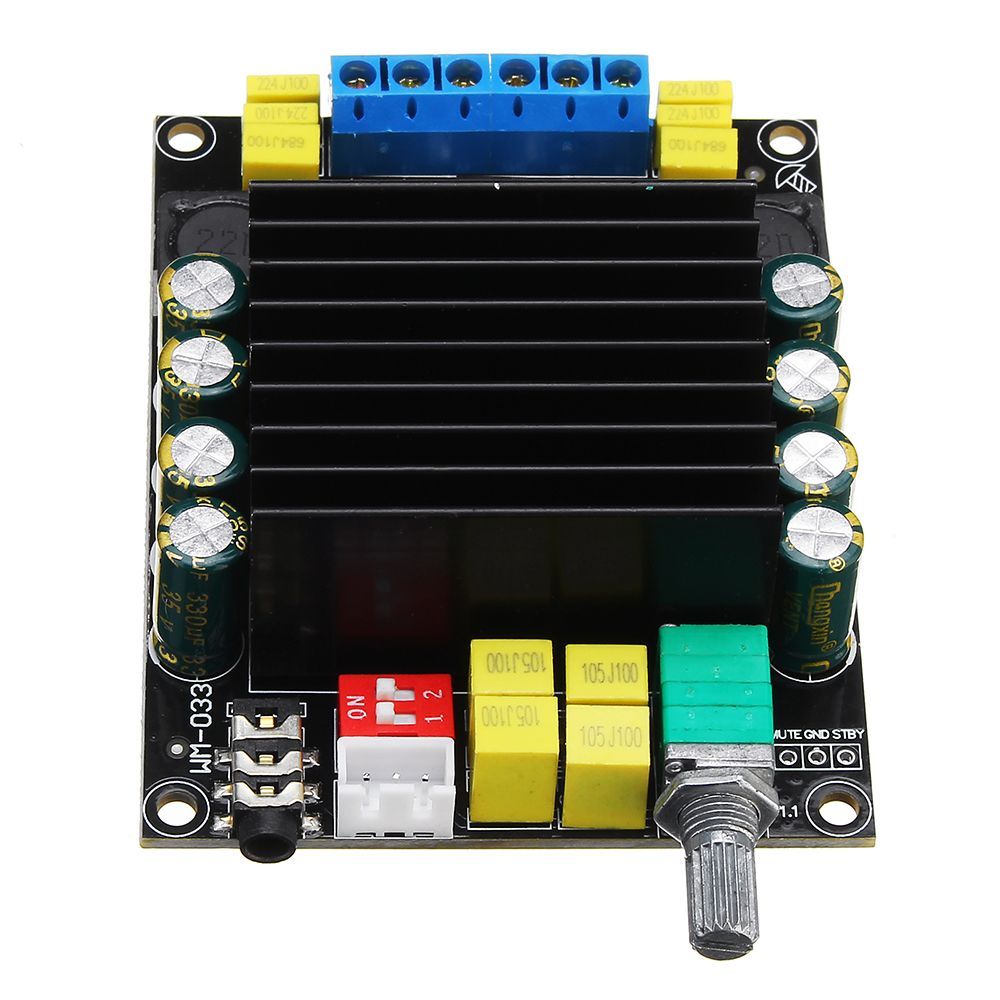

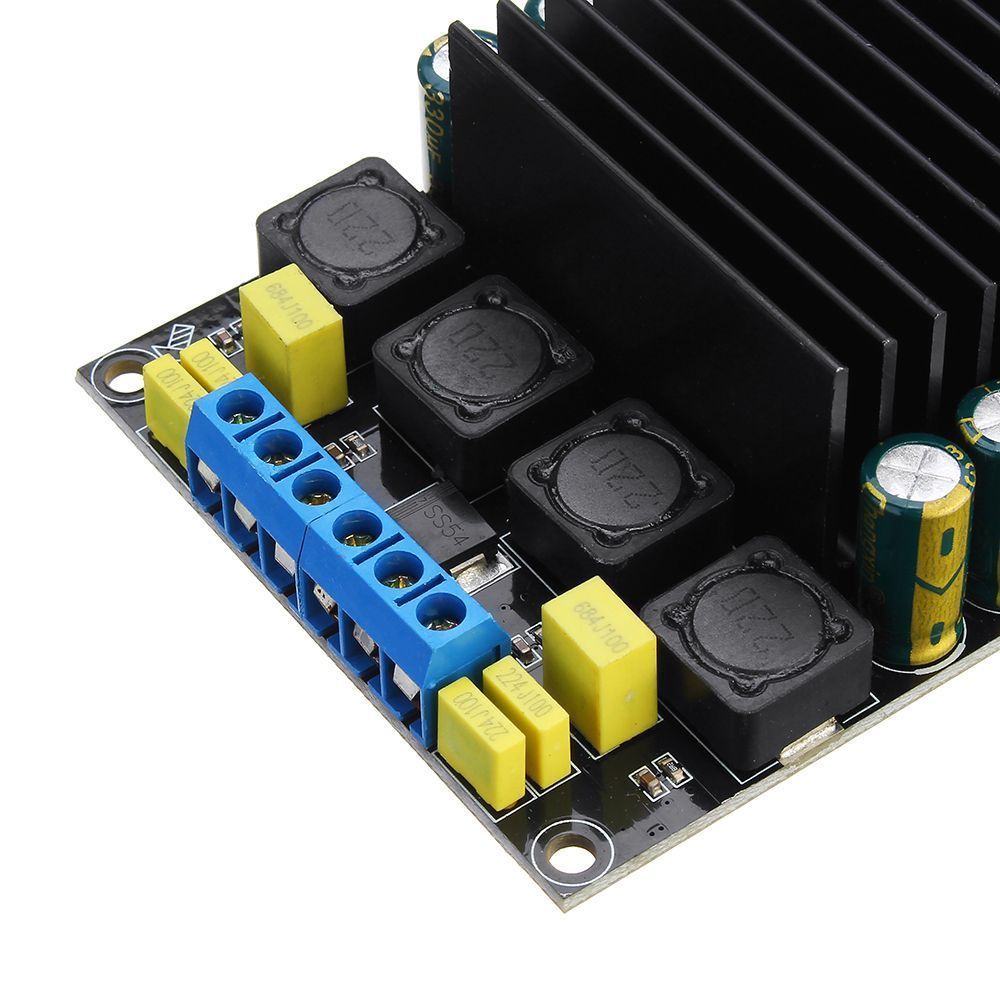

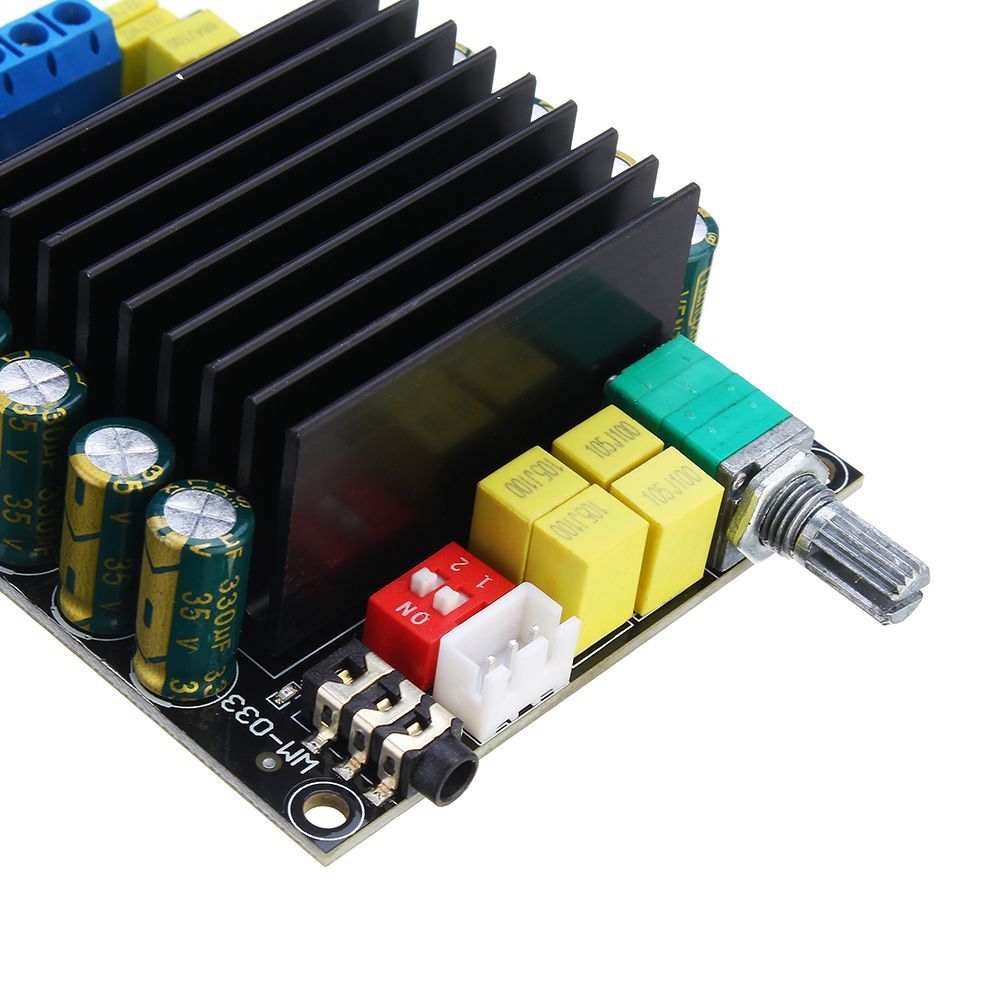

Digital Amplifier Audio Board TDA7498 Power Audio Amp 2.0 Class D Stereo HIFI DC12-36V 2*100W

Digital Amplifier Audio Board TDA7498 Power Audio Amp 2.0 Class D Stereo HIFI DC12-36V 2*100W
Digital Amplifier Audio Board TDA7498 Power Audio Amp 2.0 Class D Stereo HIFI DC12-36V 2*100W
Digital Amplifier Audio Board TDA7498 Power Audio Amp 2.0 Class D Stereo HIFI DC12-36V 2*100W
Digital Amplifier Audio Board TDA7498 Power Audio Amp 2.0 Class D Stereo HIFI DC12-36V 2*100W
Digital Amplifier Audio Board TDA7498 Power Audio Amp 2.0 Class D Stereo HIFI DC12-36V 2*100W
Digital Amplifier Audio Board TDA7498 Power Audio Amp 2.0 Class D Stereo HIFI DC12-36V 2*100W
Digital Amplifier Audio Board TDA7498 Power Audio Amp 2.0 Class D Stereo HIFI DC12-36V 2*100W
Digital Amplifier Audio Board TDA7498 Power Audio Amp 2.0 Class D Stereo HIFI DC12-36V 2*100W
Digital Amplifier Audio Board TDA7498 Power Audio Amp 2.0 Class D Stereo HIFI DC12-36V 2*100W
Digital Amplifier Audio Board TDA7498 Power Audio Amp 2.0 Class D Stereo HIFI DC12-36V 2*100W
Digital Amplifier Audio Board TDA7498 Power Audio Amp 2.0 Class D Stereo HIFI DC12-36V 2*100W
Digital Amplifier Audio Board TDA7498 Power Audio Amp 2.0 Class D Stereo HIFI DC12-36V 2*100W
Digital Amplifier Audio Board TDA7498 Power Audio Amp 2.0 Class D Stereo HIFI DC12-36V 2*100W
$15.99
Ex Tax: $15.99
  • Stock: In Stock
  • Model: EB0051776
  • SKU: EB0051776
Content-Length: 2303 >
Details Parameter:

Item Name: TDA7498 amplifier
Item model: WM-033
Supply Voltage: DC 12-36V
Output Power: Max100WX2
Sound Channel:  2 Channels
Output Impedance: 4-8 ohm
Frequency: 20Hz-20KHz

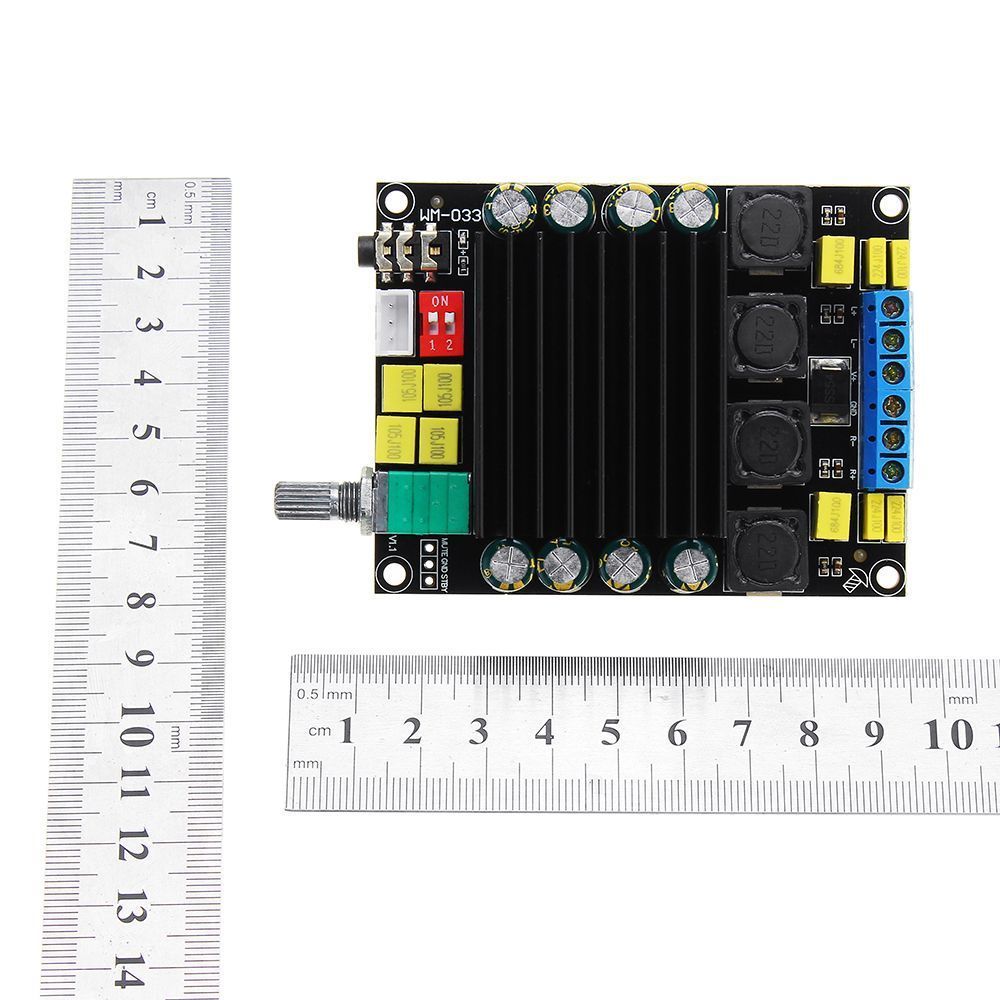

Dimension:  83*64*26mm
Weight: 105g

Features:

100-W + 100-W output power at
THD = 10% with RL = 6 Q and Vcc = 36 V
80-W + 80-W output power at
THD = 10% with RL = 8 and Vcc = 34 V
Wide-range single-supply operation (14 - 39 V)
High efficiency (n = 90%)
Four selectable, fixed gain settings of nominally 25.6 dBt 31.6 dB, 35.1 dB and 37.6 dB
Differential inputs minimize common-mode noise
Standby and mute features
Short-circuit protection
Thermal overload protection
Externally synchronizable

Description:

The TDA7498 is a dual BTL class-D audio amplifier with single power supply designed for home systems and active speaker applications.
It comes in a 36-pin PowerSSO package with exposed pad up (EPU) to facilitate mounting a separate heatsink.

Package includes:

1 x TDA7498 amplifier module



Digital-Amplifier-Audio-Board-TDA7498-Power-Audio-Amp-20-Class-D-Stereo-HIFI-DC12-36V-2100W-1387971

Digital-Amplifier-Audio-Board-TDA7498-Power-Audio-Amp-20-Class-D-Stereo-HIFI-DC12-36V-2100W-1387971

Digital-Amplifier-Audio-Board-TDA7498-Power-Audio-Amp-20-Class-D-Stereo-HIFI-DC12-36V-2100W-1387971

Digital-Amplifier-Audio-Board-TDA7498-Power-Audio-Amp-20-Class-D-Stereo-HIFI-DC12-36V-2100W-1387971

Digital-Amplifier-Audio-Board-TDA7498-Power-Audio-Amp-20-Class-D-Stereo-HIFI-DC12-36V-2100W-1387971

Digital-Amplifier-Audio-Board-TDA7498-Power-Audio-Amp-20-Class-D-Stereo-HIFI-DC12-36V-2100W-1387971
