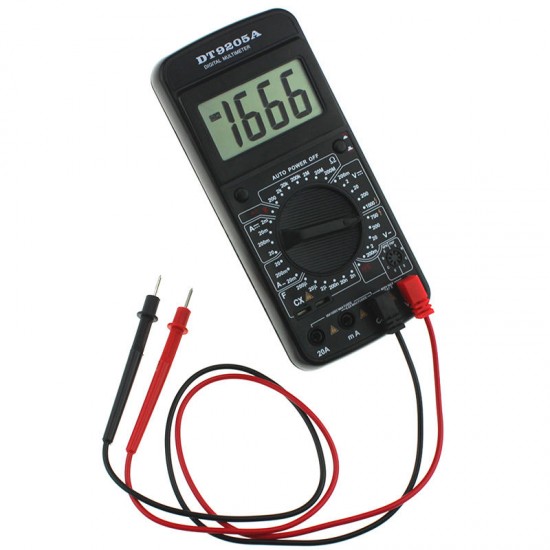

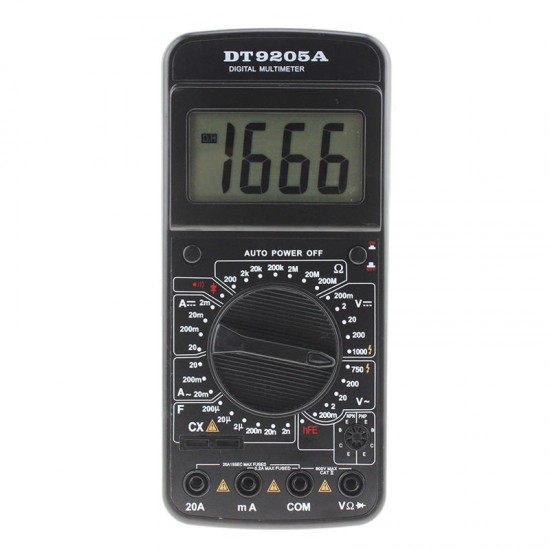

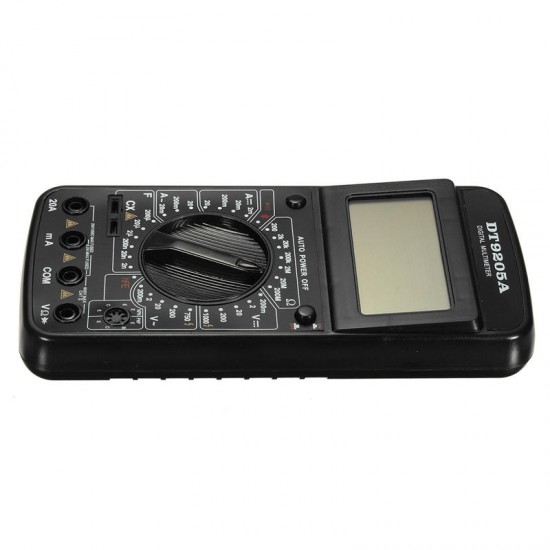

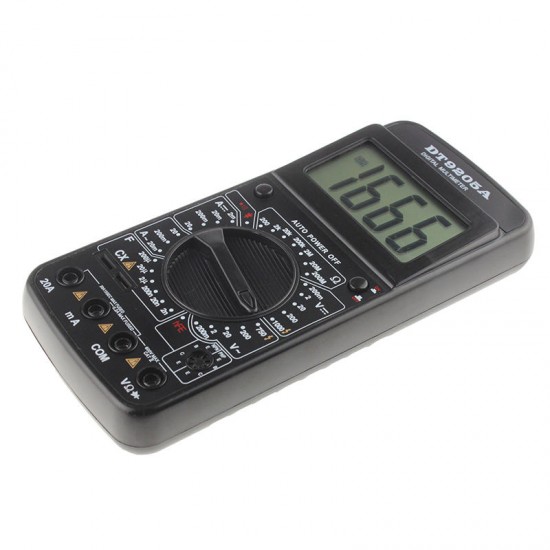

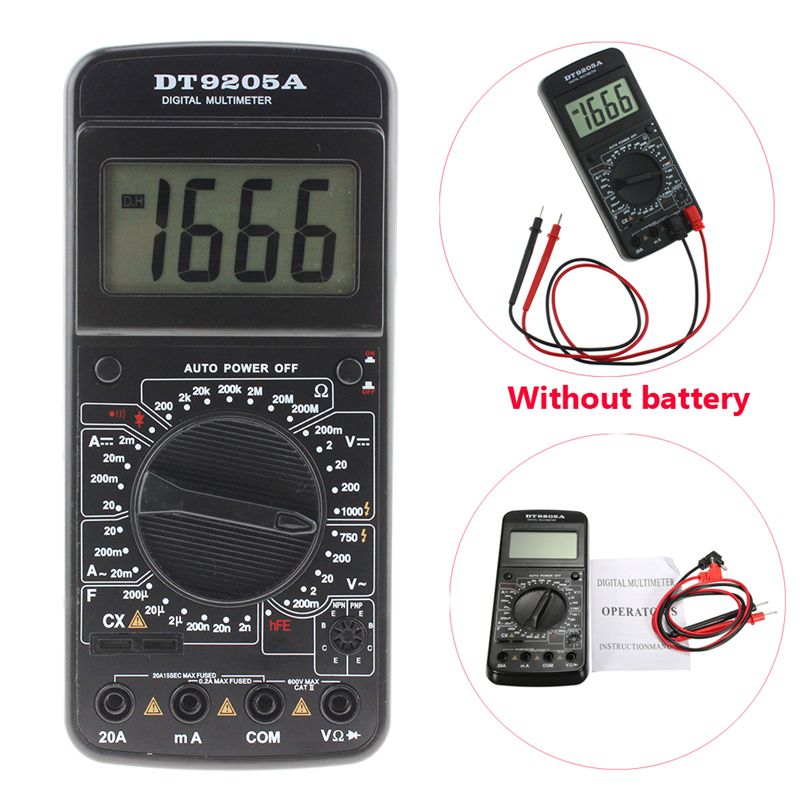

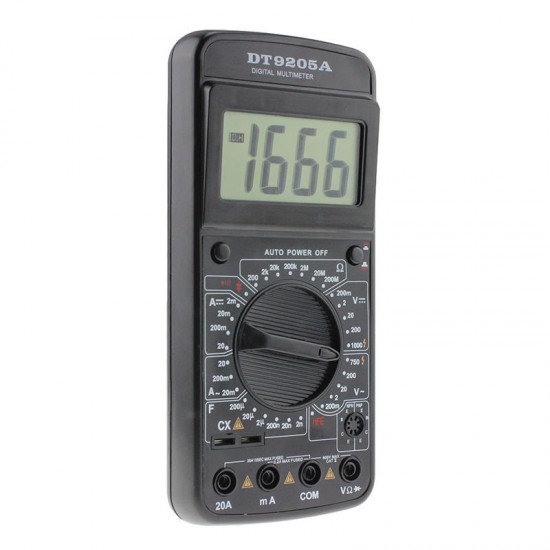

DT-9205A Digital AC DC LCD Professional Electric Handheld Tester Multimeter
- Stock: In Stock
- Model: EB004503
- SKU: EB004503
Accurate, compact, handheld, easy to carry and operate, battery powered.
A large LCD screen.
Fully featured with over surge protection.
Automatic shutdown function for ideal use.
COMS integrated circuit, the principle of double integral A/D conversion.
Automatic zero, auto-polarity selection.

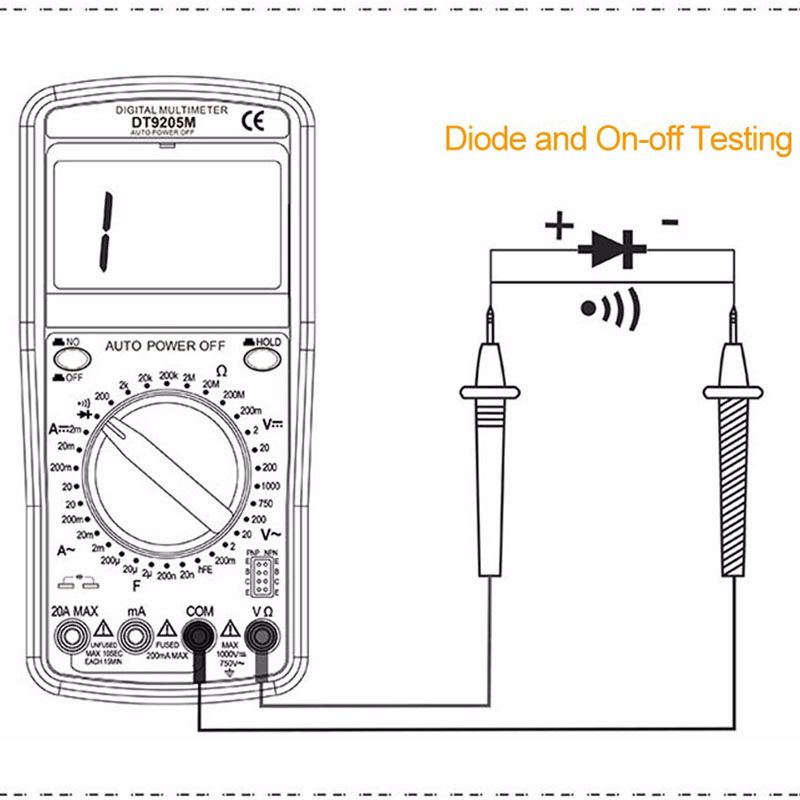

High quality test buzzer sound and LED indication.
Maximum voltage between terminals and earth ground: 1000DC or 700VAC
Fuse proteciton: F 200mA/250V
Display:LCD

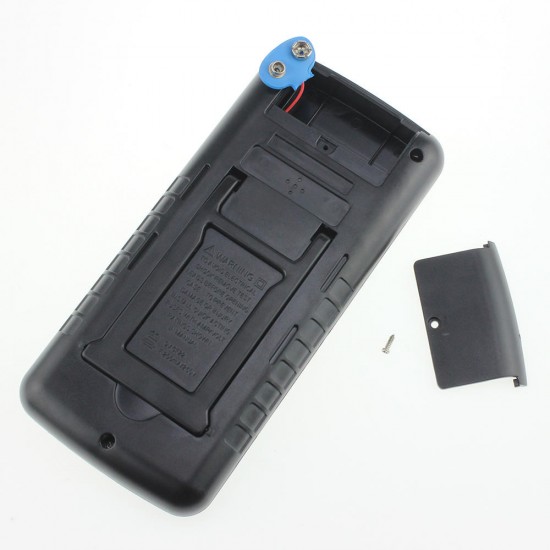

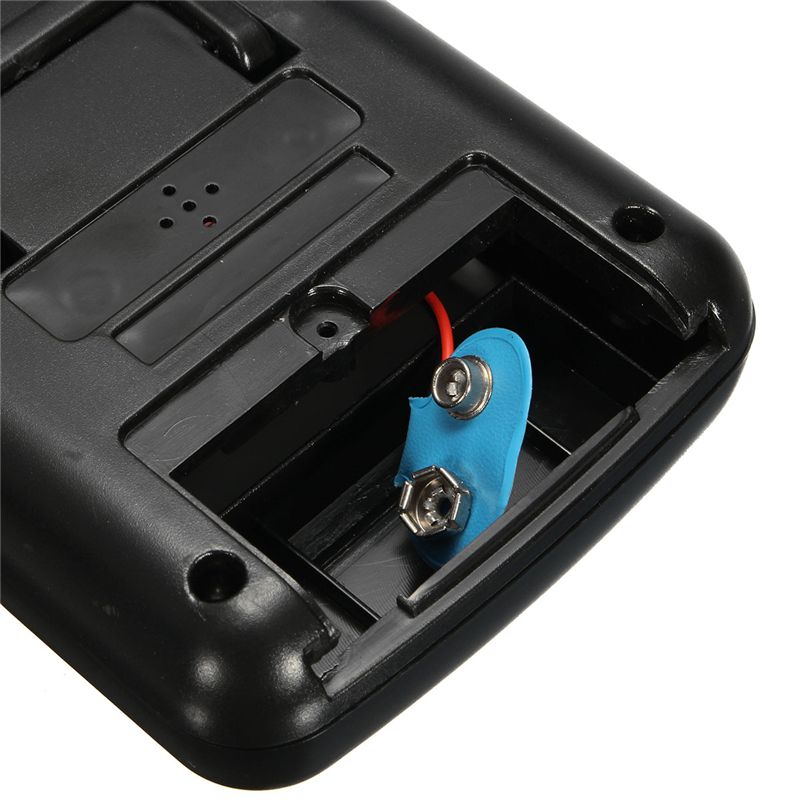

Power: 9V battery, NEDA 1604 0r 6F22(Battery not included)
Operating temperature: 0~40℃
Storage temperature: -10~50℃

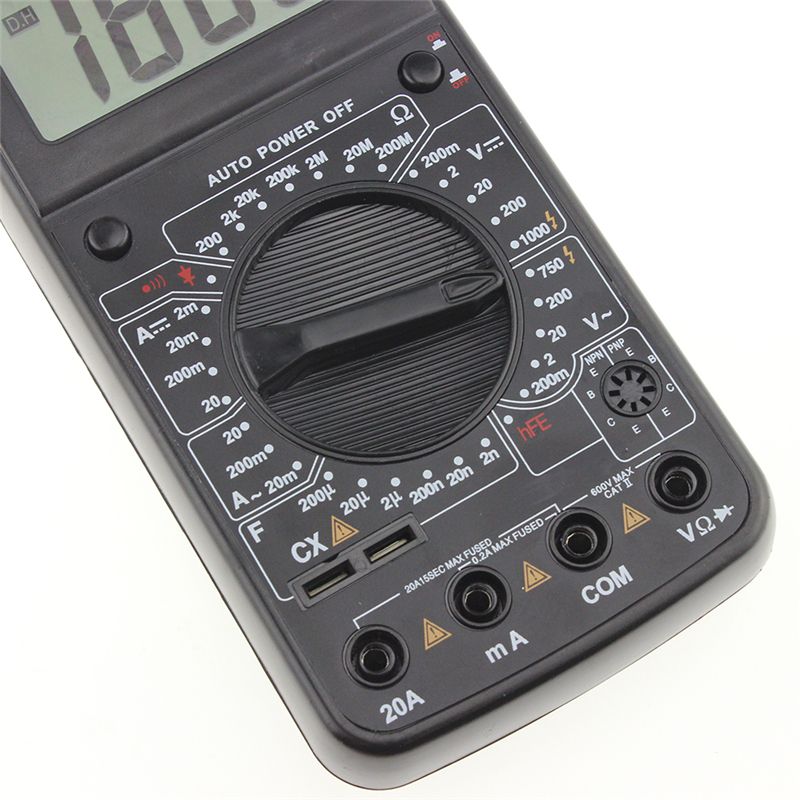

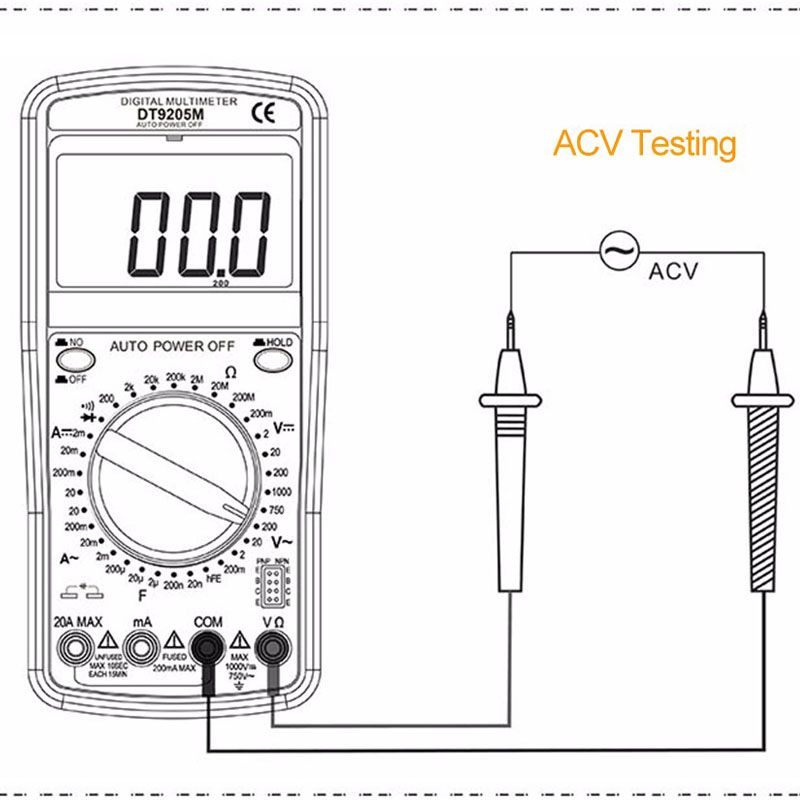

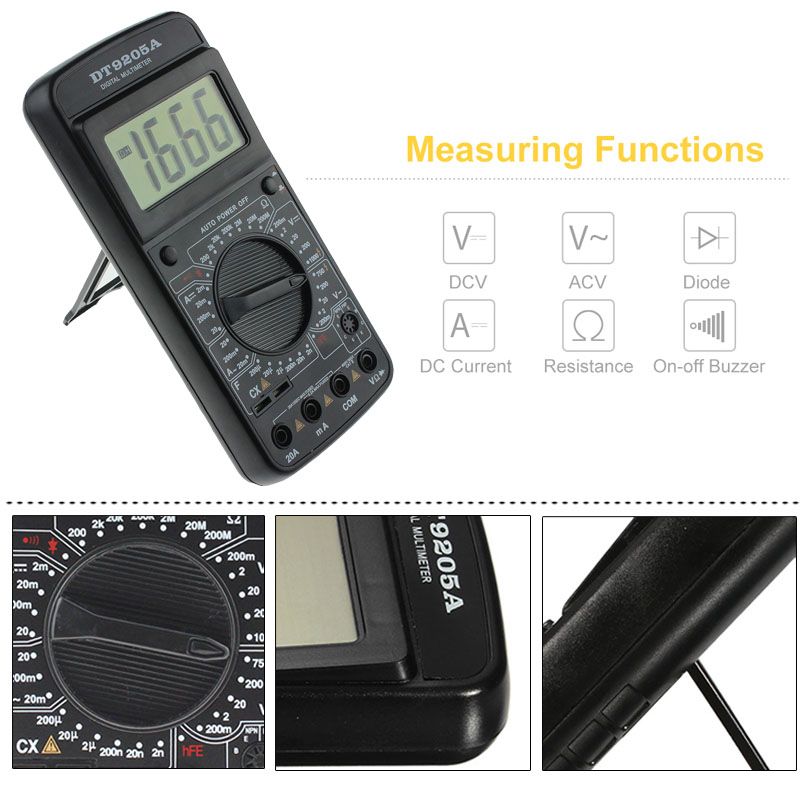

AC Voltage (V): 200mV, 2V, 20V, 200V, 700V

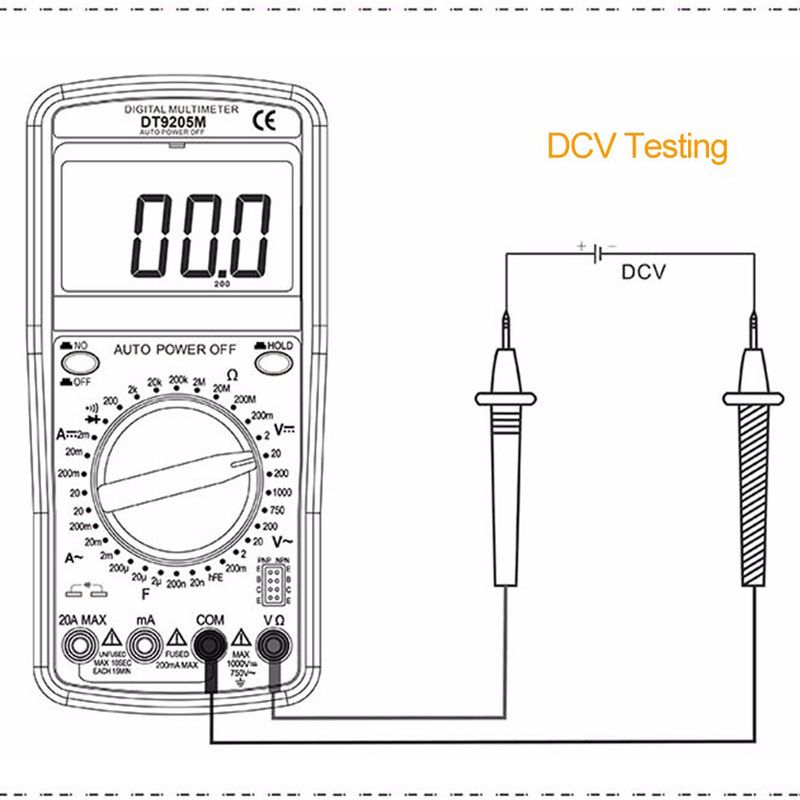

DC Voltage (V): 200mV, 2V, 20V, 200V,1000V
AC Current (A): 2mA, 20mA, 200mA, 20A

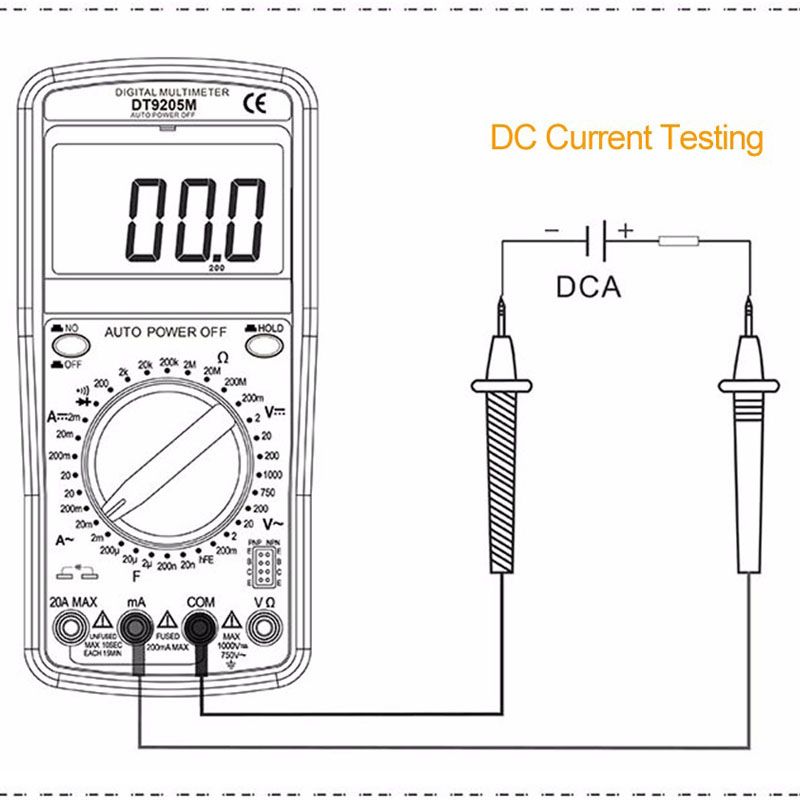

DC Current (A): 2mA, 20mA, 200mA, 20A

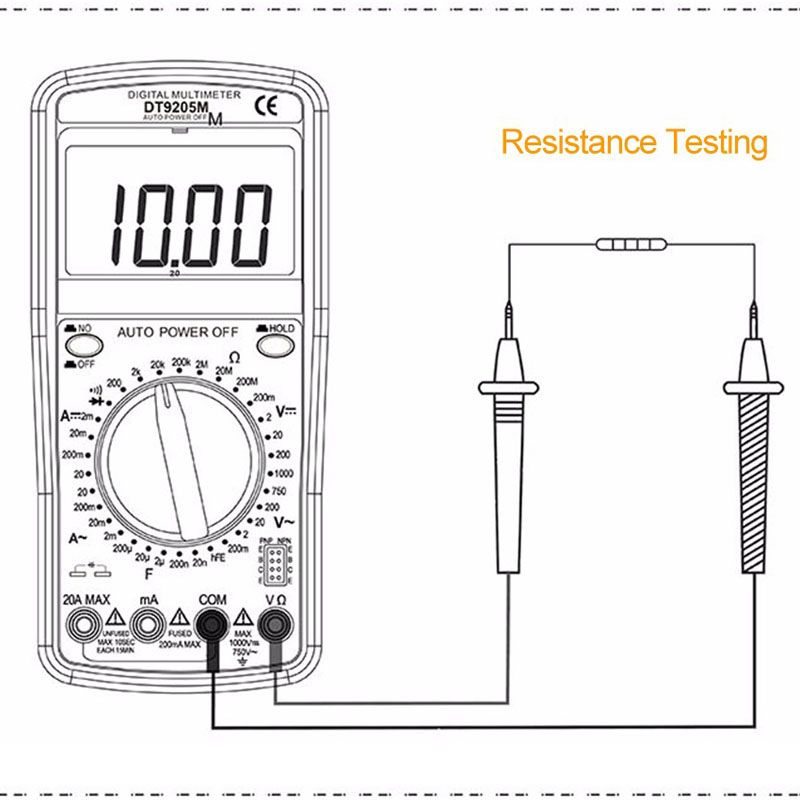

Resistance (Ohm): 200, 2k, 20k, 200k, 2M, 20M, 200M, 2000M

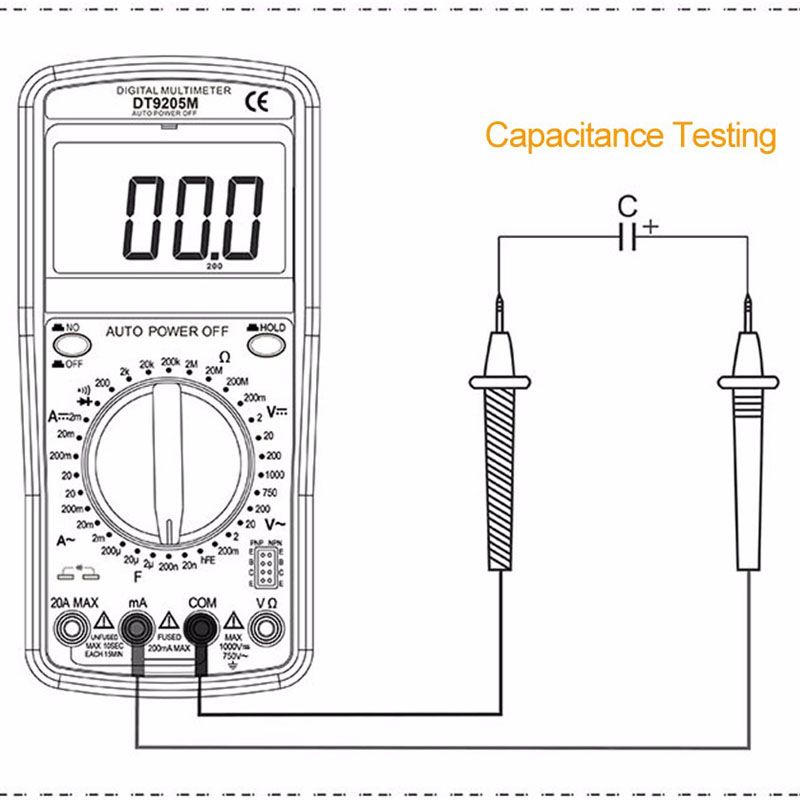

Capacitance (F): 2nF, 20nF, 200nF, 2uF, 200uF
Size: approx. 32*87*181mm

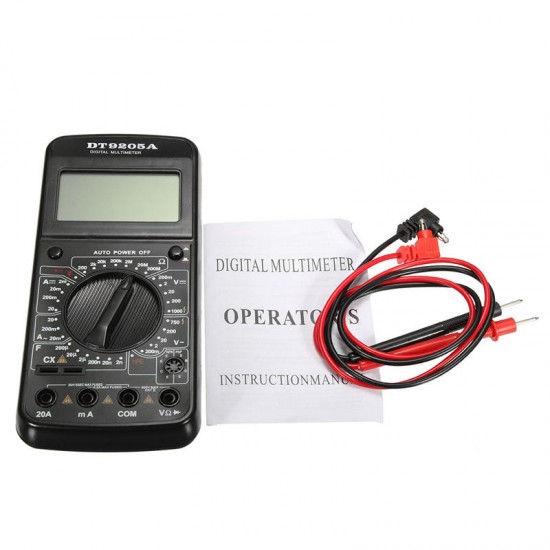

1 x Digital Multimeter (Battery not included)

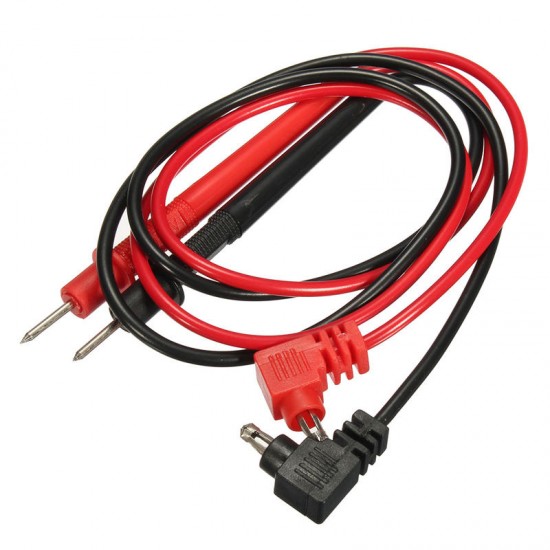

2 x Test Leads Cable
1 x User Manual
