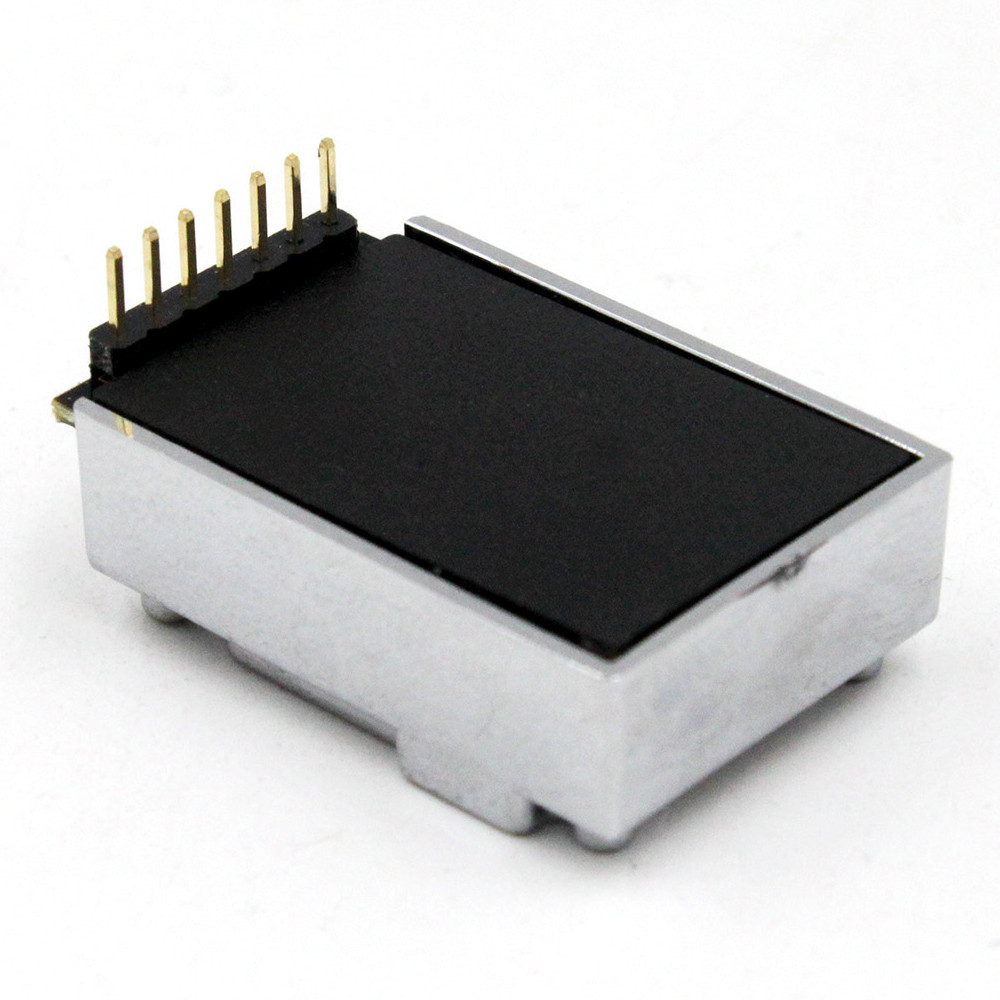

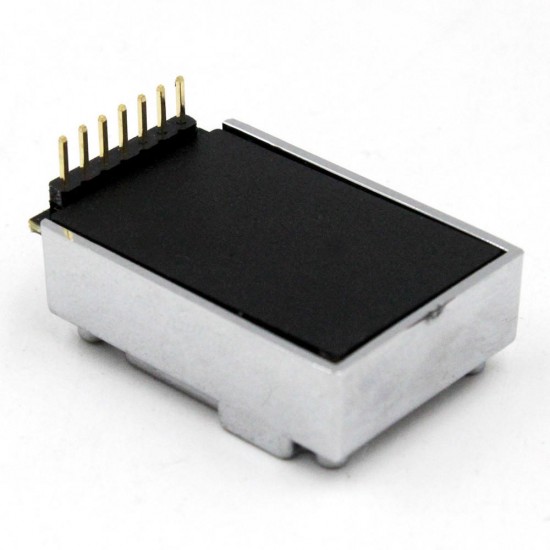

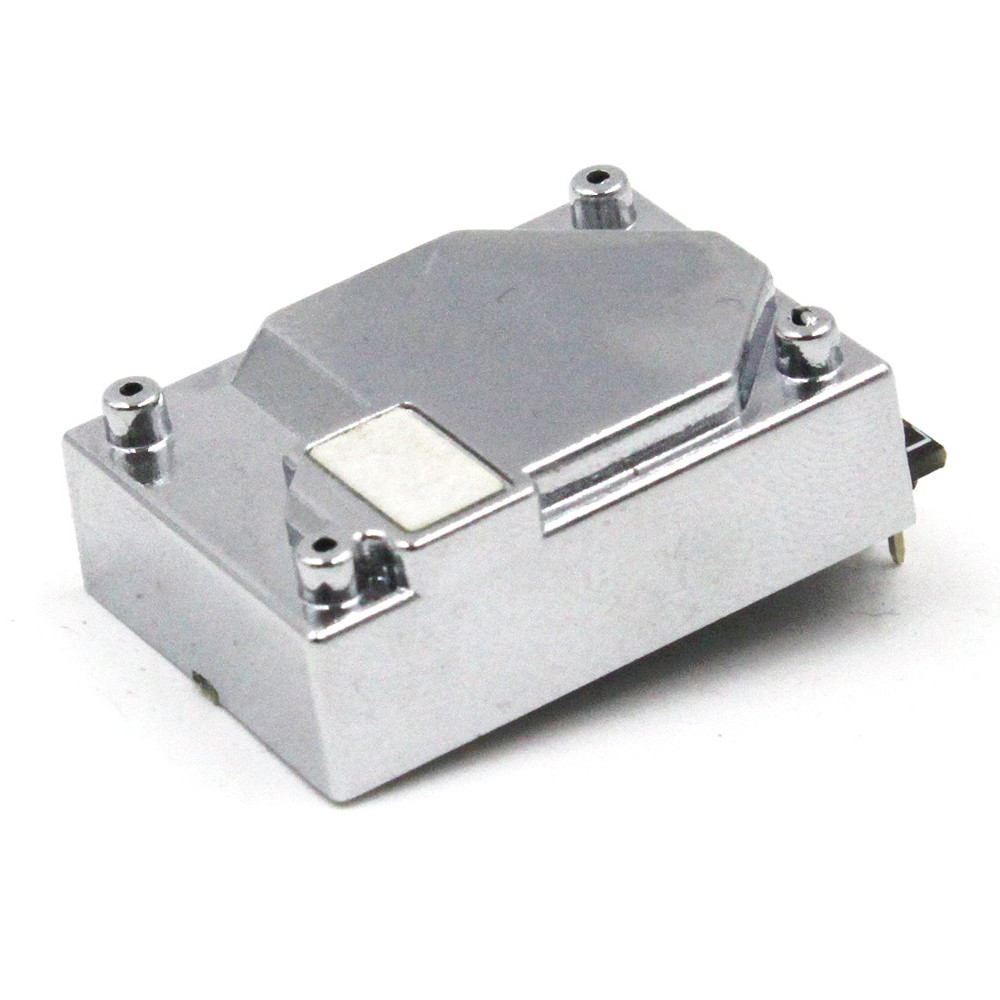

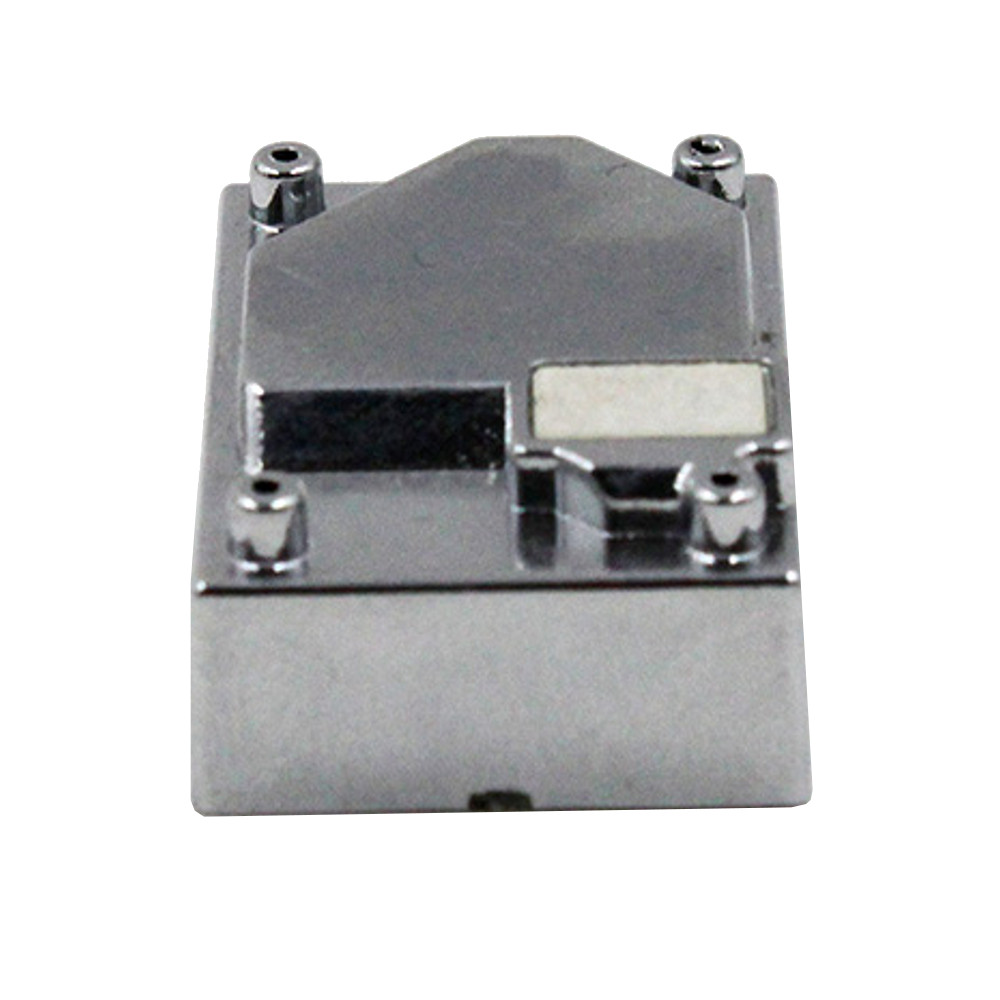

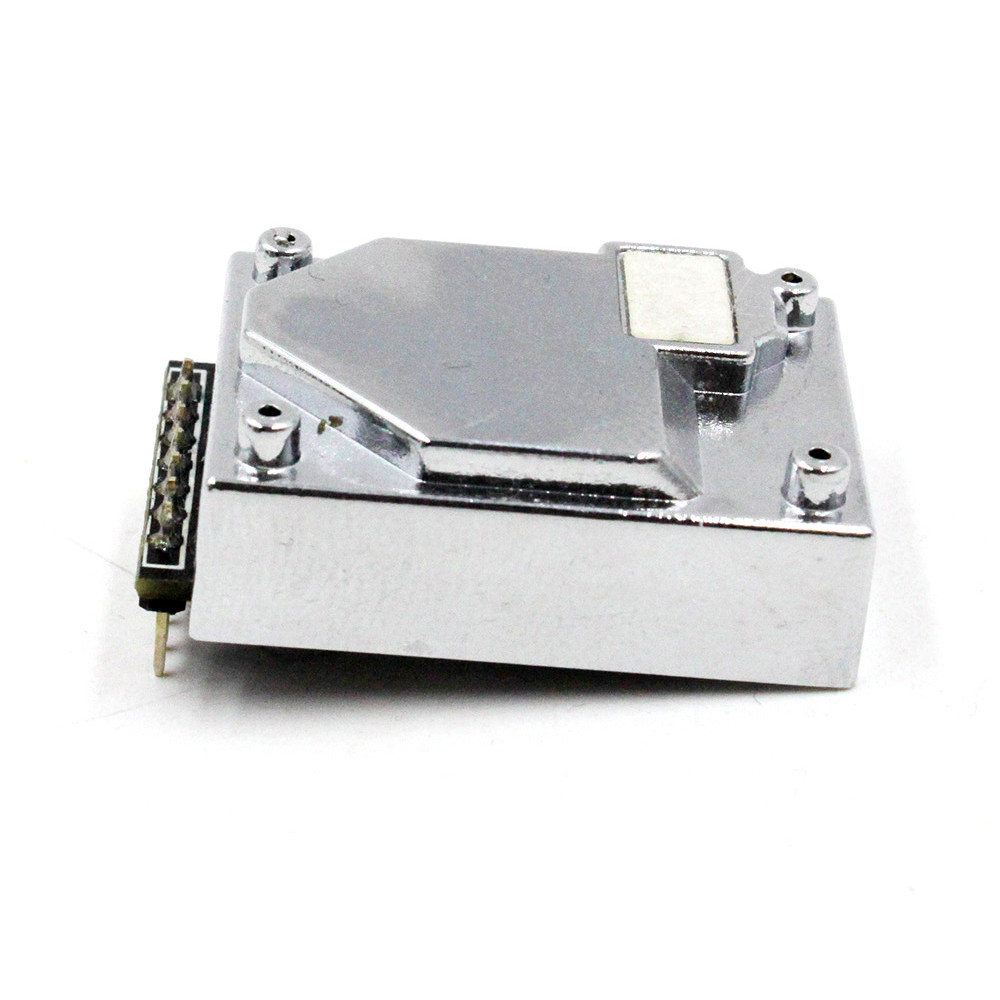

DS-CO2-20 CO2 Sensor Dual Channel Gas Accurate Detection of Carbon Dioxide Sensor Module
- Stock: In Stock
- Model: EB0046490
- SKU: EB0046490

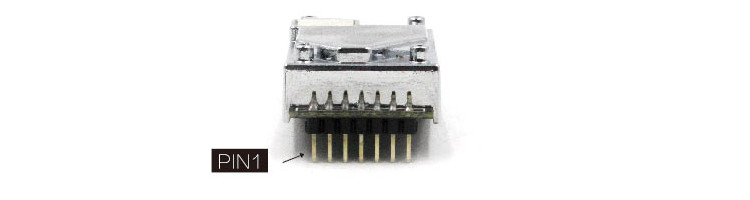

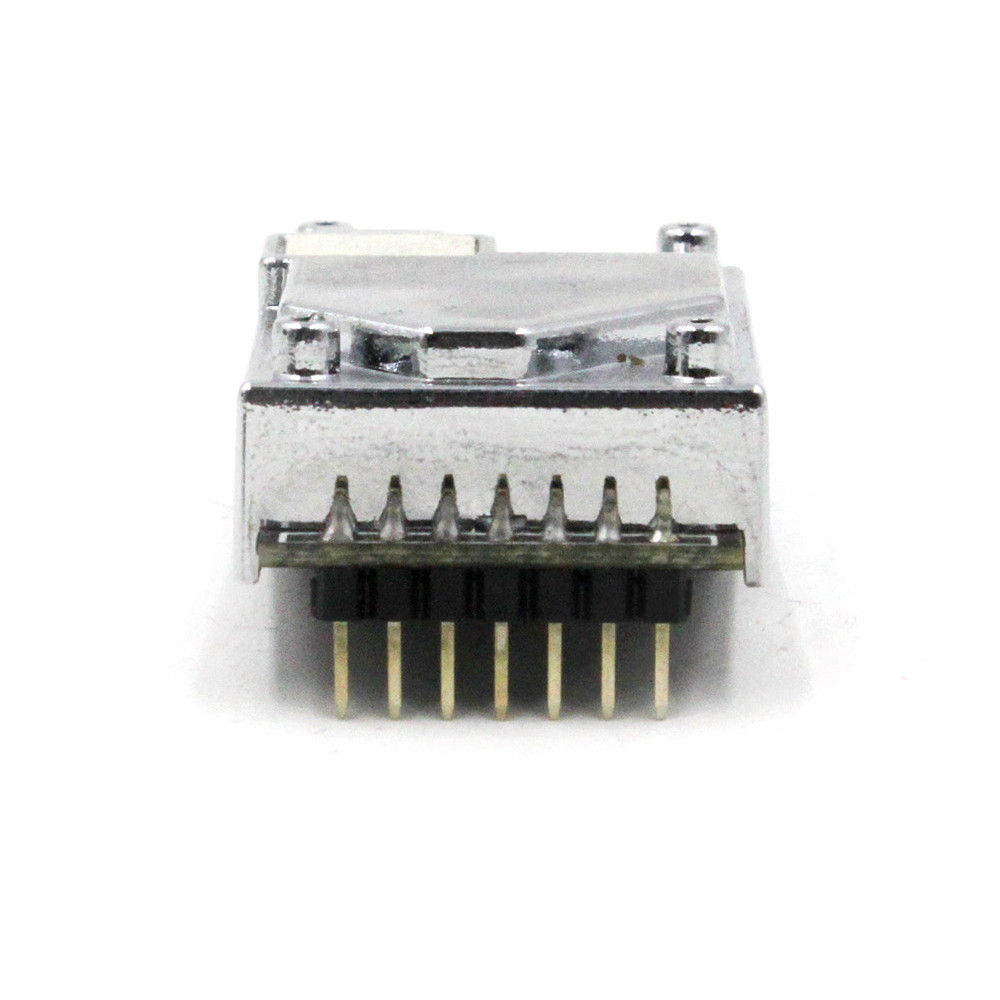

| P1N1 | VCC | Power supply (+5V) |
| PIN2 | GND | Negative power supply |
| PIN3 | TXD | Serial Receiver Pin / TTL Level @3.3V |
| PIN4 | RXD | Serial port transmit pin / TTL level @3.3V |
| PIN5 | RESET | Module reset signal / TTL level @3.3V, low reset |
| PIN6 | NC | NC |
| PIN7 | NC | NC |
| Parameter | Index | Unit |
| Effective | 400~3000 | ppm |
| Maximum | 400~5000 | ppm |
| Resolution | 1 | ppm |
| Precision | ± (50ppm + 5% FS) | |
| Single response time | <3 | Seconds (s) |
| Comprehensive response time | ^25 | Seconds (s) |
| DC supply voltage | Typ: 5.0 Min: 4.5 Max; 5.5 | Volt (V) |
| Working current | Peak 400 average 40 | Milliamper (mA) |
| Stand-by current | <=200 | Microamp (mA) |
| Data interface level | L <0.8 @3.3, H>2.7@3.3 | Volt (V) |
| Working temperature | 0-50 | Photographing degree (2) |
| Operating humidity | 0~85% non-condensing | |
| Storage temperature | -40~85°C | Photographing degree (2) |
| Mean time between failures | >=3 | Year (Y) |

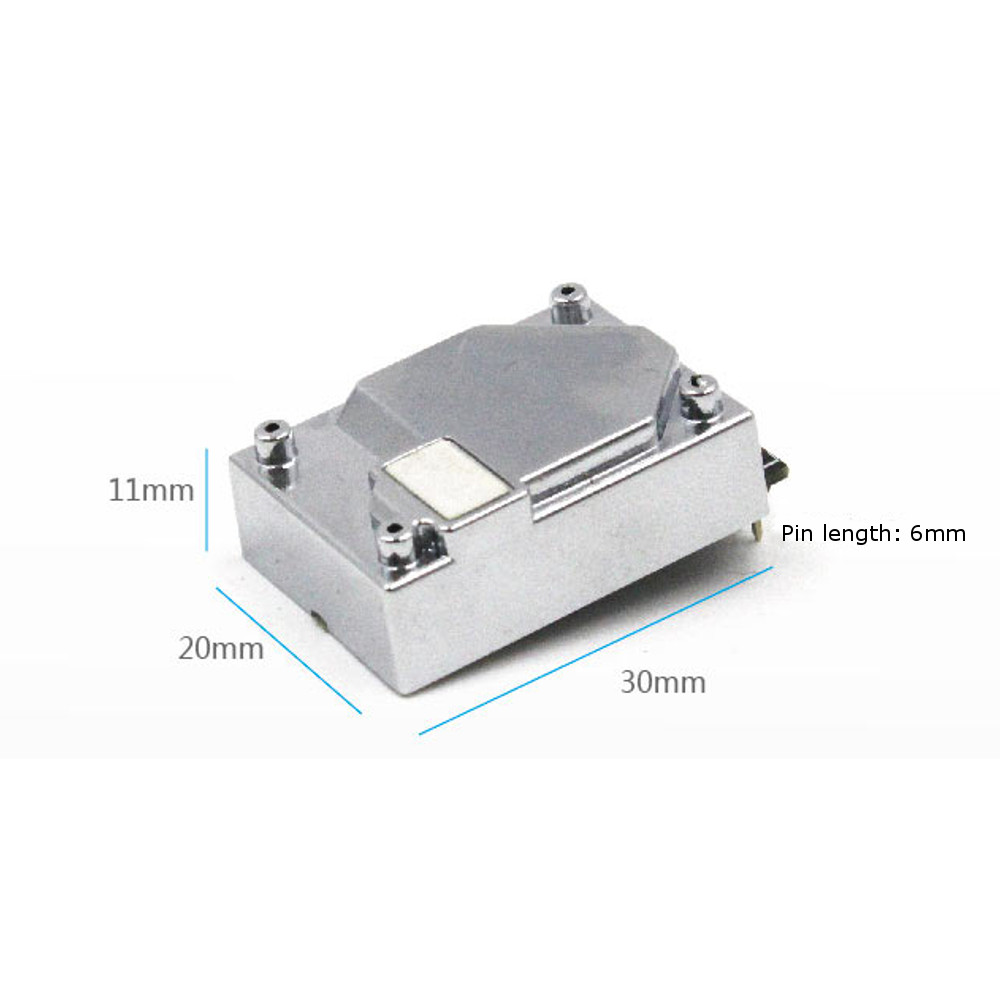

| Pin spacing | 2 | Millimeter (mm) |
Package includes:
1 x CO2 Sensor
